3 Row Aluminum Radiator Shroud Fan Fit 1977-1982 80 Chevy Corvette C3 V8 5.7L AT
Welcome to our store!!! Cooling_alloyworks hope you are happy with your purchase. Thank you for choosing us, have a great day!
All products support easy return & lifetime warranty!!!Orders paid before 9:30am support same-day shipping. (Notes: Pls make sure the post code&city is right, so that we can send your order in time) Good Feedback is very important to us. Any questions, please feel free to contact us.We will try our best to solve your problem.
Pls check the item pictures and size to get the suitable items.
Package Include: Powerful 80 watt motor will keep your engine cool.
1 X 3-Row Aluminum Radiator
1 X Radiator Cap
1 X Aluminum Shroud
2 X 12" Fans (Includes mounting kits)
FITMENT:
For Chevy Corvette 350ci 5.7L V8 1977-1982
Radiator Size：
High Performance Racing Spec.

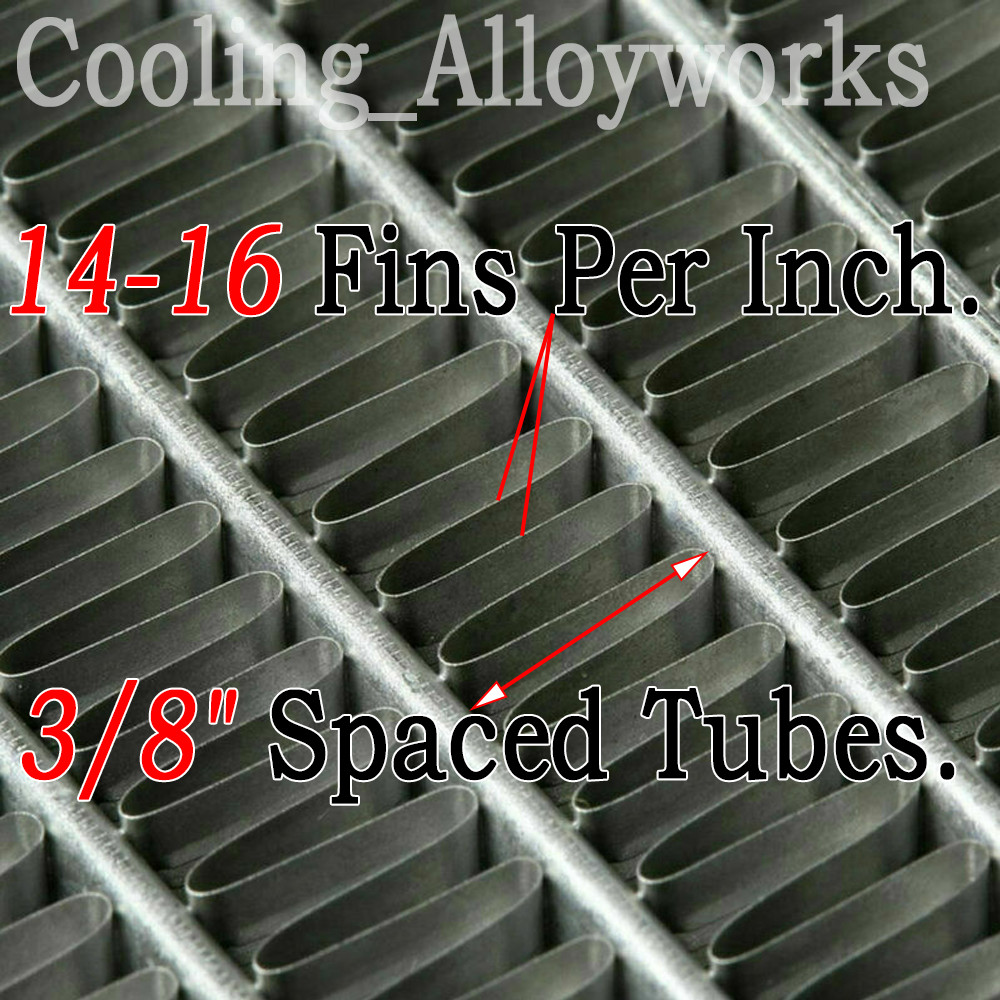

3-Row of tubes Core Racing Design
Core Dimensions: 17" High x 26-3/4" Wide
Overall Dimensions: 19-1/4" High x 32-1/4" Wide
Upper inlet：1-3/8"located on the Driver side
Lower outlet: 1-1/2"located on the passenger side
Transmission Oil Cooler: ï¿ 26*205*G1/4(Z)
Fan Specification:
Diameter : 12'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 80W
Fan Thickness: 2.5"
Number of Blades: 10 S-Type blades
Maximum Fan CFM（Cubic Feet per Minute）: 2150cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
Aluminum Shroud+Fan：
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
Cooling_alloyworks mainly product 2/3/4/5 Rows radiators,also some intercoolers,CV alxe, S/S manifold/silicone hose/pipes,wheel spacers,oil cooler, etc. which is suit for up to hundreds of car models.It's a 20-year professional car/motorcycle parts ebay seller.

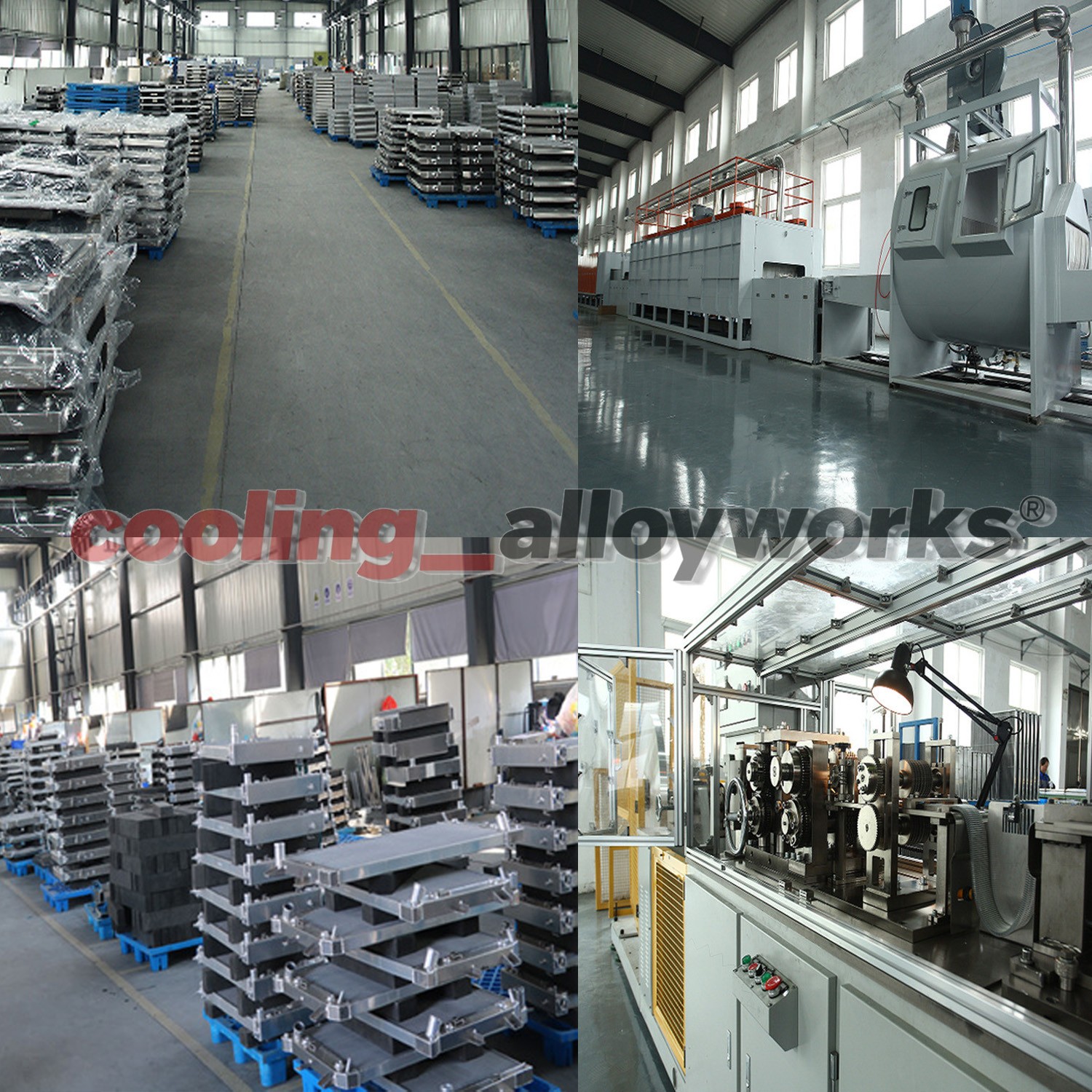

We have own vehicle parts manufacturer. So our price is factory direct price.
