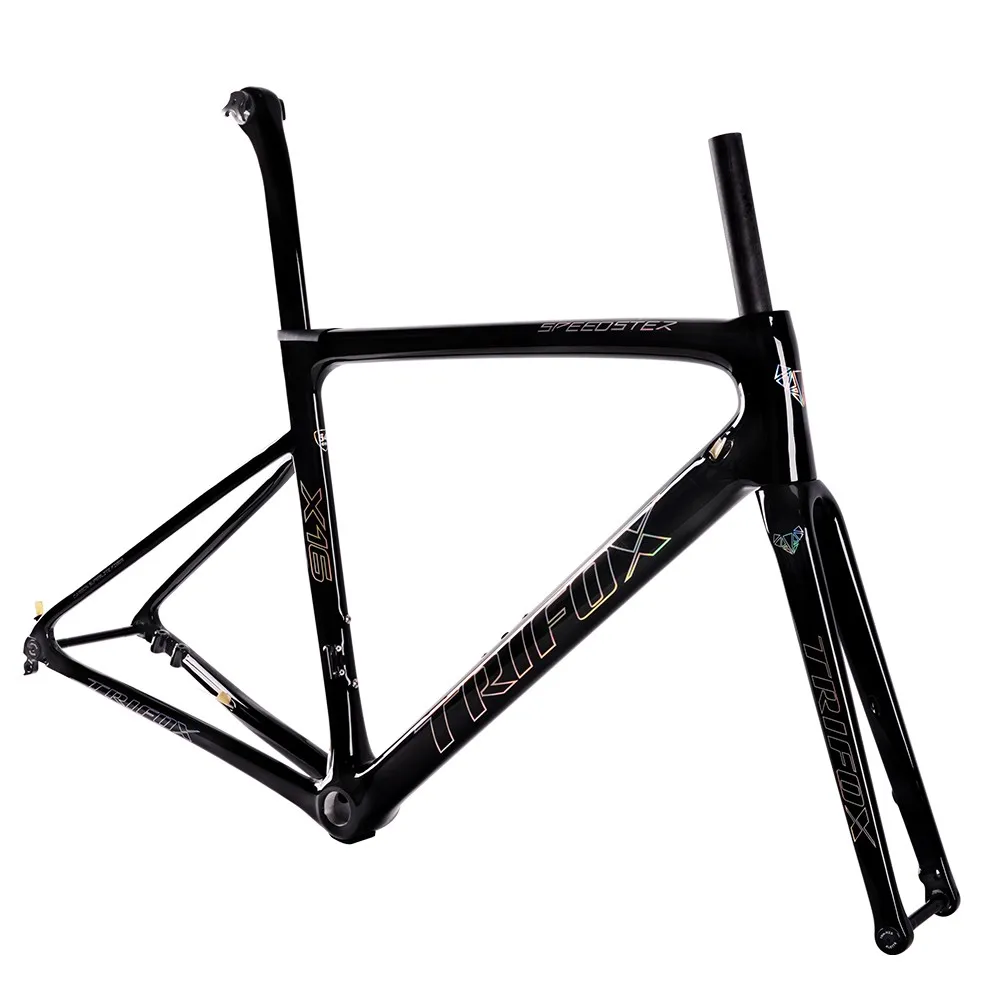

SuperLight Carbon T800 Road Bike Frame Glossy The Alex Thru Quick Release BB68 DI2 Road Racing Bicycle Frameset

TRIFOX Super Light Carbon Cycle Frame X16TA


Lightweight Carbon Road Bike Frameset X16

Parameter


Product Name

Bike Frameset X16TA

Type

Road Bike Frame

Style

Super Light Bike Frame

Available sizes

700C (44 / 49 / 52 / 54 / 56 / 58 cm)

Available Colors

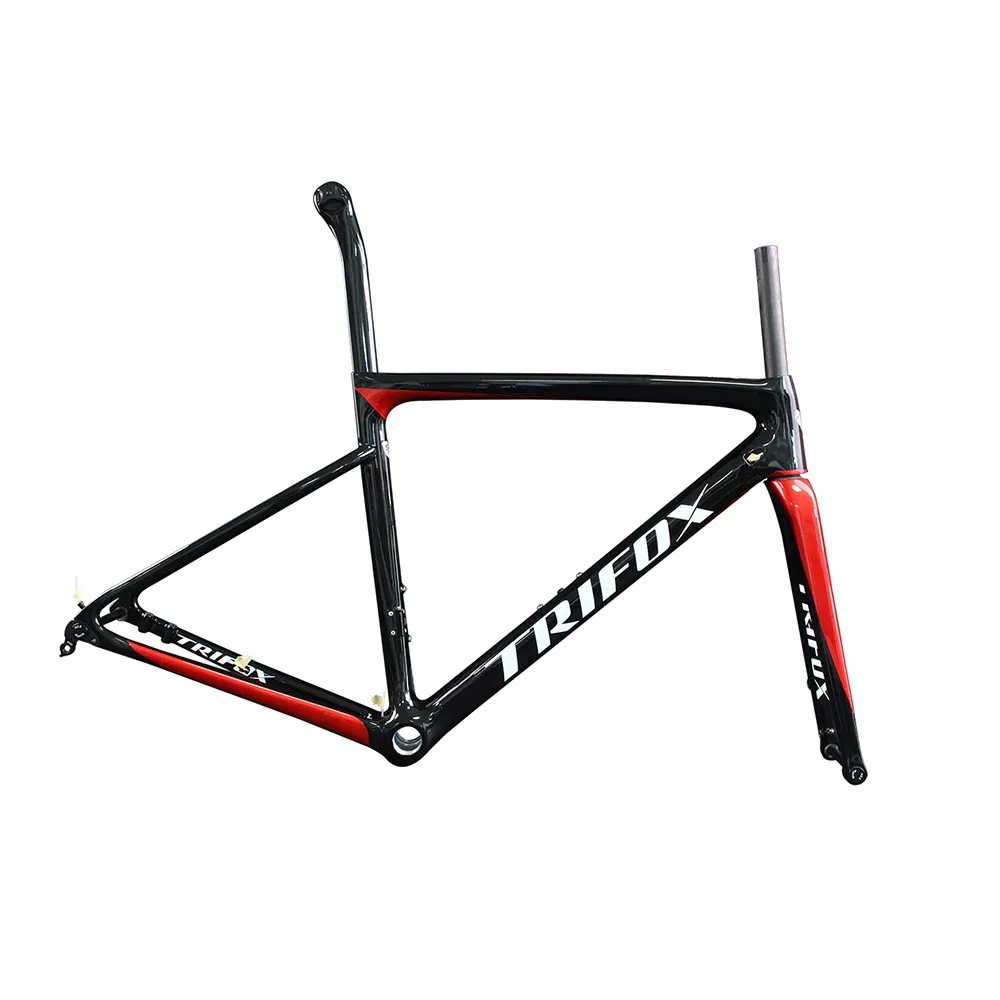

Chameleon Blue / Chameleon Purple / Hollow / Little Star / Red & White

Material

T800 Full Carbon Fiber

Finish

Matte black and glossy color painting

Weave

UD

Headtube

1-1/8" To 1-1/2" Tapered Integrated

Bottom Bracket

BSA-BB68 (φ 34 mm, L 68 mm)

installable

DI2 / Mechanical derailleurs

Max Wheels & Tire Size

700 x 25C

O.L.D

φ9x100 mm; /φ12x142 mm

Fork Rake / Offset

50 mm

Braking System

Disc Brake/V brake

saddle installation method:

Lock left and right

Dropout

The Alex Thru/Quick release rod

Package Content

1 x Carbon Road Bike Frame X16

1 x Fork

1 x Seatpost

1 x Headset

1 x Seatpost Clamp

1 x Rear Derailleur Hanger(on the frame)

Warranty

2 years


Frame Parts

44cm

49cm

52cm

54cm

56cm

58cm

Stack

A
(mm)

500

514

527

544

565

591

Reach

B
(mm)

365

375

380

384

395

402

Head Tube Length

C
(mm)

105

115

126

143

163

190

Head Tube Angle

D
(°)

70.5

71.75

72.5

73

73.5

73.5

BB Drop

E
(mm)

74

74

74

72

72

72

Fork Lenght Full

F
(mm)

366

366

366

366

366

366

Fork Rake/Offset

G
(mm)

47

47

47

44

44

44

Front Center

H
(mm)

571

574

577

579

591

606

Chainstay Length

I
(mm)

410

410

410

410

410

410

Wheelbase

J
(mm)

969

973

975

978

990

1005

Top Tube Lenght Horizontal

K
(mm)

490

508

531

540

562

577

Seat Tube Lenght

L
(mm)

400

431

462

481

501

522

Seat Tube Angle

M
(°)

76

75.5

74

74

73.5

73.5


Internal wiring diagram

Product Weight

Frame Size

Weight

44cm

875g ± 30g

49cm

887g ± 30g

52cm

903g ± 30g

54cm

914g ± 30g

56cm

979g ± 30g

58cm

987g ± 30g

FORK

325g ± 2g

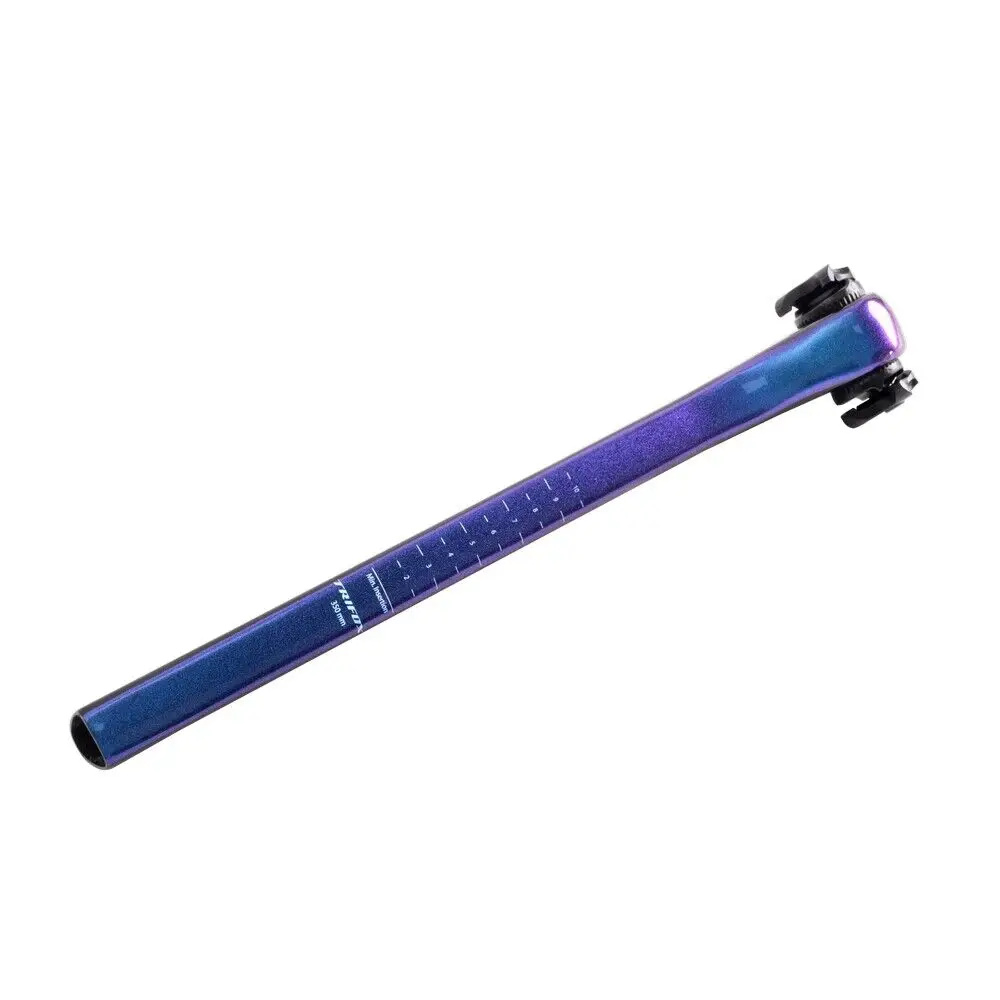

SEATPOST

182g ± 2g

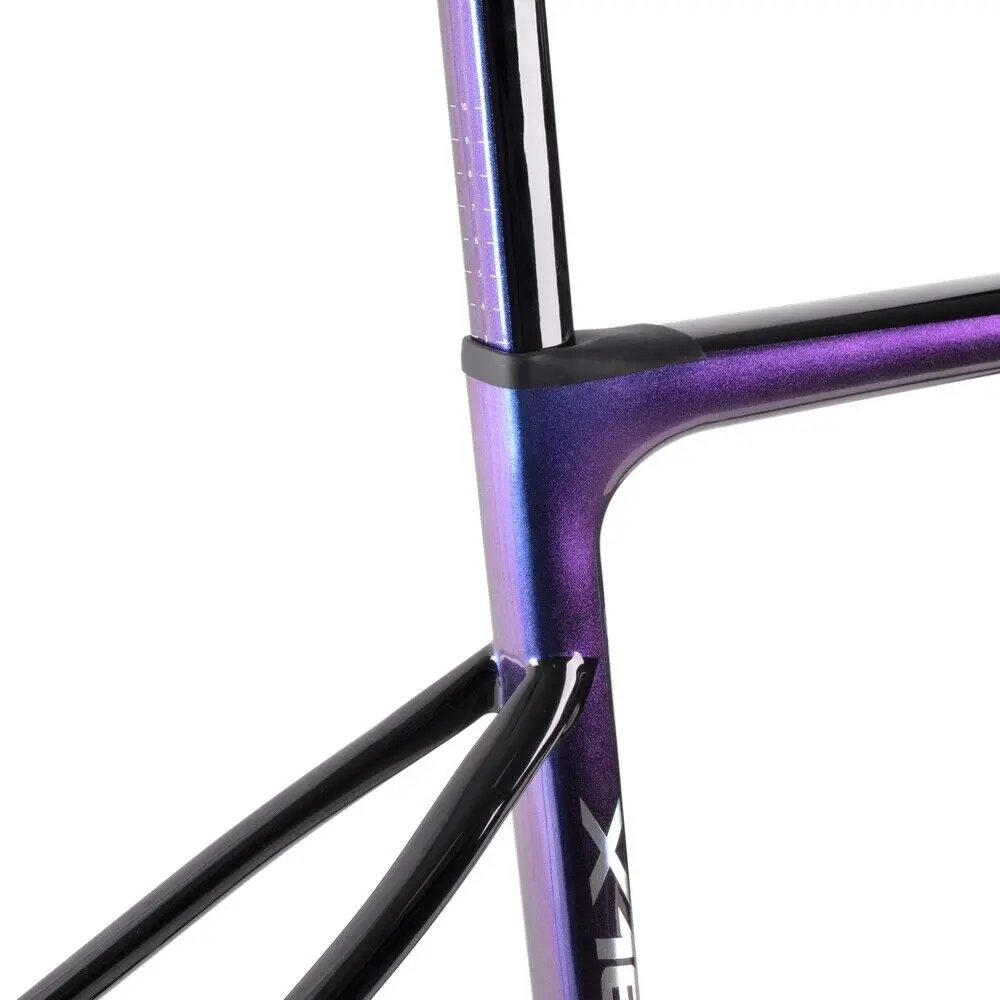

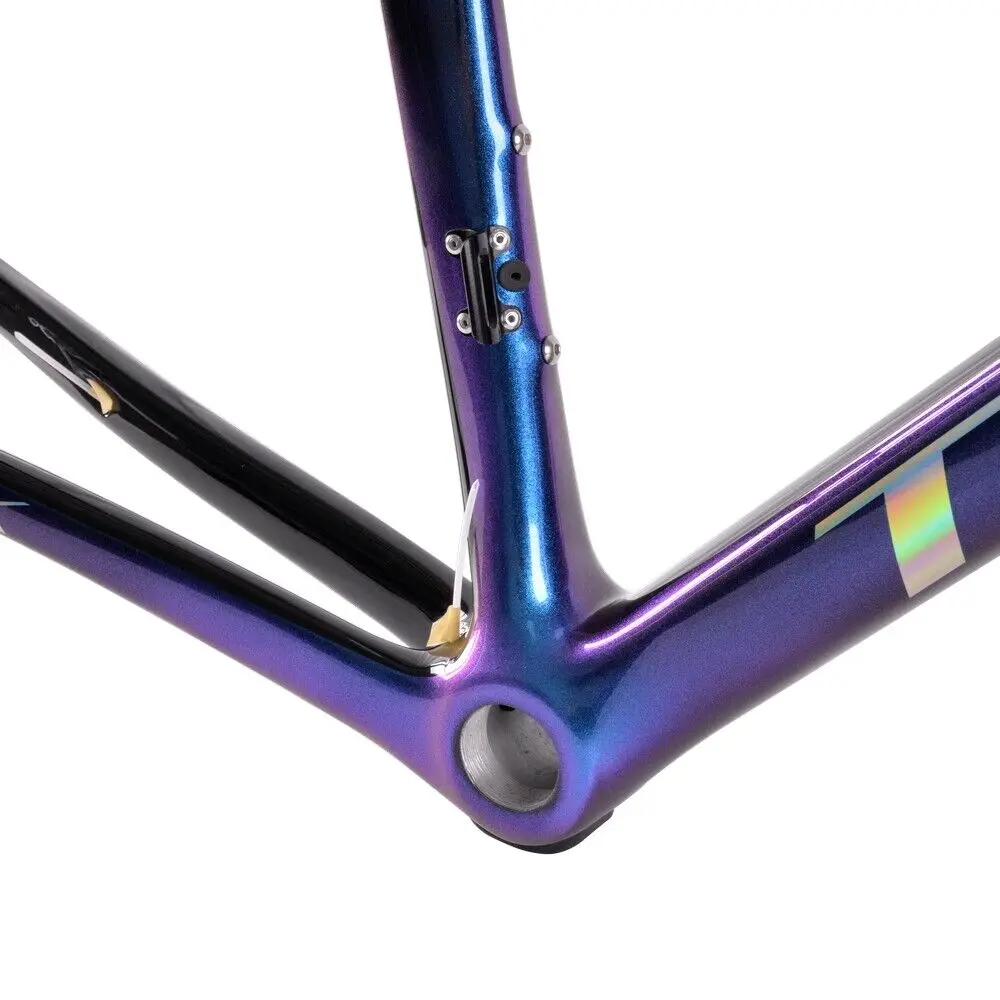

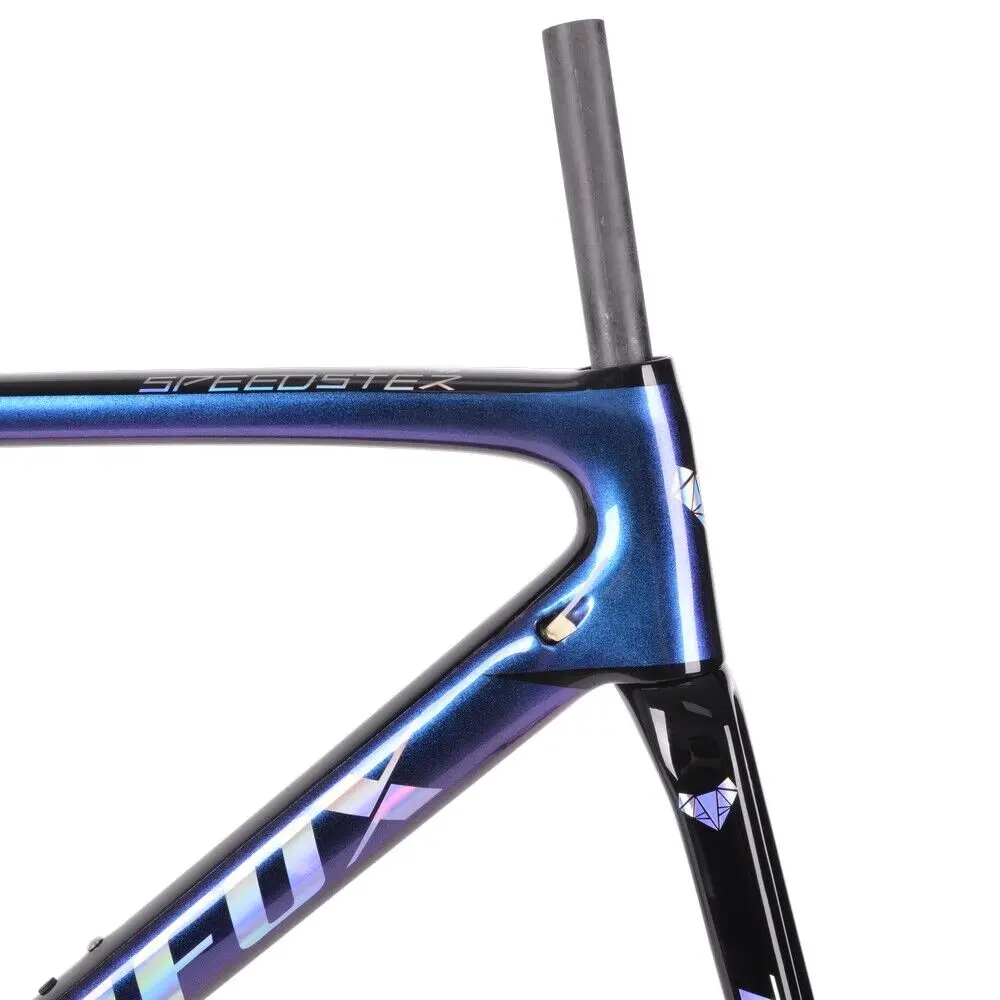

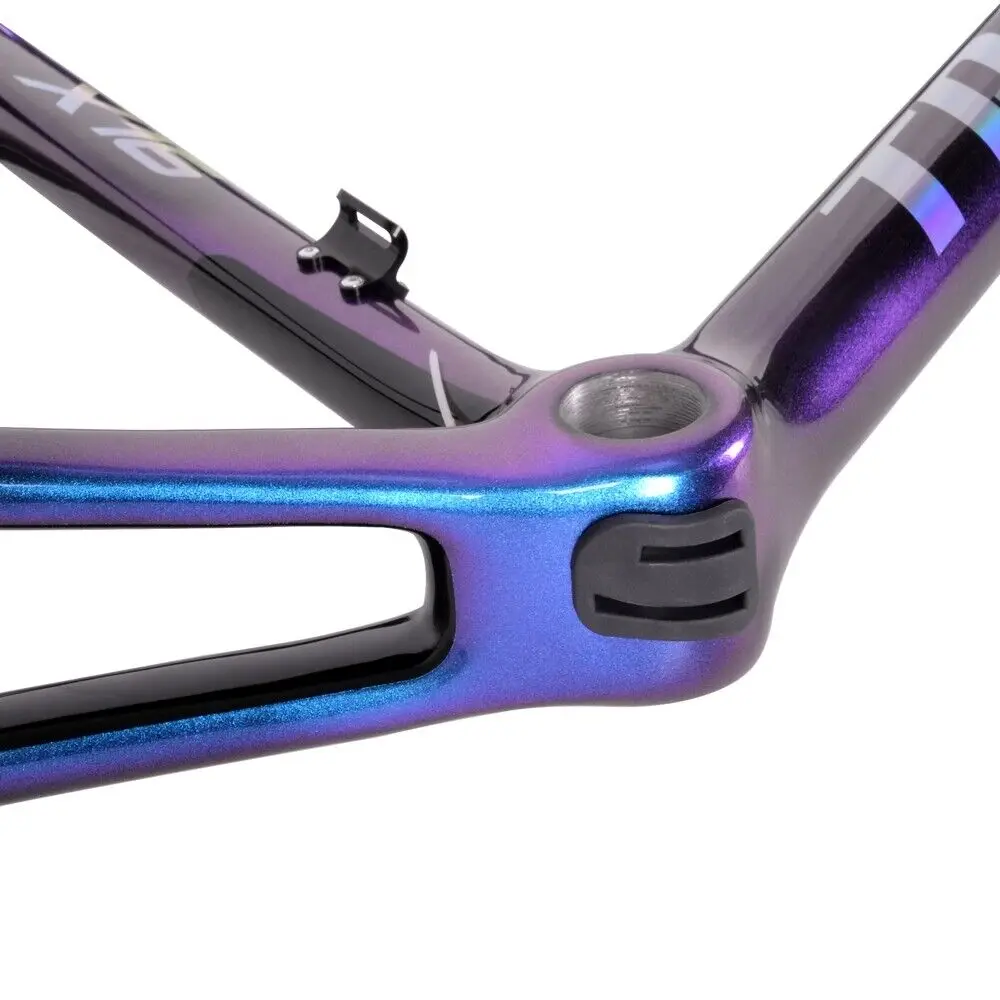

Product Details
