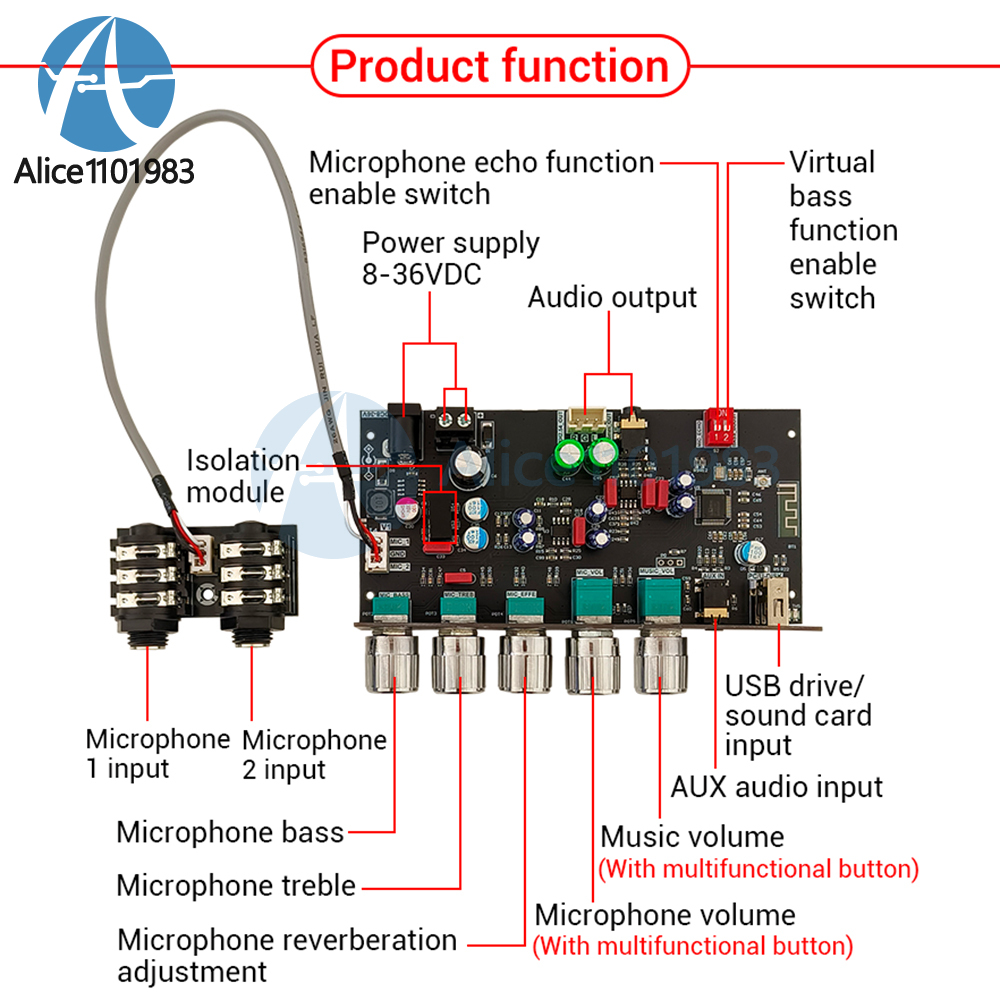

Product Details
1.Isolated design, effectively reduce common ground noise, ensure pure audio output.
2.Support Bluetooth 5.0, U disk, AUX multiple decoding modes, strong compatibility.
3. Dual 6.35mm microphone independent interface, support mixing and dynamic anti-whistling function.
4. Built-in virtual bass technology, enhance the low-frequency performance, sound more shocking.

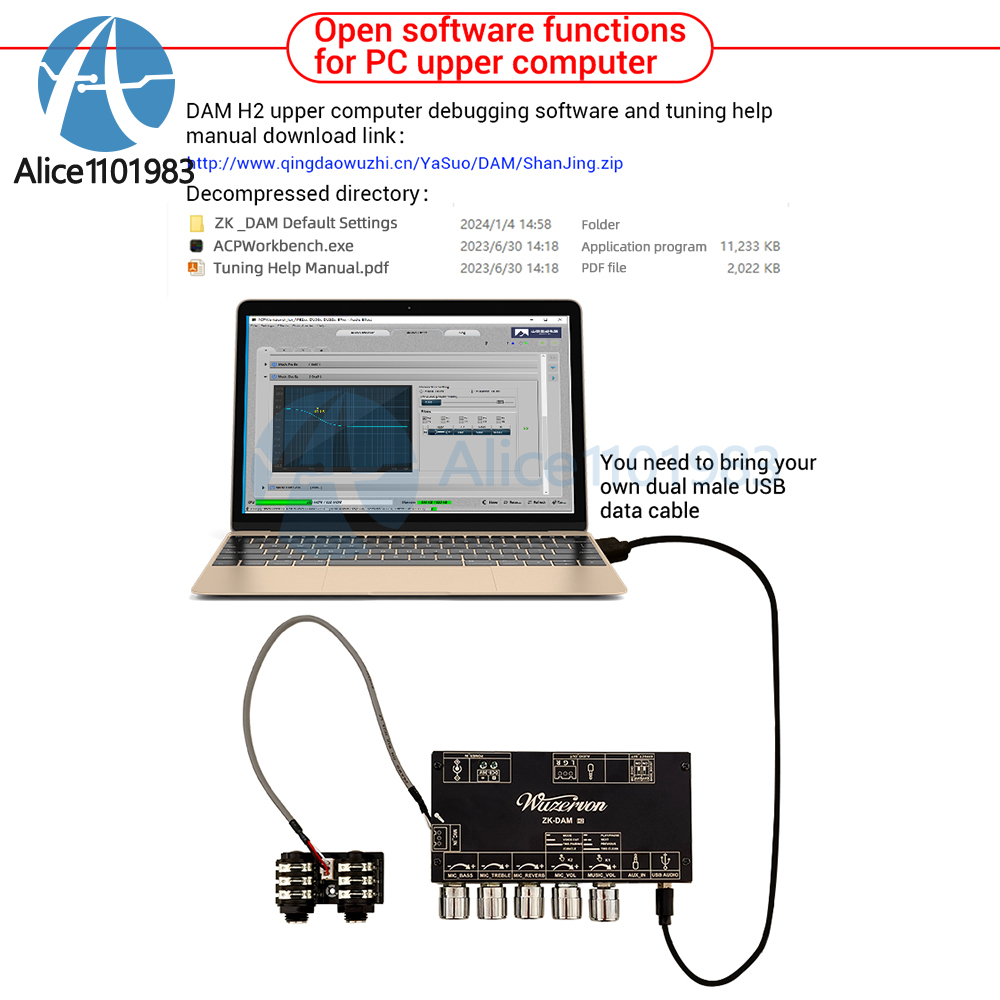

5. Upper EQ adjustable and power-down save, compact size of only 80x122x22.2mm.

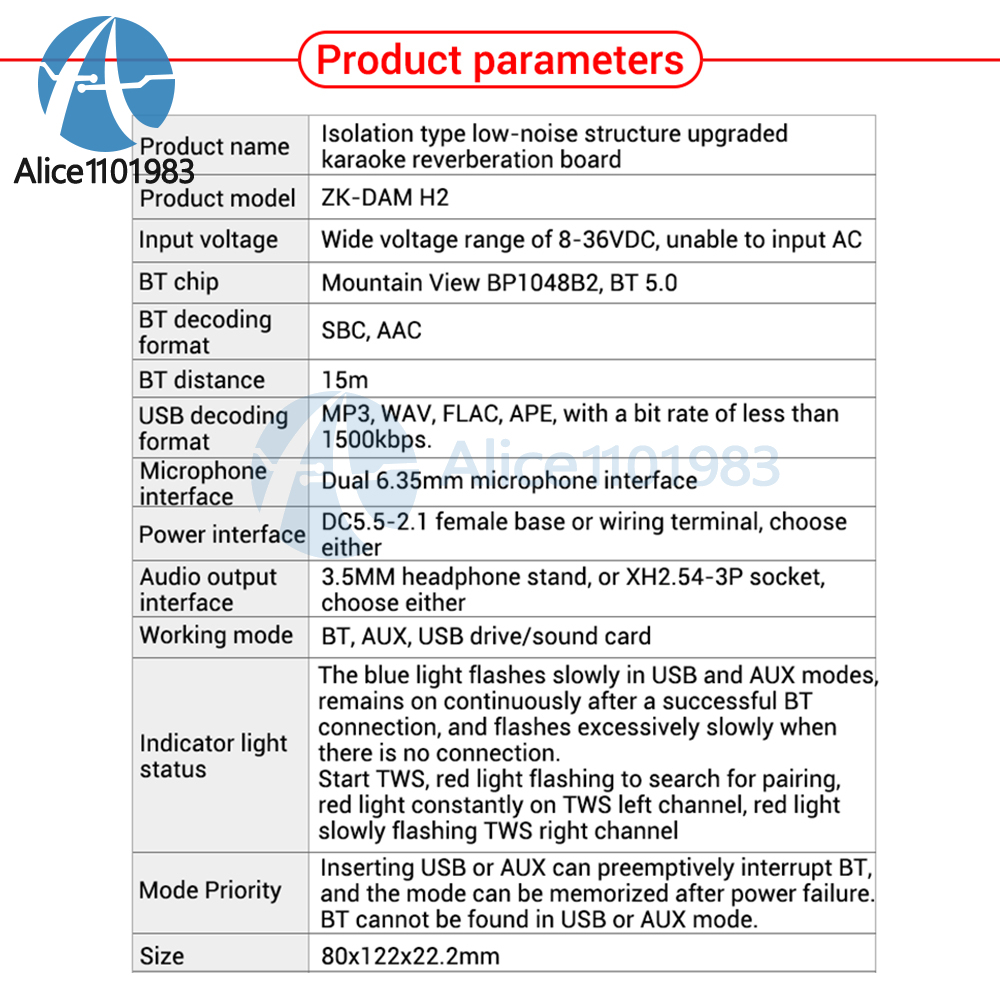

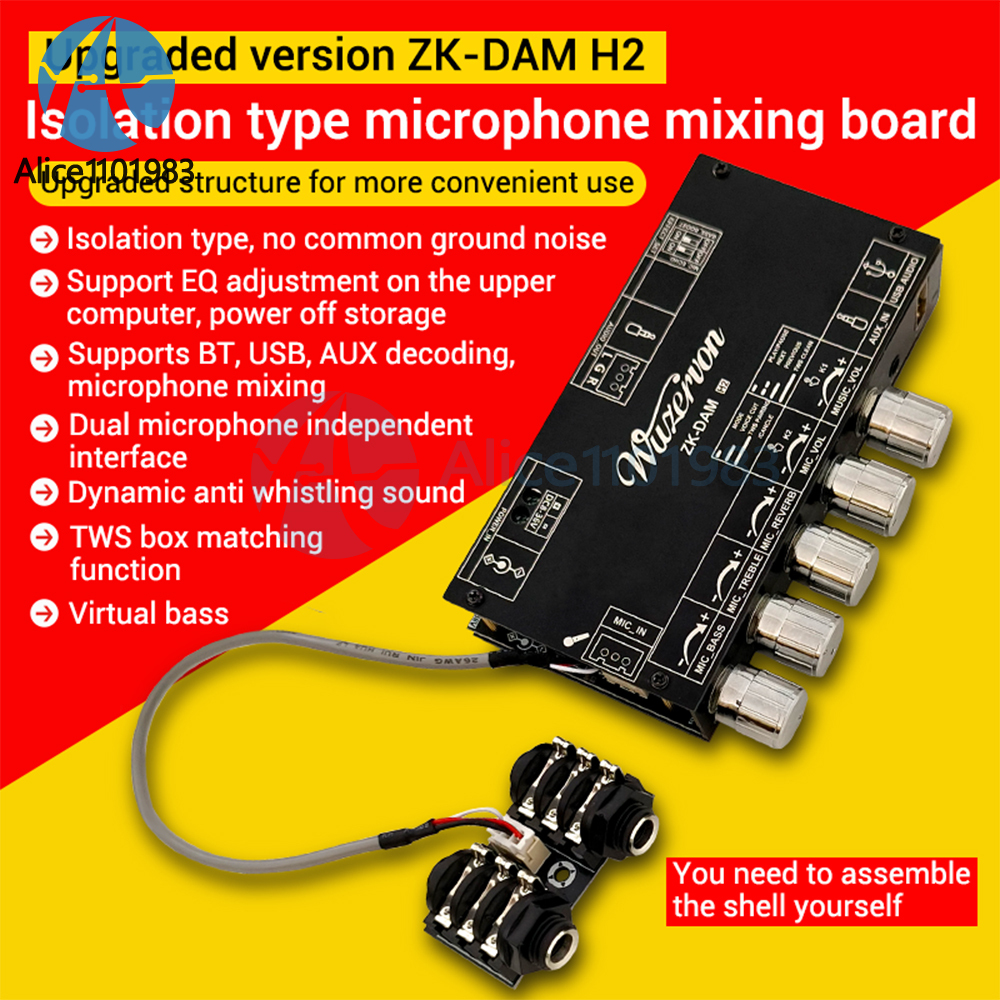

Product Name: Isolated low-noise structure upgraded version of karaoke reverb board
Product Model: ZK-DAM H2
Input Voltage: Wide voltage 8-36VDC, not AC input
Bluetooth chip: BP1048B2, Bluetooth 5.0
Bluetooth decoding format: SBC, AAC
Bluetooth distance: 15 meters
USB flash disk decoding format: MP3, WAV, FLAC, APE, bit rate should be less than 1500kbps.
Microphone interface: dual 6.35mm microphone interface
Power interface: DC5.5-2.1 female socket, or terminal block, either one or the other
Audio output connector: 3.5MM headphone socket, or XH2.54-3P socket, either one or the other
Operating modes: Bluetooth, AUX, USB flash drive/sound card

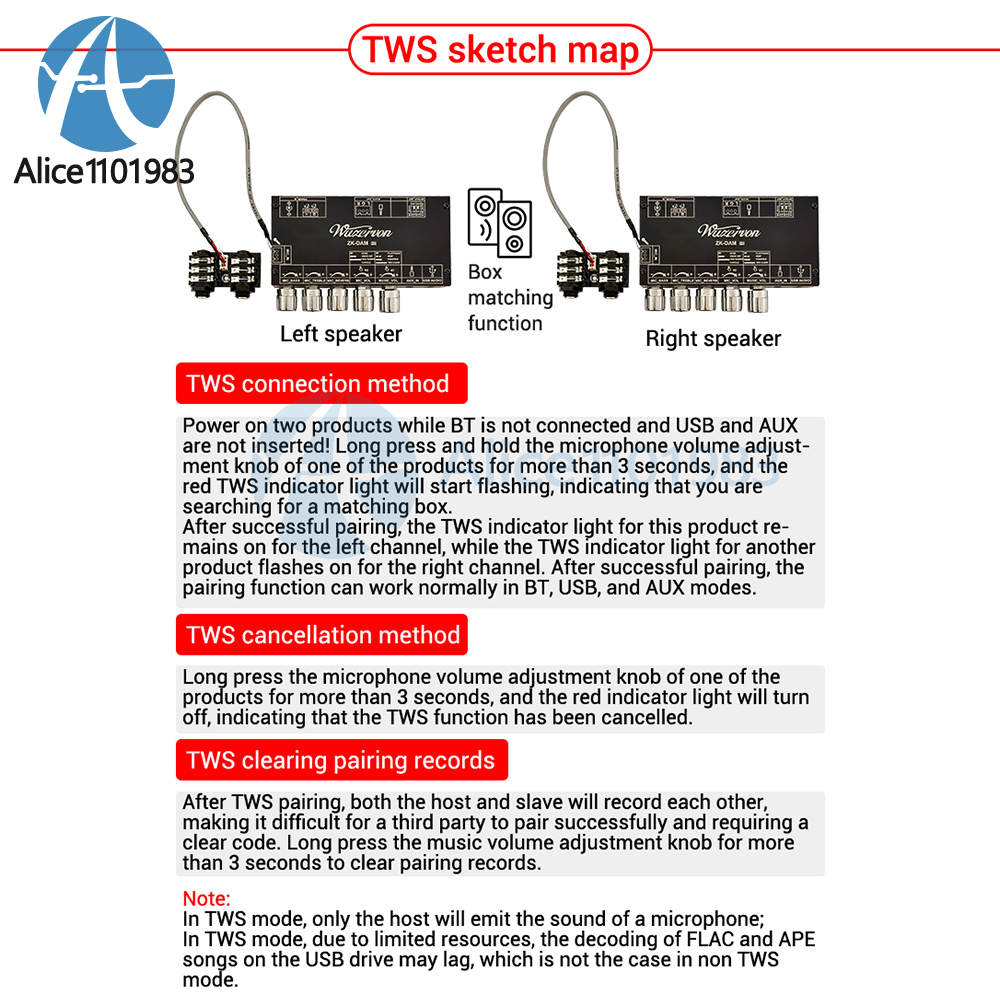

Indicator light status: blue light flashes slowly in U disk and AUX mode, Bluetooth connection success is always on, super slow flash when there is no any connection. Start TWS, red light blinking searching for pairing, red light always on TWS left channel, red light slow blinking TWS right channel
Mode Priority: Insert U disk or AUX can snatch the Bluetooth, the mode can be memorized after power down. Note: Bluetooth cannot be searched in U disk or AUX mode.

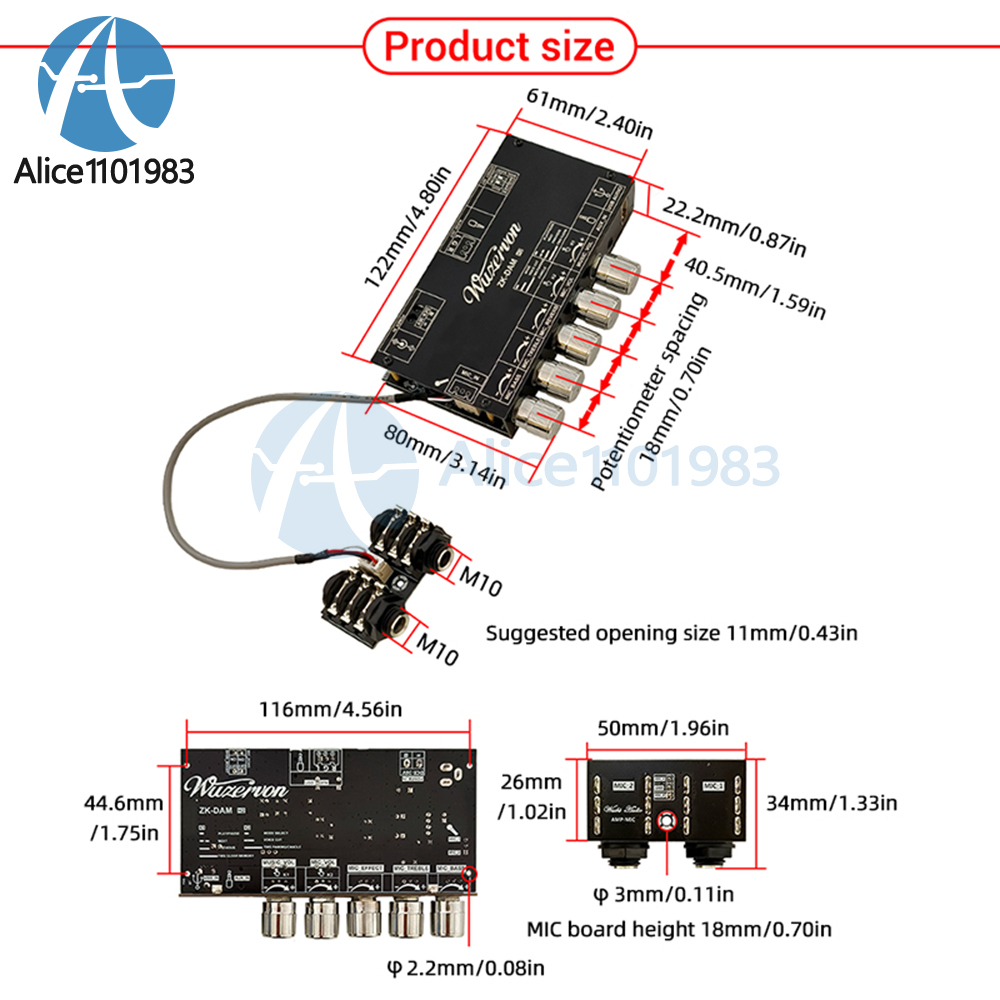

Size: 80x122x22.2mm

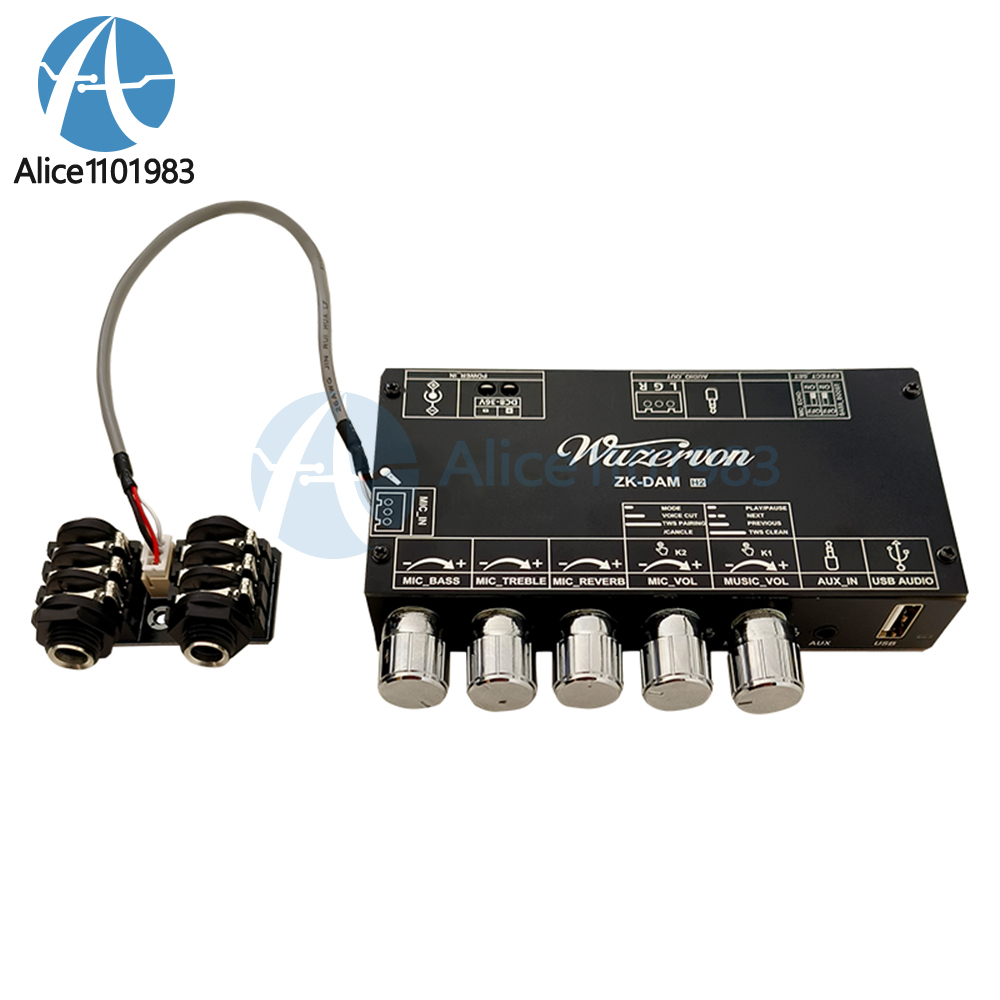

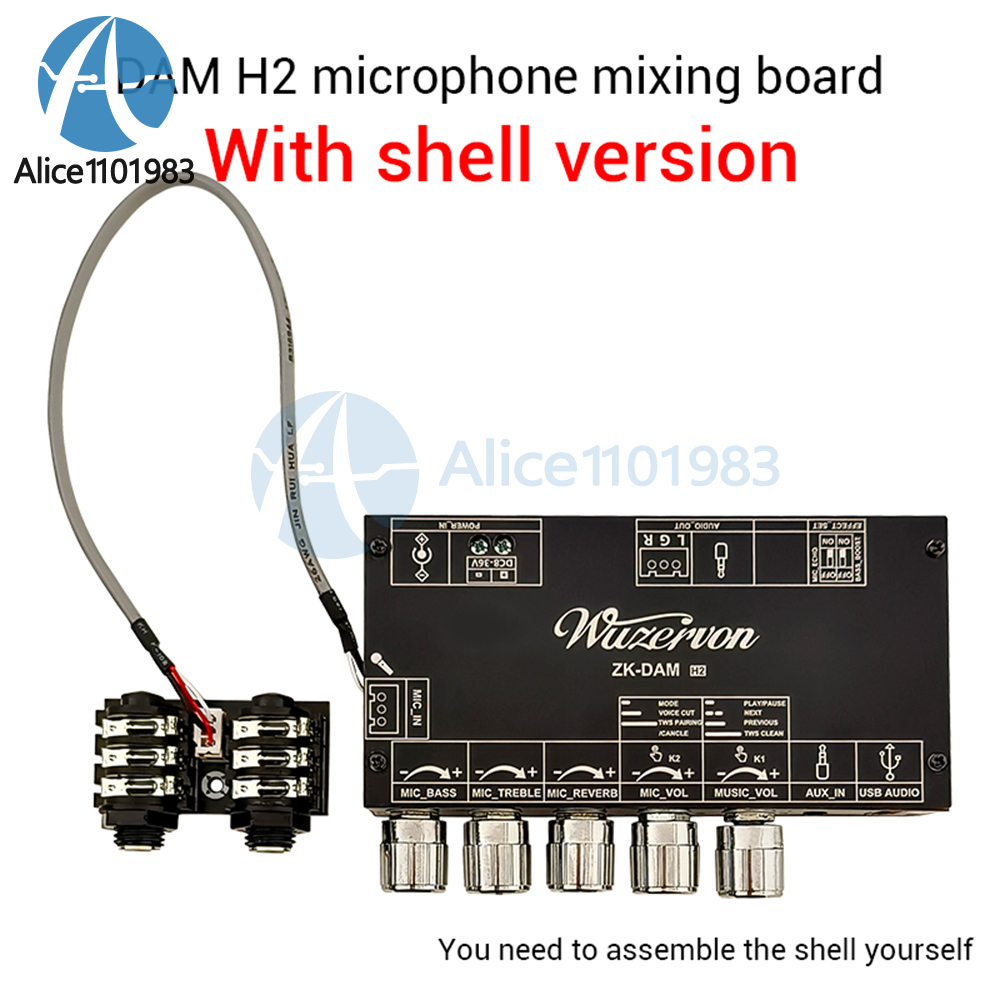

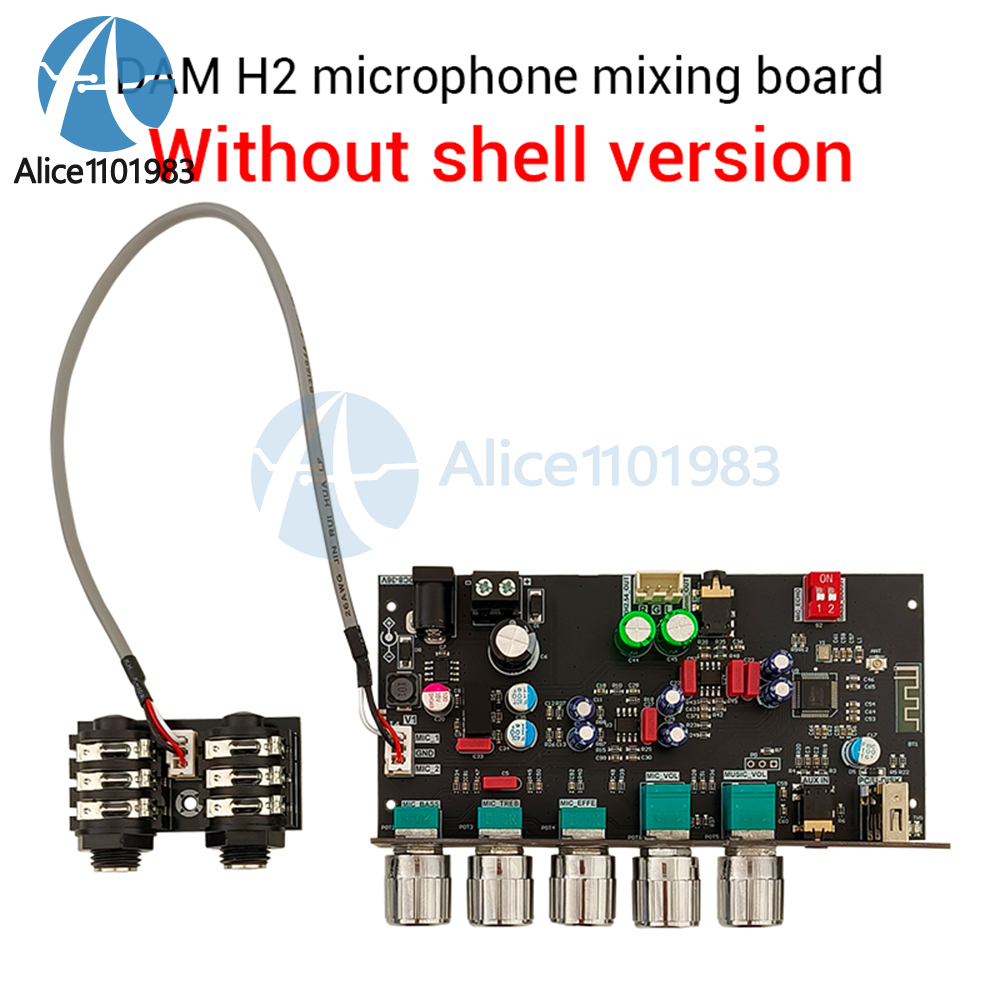

1 x DAM H2 preamp board (with or without case optional)
