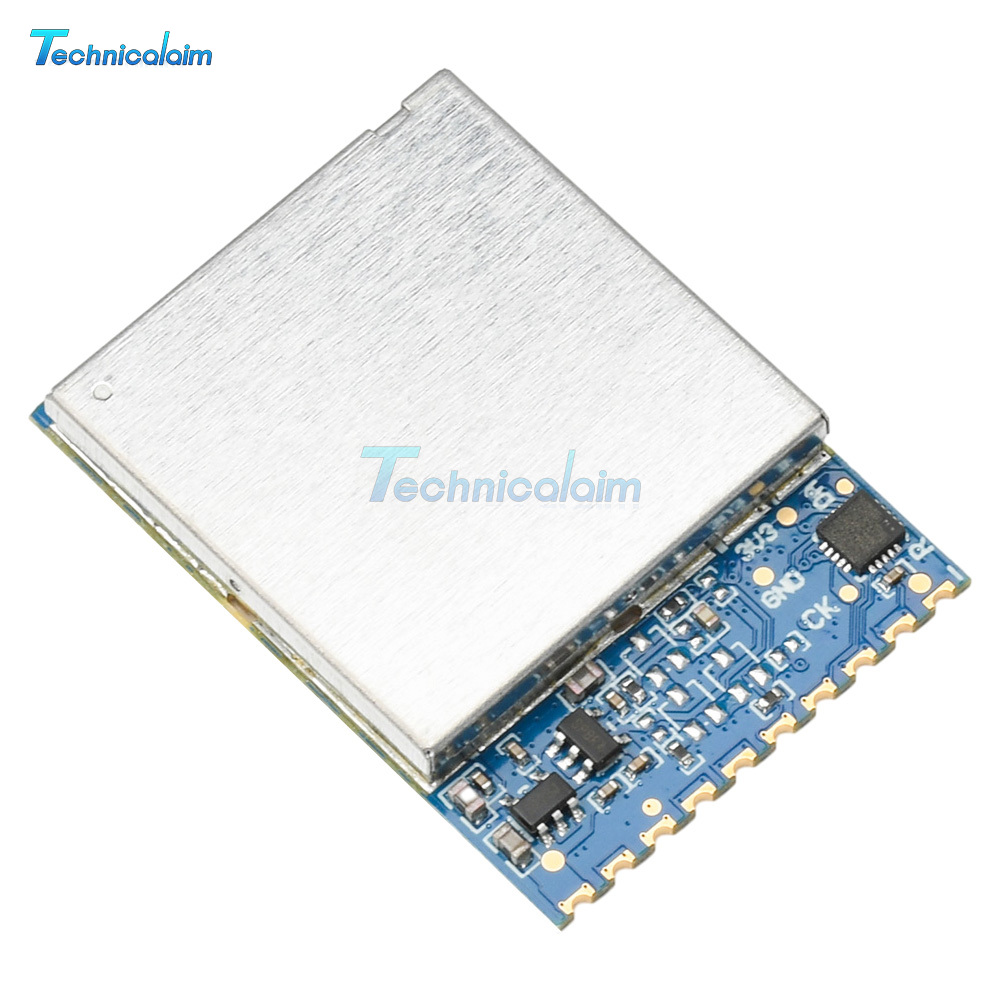

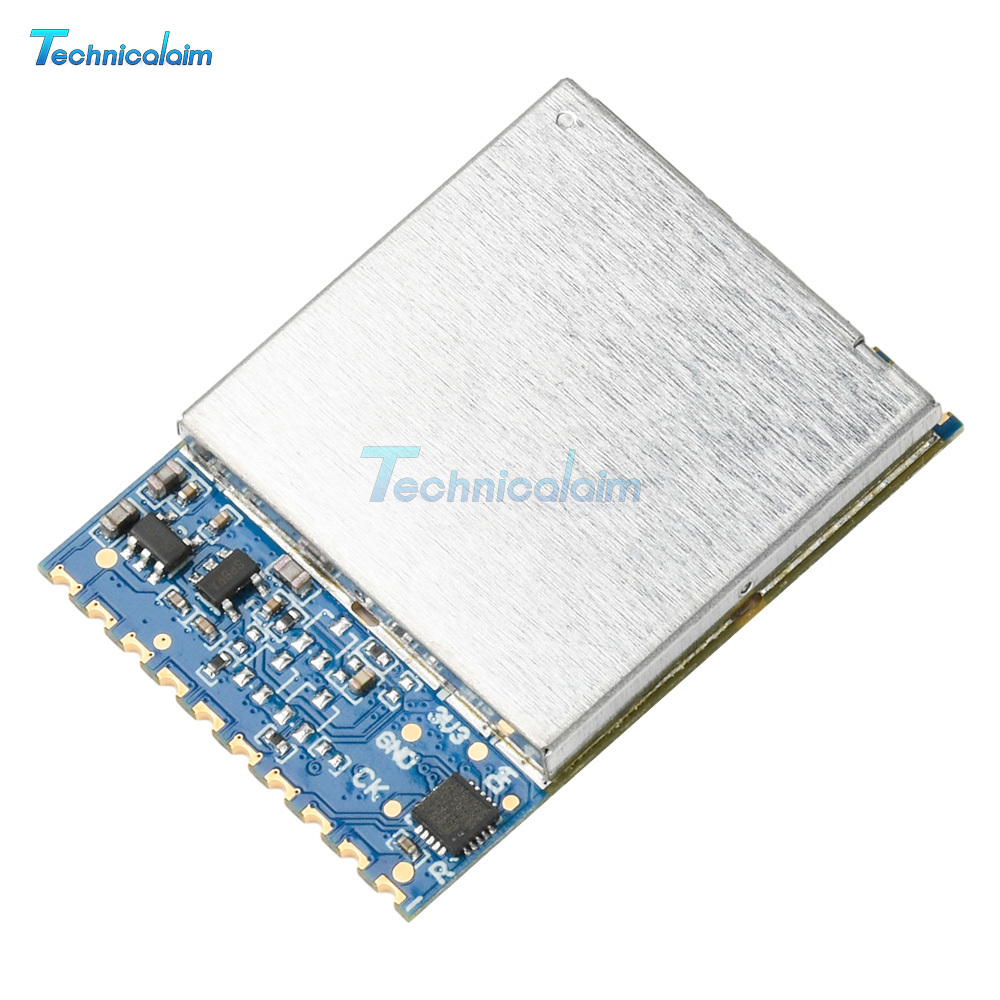

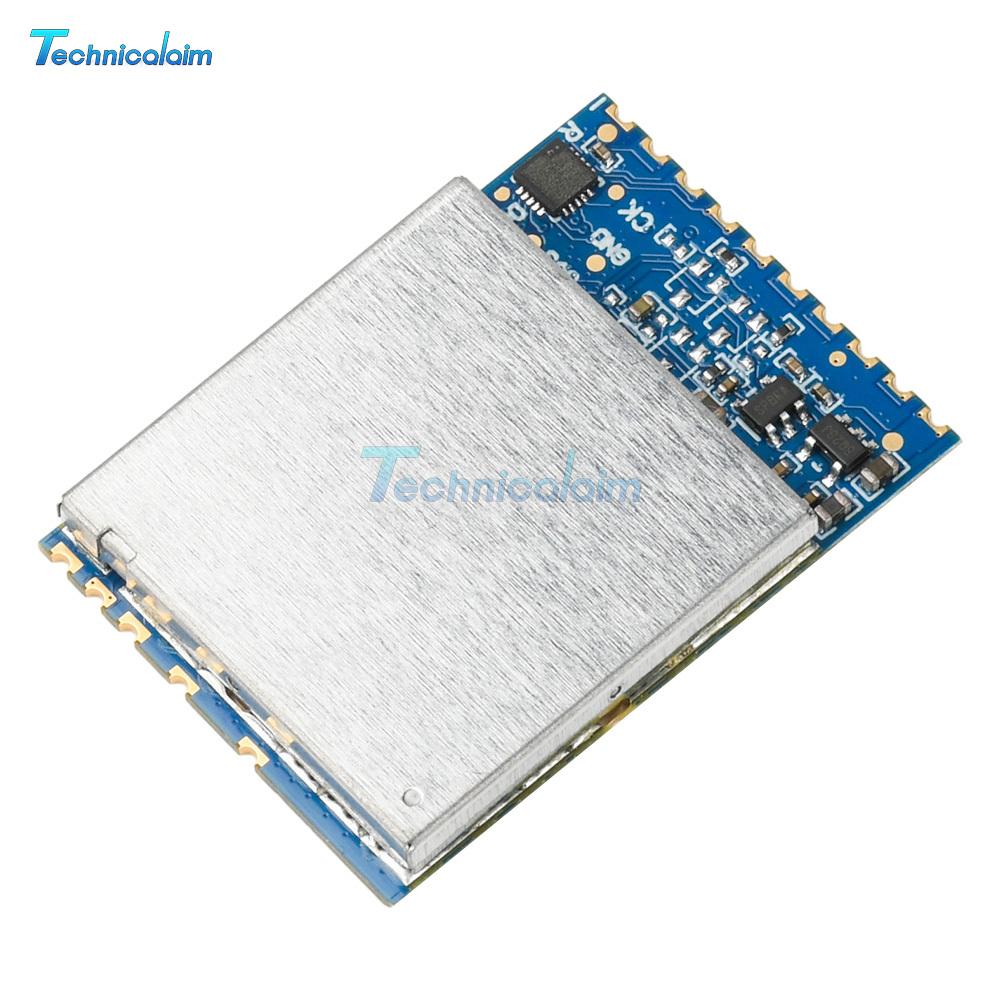

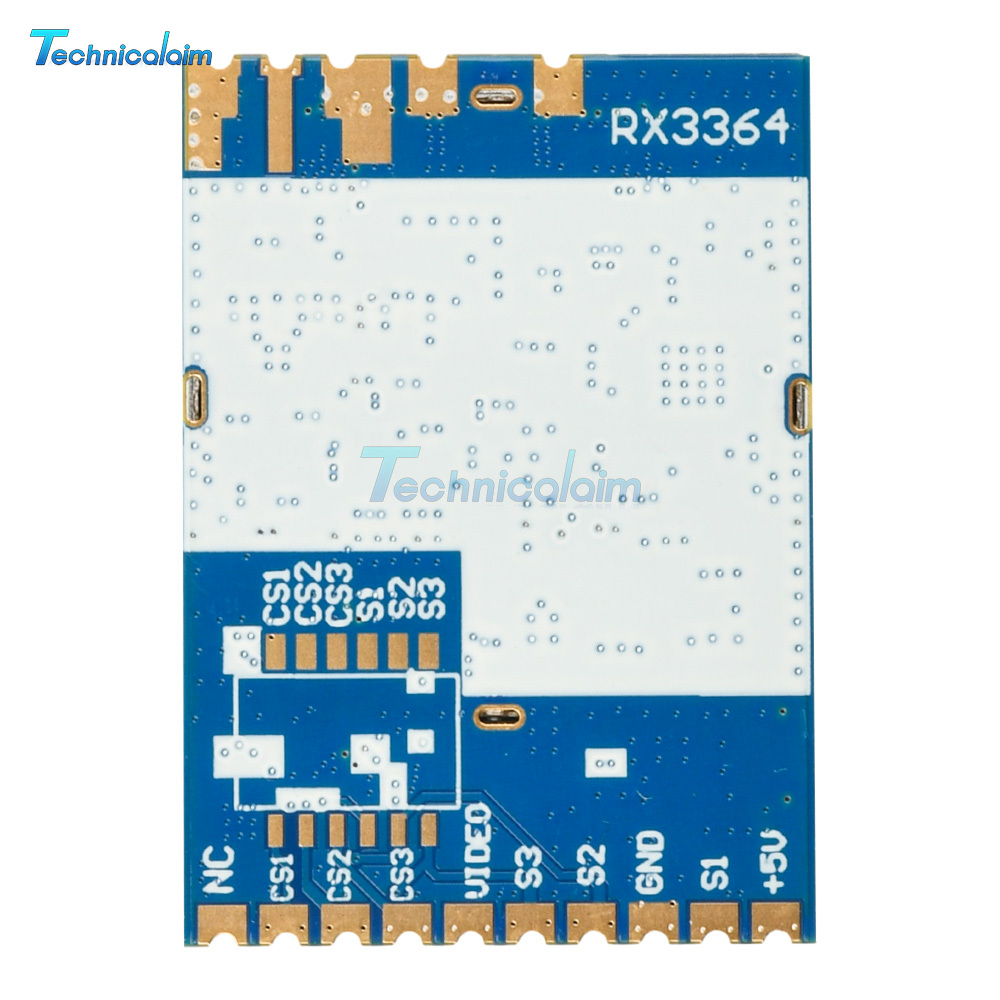

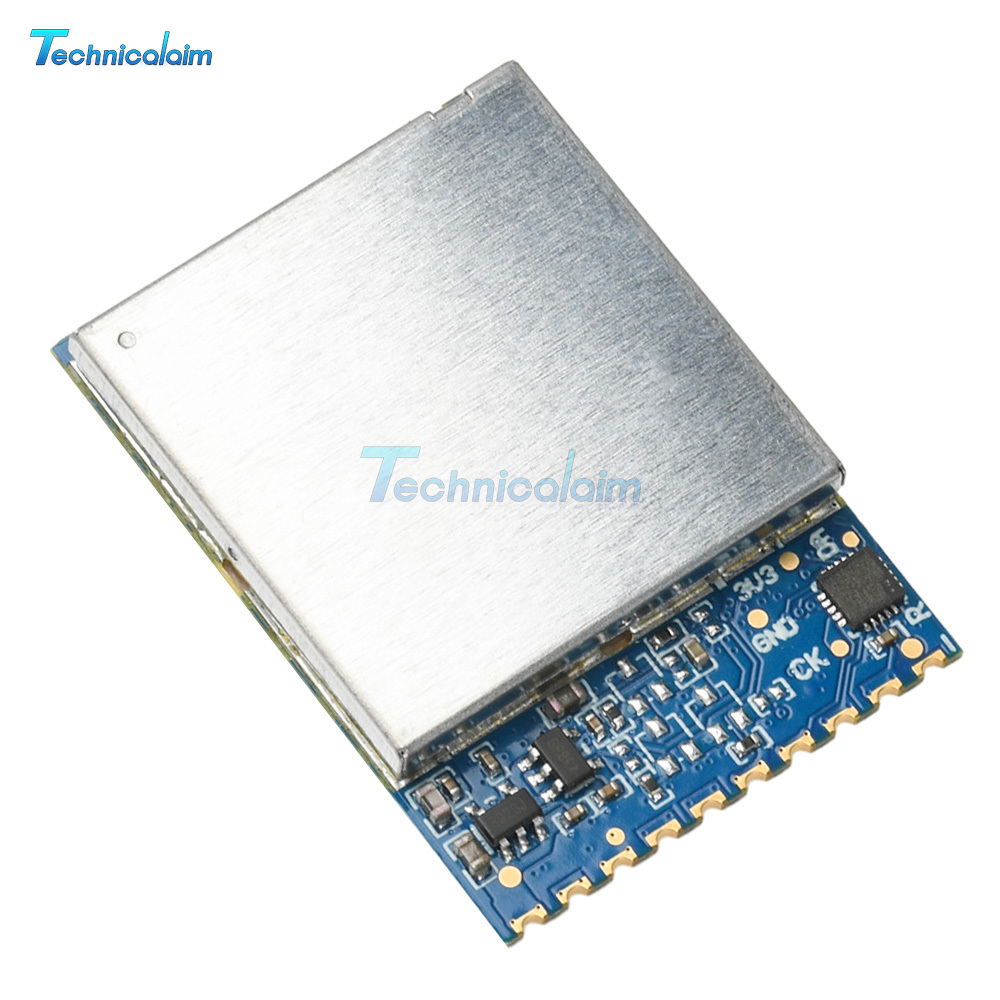

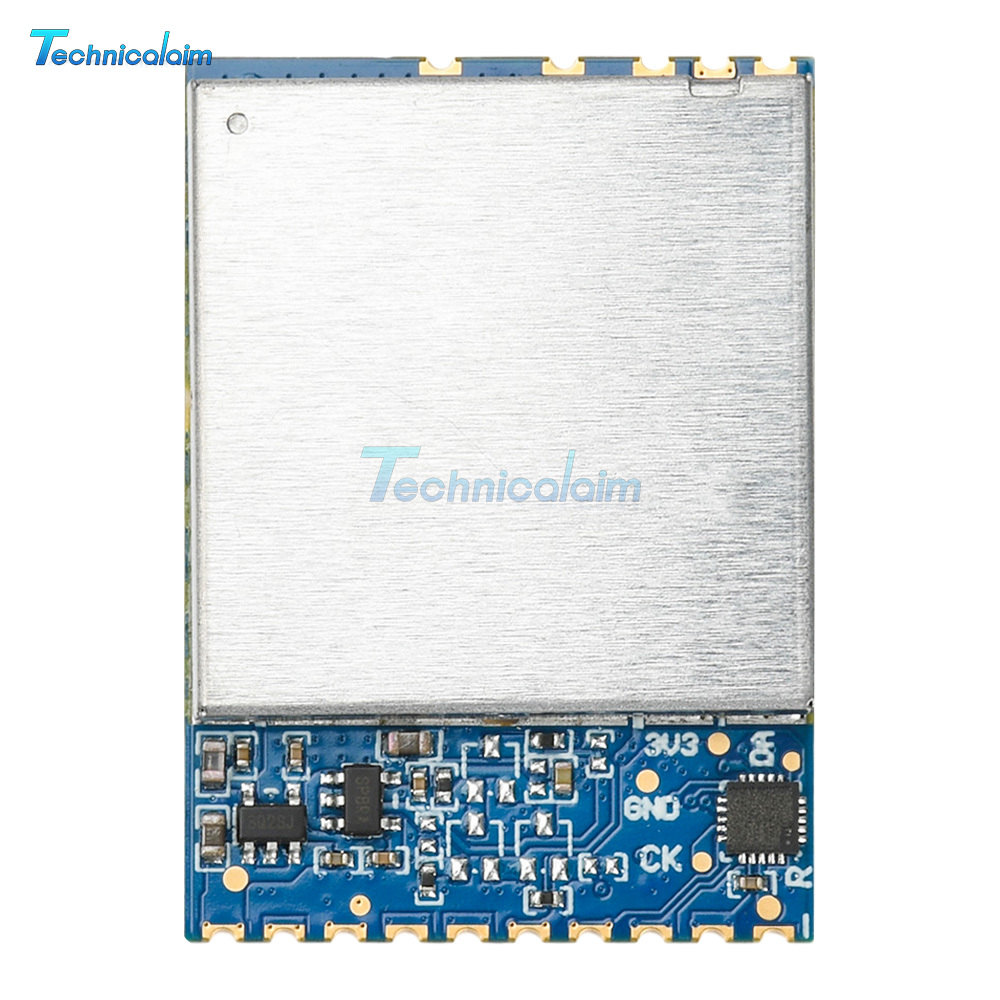

3.3G FPV RX3364 Wireless Module Analog FPV Audio Video Transmission Receiver
1.Highly integrated design: the module adopts highly integrated design, which has the advantages of small size, low power consumption and high sensitivity.
2.Easy-to-use connection: Simply connect the antenna, you can easily receive sound and image signals, easy to operate.
3. Wide band reception capability: support 3060-3500MHz reception frequency range, ensure signal stability and reliability.
4. Excellent video performance: video output impedance is 75Ω, providing clear and stable image quality.
5. Excellent environmental adaptability: the operating temperature range of -10 ° C to +65 ° C, can adapt to a variety of environmental conditions under the use of needs.
DC Characteristics
Power supply voltage (POWER SUPPLY): 5.0V
Current Consumption：(380±30)mA
Operating Temperature: -10~+65°C
Storing Temperature: -30~+85°C
Operating humidity: 85%RH

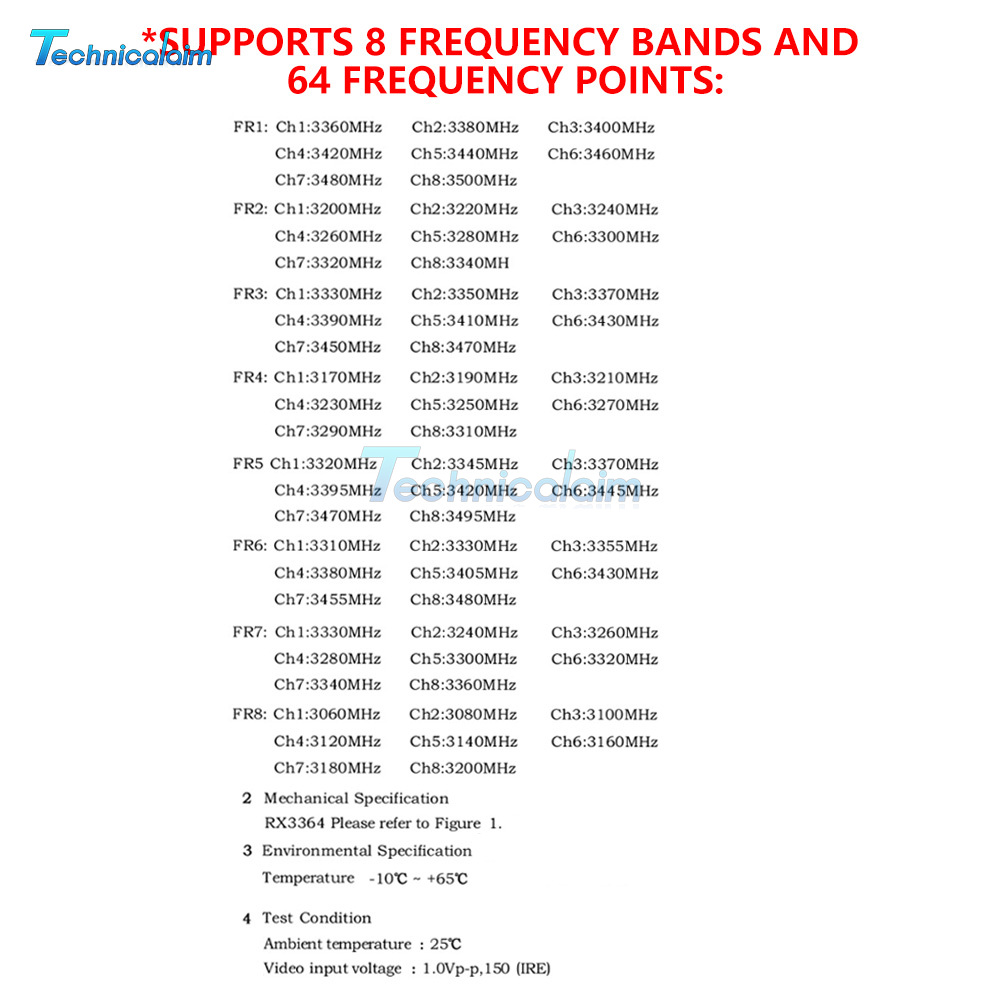

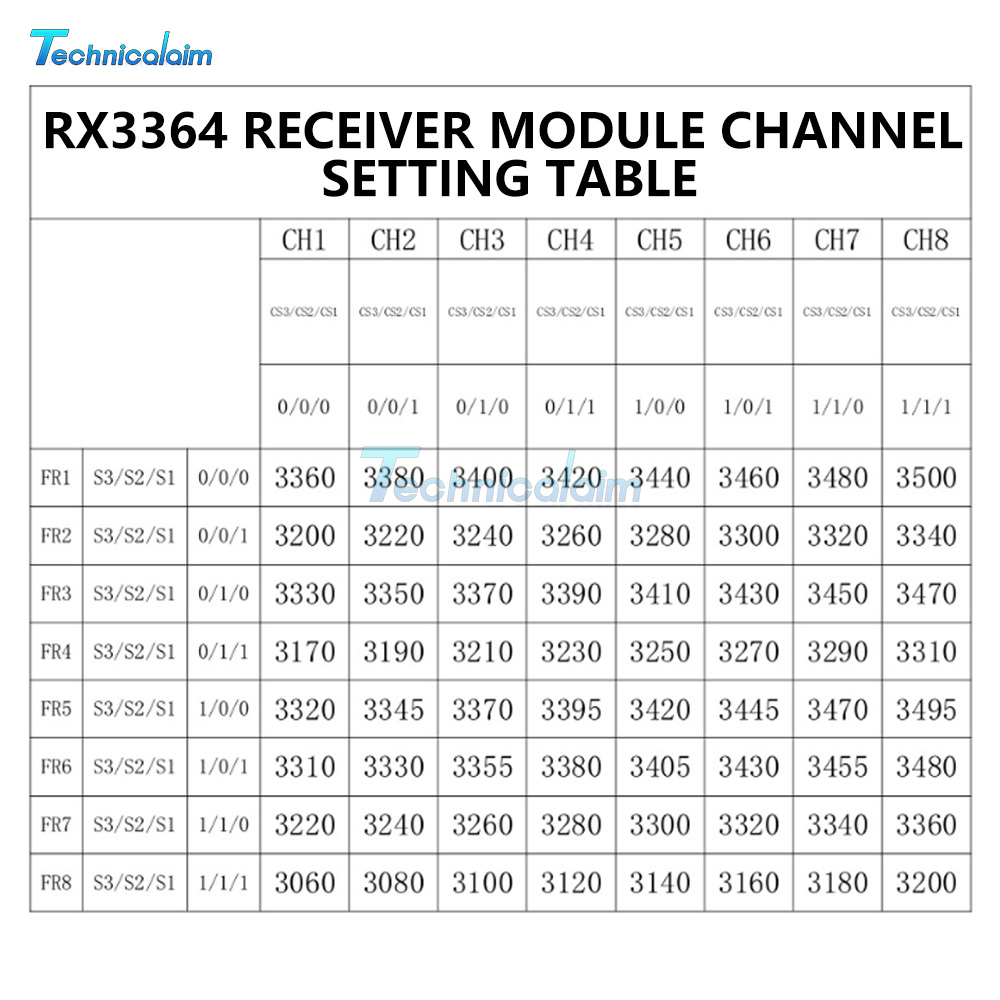

Receiving frequency range：3060-3500MHZ
Input VSWR (Voltage Standing Wave Ratio): 2:1
Demodulation mode (Demodulation system): FM/PLL
Intermediate frequency IF: 480MHz
Antenna port impedance (ANT.input impedance): 50 Ω, TyP.
LO Frequency stabilization：±200kHz
LO Frequency Precision：±200kHz
Local oscillation control (LO Control): PLL
Input LO Leak (lnput LO Leak): -65dBm
Receiving Sensitivity: -95dBm±2
Input level range (InputLevel Range): -95dBm ~ +5dBm
Video Output impedance (Video Output impedance): 75Ω, TyP.
Video Output Level: 1±0.2Vp-P, TyP.
Video Polarity (Video Polarity): Negative (NEGATIVE)
Video Frequency Response (Video Frequency Respone): ±5 dB, Max.50Hz ~ 6MHz
Differential Gain: ±5 %, Max
Differential Phase: ±5 Deg., Max.
3dB IF bandwidth (3Db IF WIDEBAND): 16.5MHz
Signal-to-Noise Ratio S/N: 38dB, Min
1 x Module
