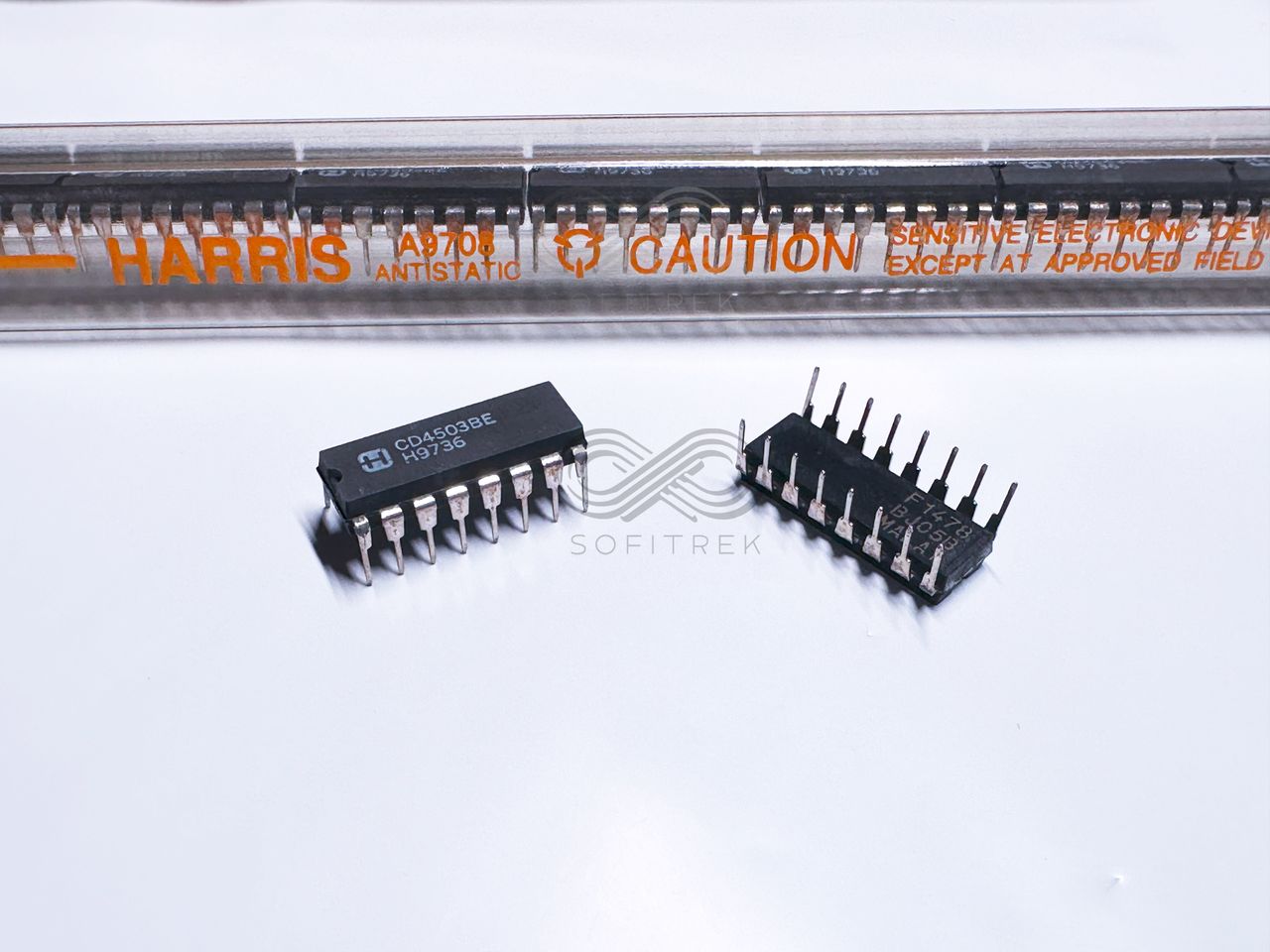

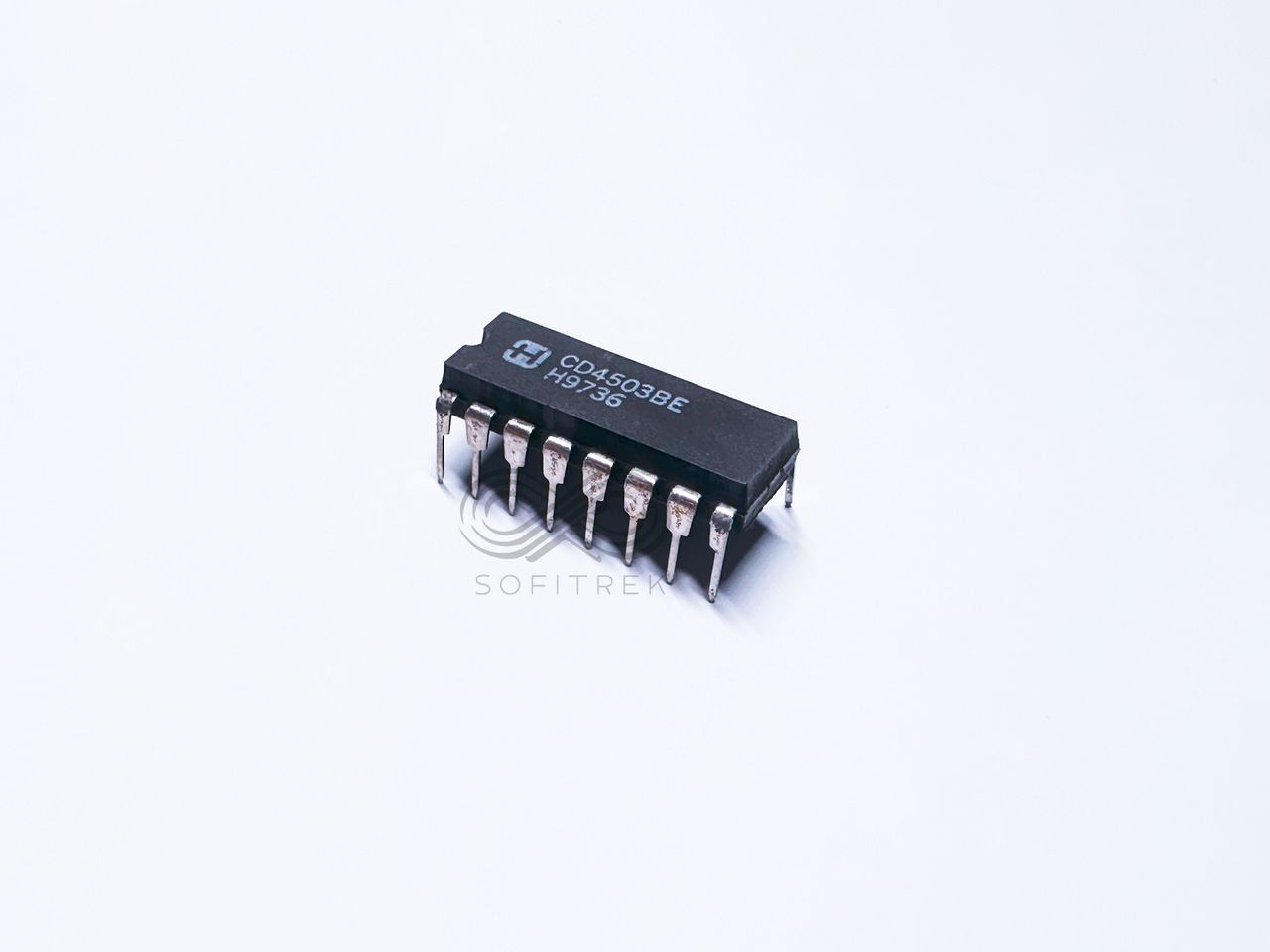

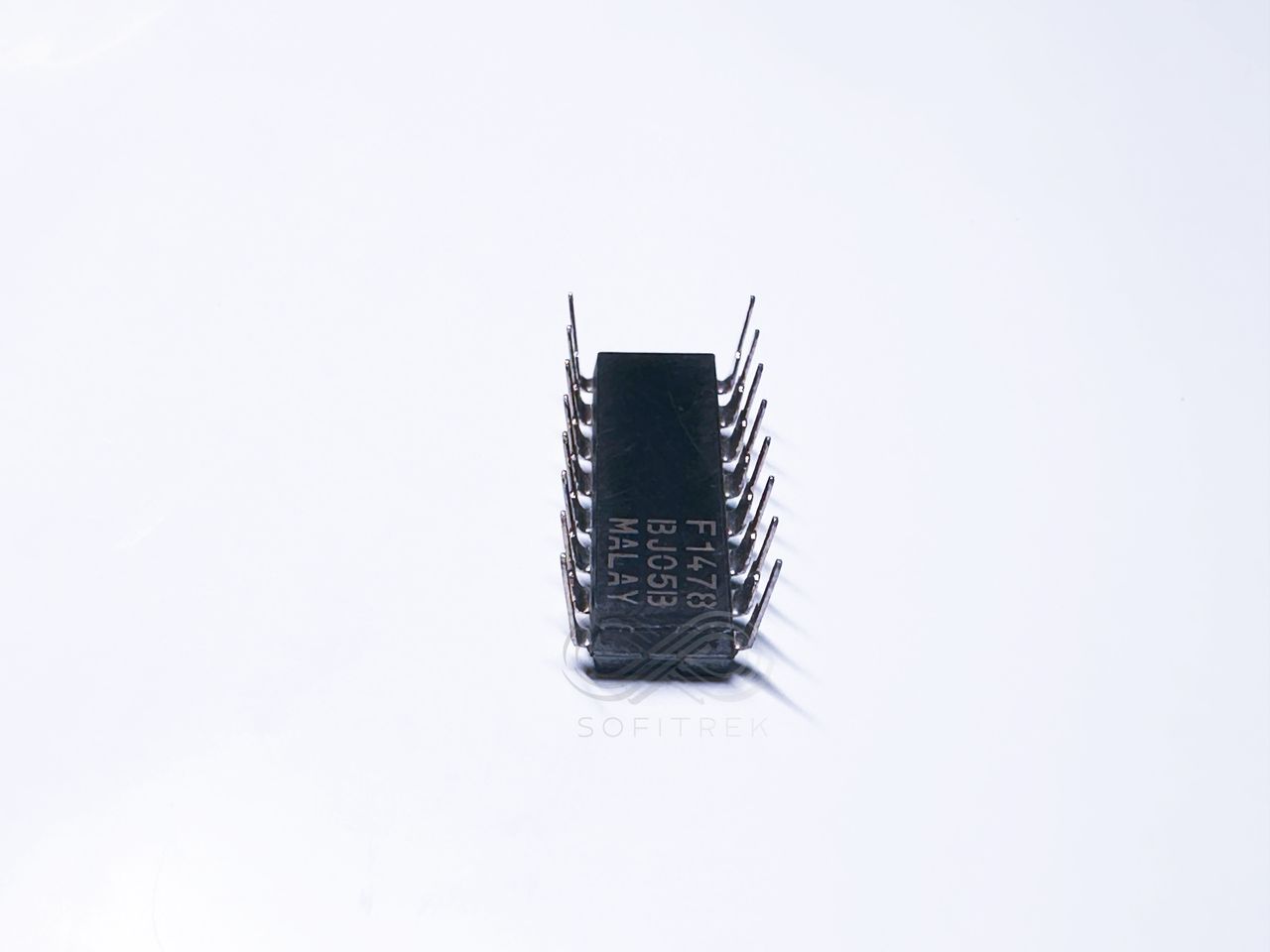

5X CD4503BE HARRIS CMOS Hex 3-State Buffer 20V 6-Channel Non-Inverting DIP-16 IC

Ready to Ship

Ask a Question

30-Day Return

5 Pieces - CD4503BE HARRIS CMOS Hex 3-State Buffer 20V 6-Channel Non-Inverting DIP-16 IC

Specification
Supply Voltage-Nom (Vsup) 5 V
Propagation Delay (tpd) 150 ns
Prop. Delay@Nom-Sup 150 ns
Number of Functions 2
Number of Bits 4
Surface Mount NO
Package Code DIP
Load Capacitance 50 pF
Count Direction UNIDIRECTIONAL
Output Characteristics 3-STATE
Family 4000/14000/40000
Logic IC Type BUS DRIVER
Technology CMOS
Additional Feature ONE FUNCTION WITH TWO BITS
Control Type ENABLE LOW
Max I(ol) 11.2 mA
Number of Ports 2
Output Polarity TRUE
Power Supplies 5/15 V
Power Supply Current-Max (ICC) 120 µA
Supply Voltage-Max (Vsup) 18 V
Supply Voltage-Min (Vsup) 3 V
Temperature Grade MILITARY
Translation N/A
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Number of Terminals 16
Package Body Material PLASTIC/EPOXY
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR

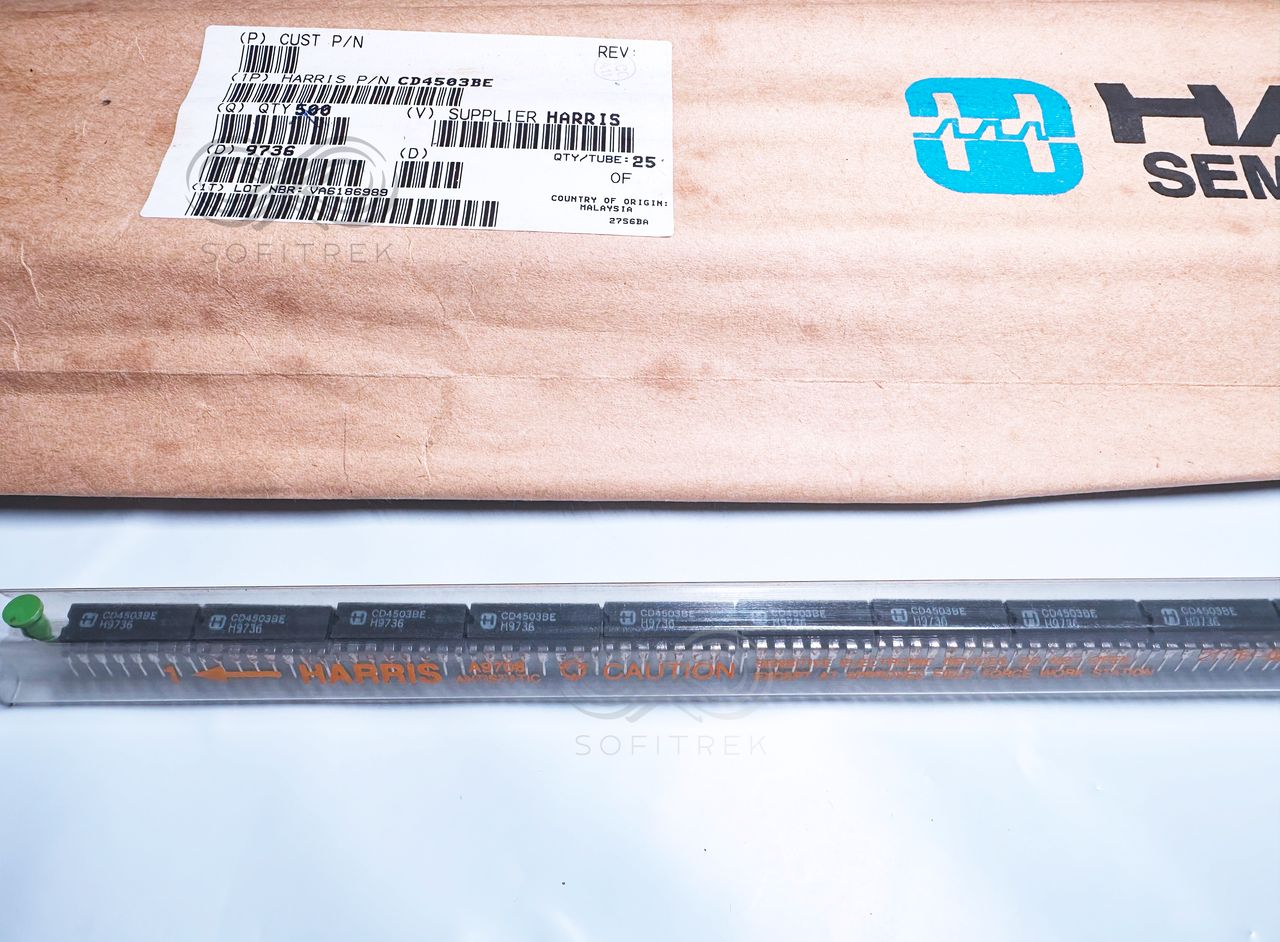

Packing Method TUBE
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Seated Height-Max 5.08 mm
Width 7.62 mm
Length 19.305 mm
Package Description DIP, DIP16,.3
Pin Count 16
Manufacturer HARRIS
