Details
Features

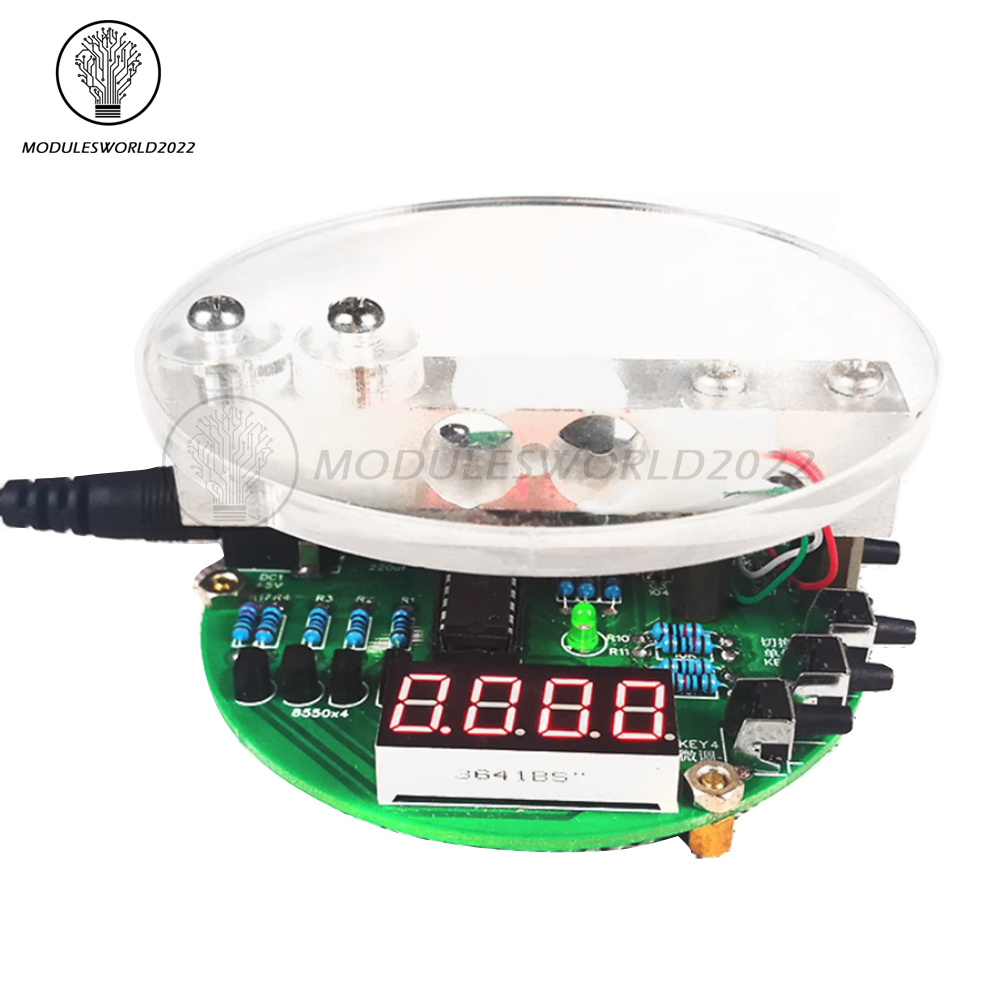

1.Electronic scale DIY kit, based on 51 microcontroller, suitable for welding practice and learning.
2.High precision measurement, resolution up to 0.01g (G mode), range up to 1KG.
3. Digital tube display weight, support G/KG unit switching, convenient operation.
4. Equipped with tare and fine-tuning calibration function to enhance the accuracy of measurement.
5. Over-range automatic alarm, compact structure, finished product size is only 85mm diameter x 43mm high.
1.Electronic scale DIY kit, based on 51 microcontroller, suitable for welding practice and learning.
2.High precision measurement, resolution up to 0.01g (G mode), range up to 1KG.
3. Digital tube display weight, support G/KG unit switching, convenient operation.
4. Equipped with tare and fine-tuning calibration function to enhance the accuracy of measurement.
5. Over-range automatic alarm, compact structure, finished product size is only 85mm diameter x 43mm high.
Specification
Supply voltage: DC 5V

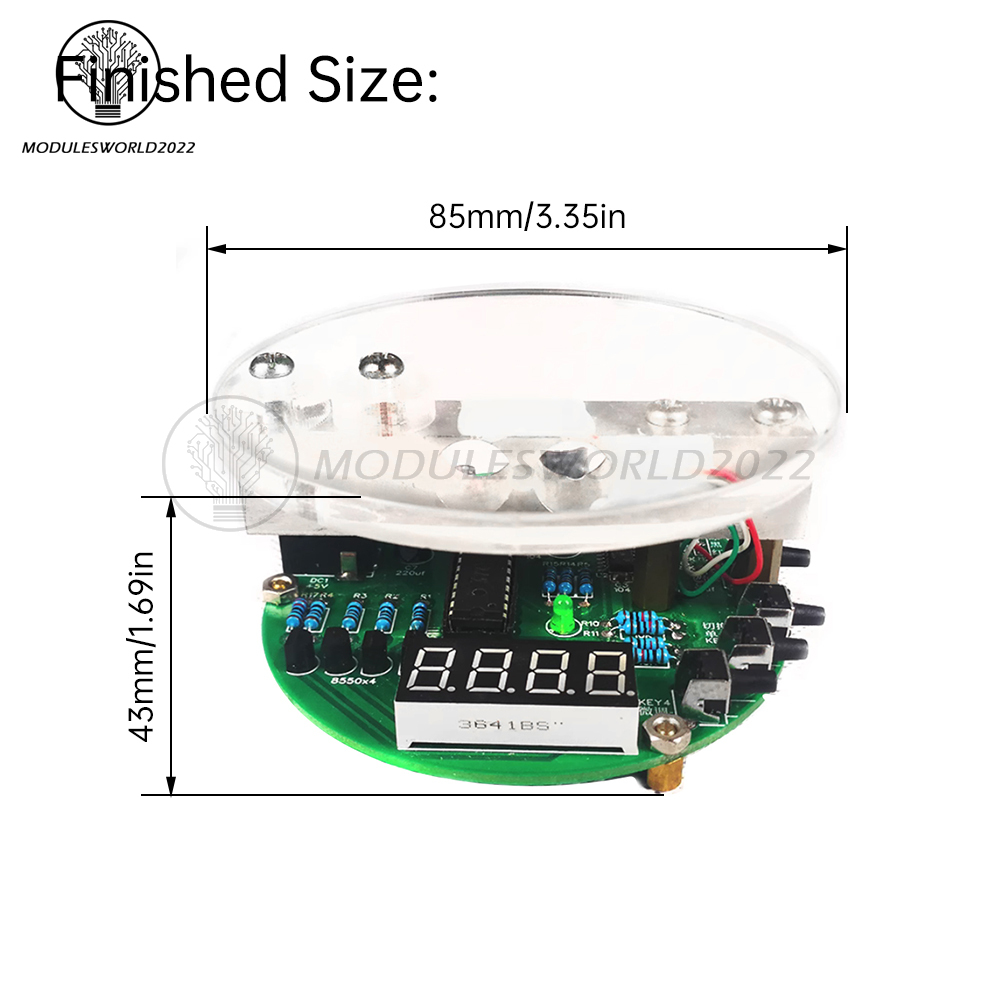

Product size: diameter 85mm, height 43mm
Maximum range: 1KG
Supply voltage: DC 5V
Product size: diameter 85mm, height 43mm
Maximum range: 1KG
Function

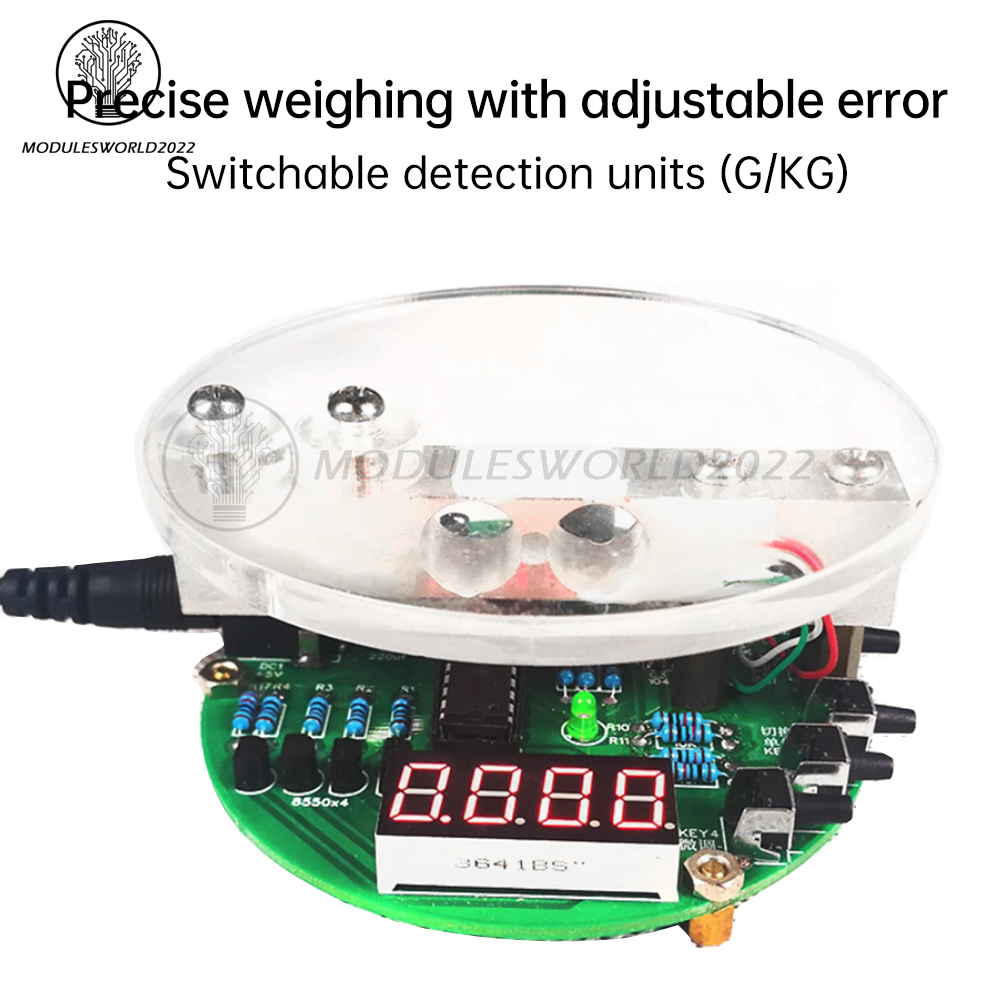

1 : Digital tube displays the detected weight, switchable detection unit (G/KG);.
2 : With fine-tuning calibration function to make the measurement data more accurate.
3 : The resolution is 0.01g when the detecting unit is G, and 1g when the detecting unit is KG.
4 : Tare function.
5 : There will be an alarm when the object exceeds the detection range.

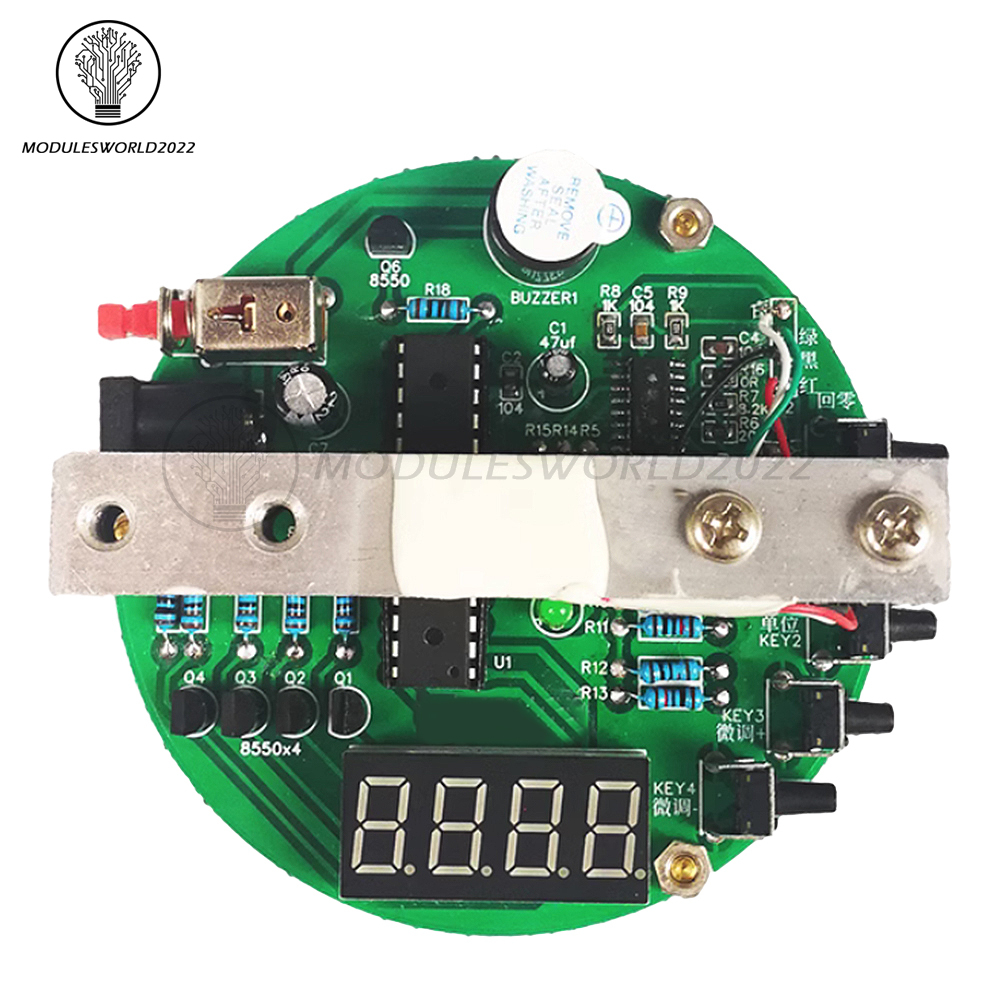

Working principle: STC15W408S microcontroller as the main control, weighing special AD chip HX711 sampling data, digital tube as a display to show the weight; there are four side foot touch keys as a human-computer interaction channel.
1 : Digital tube displays the detected weight, switchable detection unit (G/KG);.
2 : With fine-tuning calibration function to make the measurement data more accurate.
3 : The resolution is 0.01g when the detecting unit is G, and 1g when the detecting unit is KG.
4 : Tare function.
5 : There will be an alarm when the object exceeds the detection range.
Working principle: STC15W408S microcontroller as the main control, weighing special AD chip HX711 sampling data, digital tube as a display to show the weight; there are four side foot touch keys as a human-computer interaction channel.
Use tutorial:

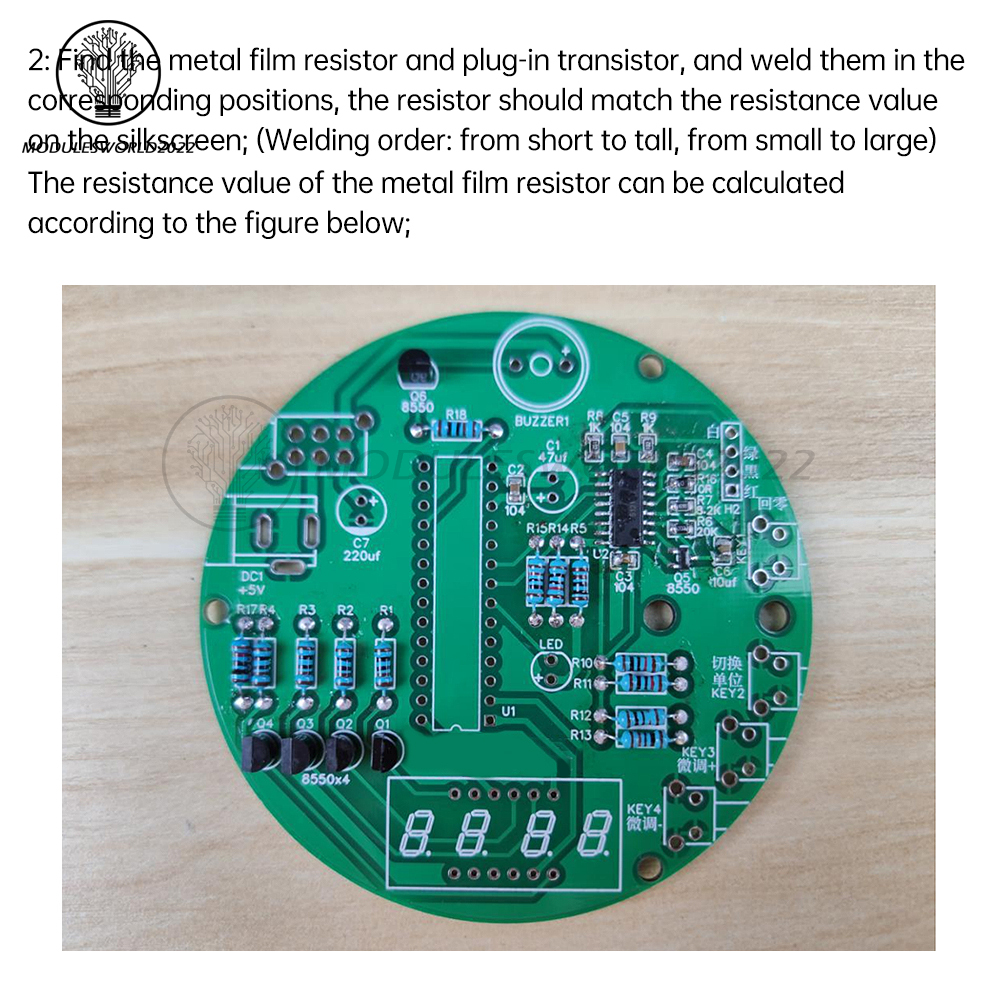

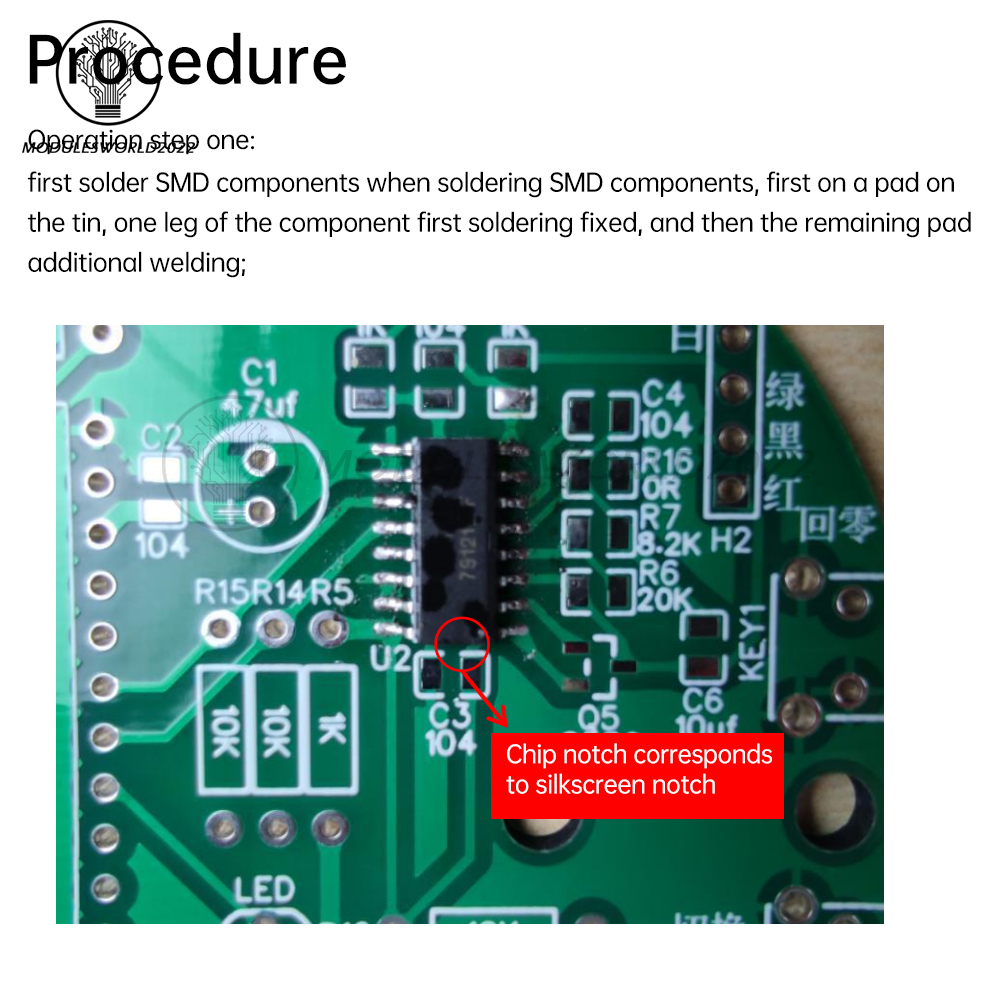

(1) after welding the finished product, plug in the power supply, press the switch, the LED lights up, and the buzzer chirps for a few seconds, the digital tube displays 0.000, the unit is KG, the smallest scale is g, the range of 1KG, more than 1KG buzzer will be alarmed.
(2) Put the electronic scale on the horizontal desktop, press the zero button to clear the zero;
(3) Press the switching unit button, the digital tube displays 00.00, the unit is g, the minimum scale is 0.01g, the maximum range is 99.99g, when the weighed weight exceeds the range, the buzzer will be alarmed, at this time, press the switching unit button to switch the unit to KG, the buzzer will cancel the beeping;
(4) With memory fine-tuning function, for example, when weighing 100g objects, the digital tube shows 98g, you can press the fine-tuning + button to adjust to 100g, to improve the accuracy, and vice versa, press the fine-tuning -.
(5) Return to zero button can be used as tare;
(1) after welding the finished product, plug in the power supply, press the switch, the LED lights up, and the buzzer chirps for a few seconds, the digital tube displays 0.000, the unit is KG, the smallest scale is g, the range of 1KG, more than 1KG buzzer will be alarmed.
(2) Put the electronic scale on the horizontal desktop, press the zero button to clear the zero;
(3) Press the switching unit button, the digital tube displays 00.00, the unit is g, the minimum scale is 0.01g, the maximum range is 99.99g, when the weighed weight exceeds the range, the buzzer will be alarmed, at this time, press the switching unit button to switch the unit to KG, the buzzer will cancel the beeping;
(4) With memory fine-tuning function, for example, when weighing 100g objects, the digital tube shows 98g, you can press the fine-tuning + button to adjust to 100g, to improve the accuracy, and vice versa, press the fine-tuning -.
(5) Return to zero button can be used as tare;

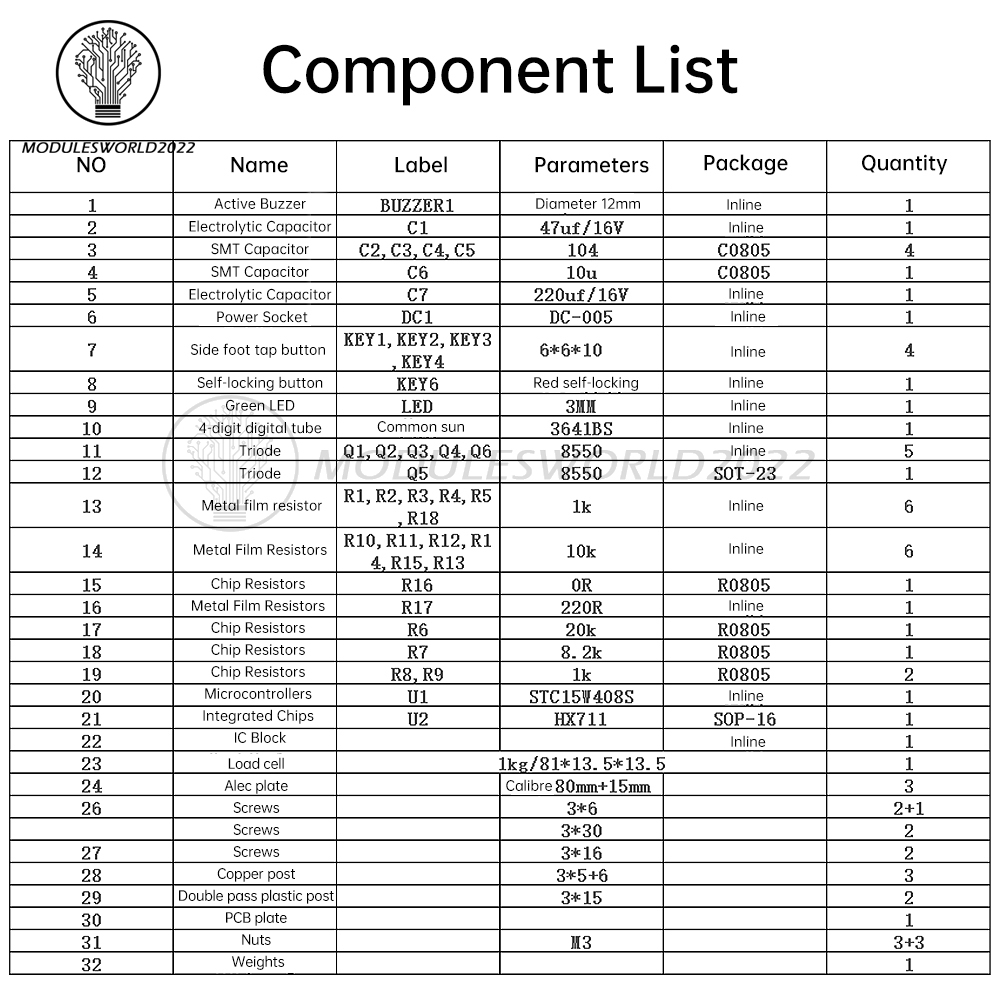

Package includes

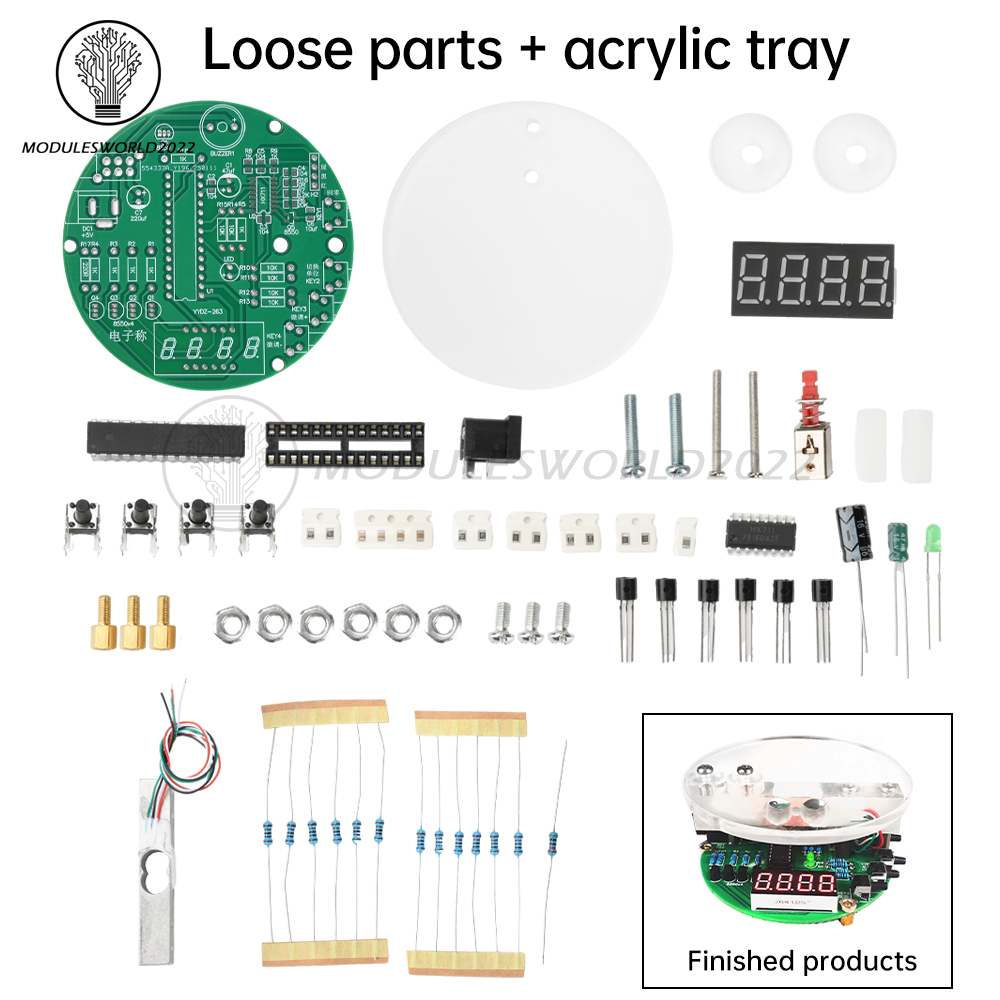

1 x DIY kit for electronic scale
1 x DIY kit for electronic scale
