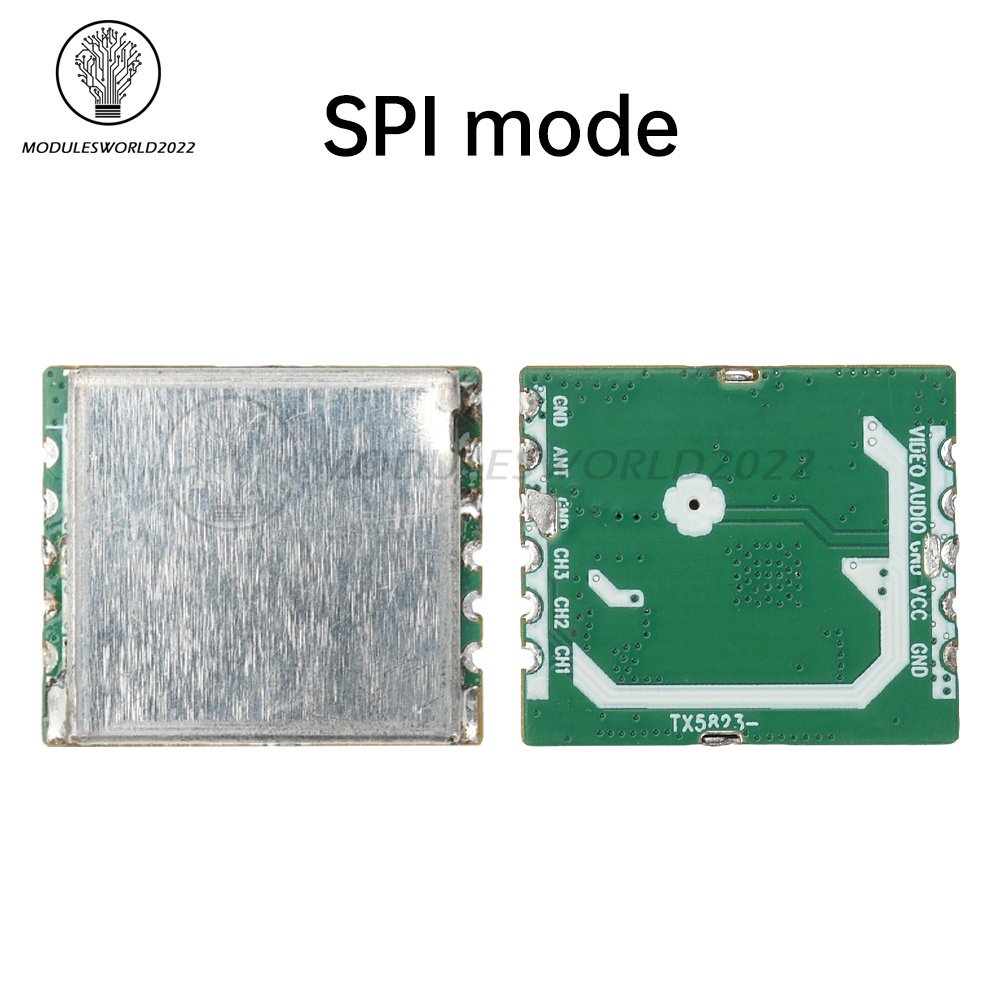

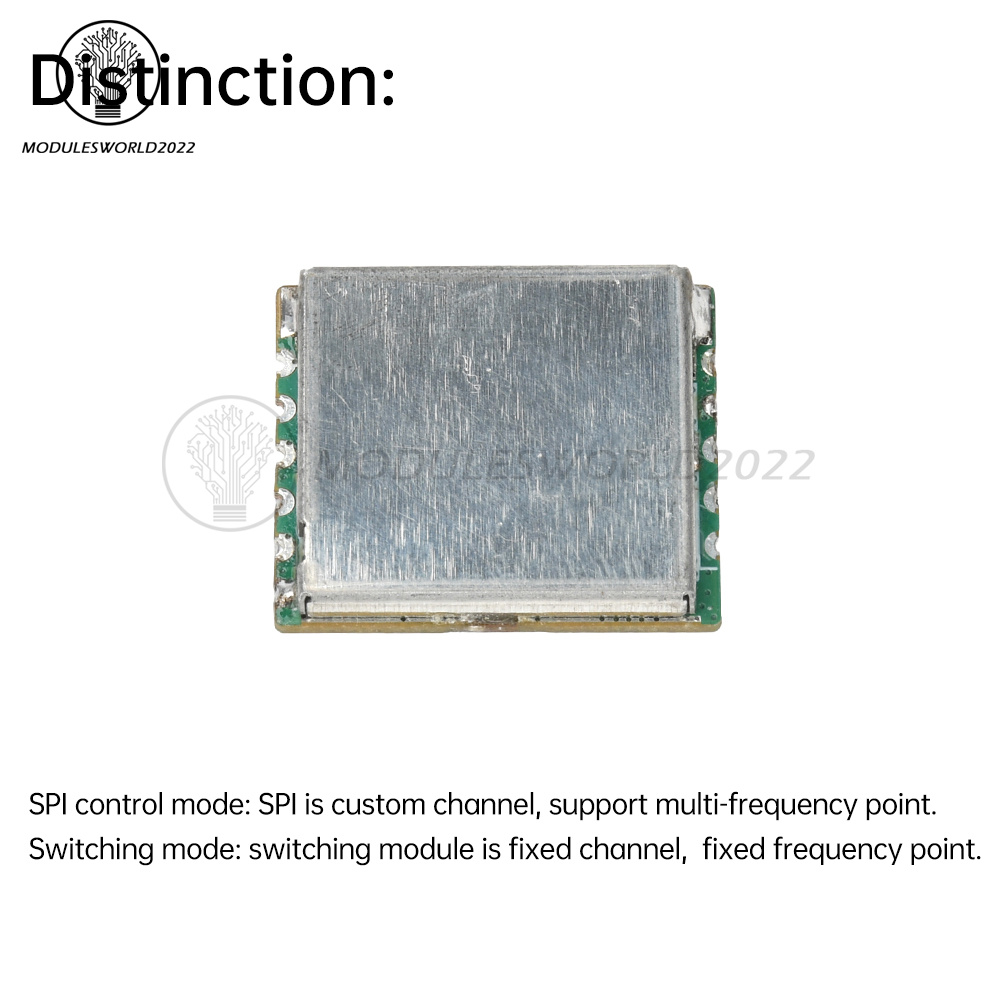

SPI control mode: SPI is customized channel, support multi-frequency point.

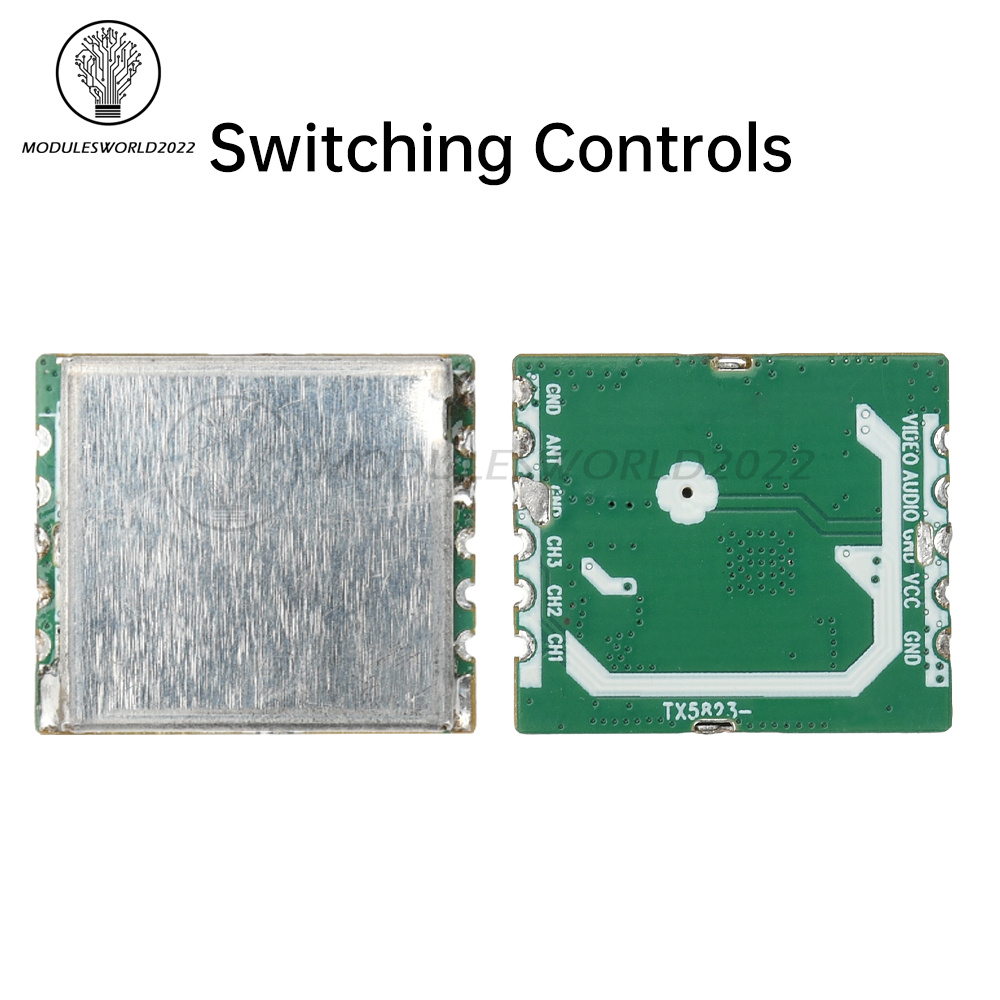

Switch mode: switch module is fixed channel, fixed frequency point.

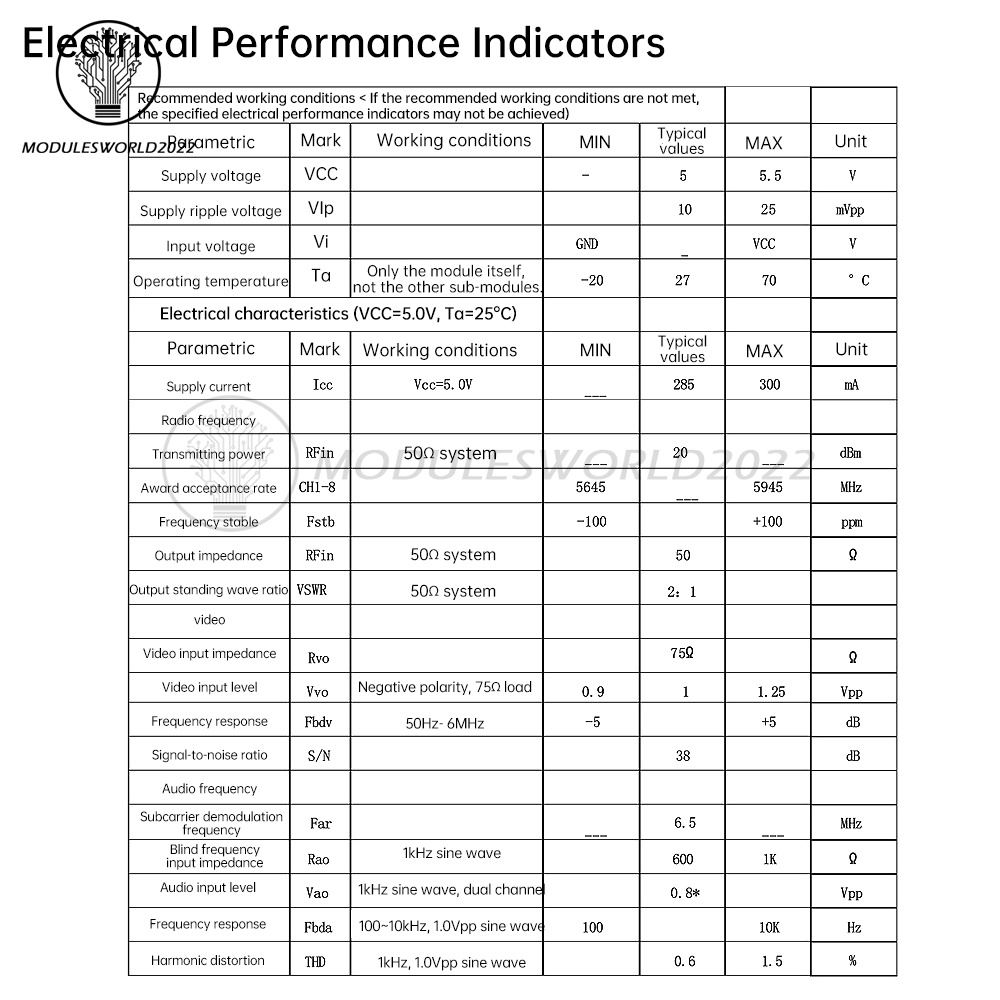

1. High performance: low power consumption 5V/290mA, transmit power up to 19dBm to 21dBm, both power consumption and performance.
2. High frequency band transmission: working in 5645-5945MHz ISM band, support FM audio and video synchronous transmission, clear and stable signal.
3. Compact design: SMT package is only 19x22x3mm, small size, suitable for embedded applications to save space.
4. Multi-channel flexible switching: support 8 channels of transmission, compatible with SPI control mode, to meet the needs of diverse application scenarios.
5. Wide applicability: suitable for FPV modeling, baby monitor, wireless security and medical equipment and other fields.

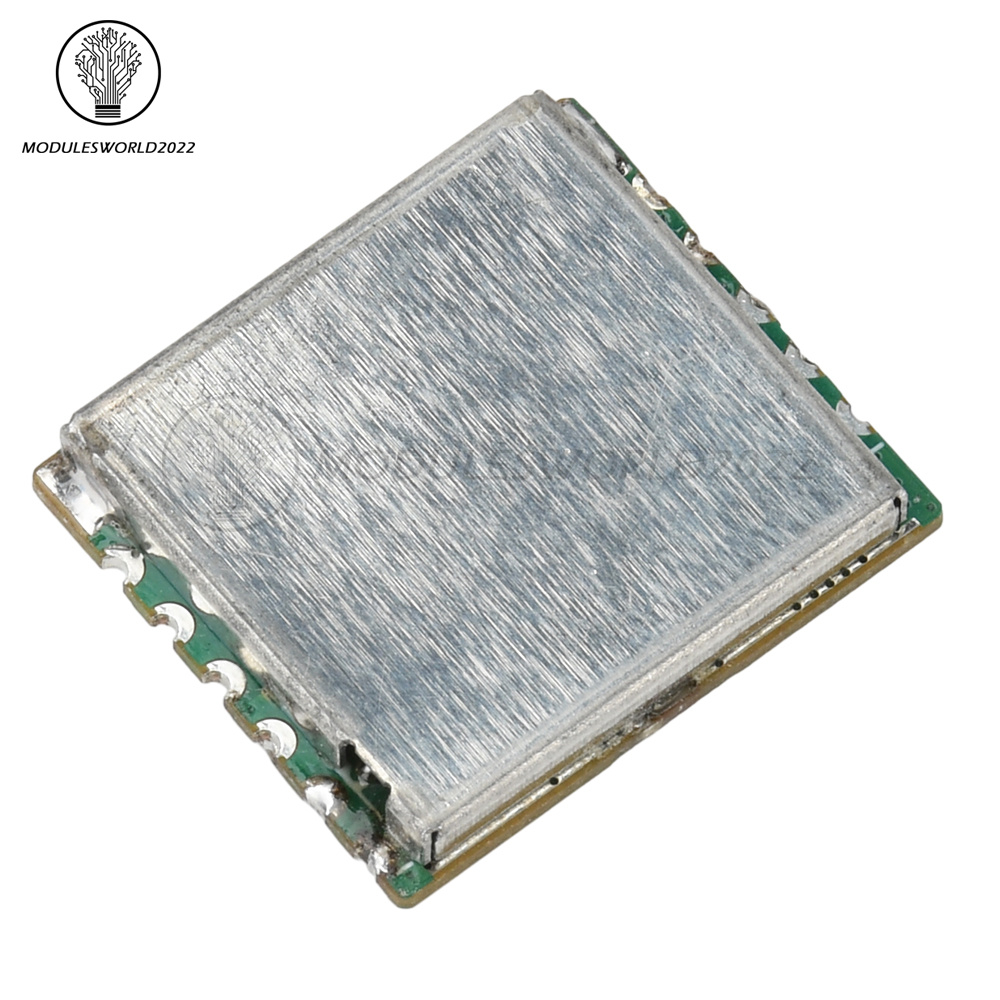

This transmitter module is an FM audio and video transmitter module working in the 5645-5945MHz ISM band (or use SPI mode to control the band through an external microcontroller). Module using a single chip design, the chip integrated VCO, PLL, broadband FM video modulation, FM accompanied by voice modulation, so that the module has a small size, low power consumption, high sensitivity and other characteristics; module to take the form of SMD package, occupies a very small machine space; the application of this module only need to simply connect the power supply, audio cable, video cable, connect the antenna can be transmitting sound, image signals.

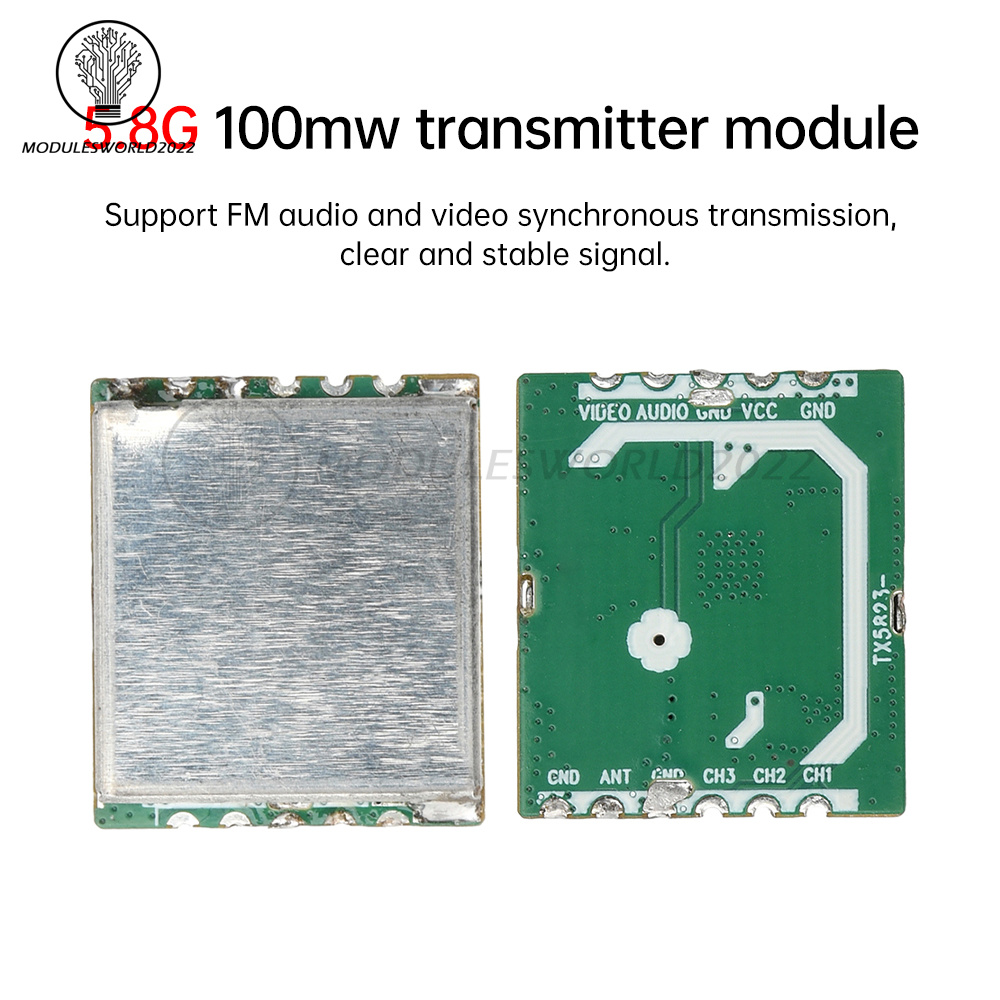

5.8G wideband FM audio and video synchronized transmission
Low power consumption: 5V 290mA
Transmit power: 19dBm to 21dBm
Direct input of analog audio and video signals
8-channel transmission

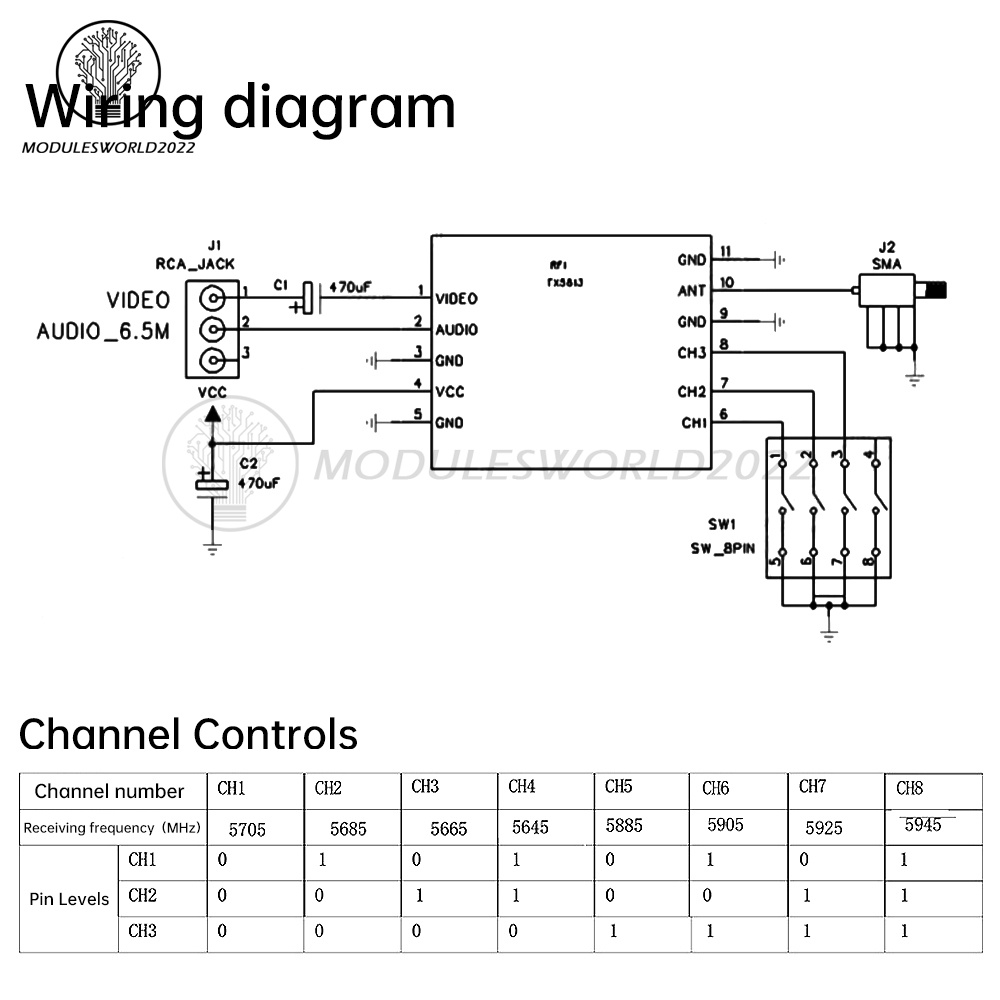

SPI control mode / switch control mode (optional)
External RF amplifier can modulate 3W-10W power

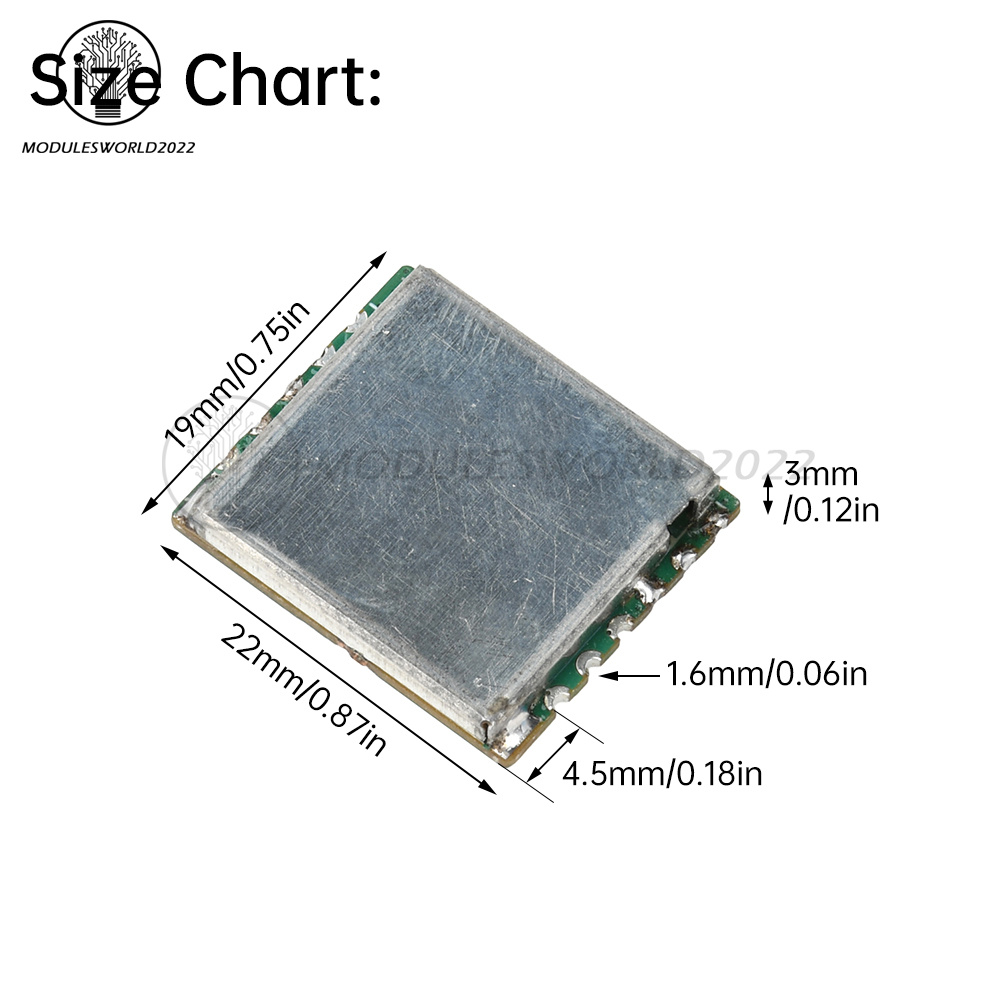

Size: 19*22*3mm
FPV aeromodel audio and video wireless transmission:
Baby monitor;
Engineering construction site image monitoring;
Wireless camera security system;
Wireless imaging medical apparatus.
Wireless Visual Reversing Camera Transmission
Wireless video toys
Wireless doorbell
1 x Module
