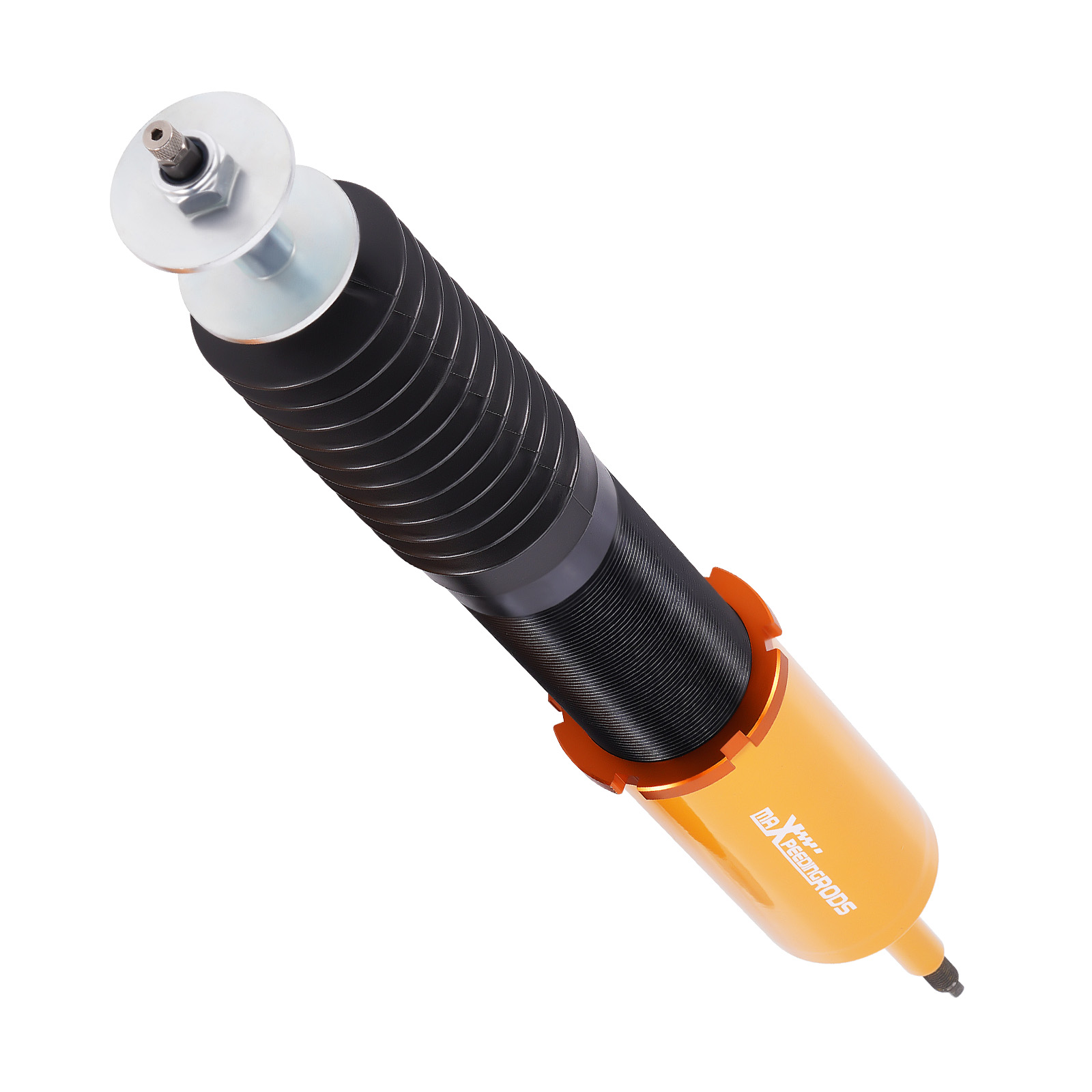

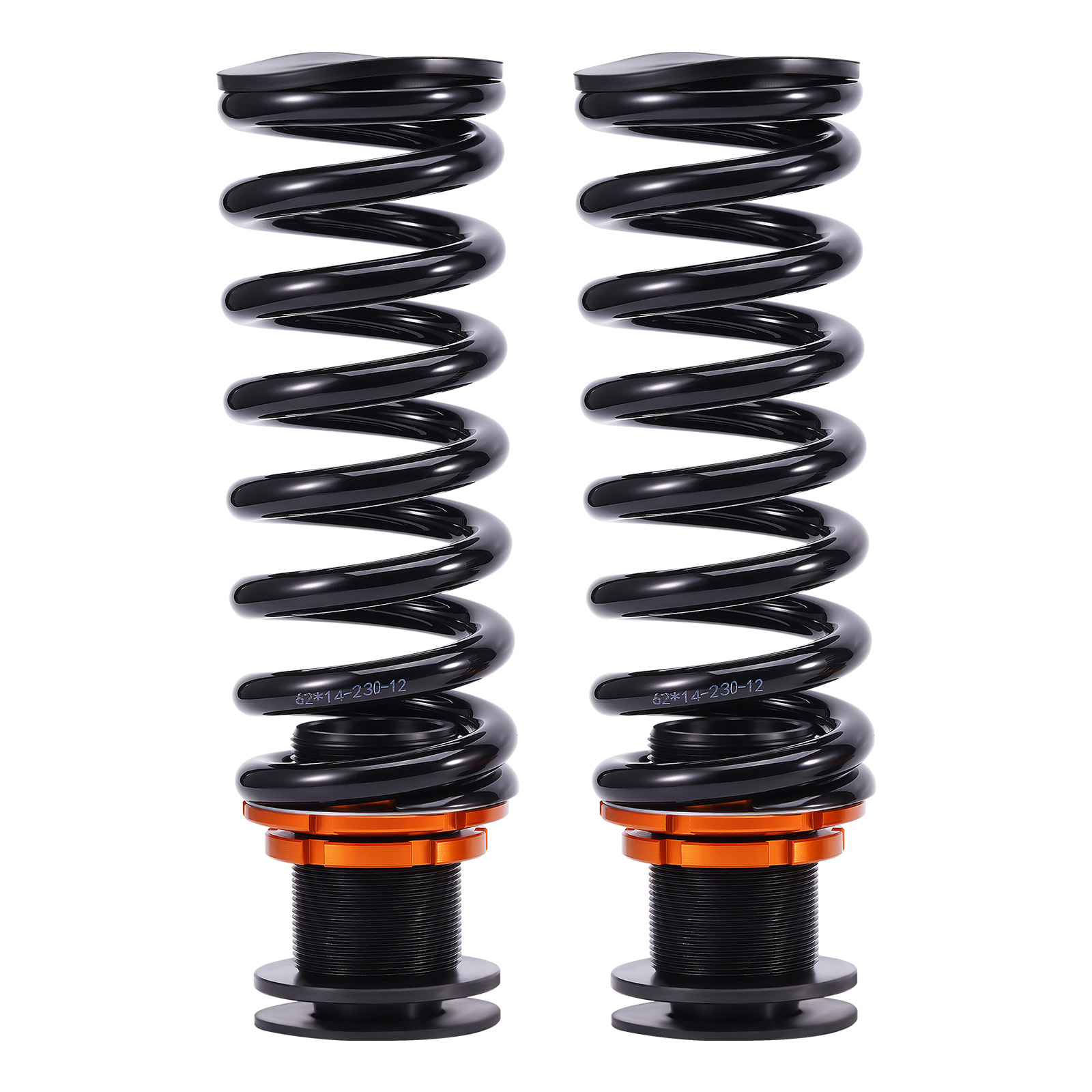

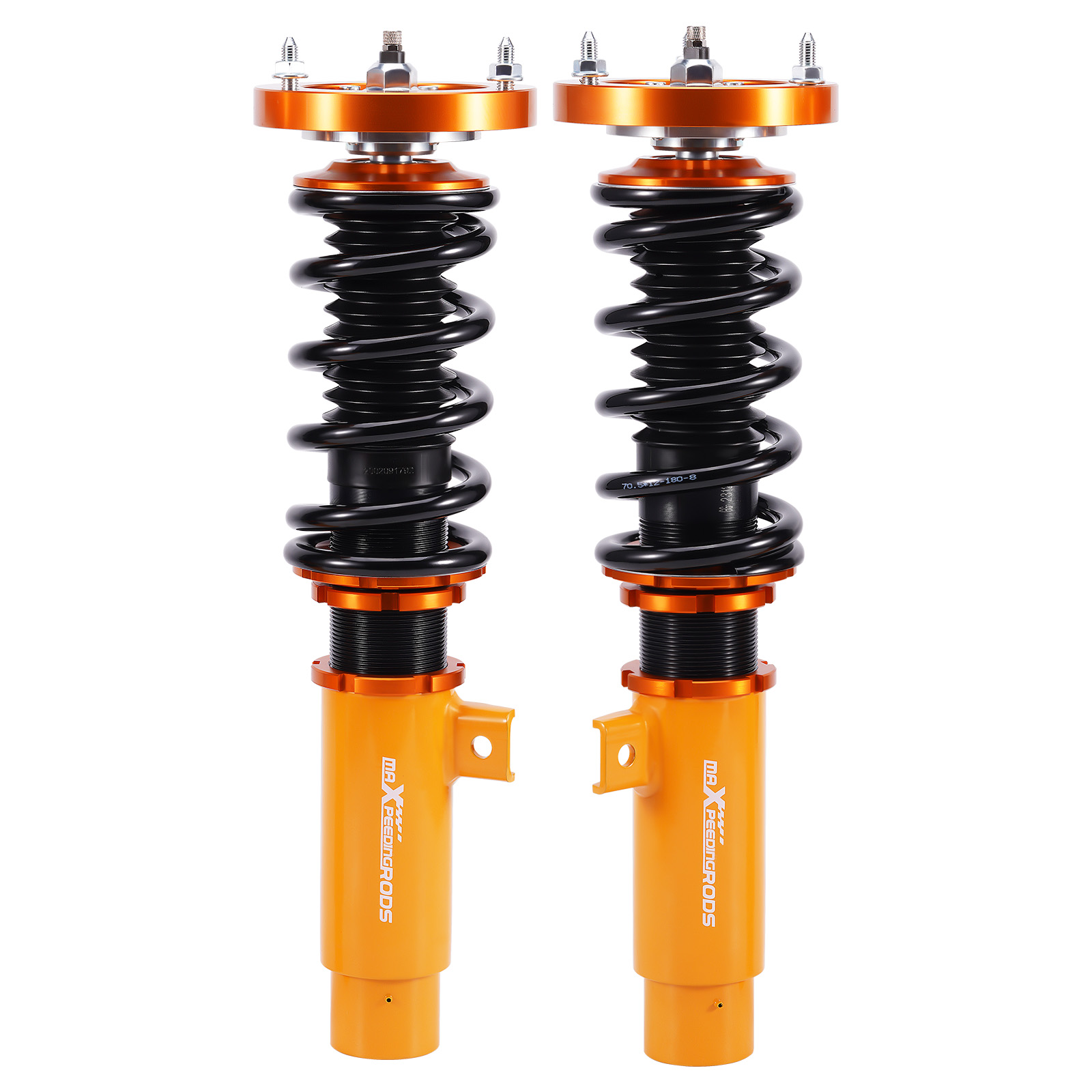

24 Damping Levels Coilover For BMW 3 Series Convertible Coupe E92 E93 2006-2013
Description
Introduction MXR-SLC based on MXR-SNA coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
Application
This product fit RWD vehicle only, not for the M3 model.
For BMW 3 Coupe (E92) (2005-2013) 316i, 318i, 320i,323i,325i,328i,330i,335i,320d,325d,330d, 335d
For BMW 3 Convertible (E93) (2006-2013) 318i, 320i, 323i, 325i, 330i, 335i, 320d, 330d, 325d.
Note: We suggest adding washers to avoid the engine bar and drilling the front OE shock top mount upper part a little bigger to a diameter of 12mm.
Specification Front Top mounts: Pillow ball top mount with camber plate
Rear Top mounts: OE top mounts required Damping: 24 levels rebound damping adjustable Spring rate Front: 6 kg/mm (356 lbs/in)
Spring rate Rear: 10kg/mm (560 lbs/in)
Spring length Front: 180mm
Spring length Rear: 230mm
Adjustable height: lowering 1-3inch
Coilover overall length Front: 540mm-640mm
Coilover overall length Rear: 550mm-660mm
Shock type: Twin tube
Spring Preload: 7-10 mm
Color: Gold

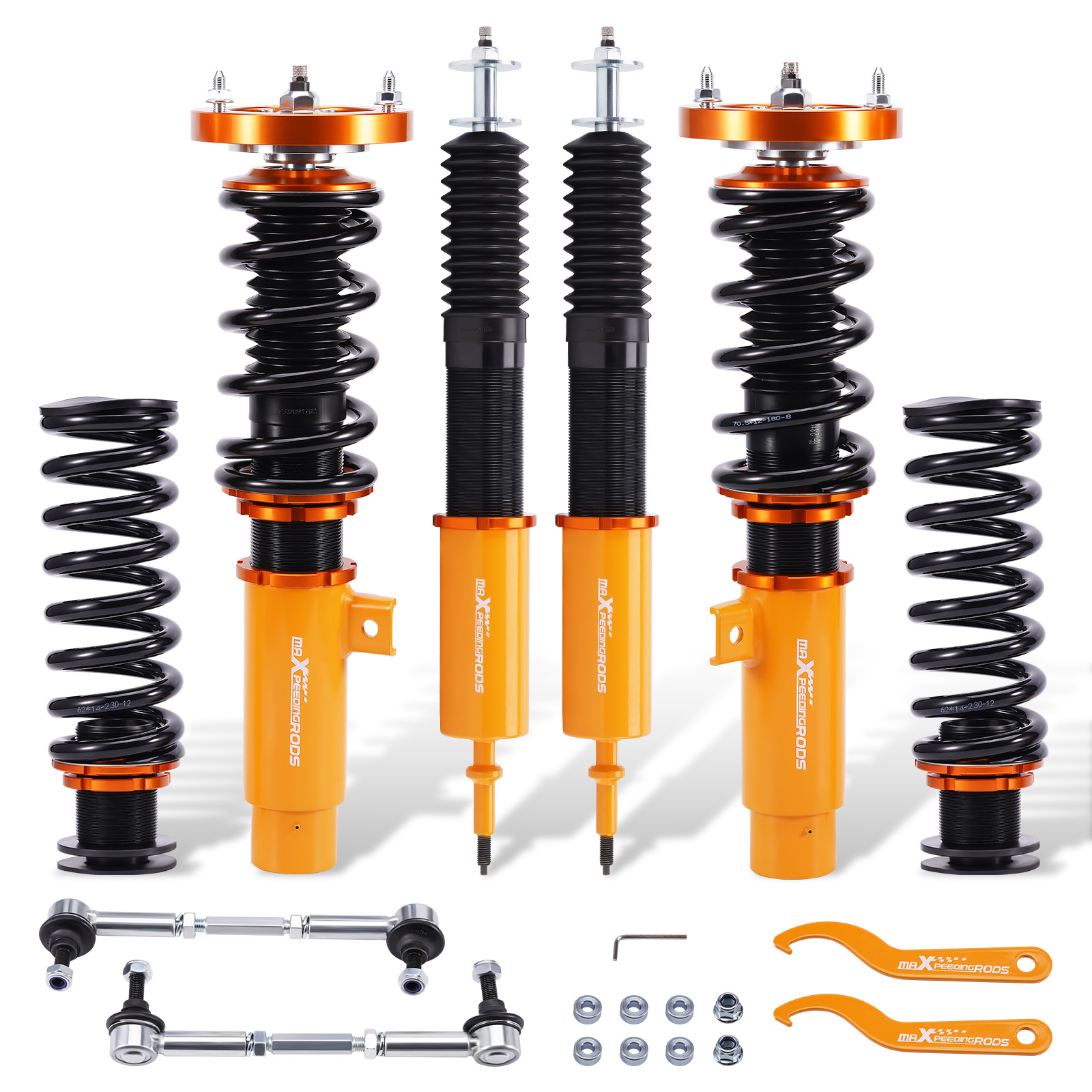

Package included 2x Front coil-overs
2x Rear coil-overs
2x Sway bar end links
2x C spanners
Dimension Weight: 26600g
Size: 63*51*21 cm
Feature 1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance
2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
3. Twin-Tube structure allows sufficient stroke within the shock absorber.
4. Separate height adjustment does not affect damper stroke.
5. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus, the special surface treatment improves the durability and performance.
6. Height Adjustment tools included.
7. Camber plate top mounts help to eliminate the need for a separate camber kit.
8. Pillow ball top mount - It improves the steering feel and response.
9. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.
10. Full rebuildable.
Notice * Professional installation & alignment suggested.
