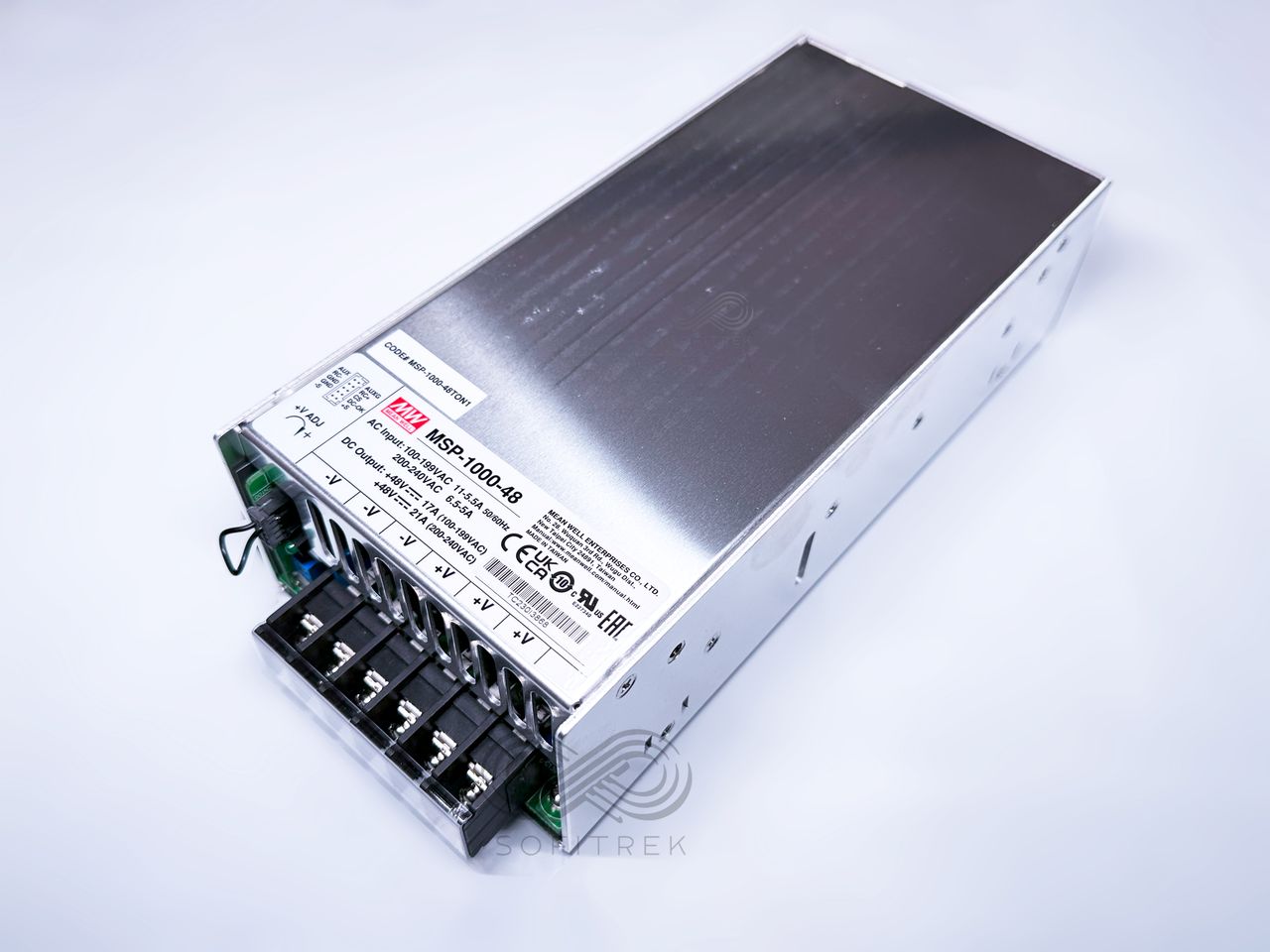

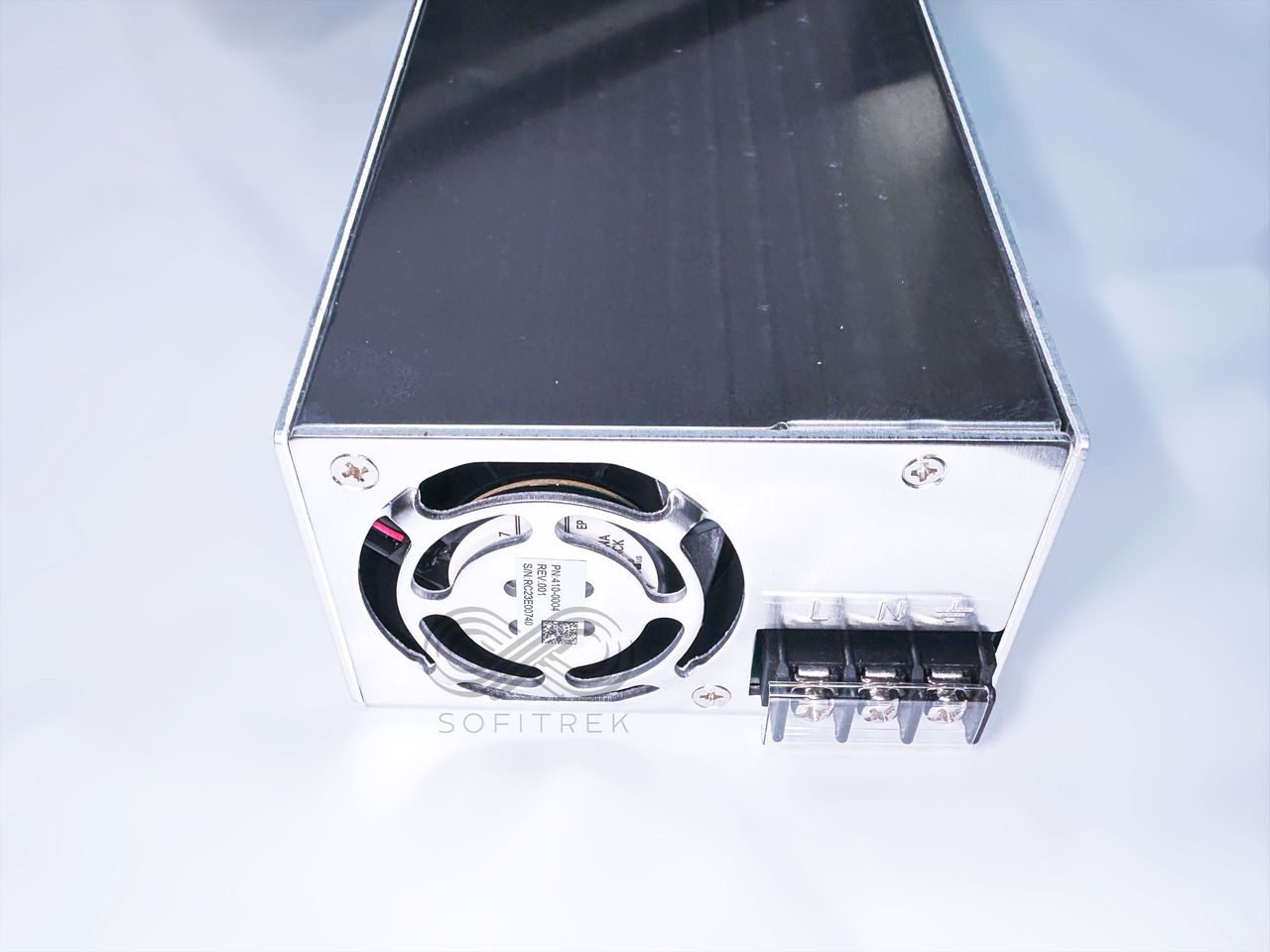

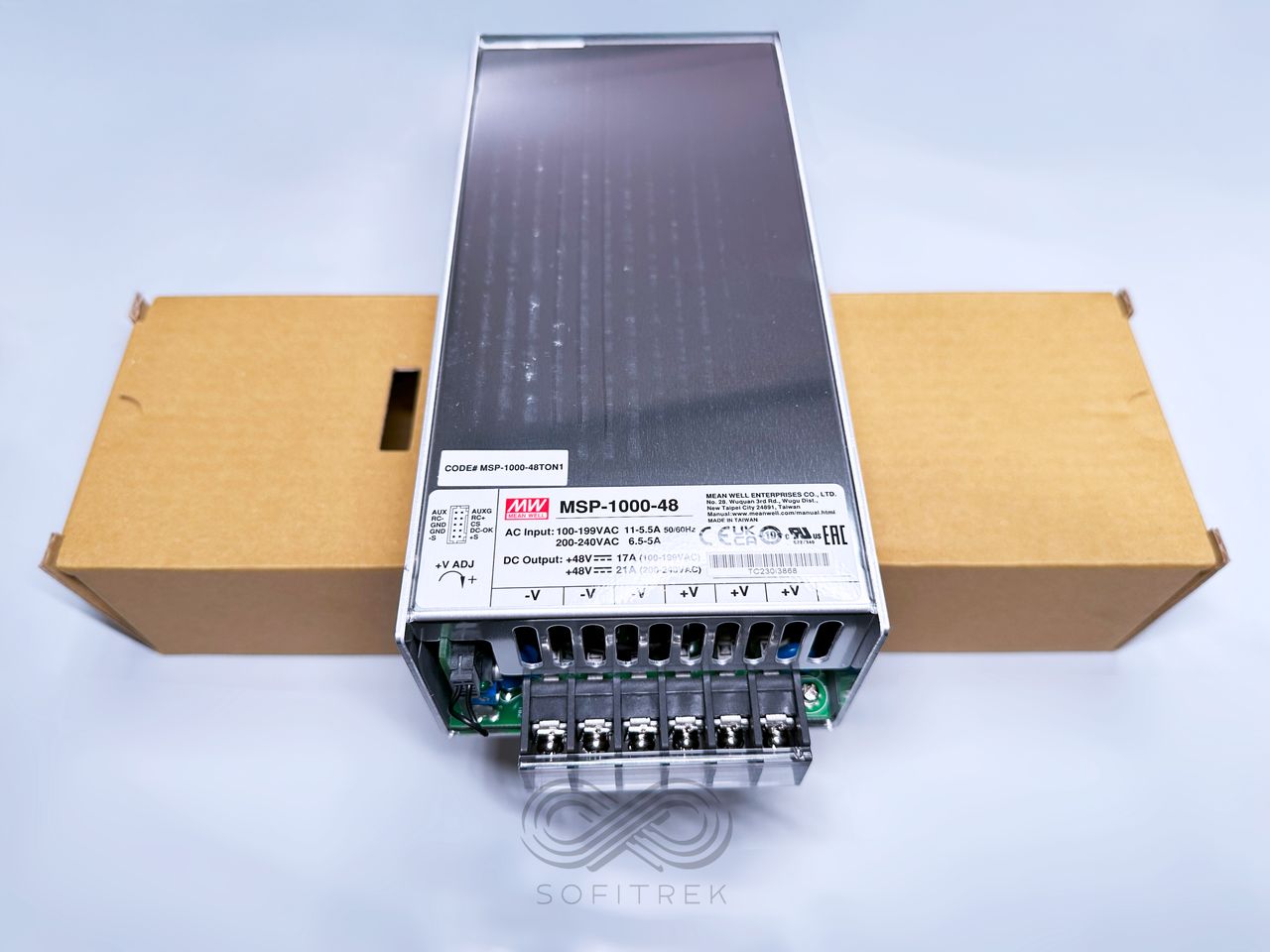

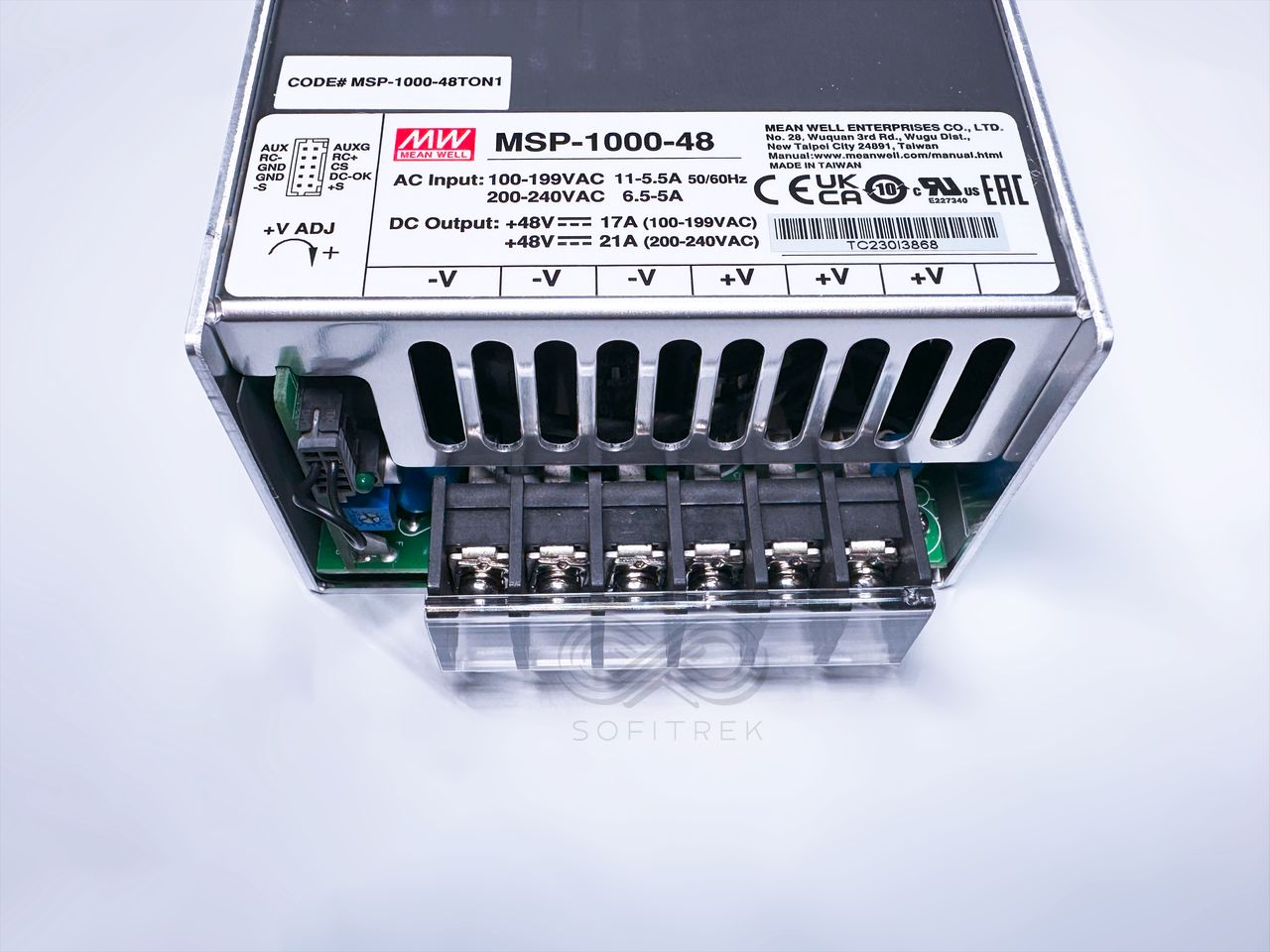

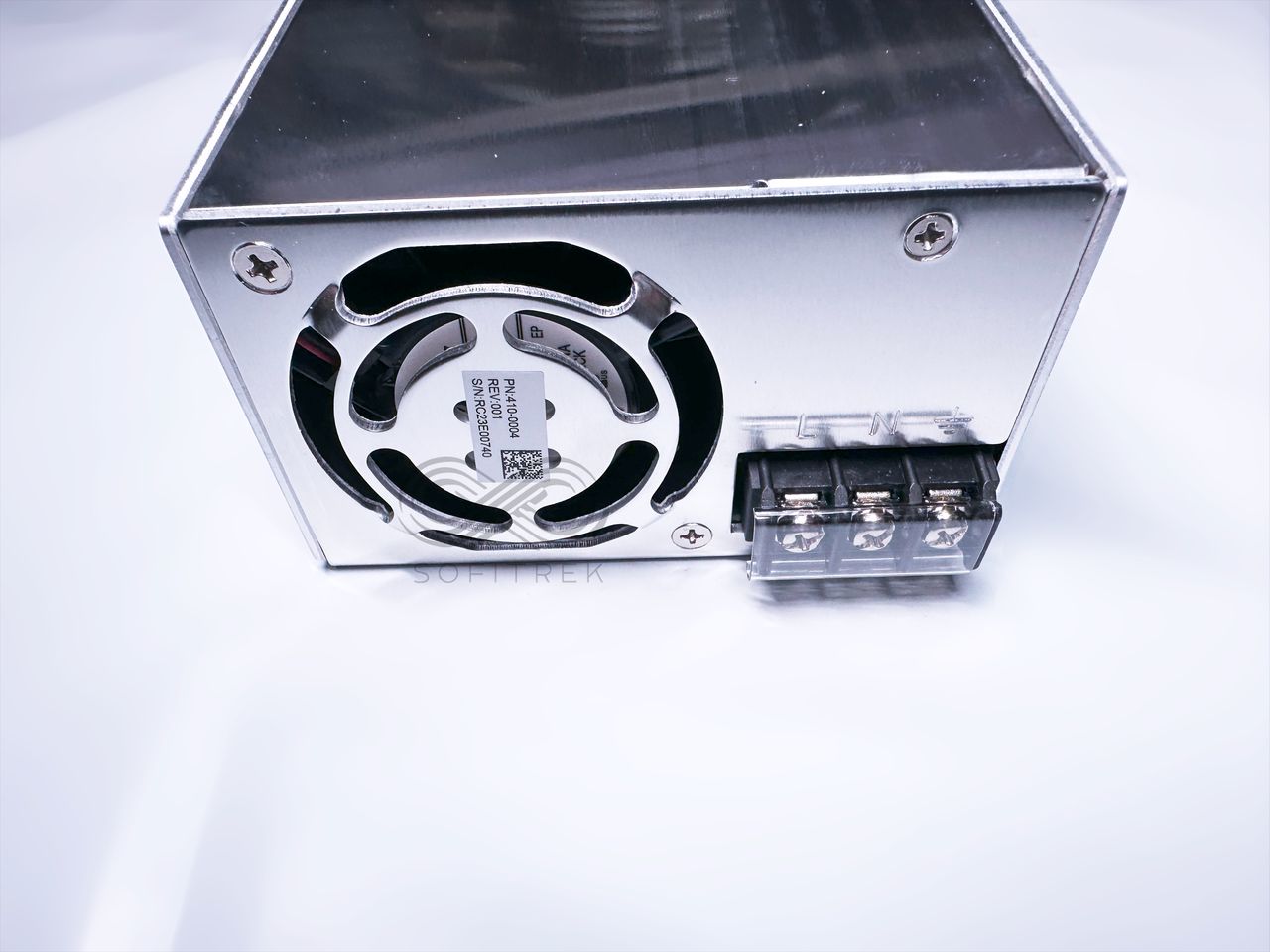

1 Piece - MSP-1000-48 MEAN WELL 1000W 48V 21A Medical AC/DC Enclosed Switching Power Supply
1 Unit - MSP-1000-48 MEAN WELL 1000W 48V 21A Medical AC/DC Enclosed Switching Power Supply
Date Code: 2203
| Specification | |
|---|---|
| Manufacturer | MEAN WELL ENTERPRISES CO LTD |
| Model | MSP-1000-48 |
| DC Voltage | 48V |
| Rated Current | 21A |
| Current Range | 0 ~ 21A |
| Rated Power | 1008W |
| Ripple And Noise (Max) | 250mVp-p |
| Voltage Adj. Range | 46 ~ 56V |
| Voltage Tolerance | ±1.0% |
| Line Regulation | ±0.5% |
| Load Regulation | ±0.5% |
| Setup, Rise Time | 2000ms, 50ms/115VAC at full load |
| Hold Up Time (Typ.) | 16ms/115VAC at full load |
| Voltage Range | 127 ~ 370VDC, 90 ~ 264VAC (300VAC for 5 sec.) |
| Frequency Range | 47 ~ 63Hz |
| Power Factor (Typ.) | PF > 0.98/115VAC at full load |
| Efficiency (Typ.) | 94% |
| AC Current (Typ.) | 5A/230VAC |
| Inrush Current (Typ.) | 20A/115VAC |
| Leakage Current | Earth leakage current < 360μA/264VAC, Touch leakage current < 100μA/264VAC |
| Overload Protection | 105 ~ 135% rated output power, recovers automatically after fault condition is removed |
| Over Voltage Protection | 58 ~ 65V, shuts down o/p voltage, re-power on to recover |
| Over Temperature Protection | Shut down o/p voltage, recovers automatically after temperature goes down |
| Current Sharing | Up to 4000W (3+1) |
| Remote On/Off Control | Power ON: short, Power OFF: open |
| Remote Sense | Compensate voltage drop on the load wiring up to 0.5V |
| DC-OK Signal | TTL signal out, PSU turn on = 3.3 ~ 5.6V; turn off = 0 ~ 1V |
| 5V Standby | 5VSB 5V@0.3A, tolerance ±5%, ripple ≤ 50mVp-p(max.) |
| Fan Control | Fan on/off by NTC (RT50) or 30% load min. |
| Working Temp. | -40 ~ +70°C (Refer to Derating Curve) |
| Working Humidity | 20 ~ 90% RH non-condensing |
| Storage Temp., Humidity | -40 ~ +85°C, 10 ~ 95% RH non-condensing |
| Temp. Coefficient | ±0.03%/°C (0 ~ 50°C) |
| Vibration | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
| Protections | Short circuit / Overload / Over voltage / Over temperature |
| Built-In Features | Cooling fan on-off control, DC OK signal, Remote ON-OFF control, Remote sense, 5V standby output |
| Power Supply Type | Single output enclosed type AC/DC |
| Application Suitability | MRI scanner, CT and PET scanner, Medical bed, Surgery table, Medical measurement device |
| Medical Safety Standard | 2x MOPP, ANSI/AAMI ES60601-1, IEC60601-1 |
| No Load Power Consumption | < 0.75W |
