Charging and Discharging Machine Capacity Tester Battery Tester Discharger 1-30V Adjustable 10A
Model YPSDZ-3010
Charging voltage 1-30V adjustable
Charging current 0.5-10A adjustable
Discharge voltage 1-30V adjustable
Discharge current 0.5-10A adjustable
Charging mode constant current and constant voltage
Discharge mode constant current discharge (MOS tube)
Working mode charge/discharge/cycle
Alarm Function
Battery over-voltage/reverse connection/battery disconnection/over-temperature/end-of-test buzzer alarms
Calibration mode
Factory calibration + third-party professional calibration (traceable to the State Bureau of Weights and Measures)

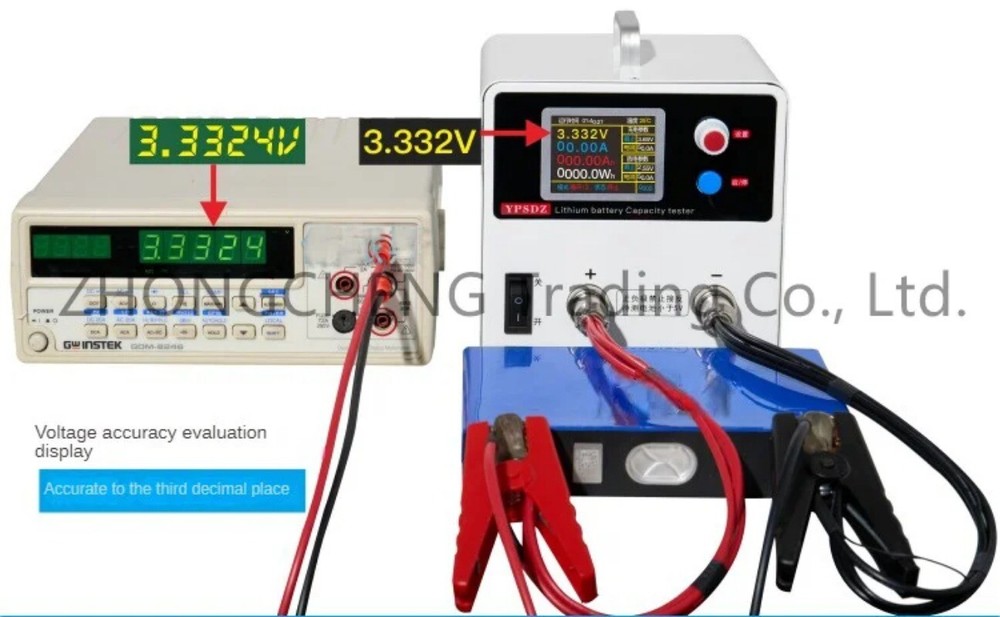

Accuracy voltage ±0.1%, current ±0.2% (authorized user calibration allowed)
Heat dissipation
Temperature-controlled fan turns on at 40°C (check the fan regularly to see if it is functioning properly).
Note: Prohibit testing of batteries over 30v.
Equipment power supply
AC220V50HZ±10% (110V can be predetermined)
Working environment
0-45℃ ventilated, no foreign objects into the fan and the machine.
Weight:2.5kg
