3.2KW Solar Inverter Off Grid 220-230VAC MPPT 80A 60V-500V 24V WIFI UK

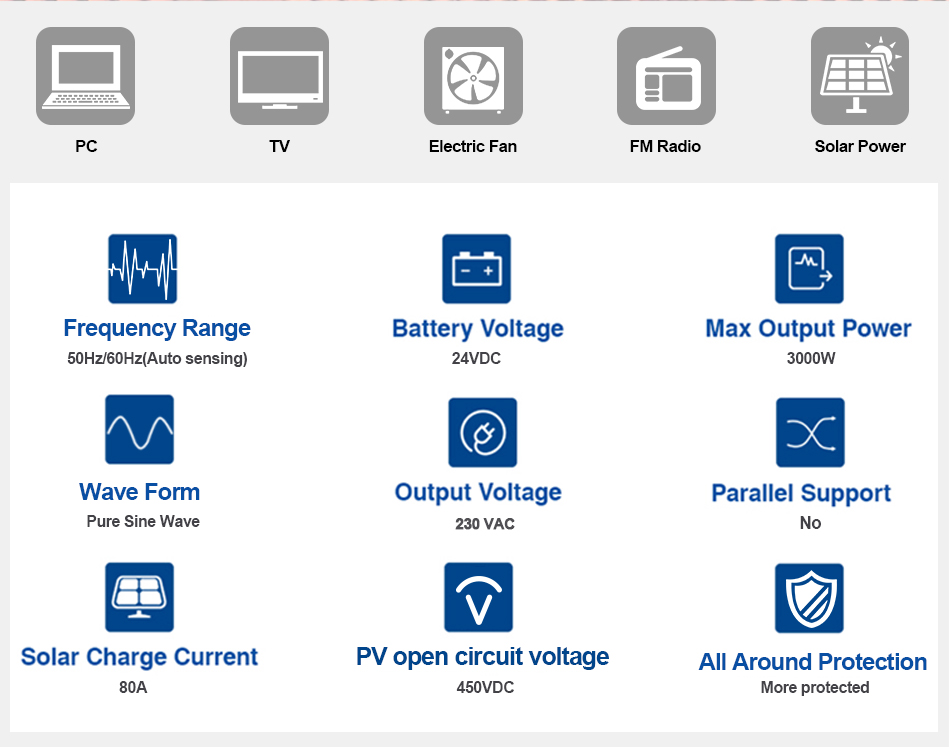

Features:
Pure sine wave inverter
PV input voltage 60Vdc-500Vdc
Built-in MPPT 120A
Lithium battery activation
Compatible operation with LifePO4 battery via RS485
Can also be operated without battery
WiFi remote monitoring
Supports multiple output priorities: UTL,SOL,SBU,SUB
Compatible to mains voltage or generator power
EQ function to optimize battery performance and extend life cycle
| ISolar-SMH-II-3.2KW | |
| Rated Power | 3200W |
| INPUT | |
| Voltage | 230Vac |
| Selectable Voltage Range | (170Vac~280Vac) ±2%；(90Vac-280Vac)±2% |
| Frequency Range | 50Hz/ 60Hz (Auto detection) |
| OUTPUT | |
| AC Voltage Regulation (Batt.Mode) | 230VAC±5% |
| Surge power | 3200VA |
| Transfer Time | 10ms (for personal computers) / 20ms (for home appliances) |
| Wave form | Pure Sine Wave |
| BATTERY & AC CHARGER | |
| Battery Voltage | 24VDC |
| Floating Charge Voltage | 29.2VDC |
| Overcharge Protection | 27VDC |
| Maximum charge current | 80A |
| SOLAR CHARGER | |
| MAX.PV Array Power | 3000W |
| MPPT Range@ Operating Voltage | 55-430VDC |
| Maximum PV Array Open Circuit Voltage | 430VDC |
| Maximum Charging Current | 80A |
| Maximum Efficiency | 98% |
| PHYSICAL | |
| Dimension.D*W*H(mm) | 348x282x105mm |
| Net Weight (kgs) | 5.5kg |
| Communication Interface | RS232/RS485(Standard) / GPRS/WIFI(Optional) |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -15°C to 60°C |
We have UK inventory and expect delivery in 3-4 business days. Shipped from China, no VAT is required.
