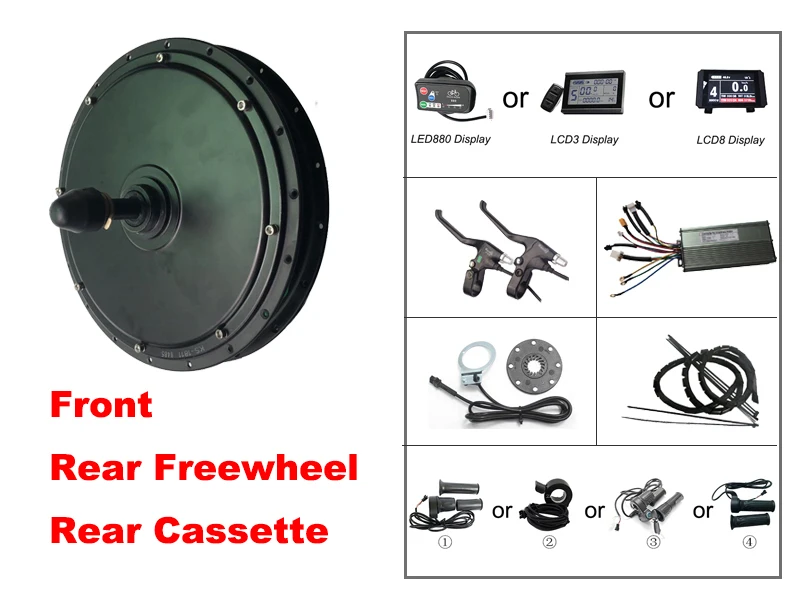

Packing List

Noted:Battery not included, rim, freewheel,Disc brake rotor
If you select "motor only", it only has one hub motor and no other accessories
1 * front or rear hub Motor
1 * DC Controller
1 * Controller Bag
1 pair * Power cut-off Brake lever
1 * Display LED880 or LCD3 or LCD8 or No Display (Option)
1 set * Thumb Throttle (default) or Half Twist Throttle or Half Twist Throttle with electric lock or Twist Throttle (Option)
1 * 8 Magnet Pedal Assistant Sensor

Hub Motor

1. Full Speed:about 50-60km/hour
(different wheel size, road&weather condition and rider's weight will have different speed)
2. Hub Motor:Brushless Non-gear Hub Motor
3. Motor Bottom bracket: Rear 135mm-142mm or Front 100mm
4. Torque:35-45NM
5. RPM:540
7. motor hub weight : 6.1kg Front/6.2kg Rear

Rim

This kit comes without the rim, please make sure the
following details:

Display

There are 3 options
If you select "No Display", there is no display
LCD3 and LCD8 display which comes with Brake Regeneration Anti-Charge ,cruise Function
LCD8 display with USB function

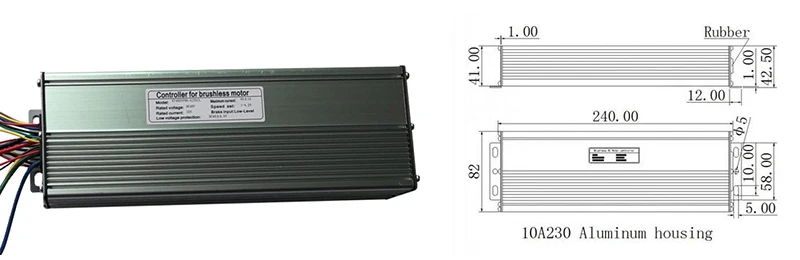

Controller

model: 18 Mosfet
Rated voltage: DC48V
Rated current: 22A
Low voltage protection: DC40±0.5V
Maximum current: 45±1A
Speed set: 1-4.2V
Brake input: Low-level
size: 240*82*41mm

PAS

KT BZ-4(8) Magnet
(If you need a 12 magnetic PAS, please contact us for an additional fee)

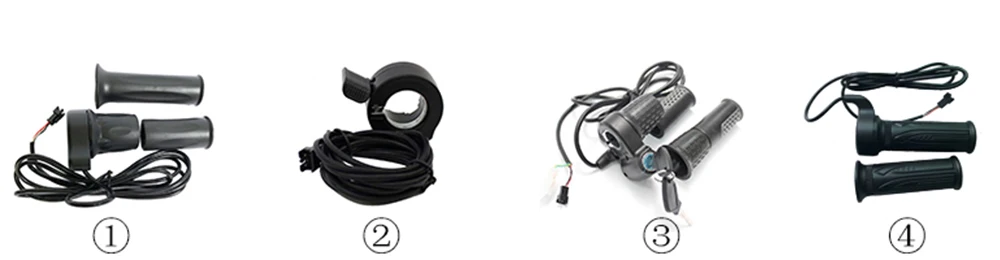

Throttle

There are 4 options
1.Half Twist Throttle
2.Thumb Throttle (default)
3.Half Twist Throttle with electric lock
4.Twist Throttle

brake leaver

Power cut-off brake leaver
(Note: If you need a brake sensor instead of a brake lever, please contact us for an additional fee.)
