Note: It is strictly forbidden to make mistakes in the positive and negative wiring of the brushless motor. Make sure to make sure that the wiring is correct. If the positive and negative poles are connected incorrectly, the internal drive will be burnt.

Specification:

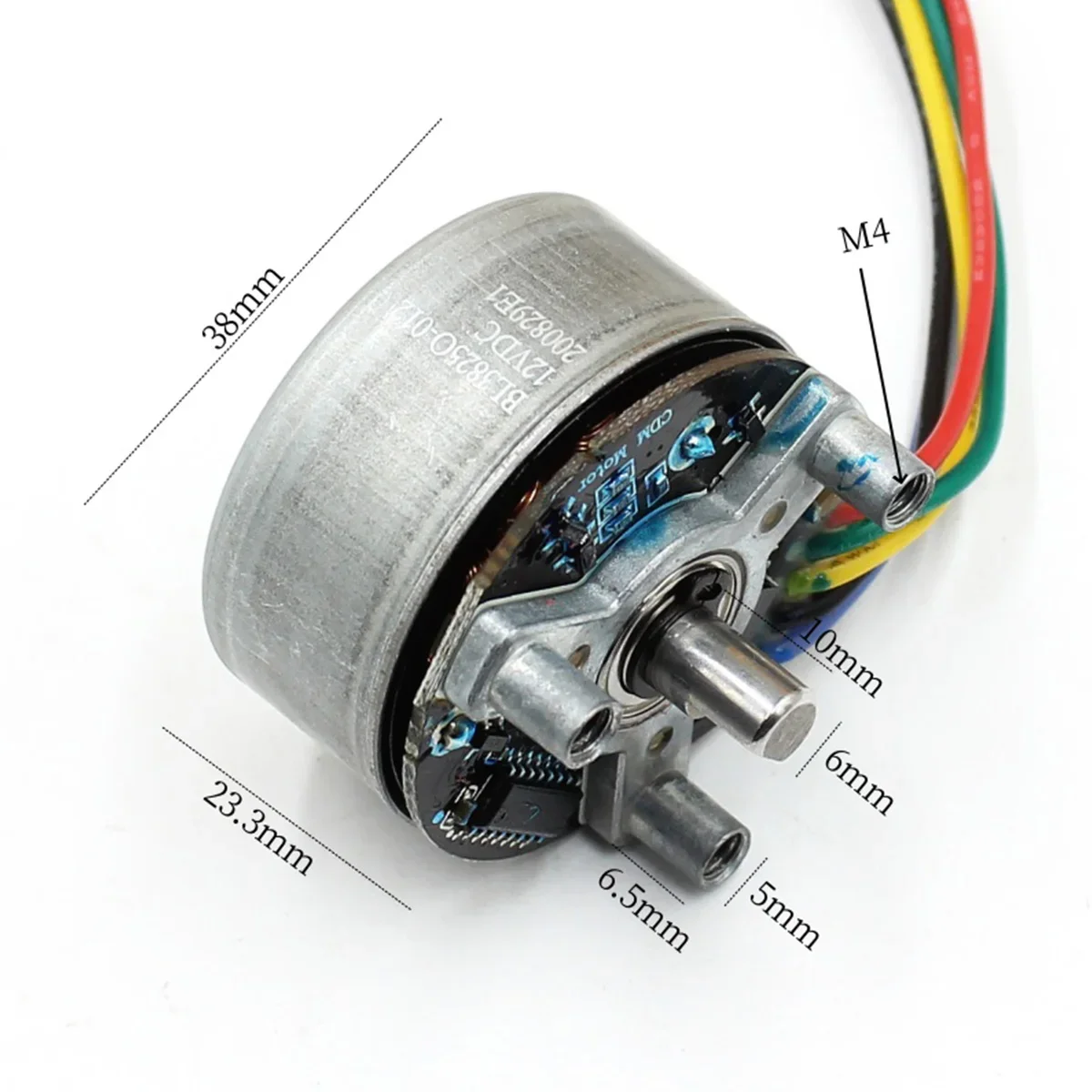

Product model: Brushless Motor

Motor diameter: 38mm

Motor length: 23.3mm

Shaft diameter:6mm

Shaft length:10mm

Applicable voltage: DC 7.4V-12V

Rated voltage: 12V     No load current 0.32A      No load  speed:3800RPM

Weight: 110g

The motor has 5 wires: red, green, yellow, black and blue
Red line: positive electrode
Green line :FG(signal line, feedback line, can not be connected)
Yellow line: direction line (adjustable positive and negative rotation when working at rest)
Black line: common GND(motor negative +PWM negative)
Blue line :PWM(with the black line and the motor will run at the highest speed)

Note: The red line is connected to the positive terminal, and the black wire is connected to the negative terminal. It is strictly forbidden to connect the positive and negative terminals incorrectly. If connected incorrectly, the drive board will be burned.

Package Include:
1PCS * Motor
