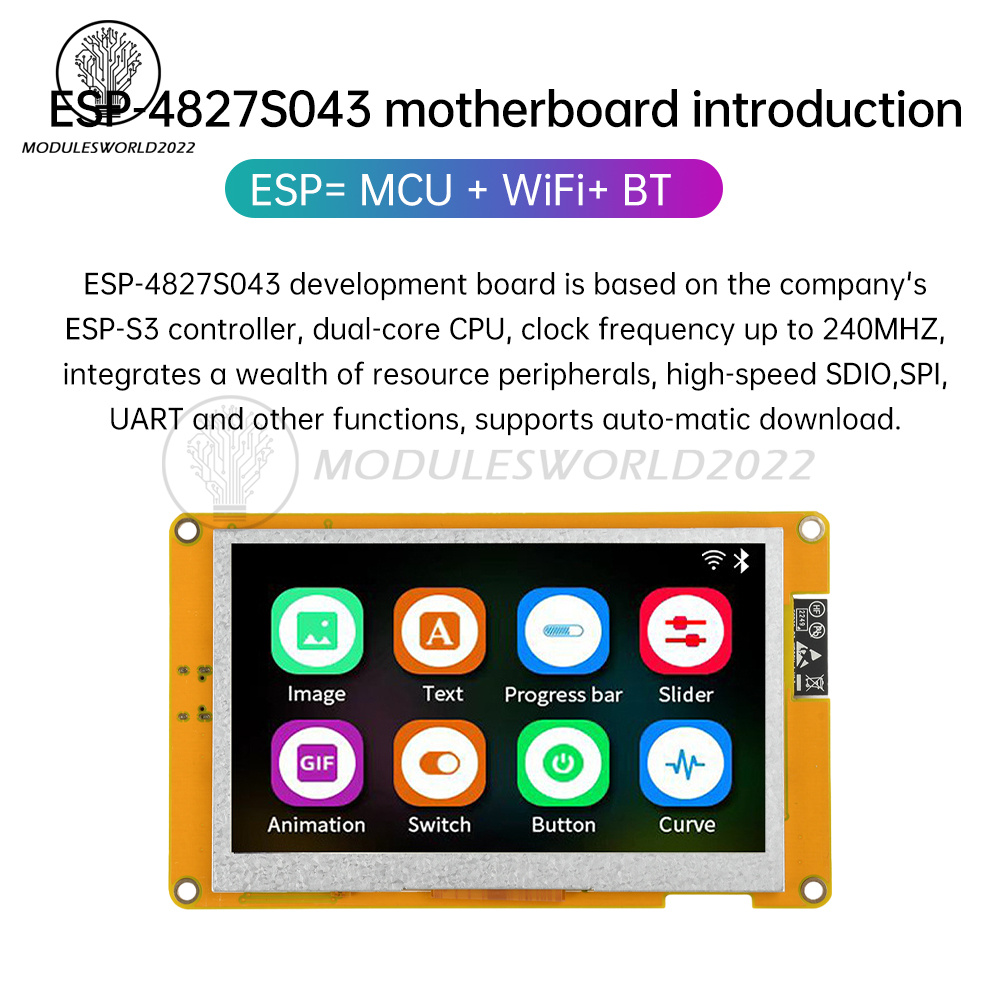

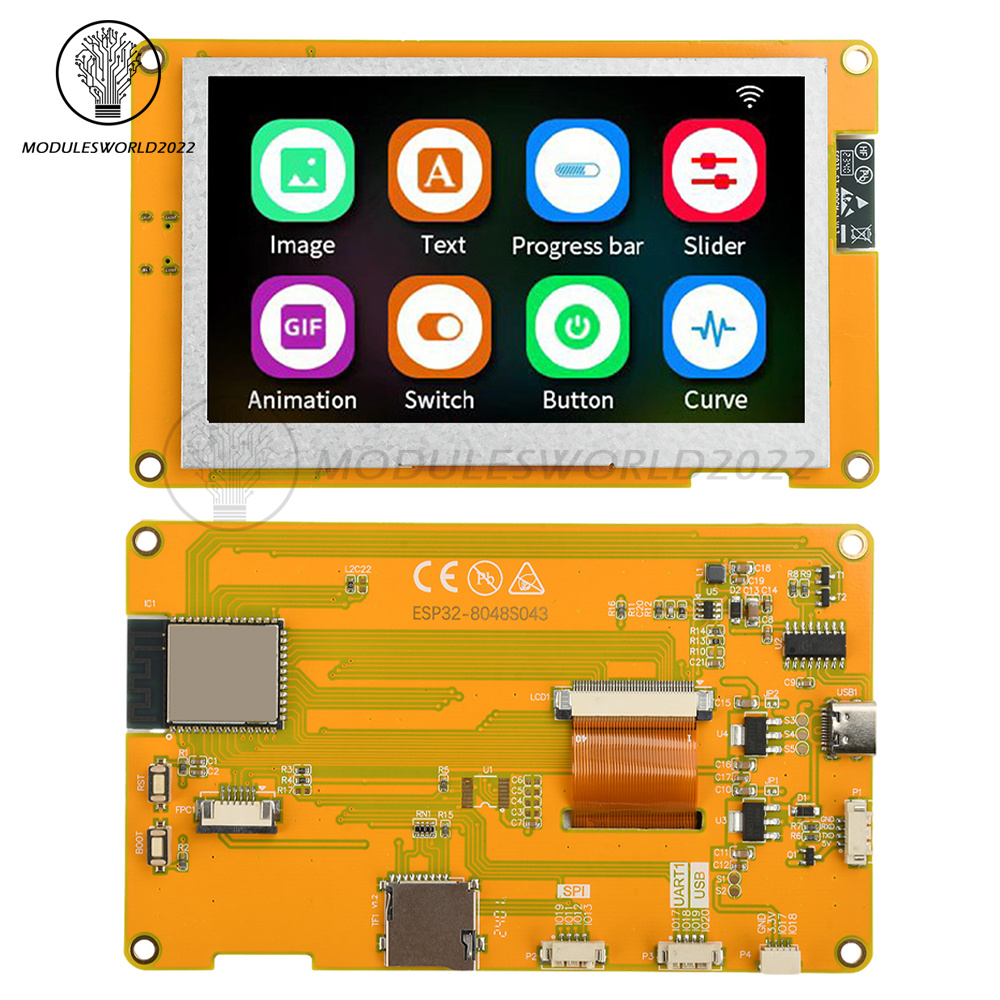

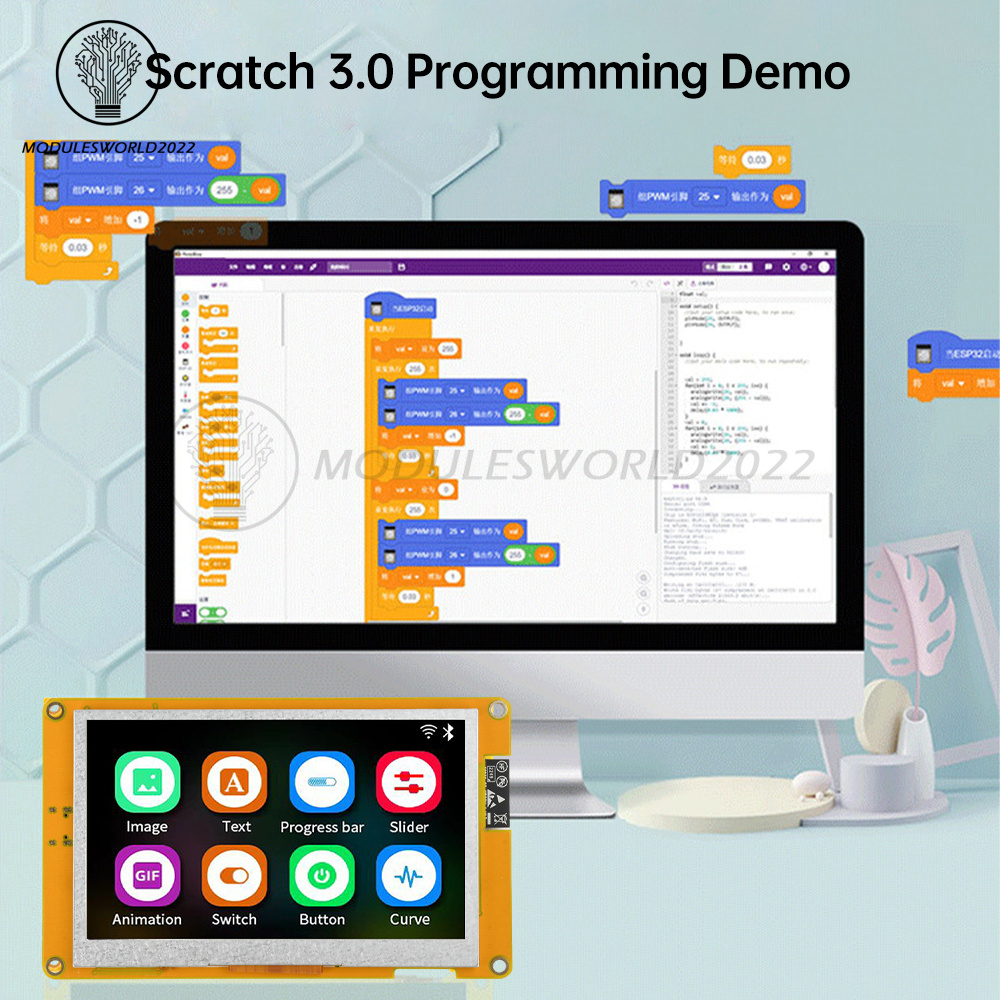

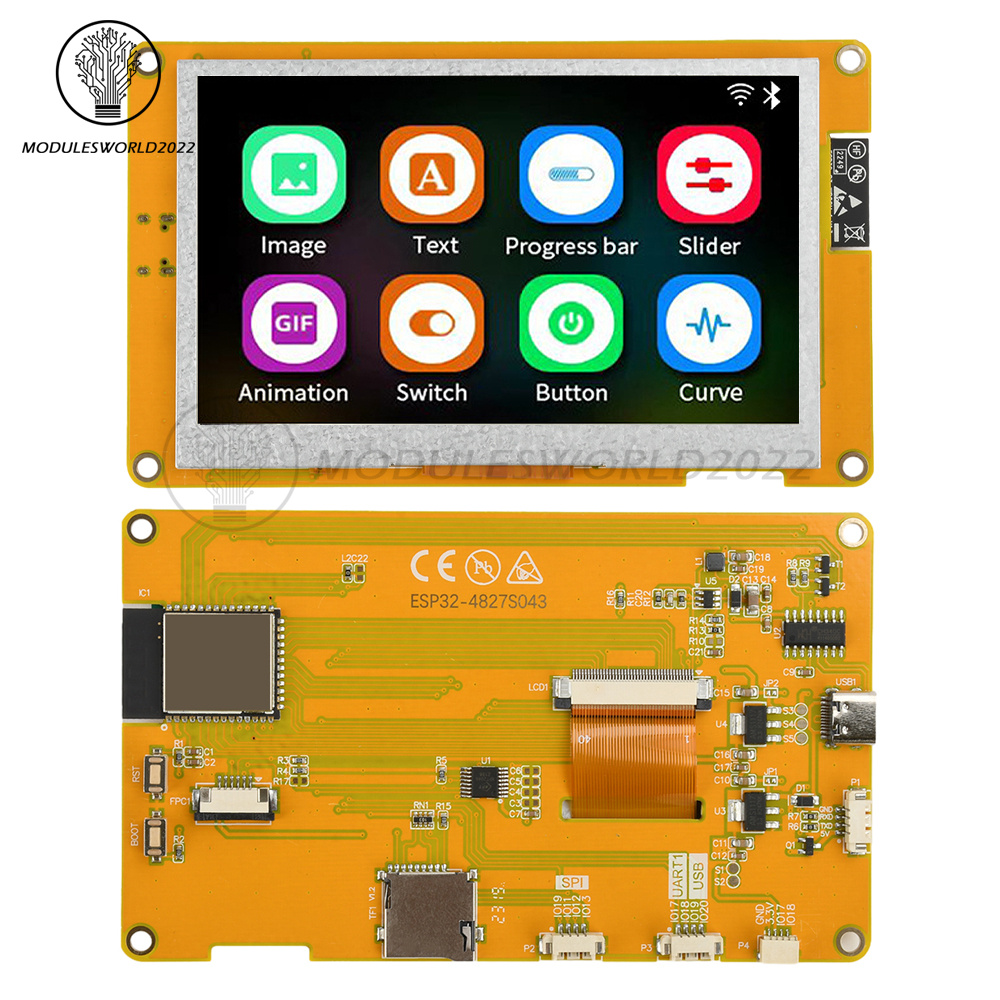

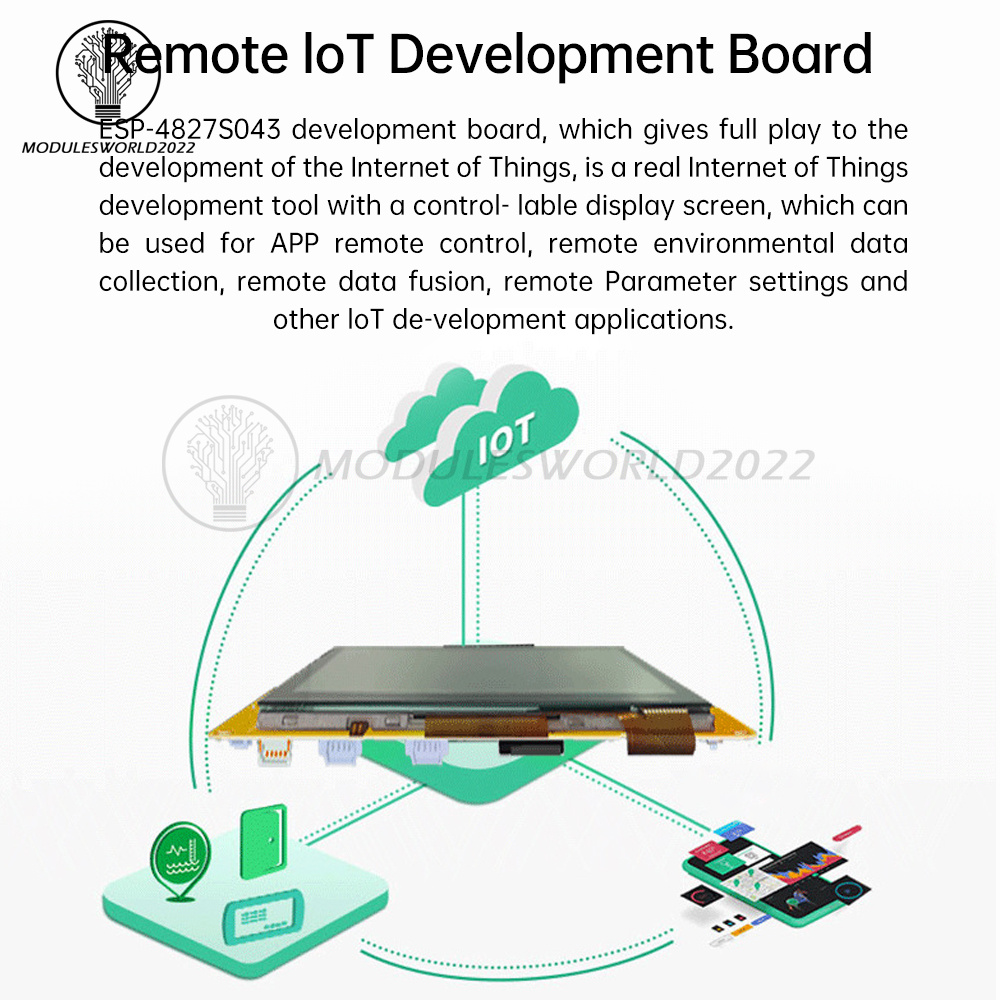

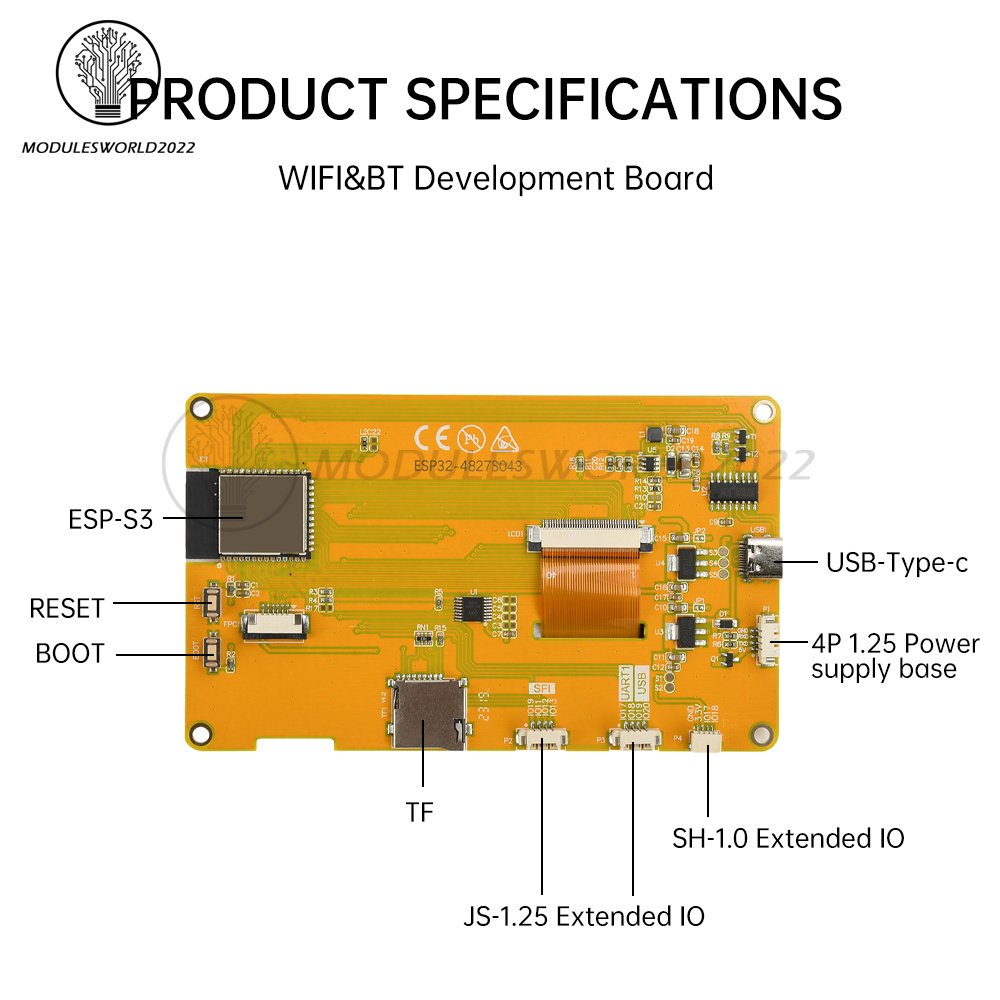

The module adopts ESP32-S3-WM-1 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency can be up to 240MHz, 512KB SRAM, 384KB ROM, 8M PSRAM, the flash size of 16MB, the display resolution is 480*272 or 800*480, resistive touch or capacitive resistive touch or capacitive touch. The module includes LCD display, backlight control circuit, touch screen control circuit. Reserved TF card interface, IO port interface, the module supports IDE, ESP IDE, Micropython and Mixly development.
1.High resolution display: 480x272 or 800x480 resolution, support 16-bit RGB 65K colors, excellent display effect.
2. Rich interface expansion: reserved TF card interface and IO port, easy storage expansion and peripheral connection.
3. Rapid development support: built-in sample program, support one-key download, promote the efficiency of secondary development.
4. Good stability: military-grade technology to ensure long-term stability, suitable for a variety of environments.
5. Dual-core ESP32-S3 main control: integrated Wi-Fi and Bluetooth, 512KB SRAM, 16MB flash memory, powerful performance.

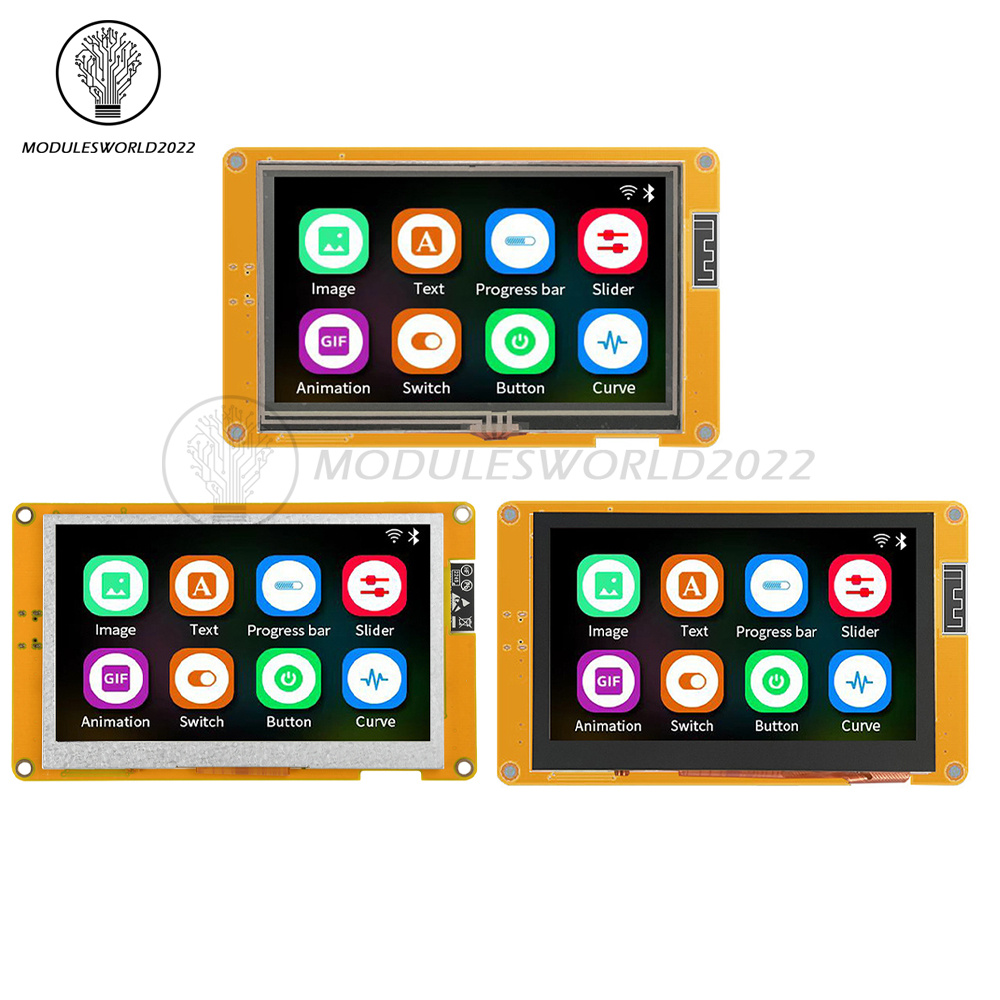

Touch mode: without touch, resistive touch, capacitive touch
Size: 4.3 inches
Type: TFT
Driver chip: ILI9485
Resolution: 480*272, 800*480

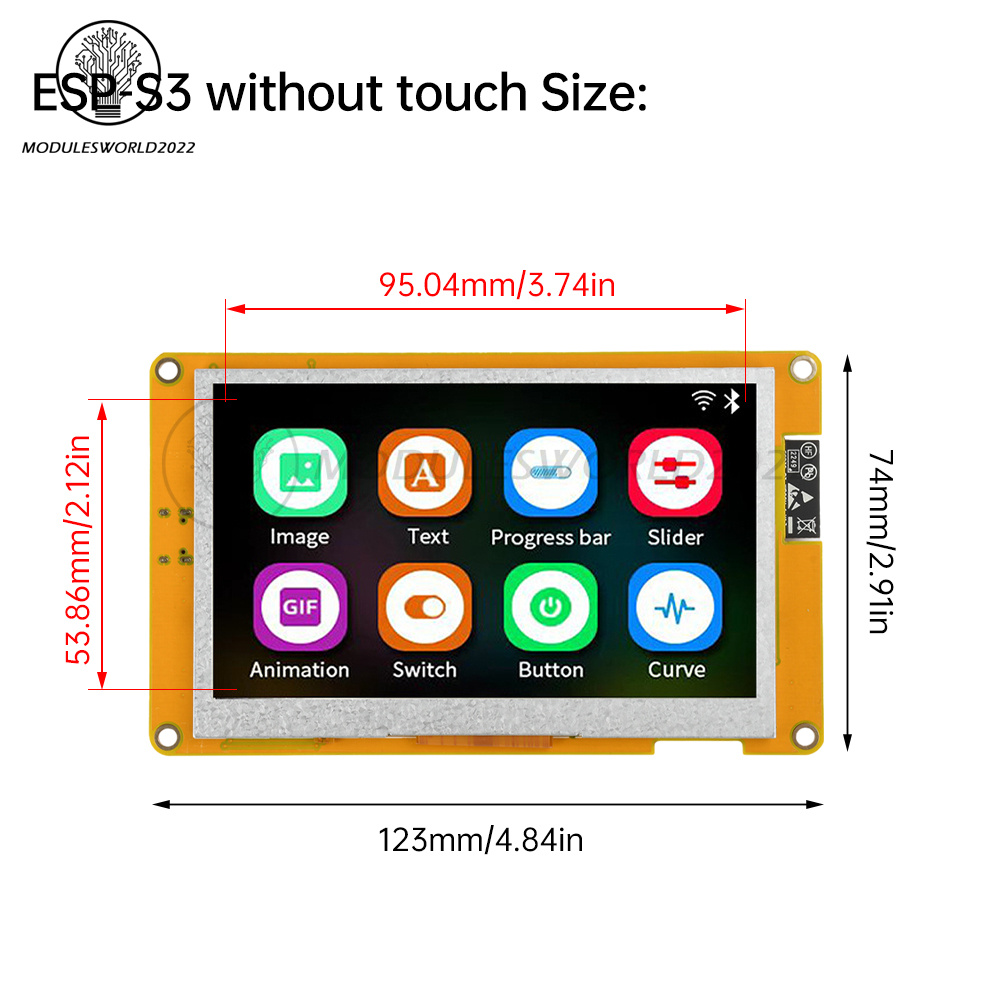

Effective display area: 95.04*53.86 (mm)
Operating voltage: 5V
Power consumption: 260mA
Module size: 105.5mm*74mm
View: >60°
Operating temperature: -20℃~70
Storage temperature: -30℃~80
4.3-inch color screen, support 16-bit RGB 65K color display, rich display color
480X272 resolution or 800X480 resolution
Example program has been factory programmed and can be inserted
Equipped with TF card slot for extended storage

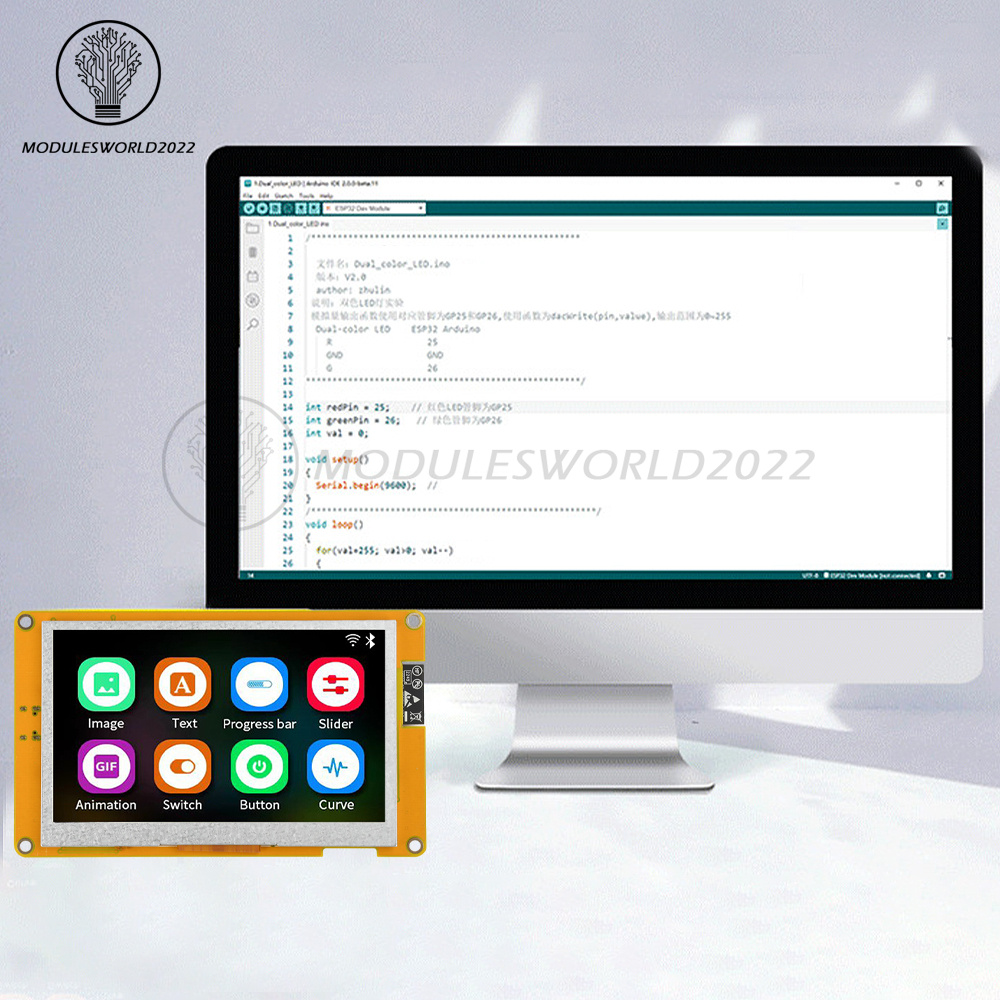

Provide sample programs to facilitate rapid secondary development
Supports one-click program download

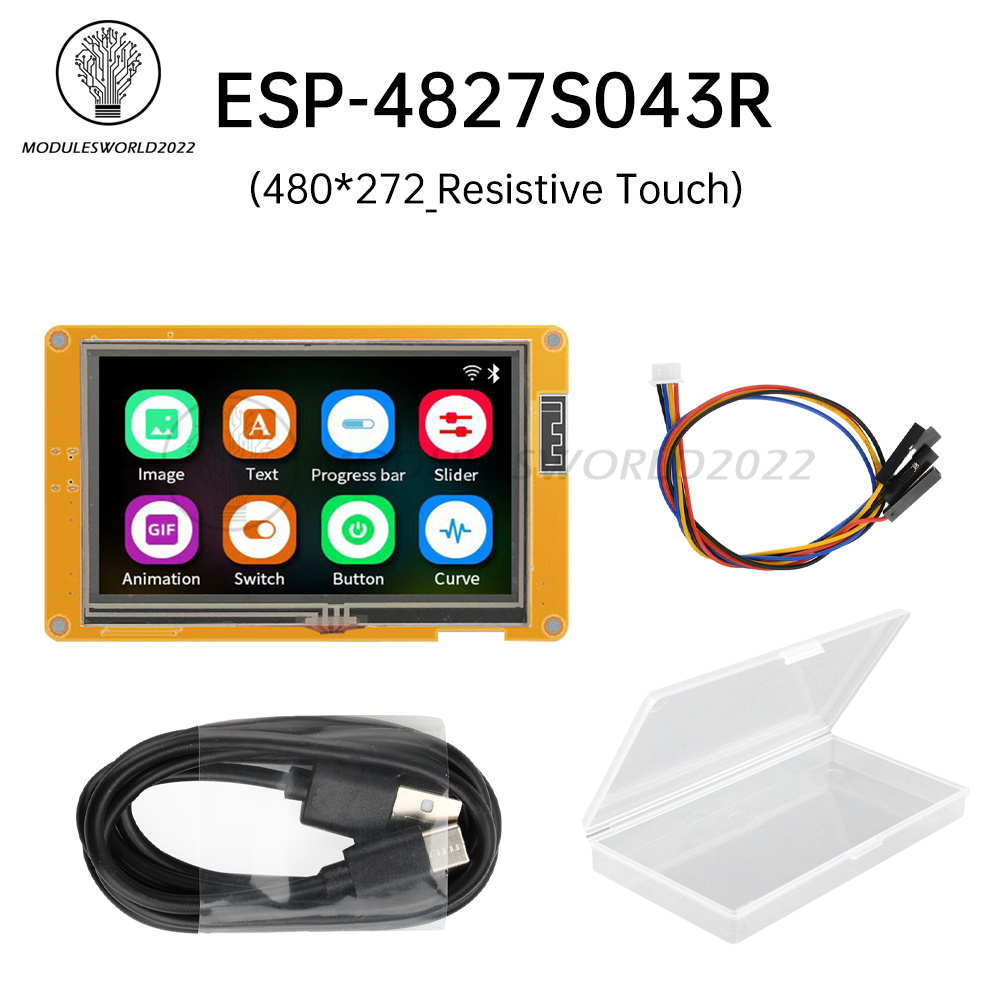

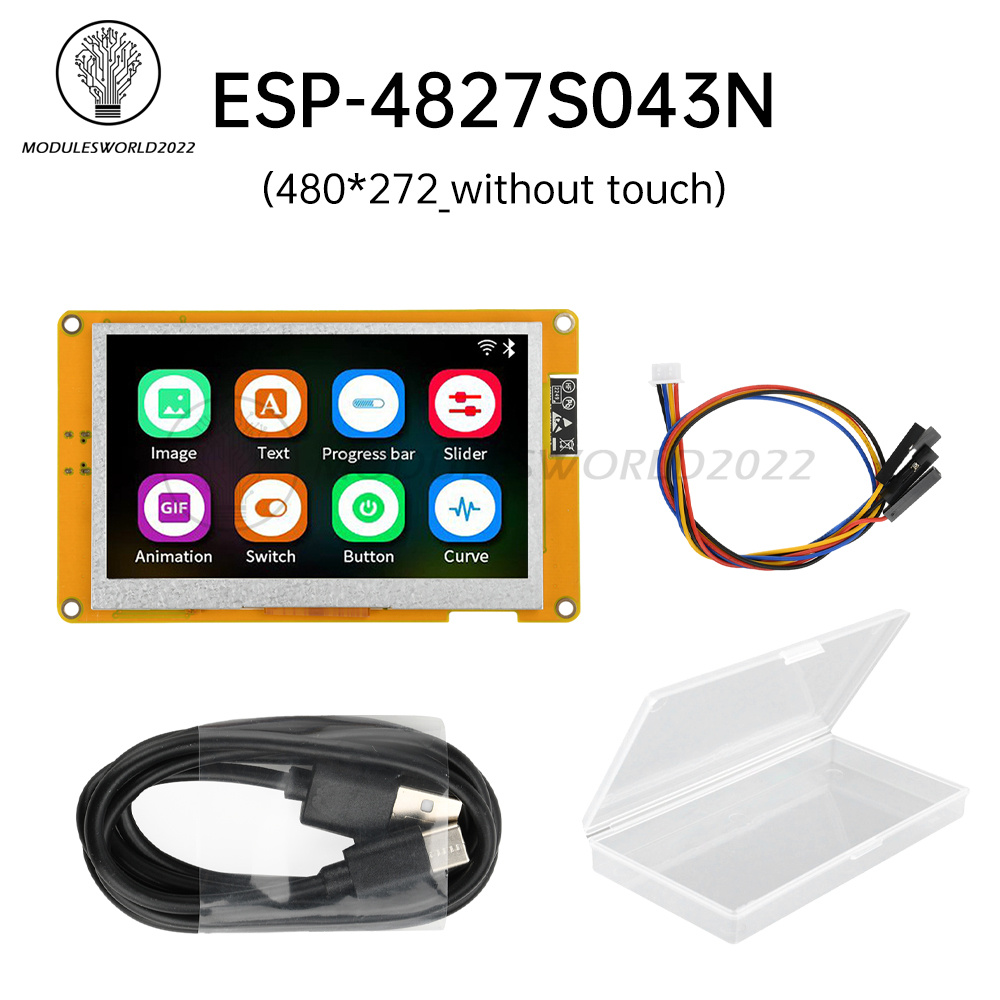

1 x Development Board
1 x Cable
1 x Terminal cable
