Easy installation and maintenance: It is quite easy to replace light bulks, and unnecessary to adjust its focus and position.
Customer Programmable: Icons can be displayed in predefined sequence by programming.
Display Single Icon: Display single icon by multi-function mask plate
Tilted Placement: Perfect image position can be obtained by adjusting the horizontal axis of projector
Standards parts: Metal plate with polarized coating (410x 410mm)
Specifications
|
Model |
ACP-1800A/B/C |
ACP-1800LA/LB/LC |
|
Projection Distance |
1.5m~6m |
|
|
Projection Magnification |
30x (at 5m) |
|
|
Projection Size |
330mm (w) x 270mm (H) (at 5m) |
|
|

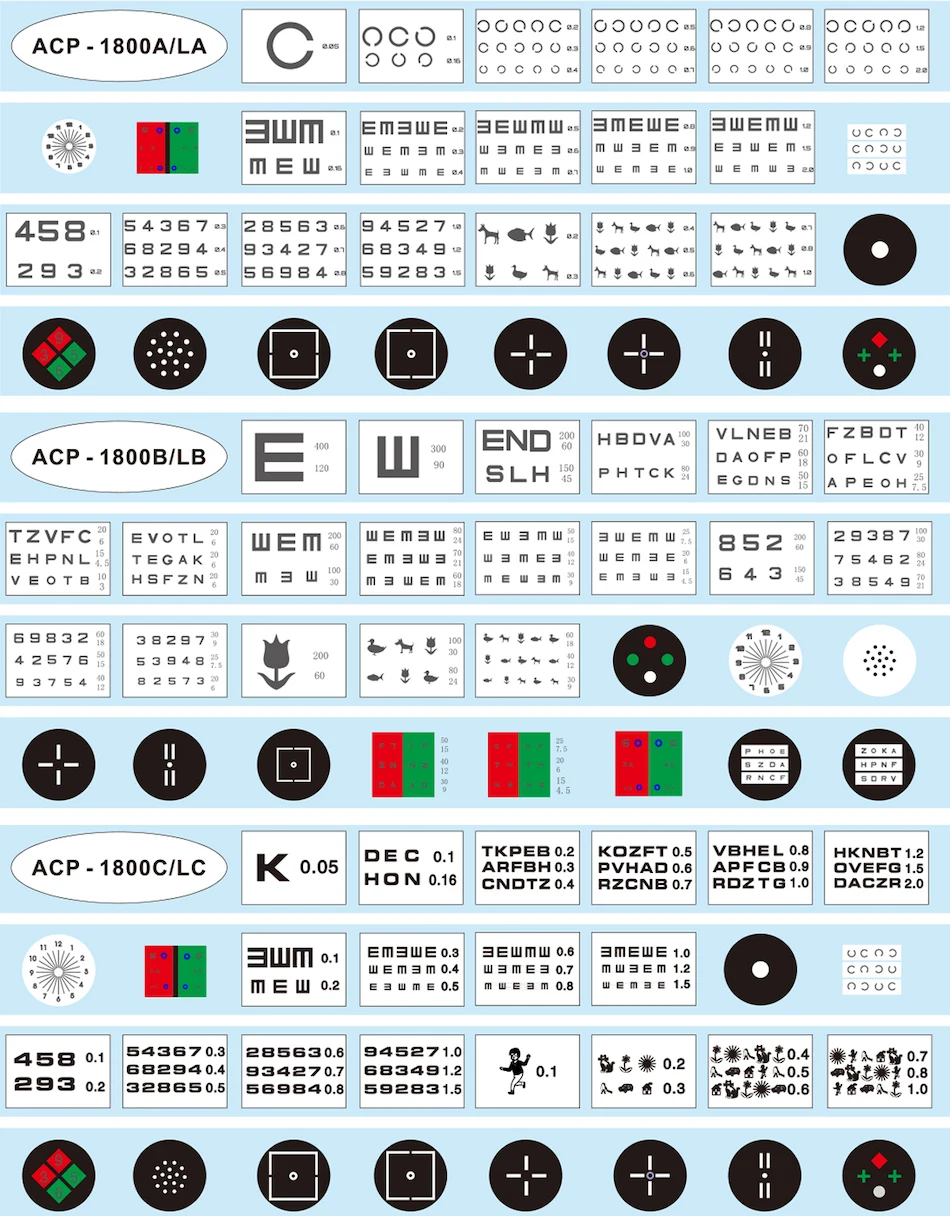

Chart |
30 different pattern |
|
|
Speed of chart conversion |
One chart per 0.03s |
|
|
Mask |
1 open, 5 horizontal different lines, 8 vertical lines, 21 single letters, 1 red/green |
|
|
Speed of mask conversion |
One mask per 0.03s |
|
|
Program |
2 sets programs, each program contains up to 30 steps |
|
|
Light source |
12V, 50W Halogen Lamp |
LED lamp |
|
Auto-off function |
After 10 minutes idle time |
|
|
Power source |
AC 220V, 50HZ 0r 110V, 60Hz |
|
|
Power consumption |
80W |
40W |
|
Accessories |
Remote control, polarized metal screen, halogen lamp, polarized glasses, fuses (2), batteries (2) |
Roommate control, Polarized metal screen, polarized glasses, fuses (2), batteries |
