Features
1.Easy for measurement

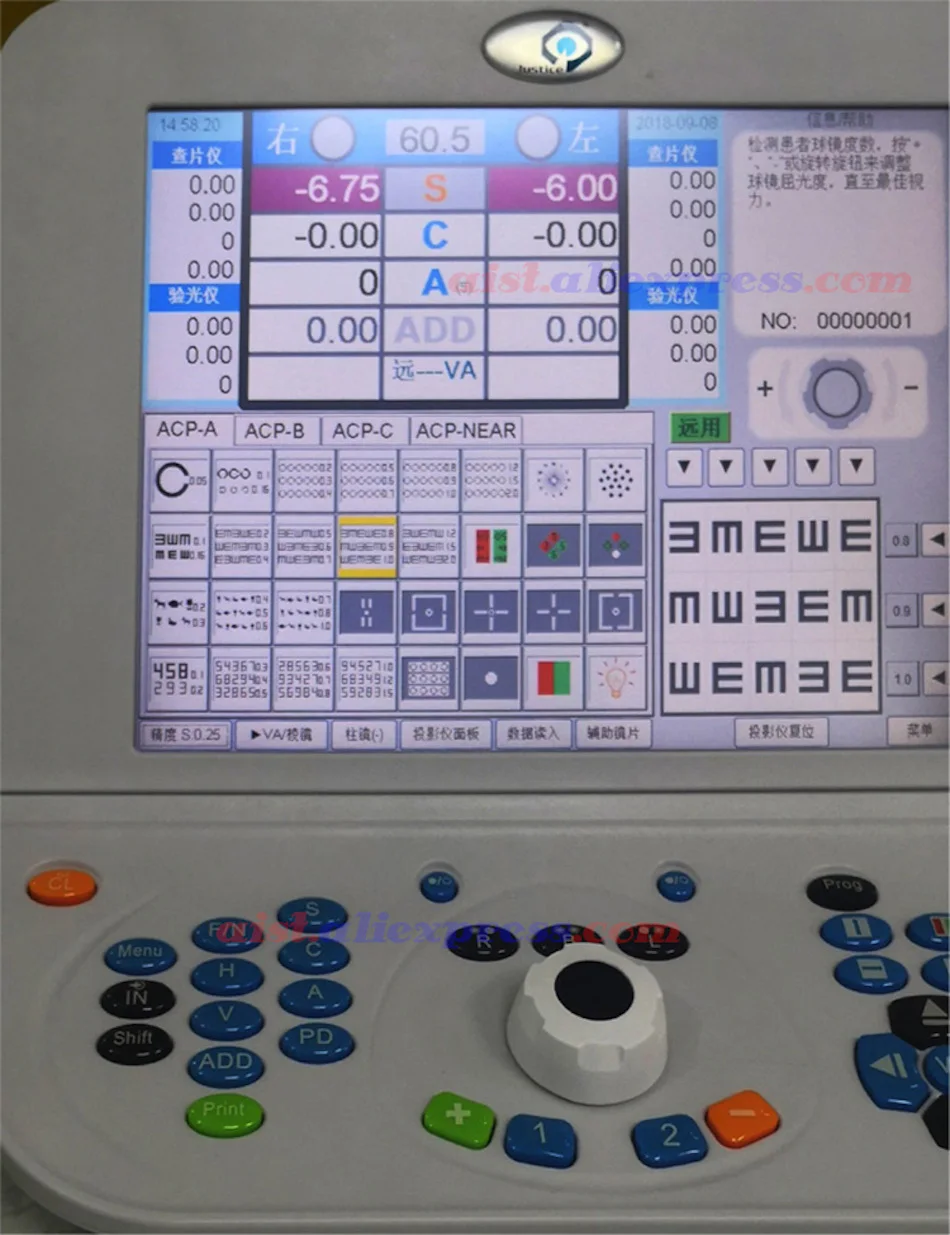

2.10.4 inch LCD more comfortable to touch.
3. Automatically cross cylinder measurement.
4. PD and the anterior eye alignment in a dark room.
5.Compact design enables face to face test.
Features
|
Spherical power |
+27.00m-1~-27.00m-1(0.25m-1/0.50m-1/1.00m-1/3.00m-1) |
|
Astigmatic power |
+8.00m-1~-8.00m-1(0.25m-1/1.00m-1) |
|
Cylinder axis |
0~180°(1°/5°) |
|
Prism |
0~20(all direction)(0.1/0.2/0.5/1.0) |
|
Pupillary distance adjustment range |
48~80mm (0.5mm/2.0mm) |
|
Cross cylinder |
Auto Jackson cross cylinder:±0.25m-1 |
|
Testlen(au lens) |
Rea-Green filter, Polarized filter(45 135), prism(6/10) |
|
Rea Maddox(horizontal/vertical), lens of retinoscopy(+1.5m-⊃1;/+2.0m-⊃1;) |
|
|
cross cylinders for presbyopia(0.50m-⊃1;), Occluding plate(left/right), Pinhole and cross hairs glass (left/right). |
|
|
Cornea alignment scale (on optical axis) |
12mm, 13.75mm, 16mm, 18mm, 20mm |
|
Convergence |
Near-point distance 40/67 cm (Minimum pupillary distance at 40cm convergence: 53mm) |
|
Forehead reset adjustment range |
15mm |
|
Main Unit |
300-330mm(W)×120mm(D)×300mm (H) |
|
4.5KG |
|
|
Supply Unit |
230mm(W)×100mm(D)×110mm (H) |
|
2KG |
|
|
Touch-Screen Controller |
300mm(W)×225mm(D)×203mm (H) |
|
1.8KG |
