●Please make sure that your original controller is theKT controller(communication protocol) before your device.
●The KT controller is only suitable for KT series accessories, such as KT display, KT throttle, etc.

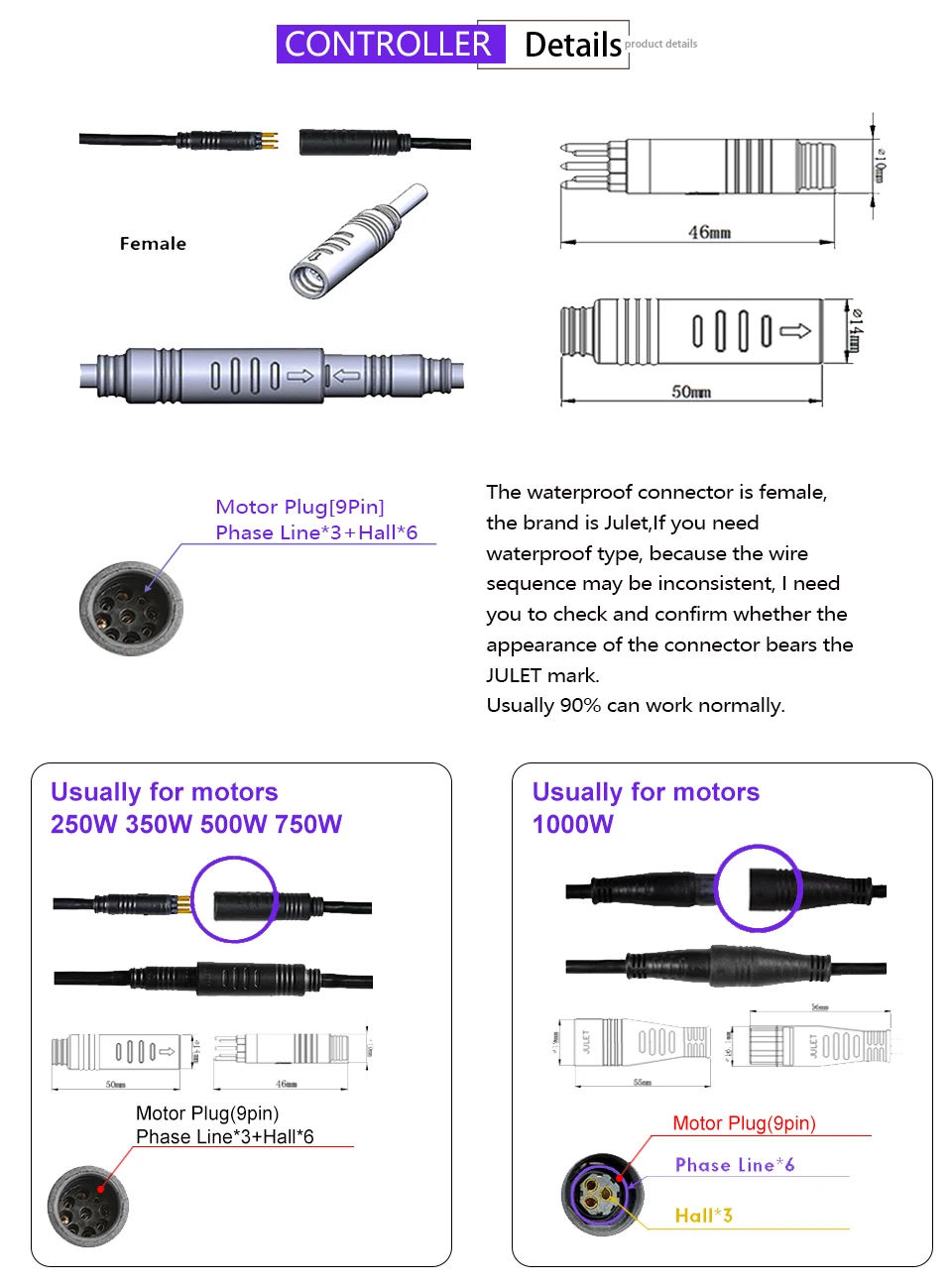

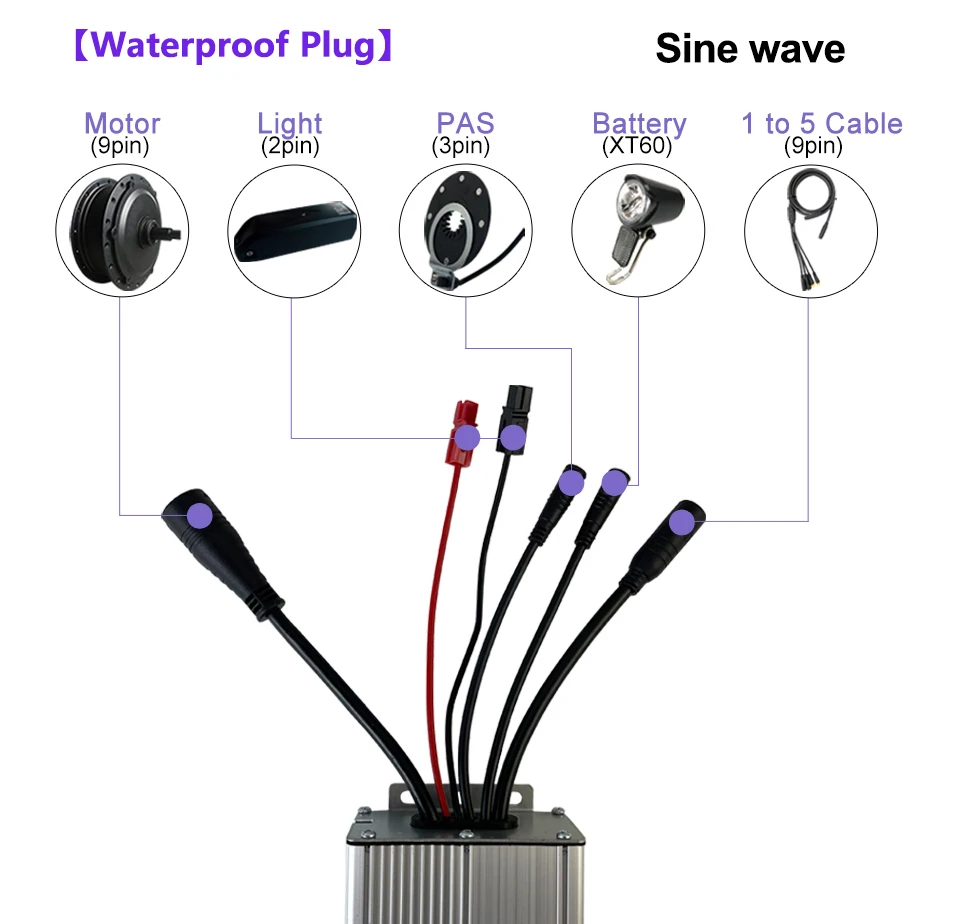

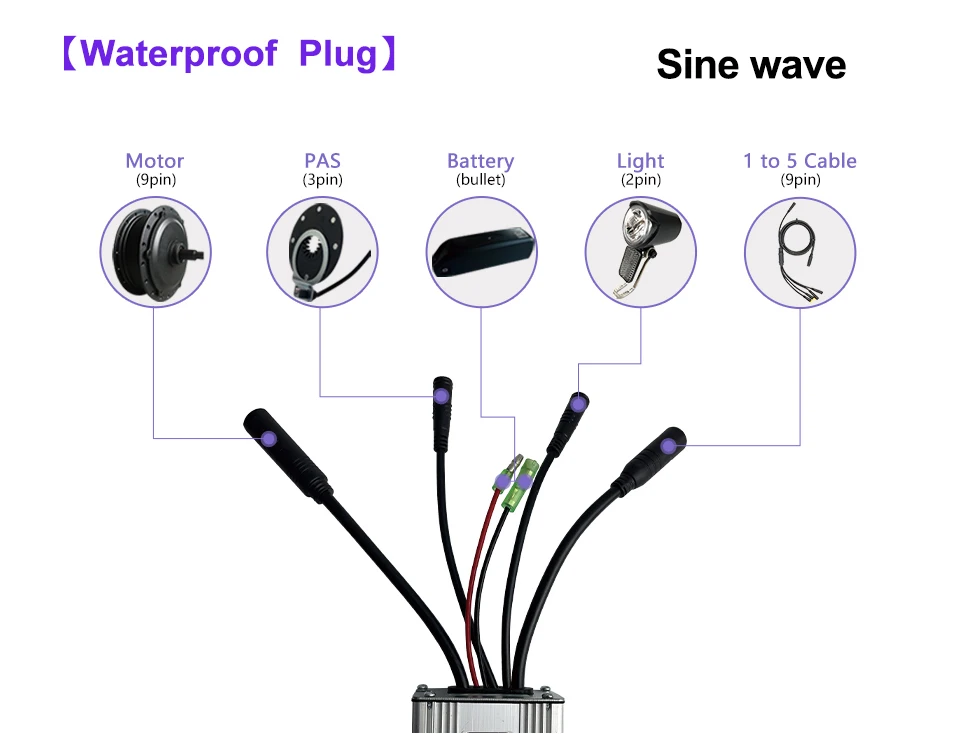

●If you need awaterprooftype, Thewaterproof connector is very special, because of the wire sequence I cannot guarantee that it will be 100% compatible and work.
●Our controller cable brand is Julet. Please check and confirm the appearance of your connector. Usually 90% of them can work normally. If you encounter problems during installation, please contact us and we will try our best to help you solve it.
●Waterproof cable length is about 11-13cm.If you want to connect the controller,you need a 1TO4 or 1TO5 Extension Cable，and we can sell it together.
●Please contact me if you are not sure which is right for you or have further questions by Aliexpress message.
●If you have any questions after receiving the goods, or if you are worried about logistics when the goods are not received, please contact our staff as soon as possible
●If the product you want to buy is not in stock or displayed, you can contact the staff, we can order for you, and we will do our best to meet customer needs.

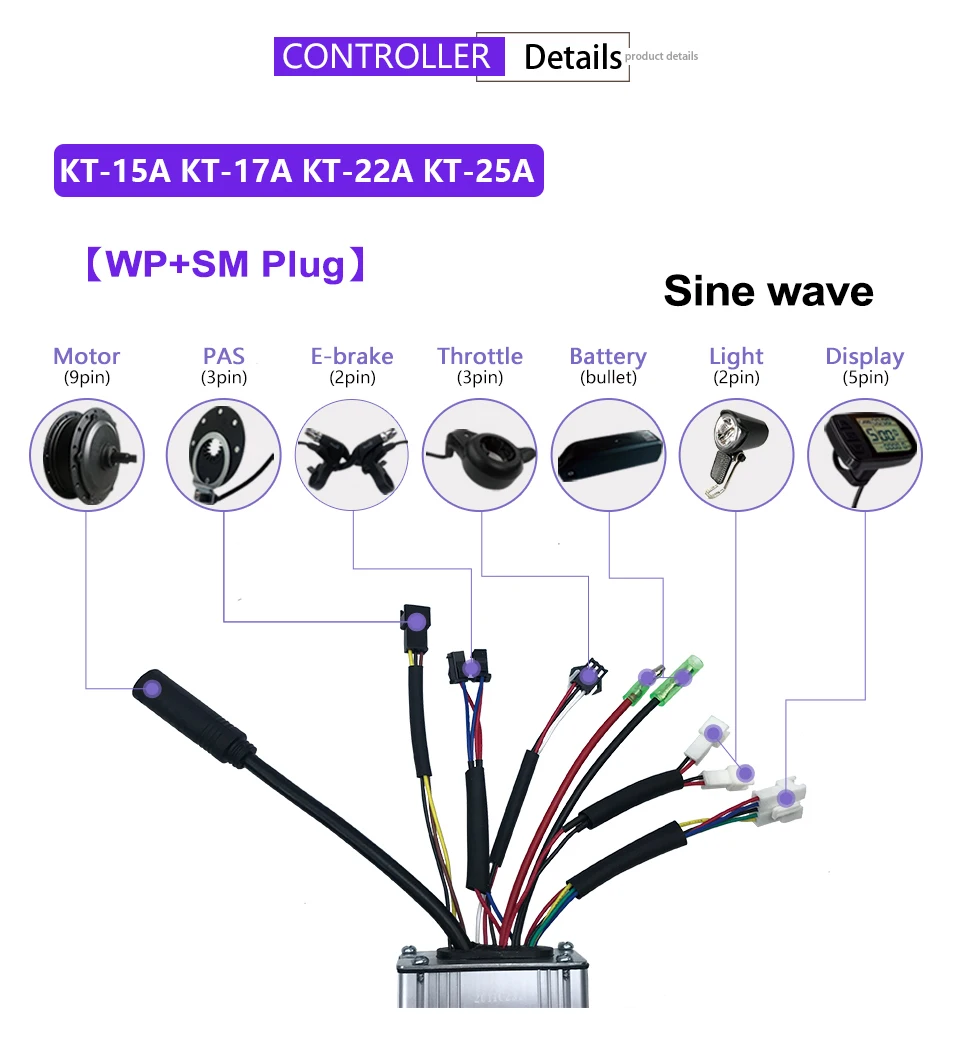

Type：KT-15A Controller(Sine wave) Used for 250W-350W Motor
①Controller Brand :KT (KUNTENG)

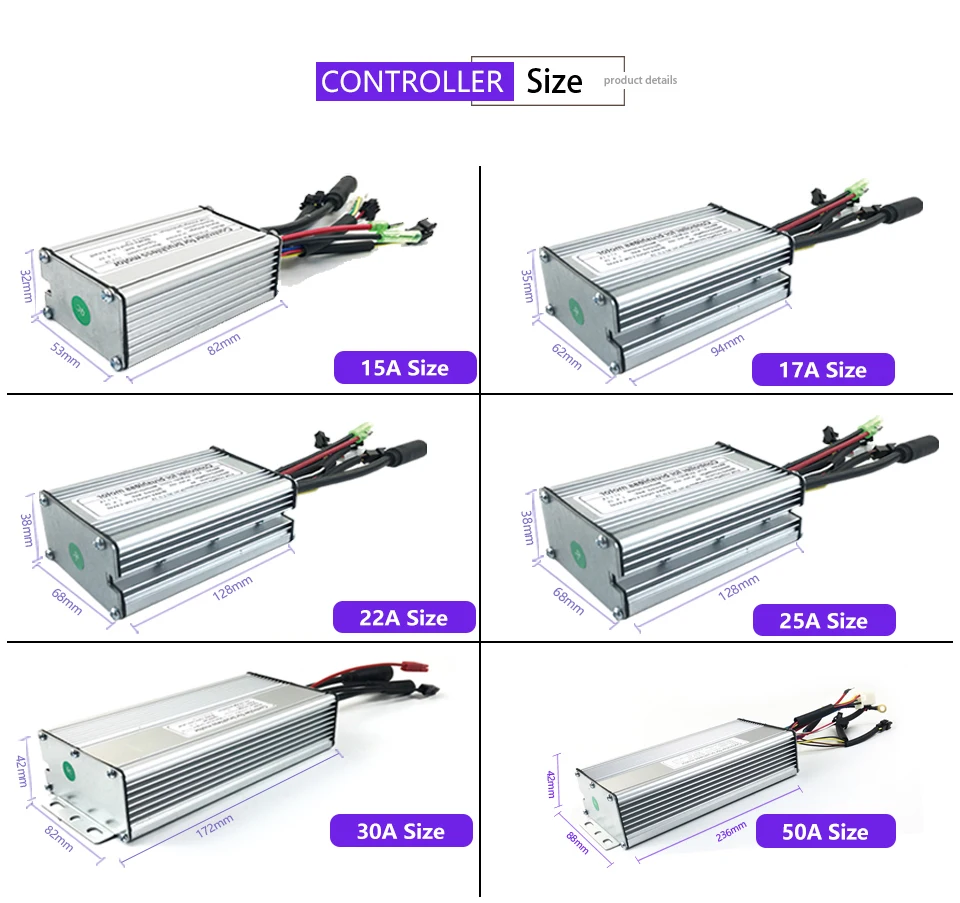

②Size:82 * 53 * 32 mm
③Weight:200g
④Cable length :all about 10-13cm
⑤Mosfets:6 mosfets
⑥Maximum current:15±1A
⑦Rated voltage:DC36V/48V
⑧Speed set:1-4.2V
⑨Rated current:7A
⑩Brake input :Low-Level
⑪Low voltage protection:DC30/40±0.5V
⑫Wave:Sine wave
Type：KT-17A Controller(Sine wave) Used for 250W-350W Motor
①Controller Brand :KT (KUNTENG)
②Controller dimension :about 94 * 62 * 35 mm
③weight:250g
④cable length :all about 10-13cm
⑤Mosfets :Big6 better mosfets
⑥Maximum current:17±1A
⑦Rated voltage:DC36V/48V
⑧Speed set:1-4.2V
⑨Rated current:8A
⑩Brake input :Low-Level
⑪Low voltage protection:DC30/40±0.5V
⑫Wave:Sine wave
Type：KT-22A Controller(Sine wave) Used for 500W-750W Motor
①Controller Brand :KT（KUNTENG）
②Color :Silver
③Dimension :about 128 * 68 * 38 mm
④Mosfet :9 Mosfets
⑤Maximum current :22±1A
⑥Rated current :11A
⑦Rated voltage :DC36V/48V
⑧Speed set :1-4.2V
⑨Brake input :Low-Level
⑩Low voltage protection :DC30/40±0.5V
⑪Cable Length :all about 13-18cm
⑫Weight:450g
⑬Wave:Sine wave
Type：KT-25A Controller(Sine wave) Used for 500W-750W Motor
①Controller Brand :KT（KUNTENG）
②Color :Silver
③Dimension :about 128 * 68 * 38 mm
④Mosfet :9 Mosfets
⑤Maximum current :25±1A
⑥Rated current :11A
⑦Rated voltage :DC36V/48V
⑧Speed set :1-4.2V
⑨Brake input :Low-Level
⑩Low voltage protection :DC30/40±0.5V
⑪Cable Length :all about 13-18cm
⑫Weight:450g
⑬Wave:Sine wave

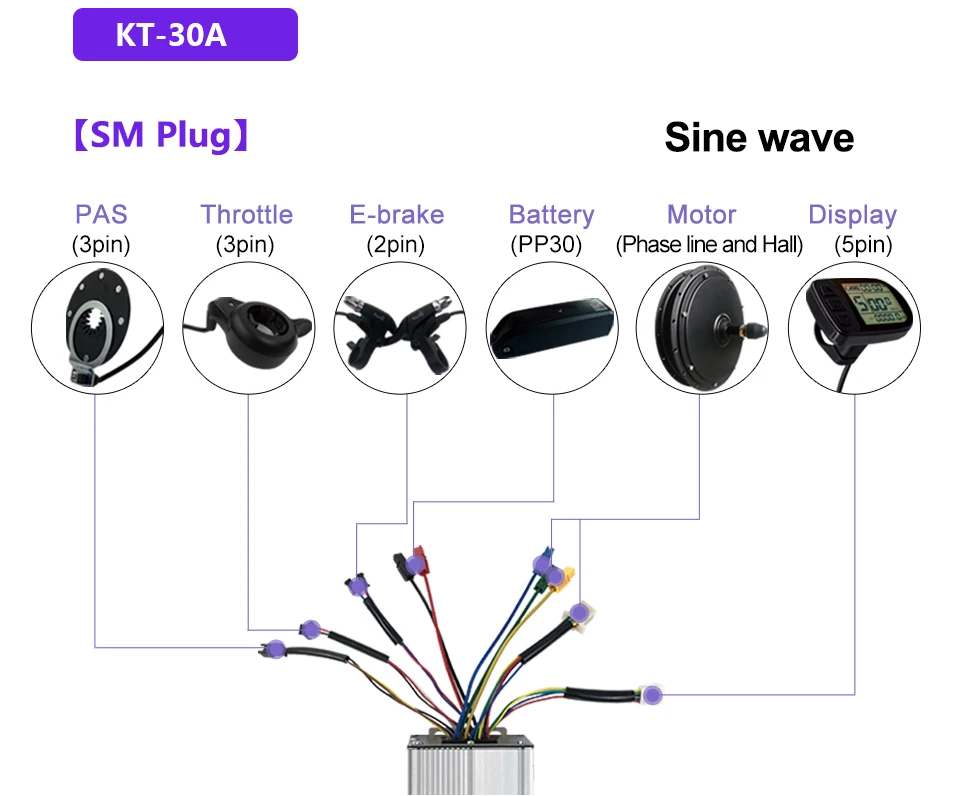

Type：KT-30A Controller(Sine wave) Used for 1000W Motor
①Controller Brand :KT（KUNTENG）
②Color :Silver
③Dimension :about 170 * 88 * 43 mm
④Mosfet :12 Mosfets
⑤Maximum current :30±1A
⑥Rated current :17A
⑦Rated voltage :DC36V/48V
⑧Speed set :1-4.2V
⑨Brake input :Low-Level
⑩Low voltage protection :DC30/40±0.5V
⑪Cable Length :all about 13-18cm
⑫Weight:about 650g
⑬Wave:Sine wave
Type：48V KT-35A Controller(Sine wave) Used for 1500W Motor
①Controller Brand :KT（KUNTENG）
②Color :Silver
③Dimension :about 172 * 82 * 42 mm
④Mosfet :12 Mosfets
⑤Maximum current :35±1A
⑥Rated current :17A
⑦Rated voltage :DC48V
⑧Wave:Sine wave

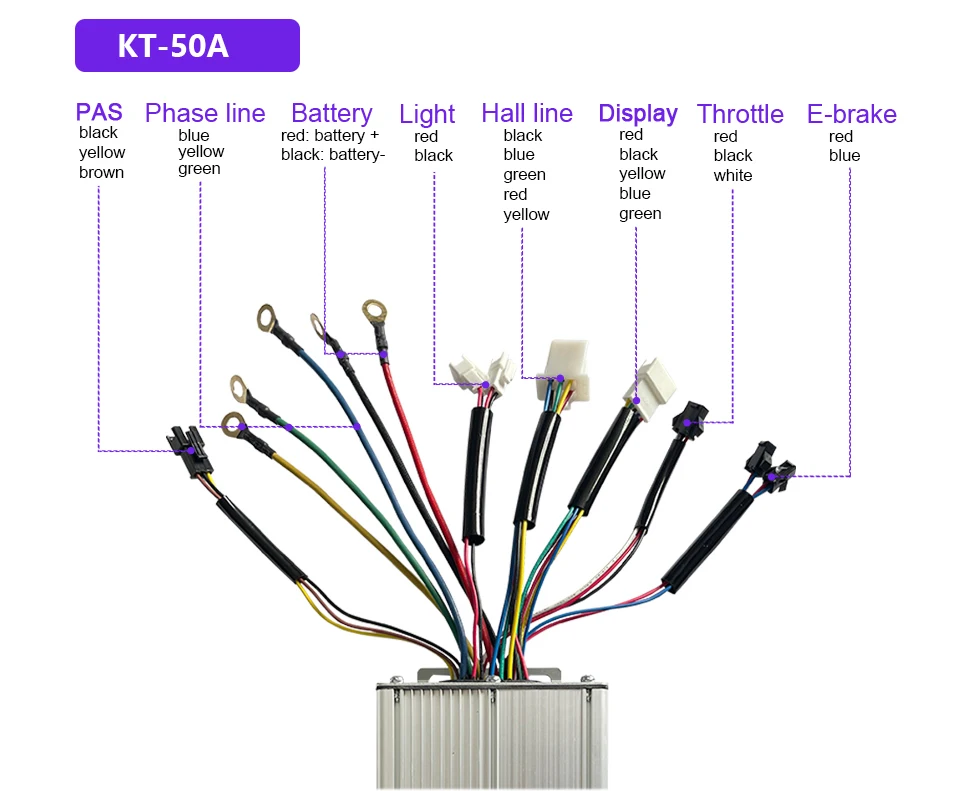

Type：48V KT-50A Controller(Sine wave) Used for 1000W1500W 2000W 3000W Motor
①Controller Brand :KT（KUNTENG）
②Color :Silver
③Dimension :about 236 * 88 *42 mm
④Mosfet :18 Mosfets
⑤Maximum current :50±1A
⑥Rated current :25A
⑦Rated voltage :DC48V
⑧Wave:Sine wave

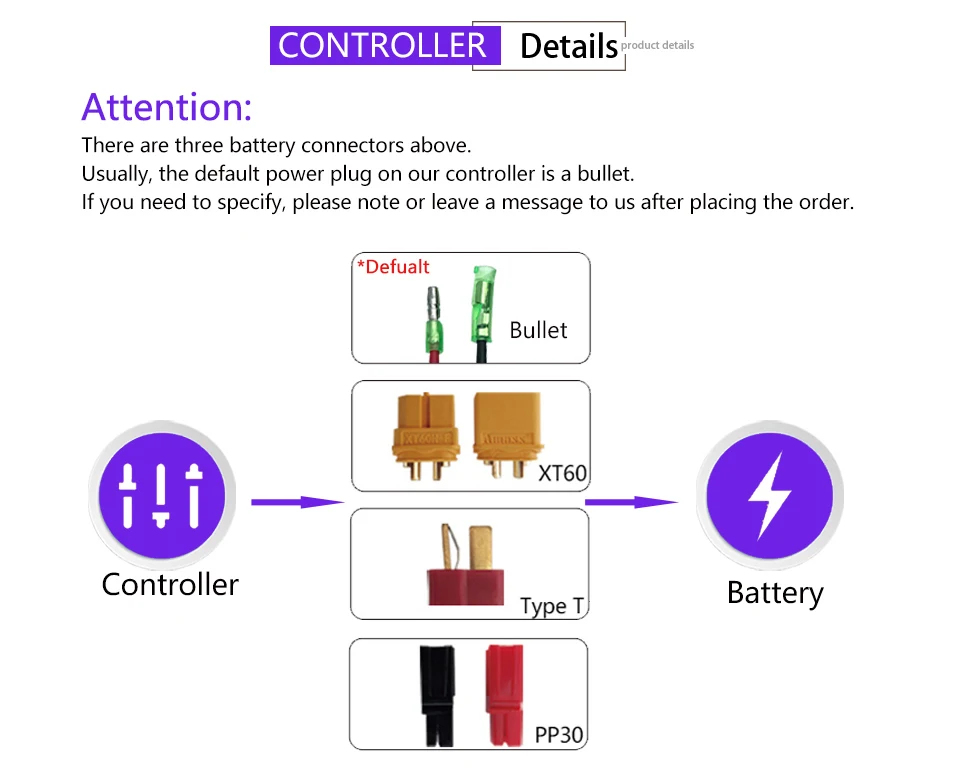

Attention:
●There are three battery connectors above.
Usually, the default power plug on our controller is
●KT-15A/17A/22A plug type of power and phase is Bullet plug
The bullet plug is the most common power plug with high adaptability and can basically meet daily needs.
●KT-30A/35A plug type of power and phase is Anderson PP30 plug
Anderson plug is more convenient, can be operated simply, and is safer to use.
●KT-50A plug type of power and phase is Bull nose plug
Bull nose plug, simpler operation, safe and stable output of large voltage and large current, widely applicable.
●If you need to specify, please note or leave a message to us after placing the order.
If you want to change the power plug of the controller, please note the order or contact the seller
Controller connection power plug can be changed: XT90 XT60 PP30
