1. Compact size: small size and light weight, suitable for small projects and compact spaces.
2. Analog control: controlled by analog signal, suitable for traditional PWM (pulse width modulation) signal drive.

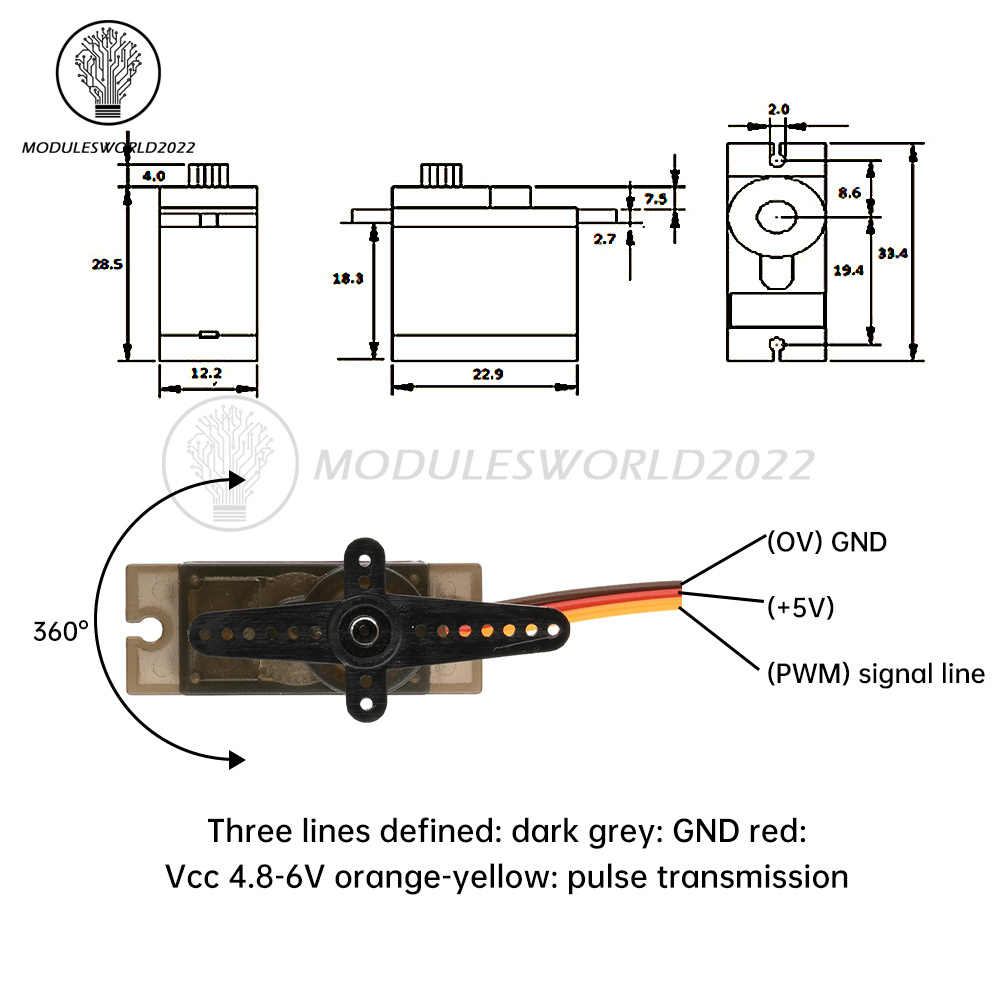

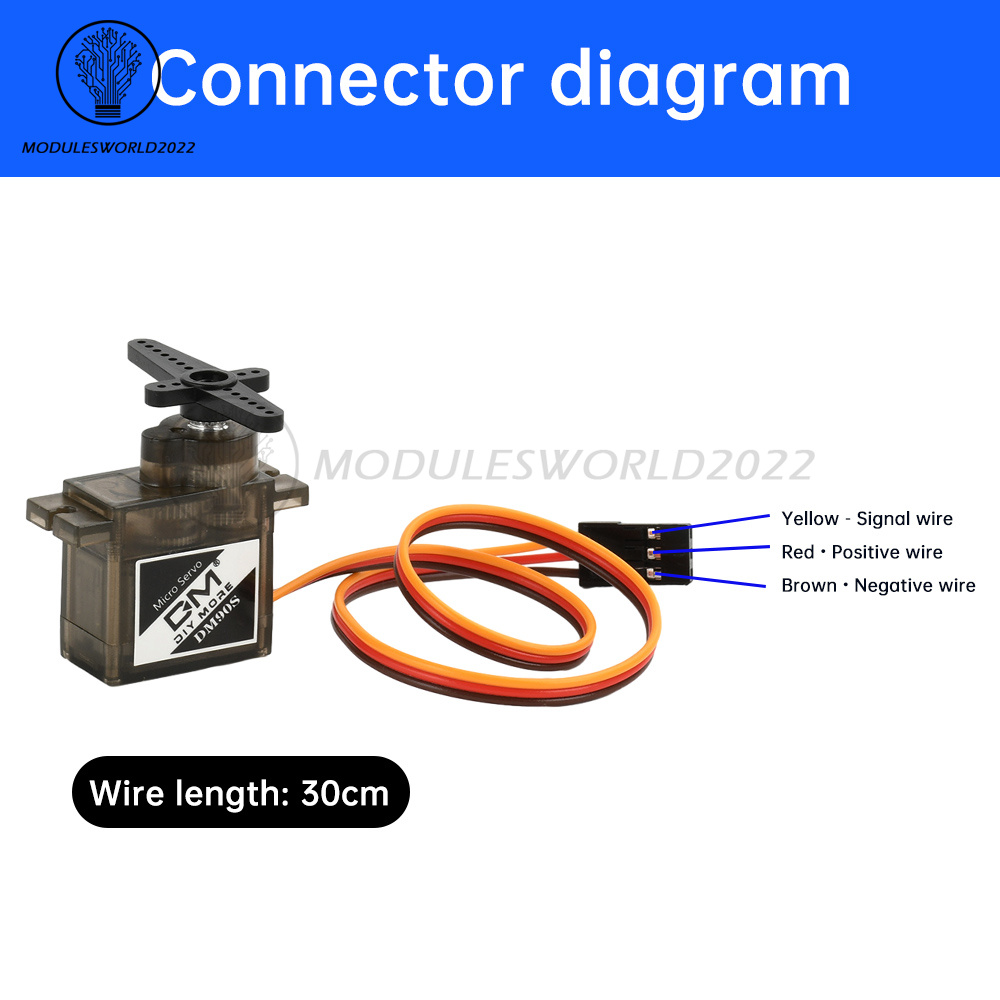

3. Interface type: Three-wire interface (power line, signal line, ground line), easy to connect and control.

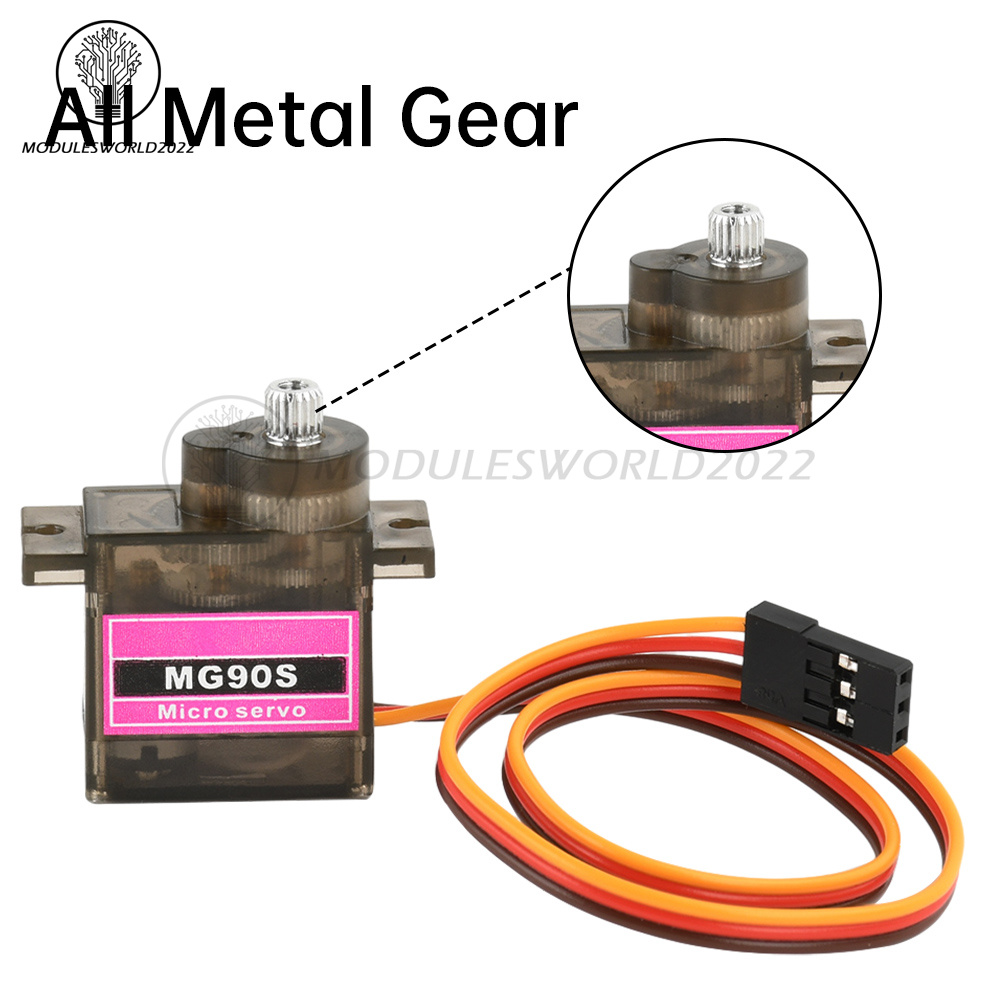

4. Durable and Reliable: This servo motor is made of high quality plastic with metal gear media, durable and reliable, providing long-lasting performance even after many uses.
5. Suitable for a variety of electronic projects: Suitable for a variety of electronic projects, including commonly used in joint control for small robots, rudder control for model airplanes, ship models, etc.
Product Name: Analog Servo Servo (12G)

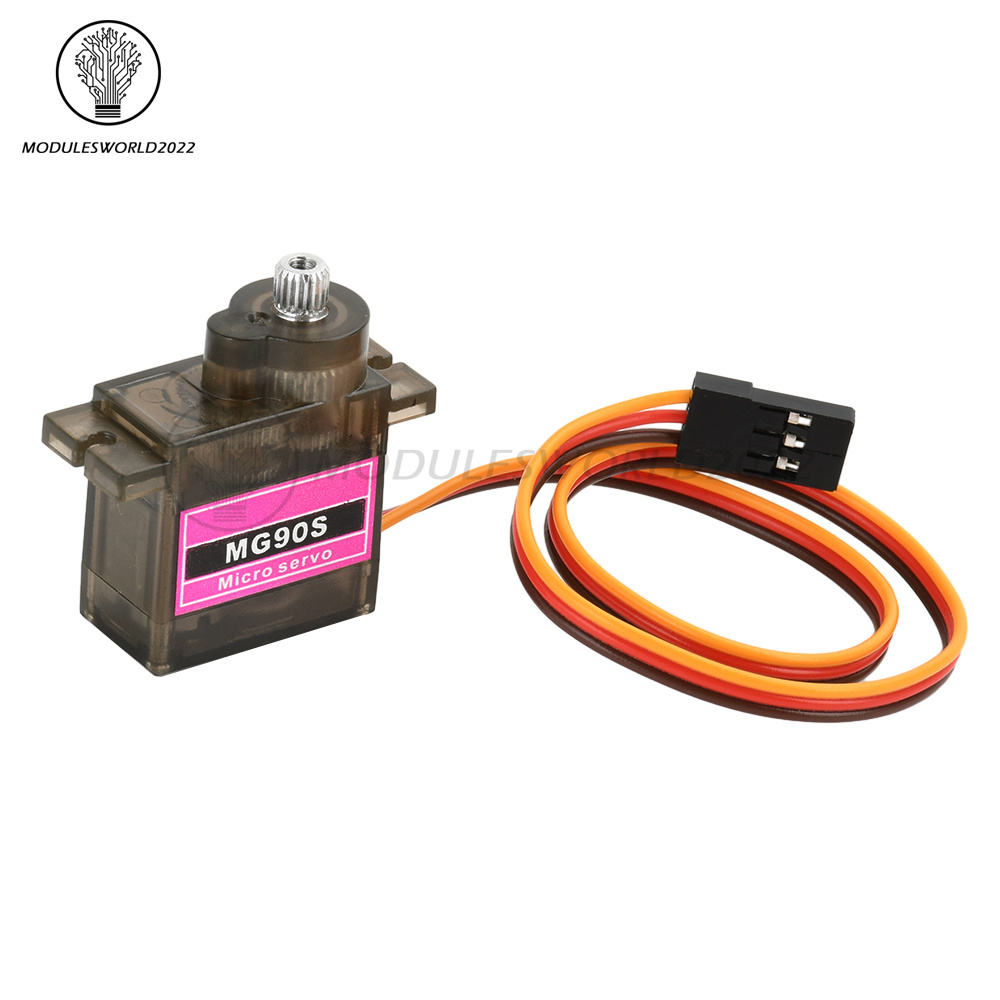

Product Model: MG90S
Operating voltage: 4.8V
No-load speed: 0.12sec/60°.
No-load current: 90mA
Blocking torque: 1.8kg.cm
Plugging current: 750mA±10
Working voltage: 6V
No-load speed：0.09sec/60°
No-load current: 90mA
Blocking torque: 2.0kg.cm
Plugging current：860mA±10%
Pulse width range: 500～2500usec

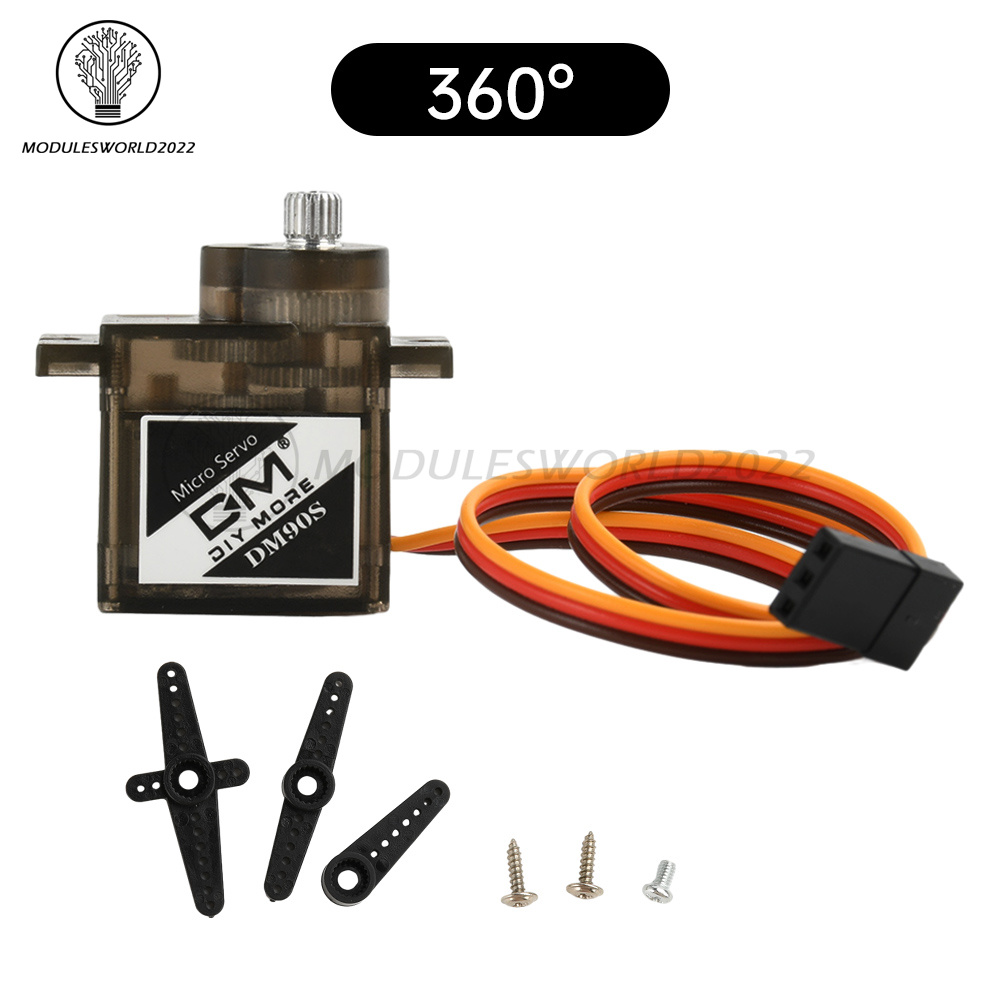

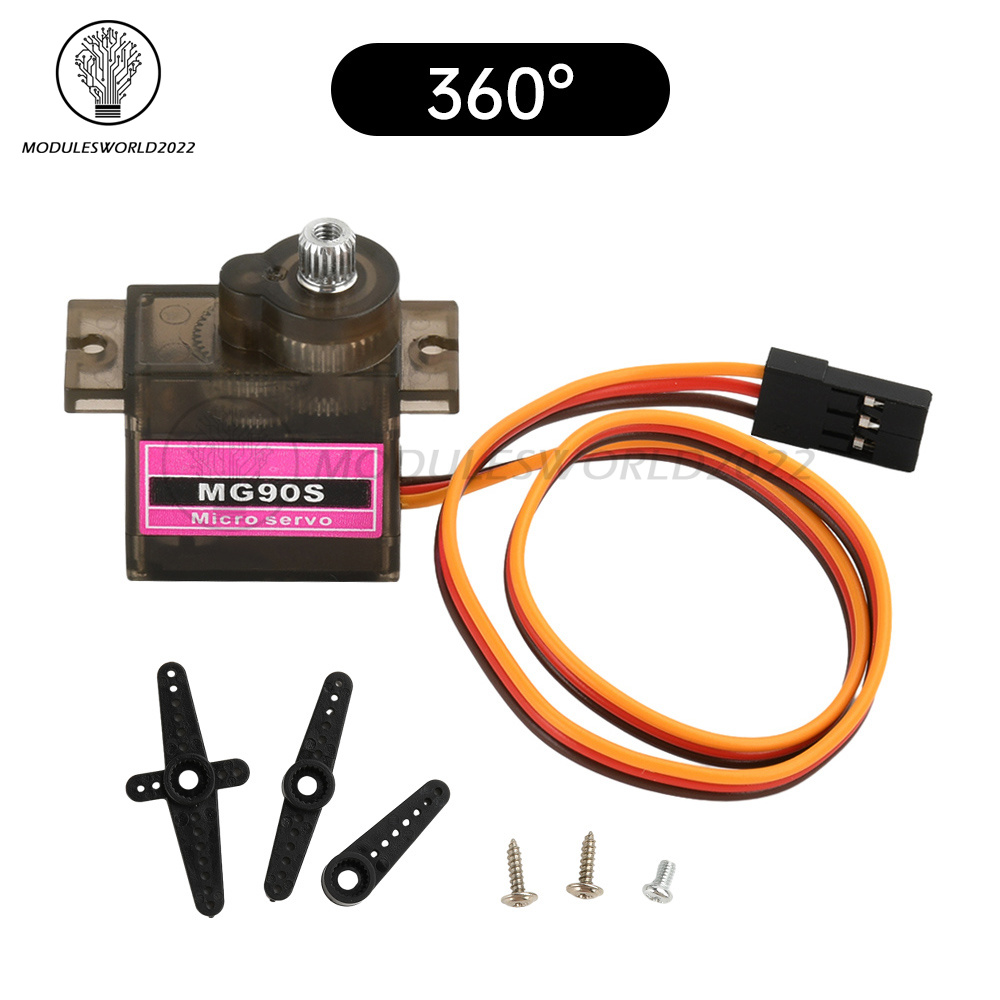

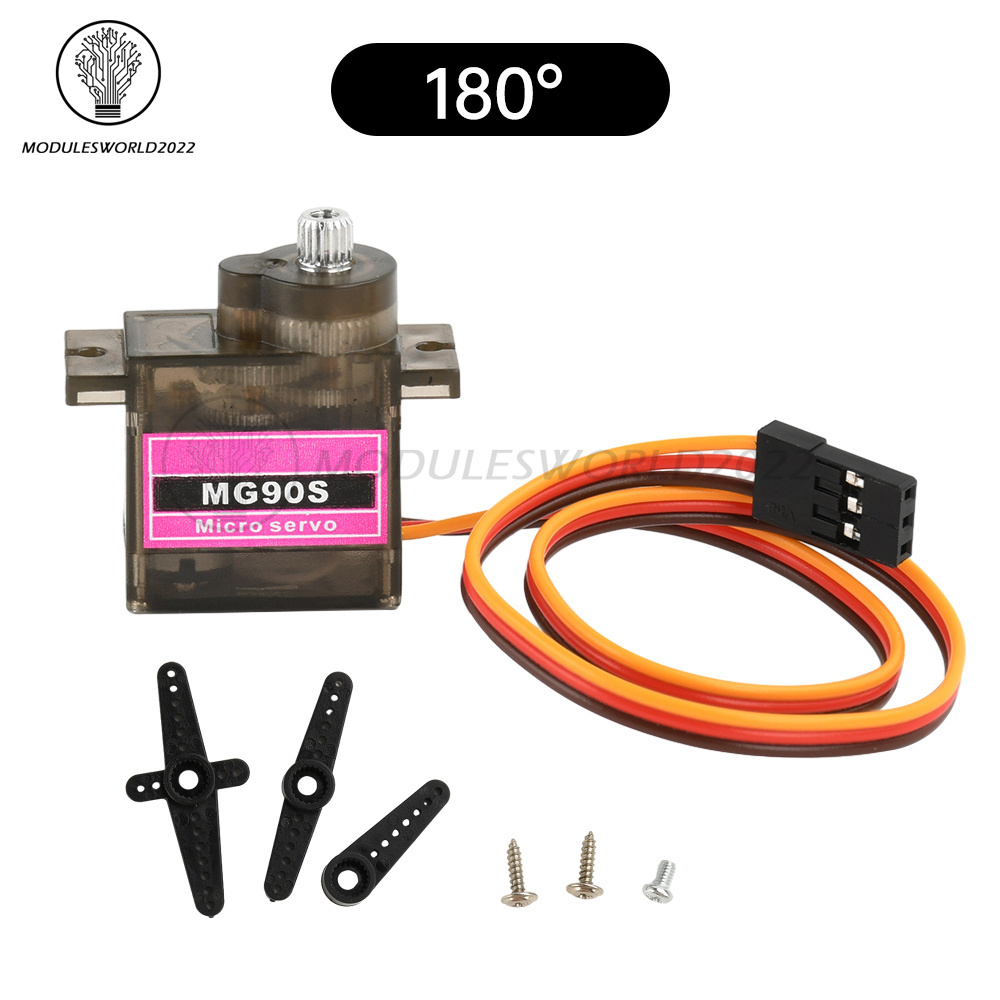

Rotation angle: 180°/360° (optional)
Deadband width: 8 usec
Output shaft: 20T
Diameter: 4.9mm
Servo line: 250mm±5mm
Storage temperature：-30～80℃
Operation temperature：-25～70℃

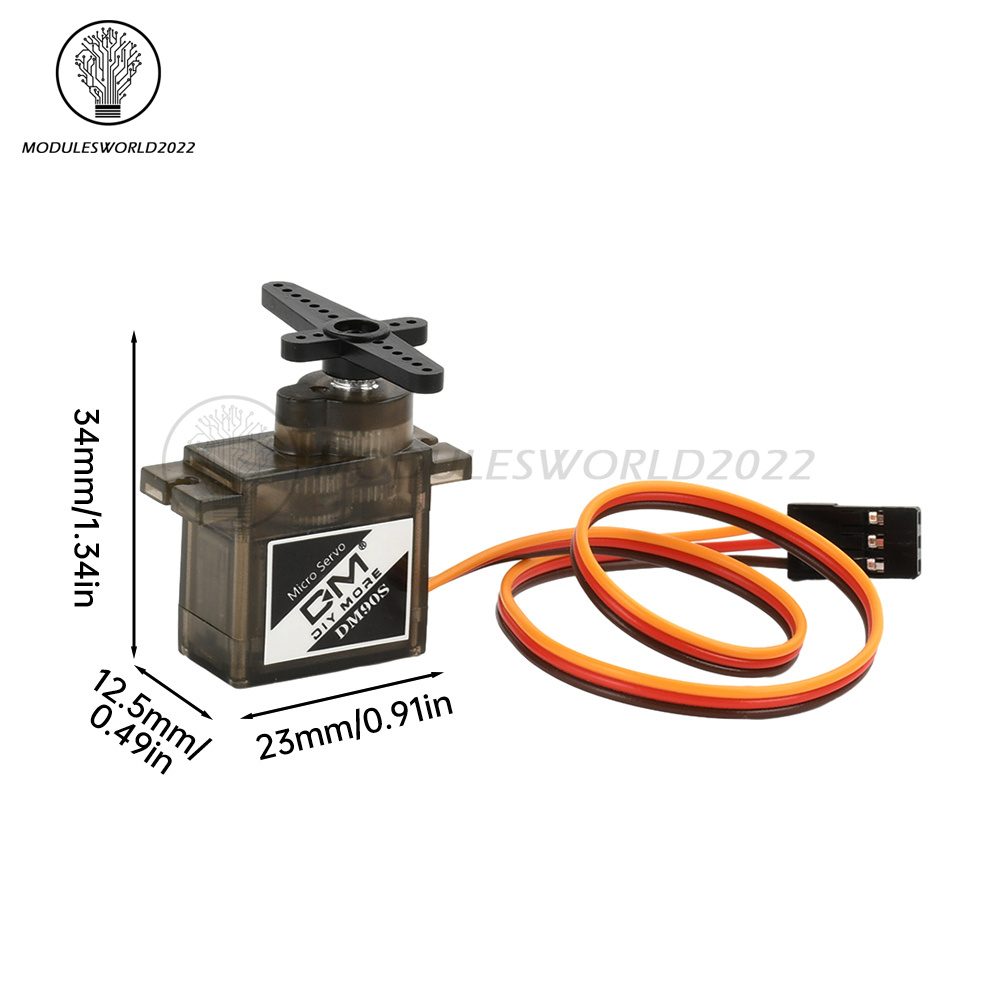

Product size: 22.4*12.1*22.8mm
Servo*1
Accessory kit*1
