EssentialGear Product Line

Overview

BZBGEAR proudly introduces our complete PTZ camera bundles, meticulously designed for seamless live streaming and video production. Each bundle includes 3 BG-VPTZ-HSU3 Compact PTZ Cameras with 1080P FHD resolution and 10X/20X/30X optical zoom, offering HDMI, SDI, USB 3.0, and PoE connectivity for versatile use. Control is made easy with the BG-COMMANDER Universal Advanced Serial & IP PTZ Joystick Controller, supporting PoE and multiple protocols (IP/RS232/422/485).

The BG-HDVS42U 4-Channel Live Streaming HDMI Mini Switcher Mixer ensures smooth 1080P FHD video mixing with HDMI and USB-C outputs. A NET-8LU027 Netgear 5-Port Gigabit Ethernet PoE+ Smart Plus Managed Switch with a 63W PoE budget enhances network management. The bundle also includes 3 BG-VPTZ-CM Ceiling Mount Brackets and 3 BG-VPTZ-WM Wall Mount Brackets for flexible installation options. These cost-effective bundles promise professional-grade performance to fit any budget.

U.S.-Based Company
3-Year Warranty
EssentialGear Product Line

BG-VPTZ-HSU3

More about the camera


The BG-VPTZ-HSU3 PTZ camera delivers exceptional 1080p video at 60Hz, featuring 10X, 20X, or 30X optical zoom options. It supports multiple simultaneous outputs, including HDMI, 3G-SDI, USB 3.0, and IP streaming, and is equipped with H.264/H.265 video compression and RTMP(S) for efficient live streaming.

Control options are versatile, with RS-232, RS-485, LAN, and IR remote capabilities, supporting IP VISCA, ONVIF, and PELCO-P/D protocols. Additional features include Power over Ethernet (PoE), a 3.5mm audio input for audio embedding, 255 preset positions, and a robust all-aluminum chassis, making it ideal for professional video capture and streaming across diverse applications.
U.S.-Based Company
3-Year Warranty
EssentialGear Product Line

BG-Commander

More about the PTZ joystick controller


The BG-Commander PTZ joystick controller offers precise control for multiple IP and serial PTZ cameras, making it ideal for live events, houses of worship, and broadcasting. It features seven hot keys for quick camera access, supports up to 255 presets, and provides image adjustments for white balance, focus, iris, and backlight on a high-contrast LCD screen.

Connectivity options include a LAN port, RS232, RS422, and RS485 connections, supporting IP VISCA, ONVIF, VISCA, PELCO-D, and PELCO-P protocols. With high-quality backlit buttons, a durable metal chassis, variable PTZ speed adjustment, POE for single cable installation, and simultaneous IP and serial protocol use, the BG-Commander ensures a user-friendly and robust performance
U.S.-Based Company
3-Year Warranty
EssentialGear Product Line

BG-HDVS42U

More about the production switcher


The BG-HDVS42U HDMI production switcher offers robust connectivity and versatile features, including four HDMI inputs supporting up to 1080p@60Hz resolutions, and video outputs via HDMI program, HDMI multiview, and USB Type-C. Audio de-embedding from all HDMI sources, along with two 3.5mm analog inputs, allows comprehensive audio mixing, with synchronized output to HDMI and USB-C.

Control is enhanced with a PC utility providing access to switching, mixing, keying, and graphic overlay functions. Transition effects such as wipe, mix, and dip are available, supported by an integrated media library featuring 49 default patterns and customizable graphic imports. With its compact design and high-performance capabilities, including full audio mixing, multiple transition options, and USB-C output for recording or streaming, the BG-HDVS42U is a valuable tool for professional-quality video production.
U.S.-Based Company
3-Year Warranty

Video

Features

  • Full HD Streaming
    1080P60 quality for professional-looking content
  • Clean and Intuitive Setup
    PoE powers and networks cameras and the joystick with a single CAT6 cable
  • Simplified System Management
    The joystick controls and manages cameras, and the switcher handles switching and mixing for the stream
  • Audio Support
    Audio can be embedded in the cameras or directly in the switcher for audio mixing
  • Flexible Mounting Options
    The kit includes three durable camera wall and ceiling mounts, providing flexible mounting options
  • Software and App Compatibility
    Web GUI, switcher software, and the BZBGEAR camera app can be used with this system for IP-based control

Specification

BG-VPTZ-20HSU3

Camera Specs
Image Sensor1/2.8″ Exmor CMOS
Frame Rate1080p @ 60/ 59.94 / 50 /30 / 29.97 /25
1080i @ 60/ 59.94 / 50 / 30 / 29.97 / 25
720p @ 60/ 50 / 30 / 25, 480i @ 60, 576i @ 50
ZoomOptical - 20X
F-number1.6(W)-3.5(T)
Focusf=4.7mm~94.0mm
Effective Pixels2.38 Megapixel
View Angle (H)65°
Min Illumination0.5lux (F 1.8, AGG ON)
Shutter Speed1 to 1/10000s
Image AdjustmentVertical Flip & Mirror Supported
Input/Output Interface
Video OutputHDMI, 3G-SDI, USB 3.0 (USB 2.0 backwards compatible port only), RJ45 Network (10/100M Adaptive Ethernet ports)
Audio Input1-ch 3.5mm audio interface, Line In
Communication interface1X RS232 IN, 1X RS232 Out, 1X RJ45, RS485
Power ConnectionDC IN 12V, Power over Ethernet
Mechanical
Pan/Tilt Rotation±178°, Tilt Rotation Angle -30°~ +90°
Pan 90°/s; Tilt: 90°/s
PresetsMax 255 Presets ( Remote 9 Presets)
Network ProtocolVISCA, PELCO P/D, ONVIF Protocol
IPC Video Features
Video standardH.265/H.264/MJPEG
Video StreamMain stream, Sub stream
Main stream resolution1920x1080, 1280x720
Sub stream resolution720x480, 320x240
Bit Rate128K, 256K, 384K, 512K, 768K, 1024K, 1536K, 2048K, 3072K, 4096K, 5120K, 6144K, 8192K
Bit Rate TypeVariable rate, Fixed rate
Maximum Frame60fps
Audio encode standardG.711, G.722, G.722.1, G.728, G.722.1C AAC
Audio stream rate96K, 128K, 256K
Supported protocolsTCP/IP, RTSP, RTMP
Generic
Dimensions (L*W*H)4.7in x 4.7in x 5.7in / 120mm x 120mm x 145mm
Gross Weight3.5 lbs [1.6kg]
Operating Temperature14°F ~ 122°F / -10°C ~ 50°C
Max Consumption12W DC12V @ 1A
Attention:USB 3.0 connection port on BG-VPTZ-10HSU3 camera is only compatible with USB 3.0 port on either PC or MAC when connected directly and only compatible with up to 10ft USB 3.0 cable due to a limitation in the chipset. This camera will not work with any USB 3.0 peripherals. It doesn"t affect BG-VPTZ-20HSU3 or BG-VPTZ-30HSU3 models.
Working EnvironmentIndoor Only

BG-Commander

Parameters / Model BG-Commander
Chip His3536DV100
System Linux
Protocol VISCA, ONVIF, PELCO-P, PELCO-D,VISCA OVER IP
Output RS422, RS232, RJ45
Beep On/off
Screen LCD 320*240
Power consumption ≤5W
Power DC12V-2A
Work temperature 14°F~131°F / -10°C ~55°C
Work humidity 20%~80% frostless
Storage temperature 14°F~140°F / -10°C ~60°C
Storage humidity 0~90% frostless
Packing size 13.4 x 10.6 x 5.5in [340 x 268 x 140mm]
Weight 7 lbs [3.18kg]/set

BG-HDVS42U

Connections
Video In HDMI type-A x4
Video Out HDMI type-A PGM x1
HDMI type-A Multiview x1
USB 2.0 type C x1 (Streaming on PC)
Assignable HDMI 1~4, PGM, Clean PGM, PVW, Color bar, Multiview
Audio In MIC/ Line level (3.5mm stereo audio) x2
PC Control Port LAN x1
Media Library USB type-A x1 (USB disk port for image import and firmware upgrade)
Tally Port DB-15 x1
Power In DC 12V x1
Functions
Transitions T-Bar/ AUTO/ CUT
Effects Wipe (9x2 patterns)/ Mix/ DIP/ Pattern/ Still (freeze)/ MUTE/ FTB
Layouts 2 styles of Multiview layout (6 windows and status)
Keys Upstream Key: Luma Key x1/ Chroma Key x1/ PiP x2/ POP
Downstream Key: DSK x1/ Logo x1
Audio Mixer HDMI x4 and MIC/ Line level x2;
Audio delay: 0-500ms
Media Default image: 49 preset patterns
Local image: up to 16 imported images
Capture image: up to 16 captured images
Generators Pattern generator x1
Color generators x2
Standards
HDMI In Format Support 1080p @ 60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98
1080i @ 50/ 59.94/ 60
720p @ 60/ 59.94 /50/ 30/ 29.97/ 25/ 24/ 23.98
576i @ 50, 576p @ 50, 480p @ 59.94/ 60, 480i @ 59.94/ 60
HDMI PGM Out 1080p @ 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; 1080i @ 60/ 59.94/ 50
HDMI Multiview Out 1080p @ 60/ 59.94/ 50/ 48/ 47.95/ 30/ 29.97/ 25/ 24/ 23.98; 1080i @ 60/ 59.94/ 50
HDMI Color Space RGB/ YUV
USB Capture Out MJPG, Up to 1080p @ 60
Media Format

USB disk format support: FAT32, Ext3, Ext4, up to 256GB
Image format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga
Logo format support: png, bmp, jpg, gif, jpeg, ppm, pbm, tif, jps, mpo, tga
Logo size support: 10x10 pixel to 600x600 pixel
Others
Power Wide voltage: 7~24V; Operating power: 12W (12V 1A)
Dimension (LxWxD) 9.65 x 5.63 x 1.77in [245 x 143 x 45mm]
Weight Net: 2.3 lbs [1030g]; Gross: 3.3 lbs [1500g]
Temperature Working: -4°F~140°F / -20°C~60°C, Storage: -22°F~158°F / -30°C~70°C

NET-8LU027

SpeedGigabit
Total PoE+ Ports4
Total PoE+ Budget63W
Uninterrupted PoEYes
Bandwidth10Gbps
Max Mac Entries4K
Buffer Size192KB
Energy Efficient Ethernet (IEEE 802.3az)Yes
Priority QueuingWRR
Jumbo Frame Support9,216 bytes
Dimensions (W x D x H)6.2 x 4.0 x 1.1 in (158 x 101 x 27 mm)
Weight0.86 lb (0.39 kg)
Operating Temperature32°F - 104°F (0°C - 40°C)
Humidity (relative)90% maximum relative humidity (RH), non-condensing

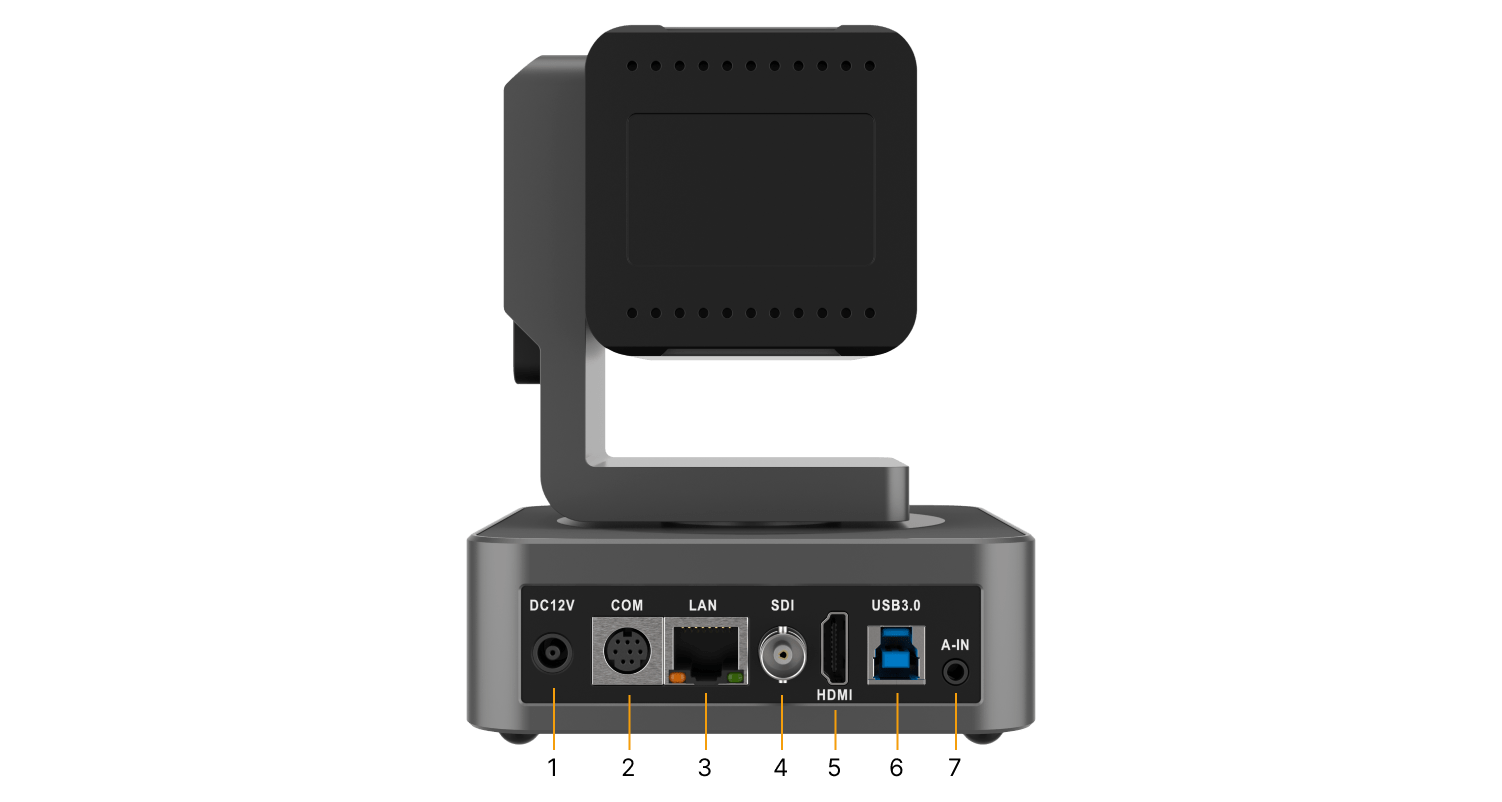

Interfaces

1. Power:
Connect supplied 12V power adapter.
2. COM:
Connect cascading RS-232 to control the camera(s) with a joystick controller or control software.
3. LAN:
Connect to a network switch via category cable to supply power (PoE), control (TCP/IP or webGUI) and stream.
4. SDI:
Connect to an SDI device such as a video production switcher or a video display at resolutions up to 3G (1080@60Hz) up to 330ft away over SDI cabling.
5. HDMI:
Connect to an HDMI device such as a video production switcher or a video display up to 1080p@60Hz.
6. USB:
Connect USB 3.0 type B cable to a PC for plug & play connectivity for any conferencing service like Skype or Zoom.
7. A-In:
Connect external audio sources such as a microphone or small audio mixer to embed the sound into all video output interfaces.

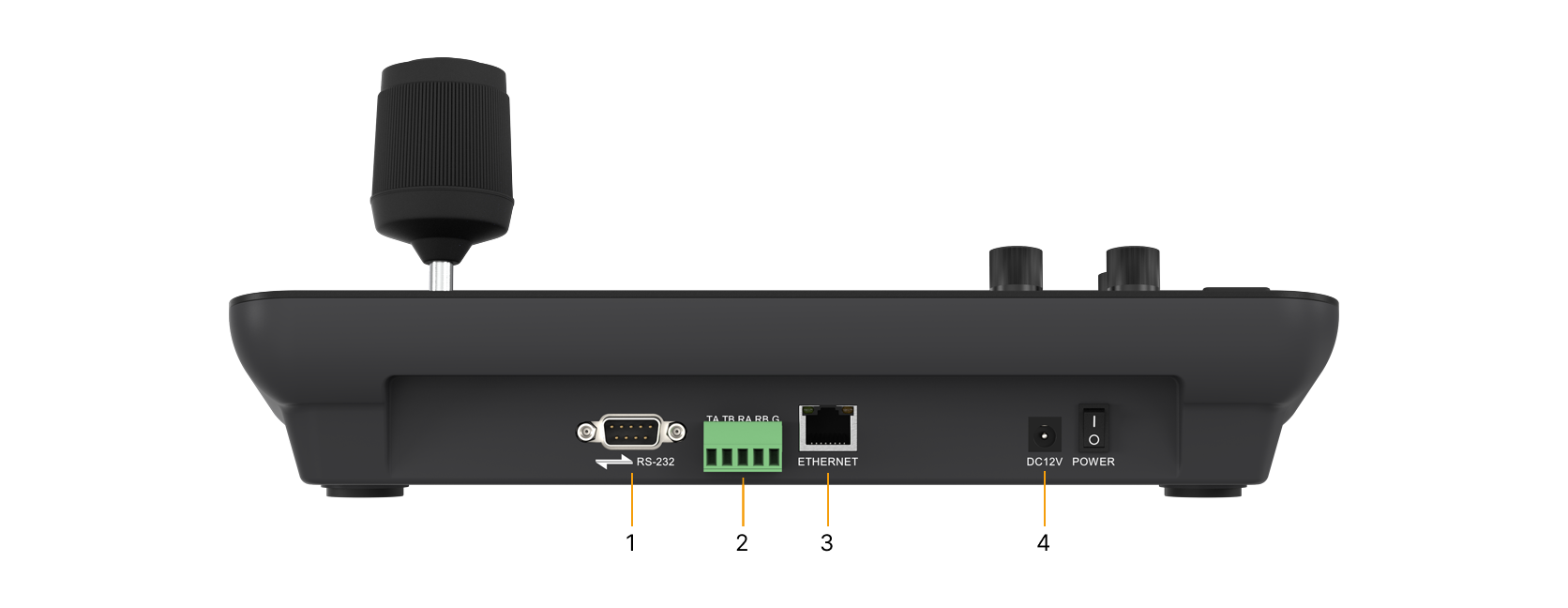

Interfaces 2

1. RS-232:
Use RS-232 to 8-pin Mini-DIN cable to connect 1st camera and Mini-DIN visca cables for cascadable connections.
2. RS-422/485:
Use RS-422 port to control your cameras over long distances up to 328ft.
3. LAN:
Connect to a network switch via category cable to supply power (PoE) and TCP/IP control.
4. Power:
Connect supplied 12V power adapter.

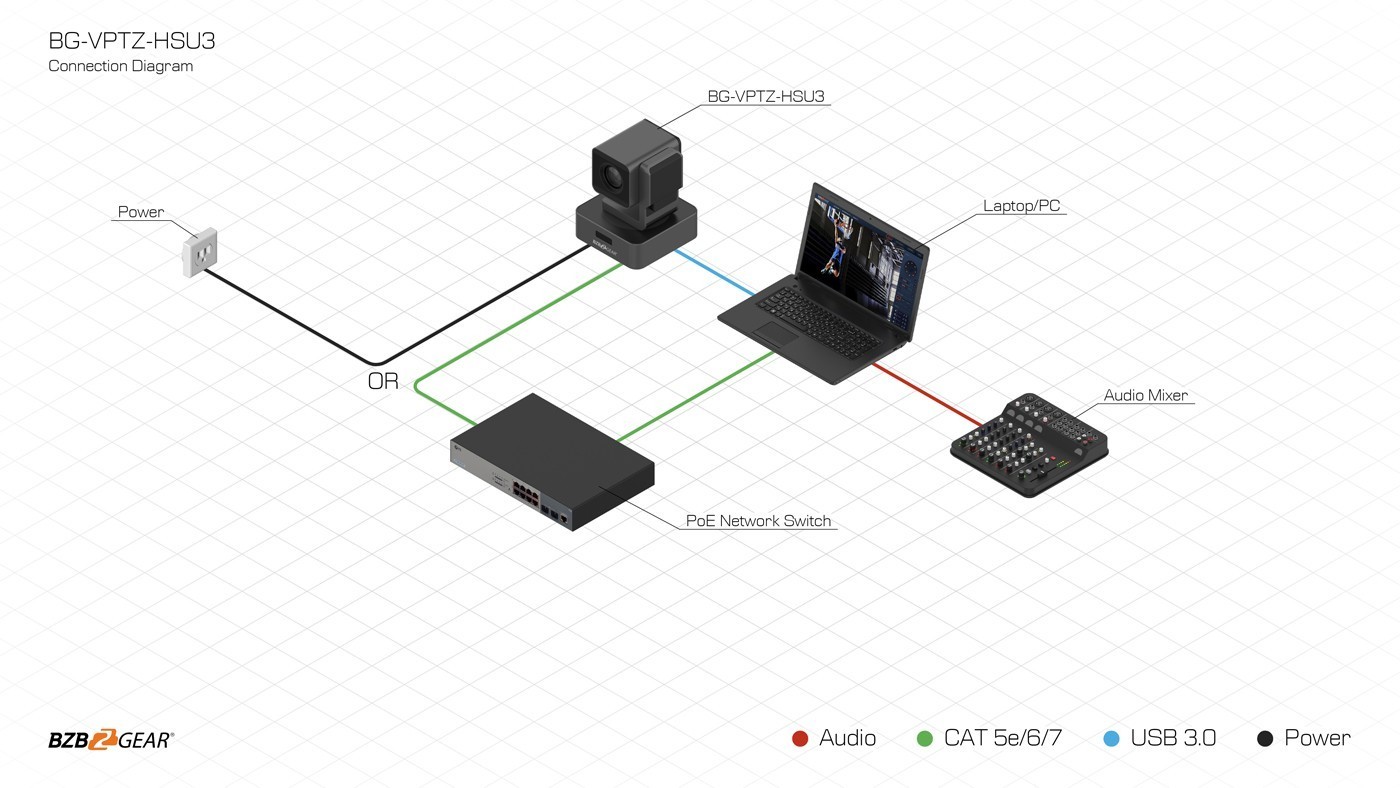

Connection Diagram

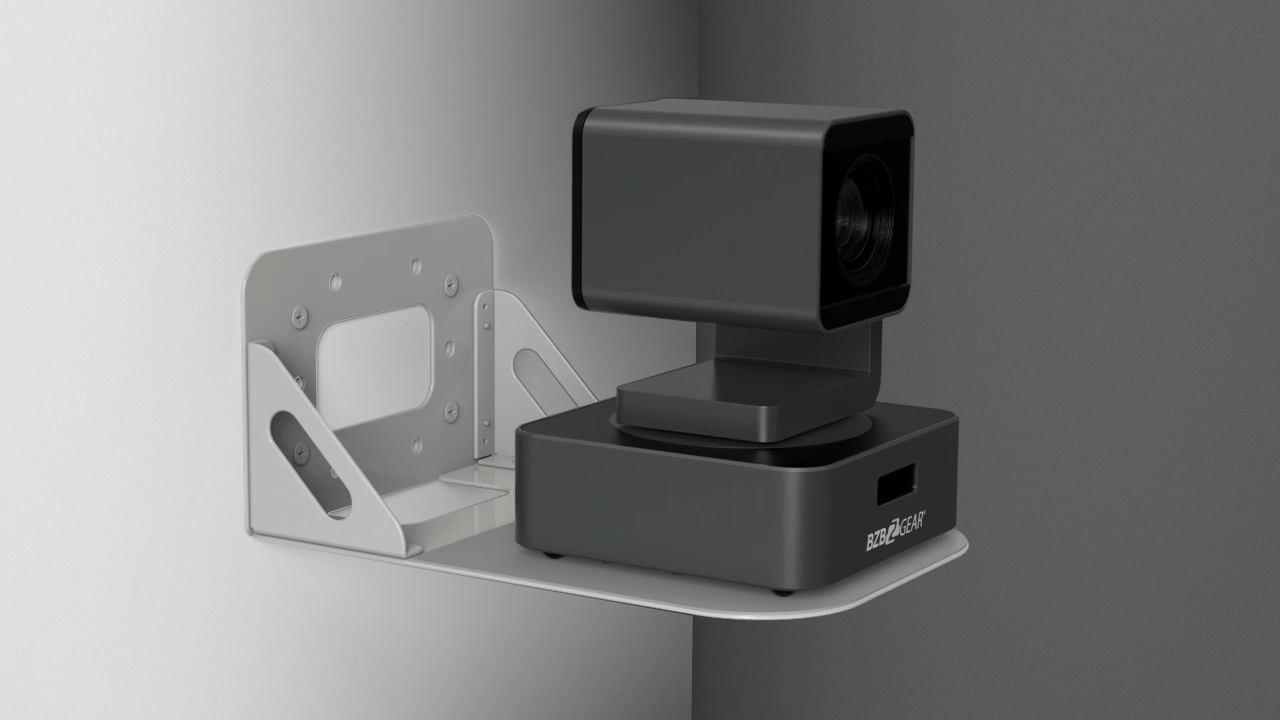

Mounting Ideas

Package Contents

  • 3x BG-VPTZ-20HSU3
  • 1x BG-Commander
  • 1x BG-HDVS42U
  • 1x NET-8LU027
  • 3x BG-VPTZ-CM
  • 3x BG-VPTZ-WM
