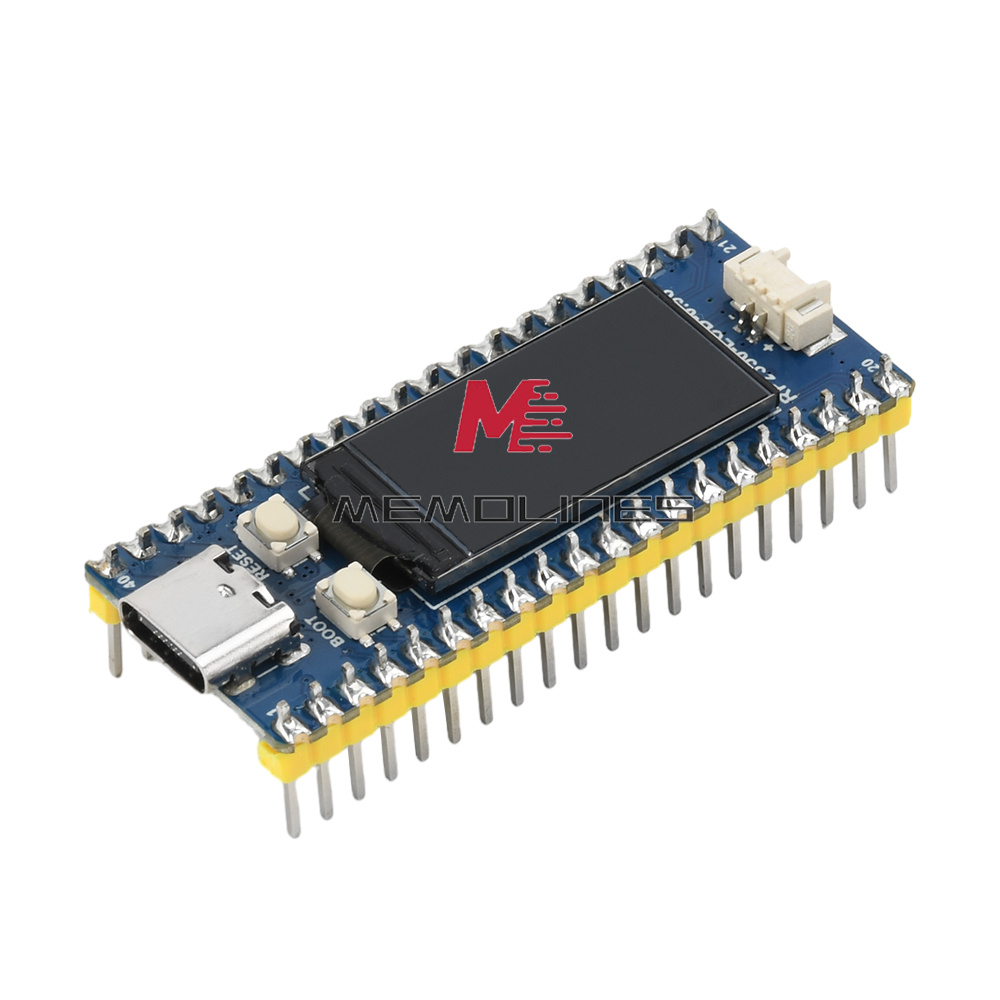

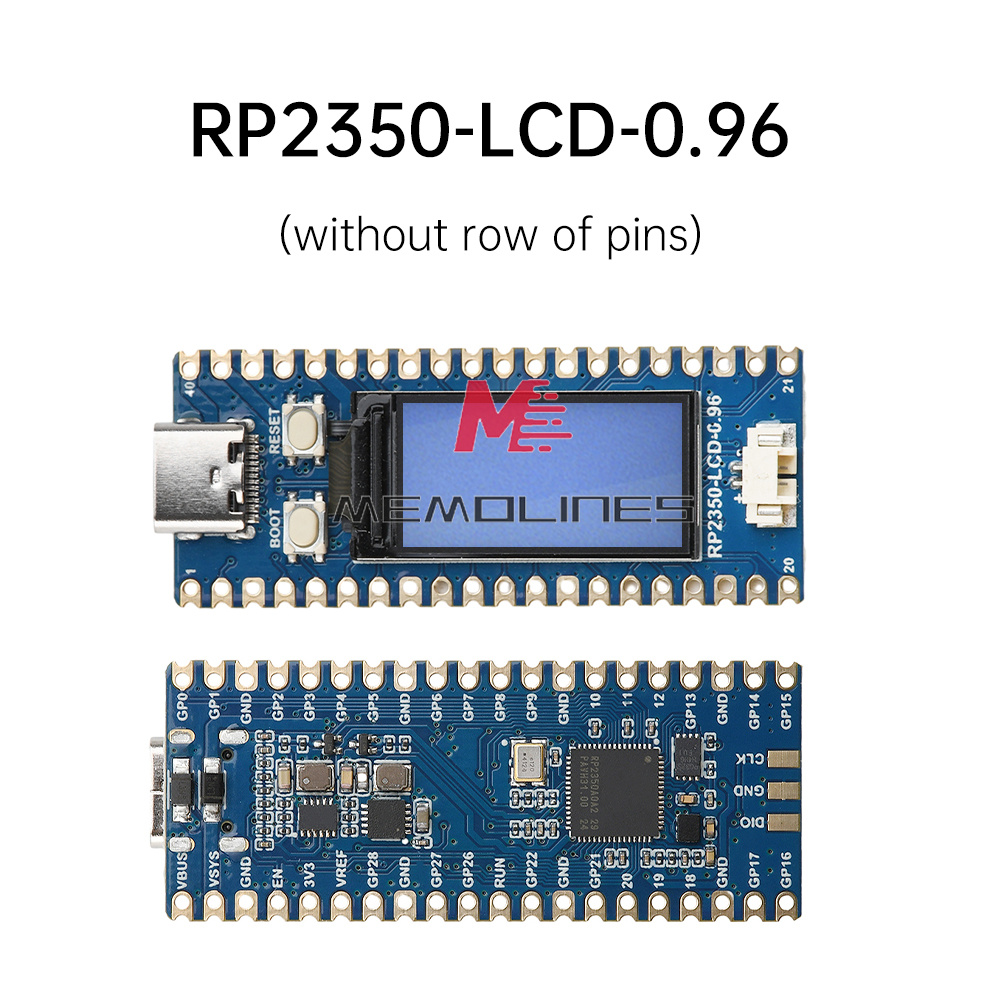

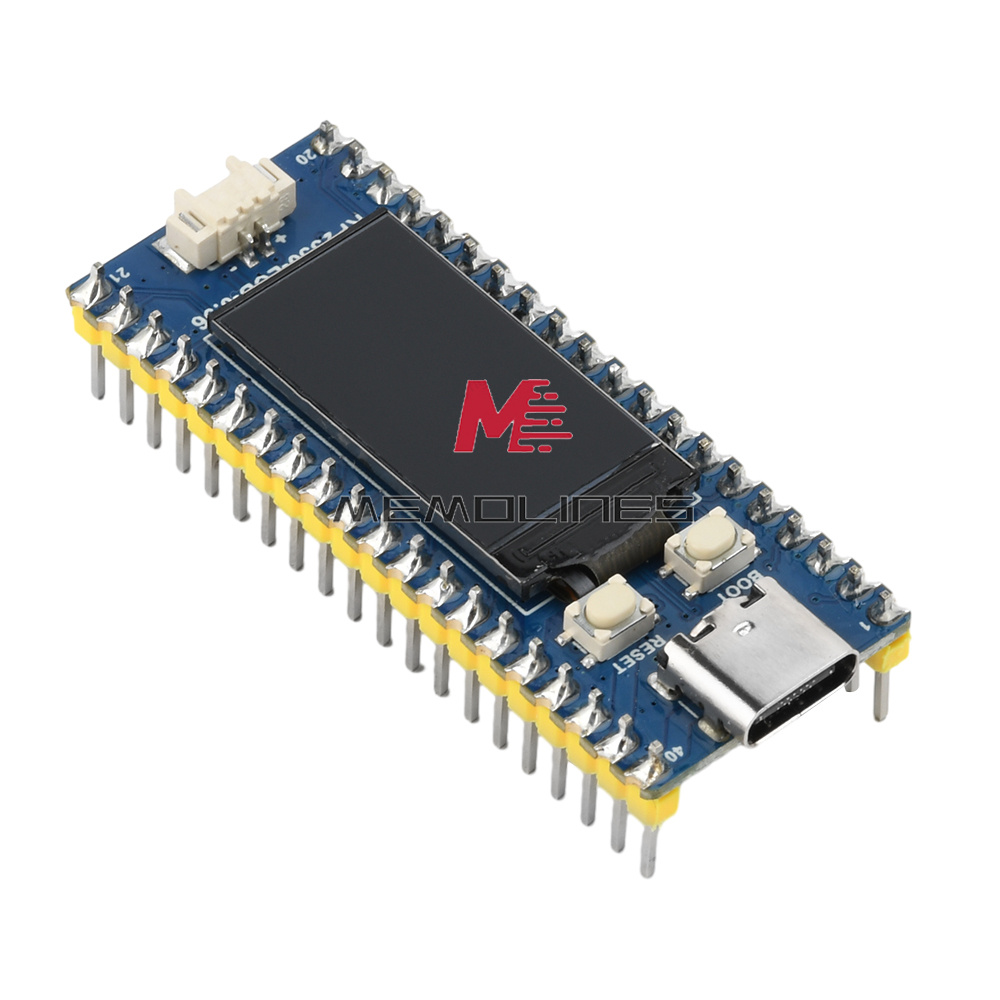

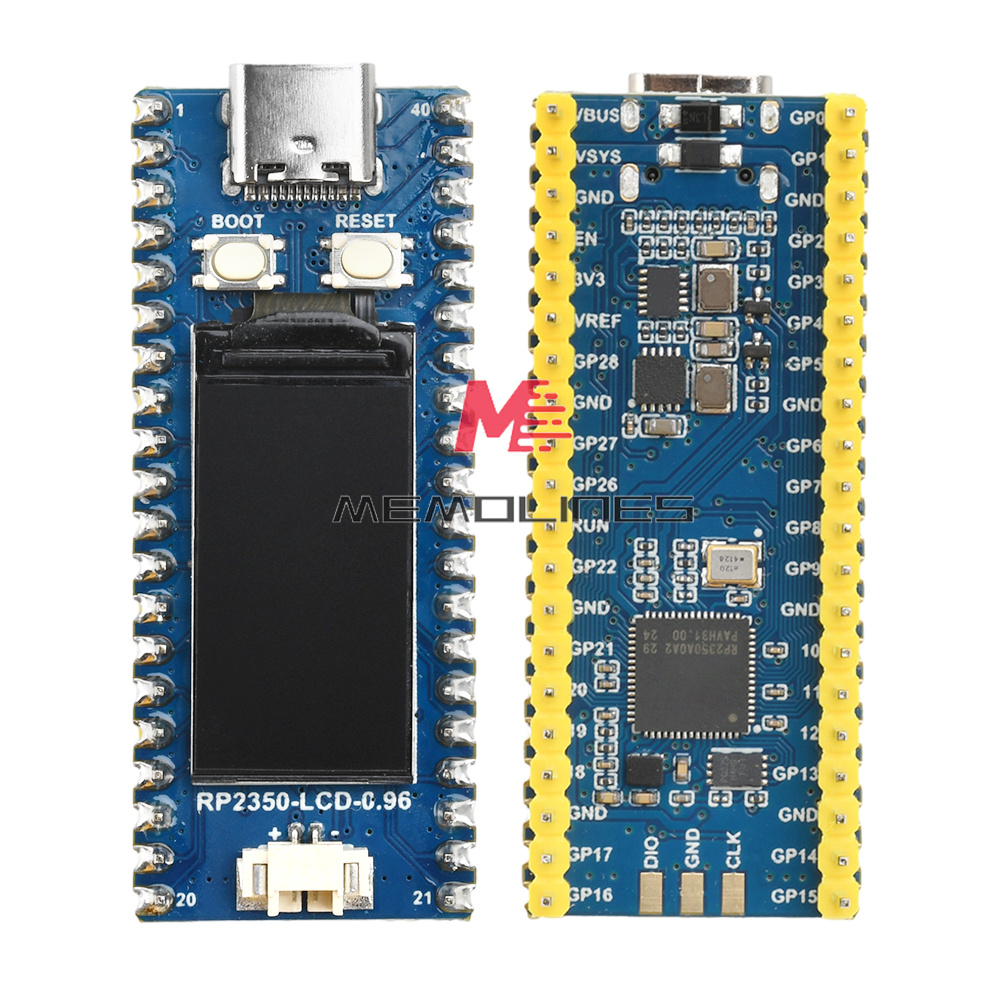

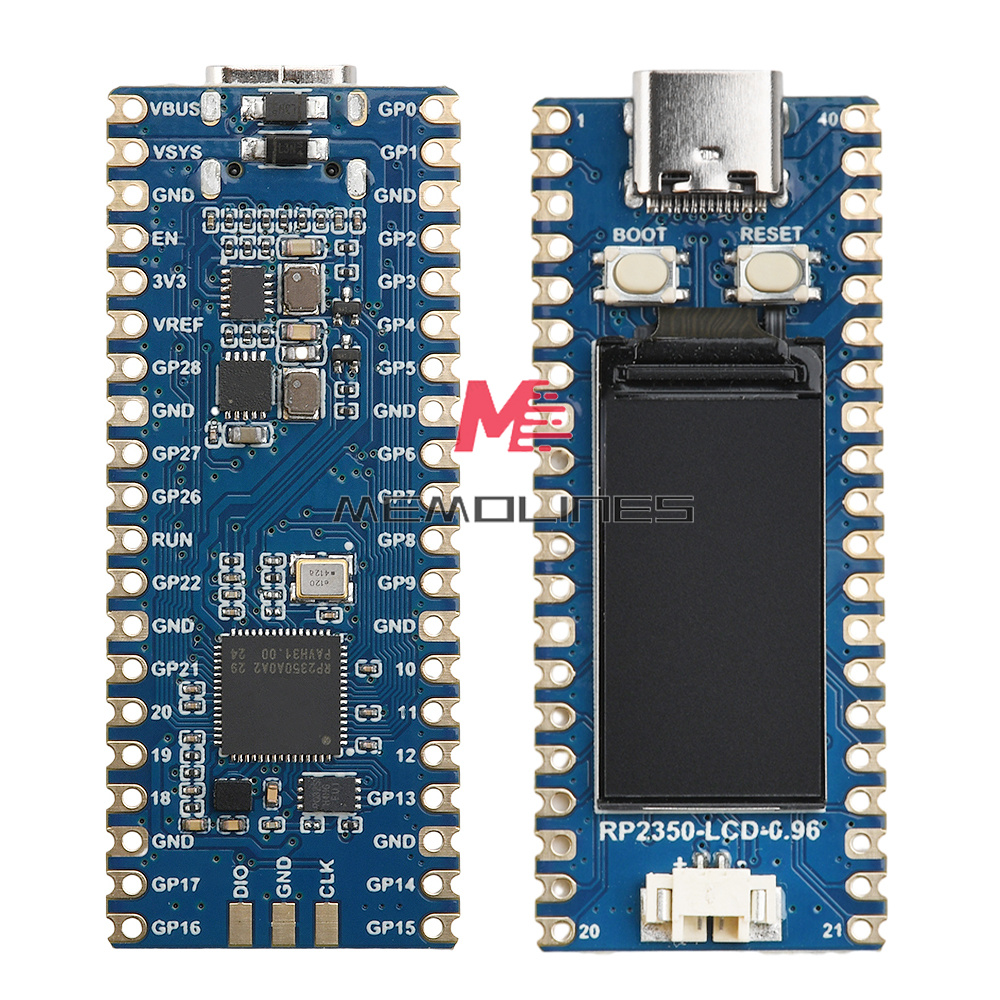

1.RP2350-LCD-0.96 is a RP2350A based design, low cost and high performance microcontroller development board.
2. This product has a flexible digital interface, which can facilitate rapid entry into development.
3. It is equipped with a dual-core processor with a unique dual-core and dual-architecture, running at up to 150 MHz.
4. 0.96-inch IPS display and Li-ion battery charging and discharging interface are on board, which is conducive to the use of this product in mobile scenarios.

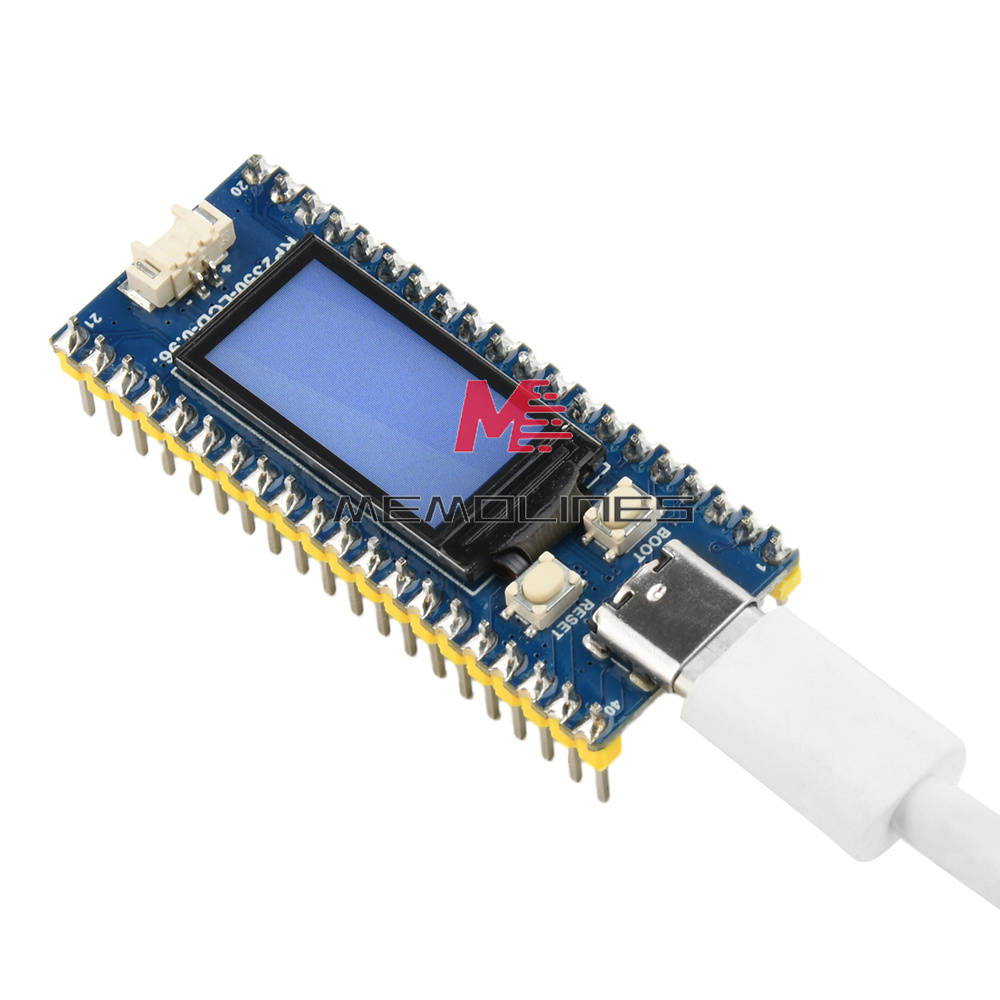

5. Adopt Type-C interface, follow the trend of the times, no need to be entangled in the forward and reverse plug.

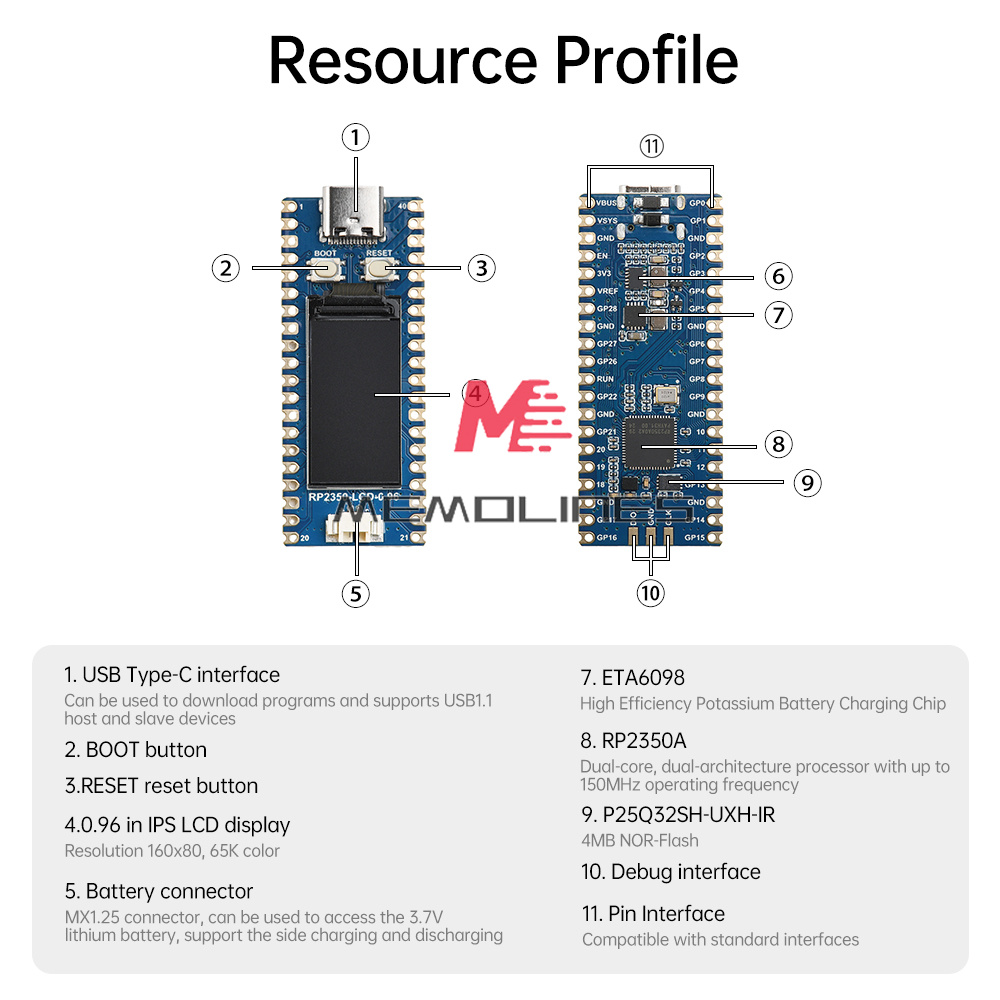

Adopting the official self-designed RP2350A microcontroller chip
Unique dual-core and dual-architecture, equipped with a dual-core ARM Cortex-M33 processor and a dual-core Hazard 3 RISC-V core processor, running at up to 150 MHz.
Built-in 520KB of SRAM and 4MB of on-chip Flash
Type-C interface, keeping up with the trend of the times, no need to worry about the front and back plugs

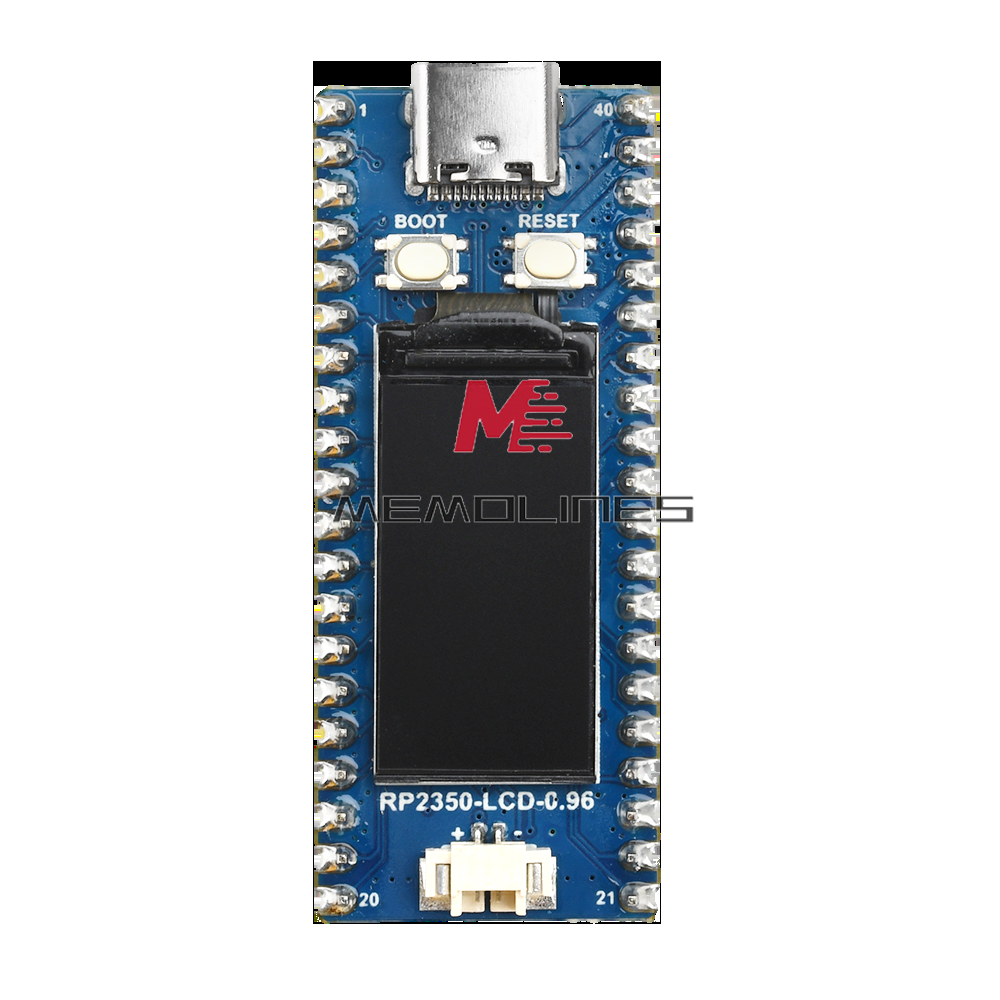

Onboard 0.96-inch 160 × 80 pixel 65K colour IPS LCD display
On-board Li-ion battery charging and discharging interface, which is beneficial for the product to be used in mobile scenarios.
On-board DC-DC chip MP28164, a high-efficiency DC-DC buck-boost chip, with a load current of up to 2A.
Stamp hole design, can be directly soldered and integrated into the user's own design of the base plate.
USB1.1 host and device support
Supports low-power sleep and hibernation modes
Drag-and-drop program download via USB recognised as mass memory

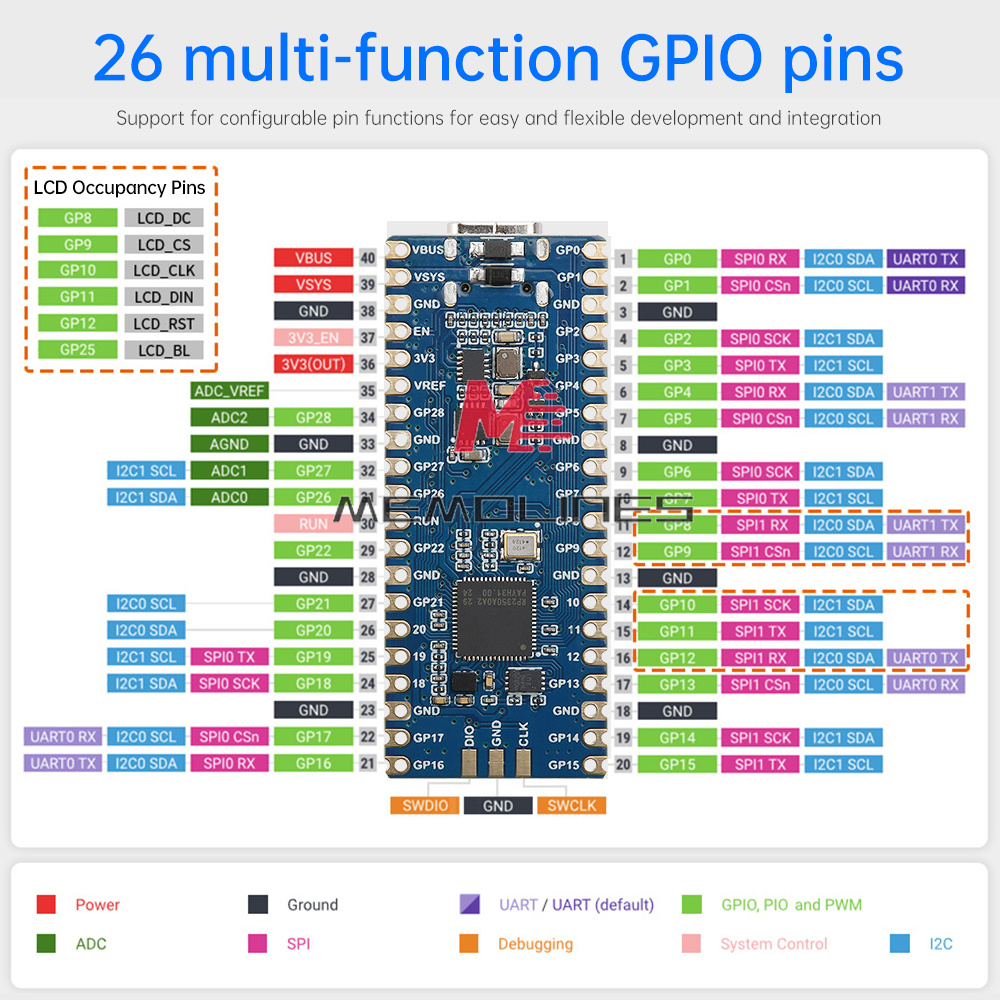

Up to 26 versatile GPIO pins
2 SPI, 2 I2C, 2 UART, 4 12-bit ADCs, 16 controllable PWM channels
Precision on-chip clock and timer
Temperature sensors
On-chip accelerated floating point library
12 Programmable I/O (PIO) state machines for custom peripheral support

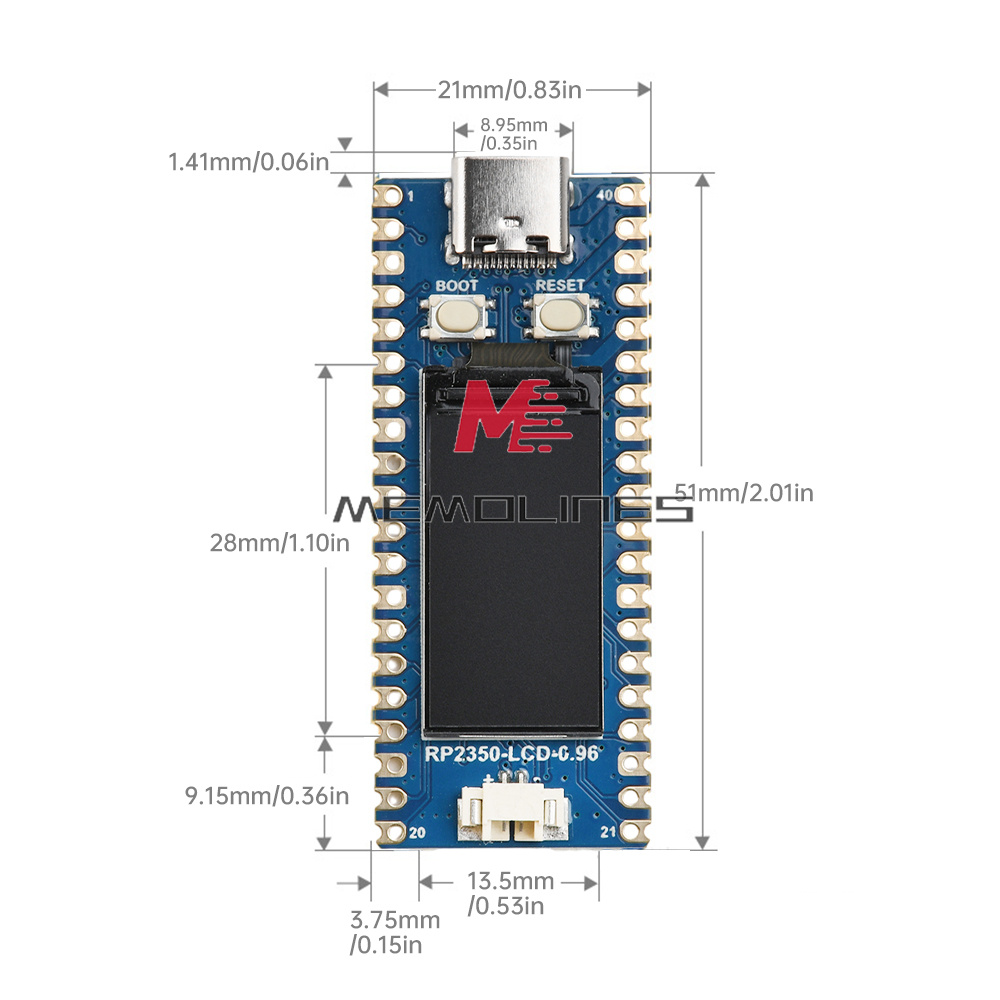

Dimensions 51mm*21mm

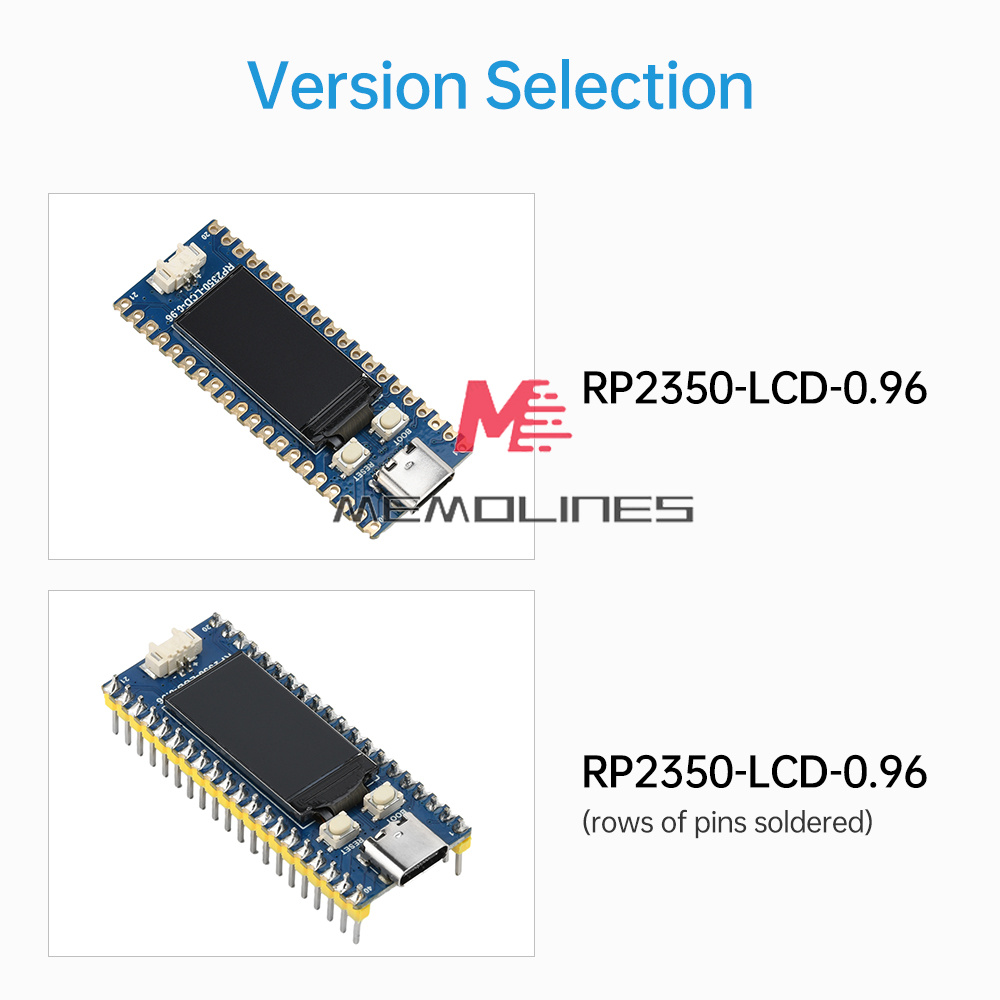

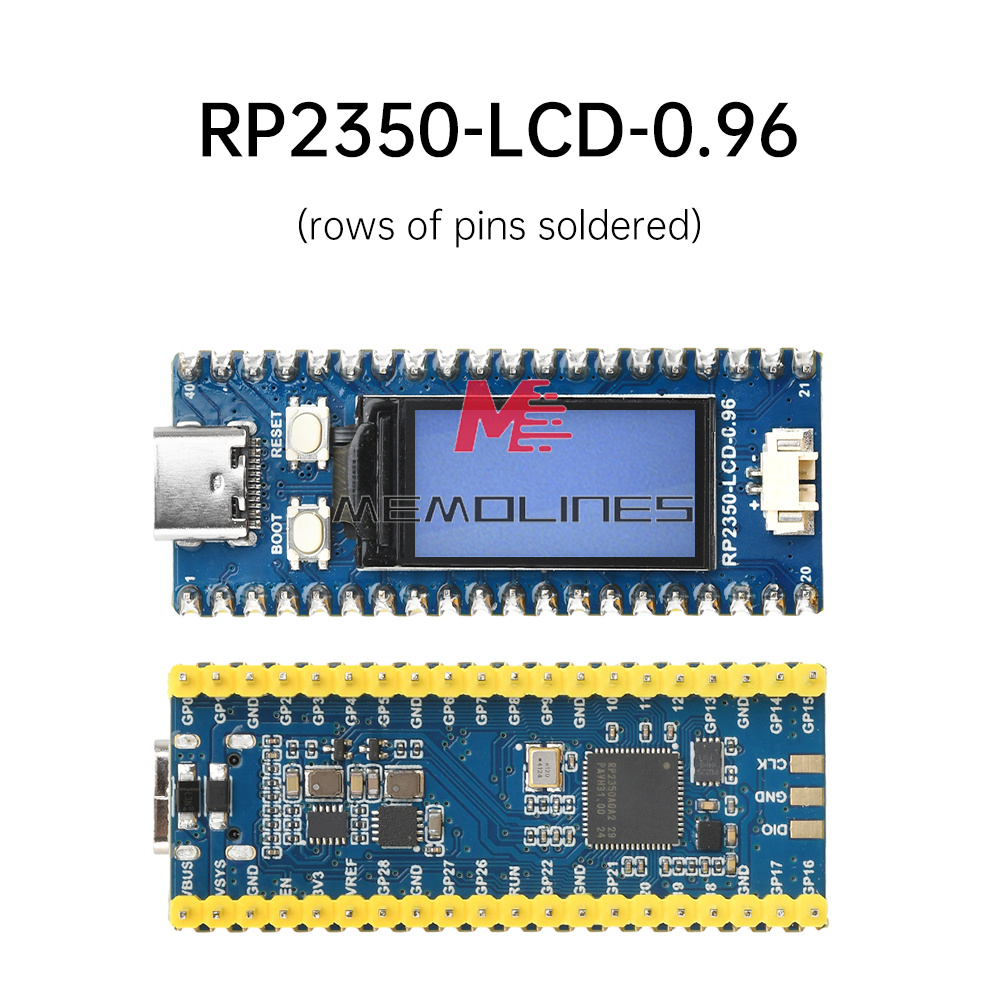

1 x Development Board (without pin/soldered pin optional)
