If you need inner and outer tire for the wheel, it only need extra 13usd. If you need extra disc brake rotor 16mm, only 2usd. If you need extra 7 speed 14-28T freewheel, it is only 5usd. They only can be shipped with motor wheel from China.

Packing List

Noted:Conversion Kit not include Battery, tire, freewheel, disc brake.( If you need a Battery, tire, freewheel, disc brake, Please contact us for an additional fee )

1 * Rear motor wheel
1 * DC Controller
1 * Controller Bag
1 pair * Power cut-off Brake lever
1 * Display LCD3 or sw900
1 * 8 Magnet Pedal Assistant Sensor
1 set * Throttle (The LCD3 display uses Half Twist Throttle .The SW900 display uses Twist Throttle)

Motor Wheel

1. Full Speed: 36V 250/350/500W about 20-35km/hour,
48V 1000W about 45-55km/h,
48V 1500W about 50-60km/h,
(different wheel size, road&weather condition and rider's weight will have different speed)
2. Hub Motor:Brushless gear Hub Motor for 36V
Brushless Non-gear Hub Motor for 48V
3. Rim: Double-wall Aluminium Alloy Rim
4. Wheel Bottom bracket: Rear 135mm-142mm
5. Torque:25-35NM for 36v 250W 350W 500W
30-40NM for 500W 1000W
35-45NM for 1500W
6. RPM:320 for 36V 250W 350w
350 for 36V 500W
470 for 48V 500W 1000W
540 for 48V 1500W
7. The motor is suitable for thread freewheel, not suitable for cassette. If you need a motor suitable for cassette, please contact us

Display

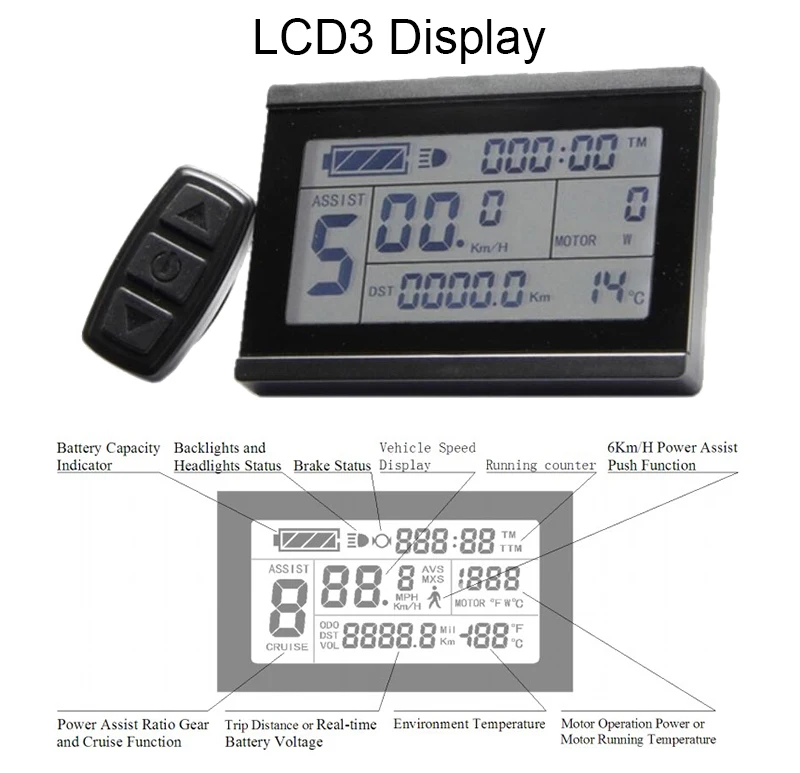

LCD3 display Product Features
Display Function:
it shows the riding speed, a single mileage and cumulative mileage, riding time, power-assist gear, motor power and temperature, battery voltage and charge status, brake status and the used ambient temperature and other cycling parameters;
Control/Setting Function:
comes with Brake Regeneration Anti-Charge ,Data display，Intelligent power，Stalls setting， Parameter setting，Data view， Vehicle boosting，Cruise and constant speed，Night driving，Password setting，Automatically prompt，

SW900 display Product Features
Display Function:
Speed display, power-assisted gear display, power indicator, fault prompt, total mileage, single mileage, headlights and single driving time display.
(2) Control/Setting Function:
Power switch control, headlight switch control, 6Km/h boost control, wheel diameter setting, speed limit setting, meter sleep setting, backlight brightness setting, voltage setting.

Controller

KT 6 mosfet controller
Fit for: 36V 250W/350W/500W motor wheel ，LCD3 Display
Rated current: 10A ,Max current: 20±1A
Size: 100*61*35mm

KT 12 mosfet controller
Fit for: 48V 1000W motor wheel，LCD3 Display
Rated current: 15A , Max current: 30±1A
Size: 176*82*41mm

KT 18 mosfet controller
Fit for: 48V 1500W motor wheel ，LCD3 Display
Rated current: 22A , Max current: 45±1A
Size: 240*82*41mm

CSC 6 mosfet controller
Fit for: 36V 250W/350W/500W motor wheel ，SW900 Display
Rated current: 15A ,Max current: 30±1A
Size: 100*64*32mm

CSC 12 mosfet controller
Fit for: 48V 1000W motor wheel，SW900 Display
Rated current: 22A , Max current: 44±1A
Size: 149*83.3*42mm

CSC 15 mosfet controller
Fit for: 48V 1500W motor wheel ，SW900 Display
Rated current: 35A , Max current: 70±1A
Size: 182.2*82.33*41mm

Controller Bag

PAS

KT BZ-4(8) Magnet

Throttle

LCD3 display uses half Twist Throttle
SW900 display uses Twist Throttle

Power cut-off brake leaver
