Hantek Arbitrary Function Waveform Generator Pulse Harmonic Frequency Meter HDG3022B 1μHz-25Mhz Frequency Range

Introduction:

HDG3000B sets arbitrary waveform generator, pulse generator, function generator, harmonic generator, frequency meter 5 functions in one.
It uses the DDS (Direct Digital Synthesizer) technology, and can generate stable, pure, and low-distortion output signal.
Humanized interface design and keyboard layout give users extraordinary experience.
Rich configuration interfaces can easily achieve computer control of the instrument, which provides users with more solutions for measurement.

Features:

Frequency range: 1μHz ~ 100MHz/80MHz/60MHz/40MHz/25MHz/15MHz.
Up to 300MSa/s sampling rate, no distortion of analog waveforms.
16-bit vertical resolution ensures the accuracy of waveform amplitude.
Equip with dual channels with equal performance, equivalent to two independent signal sources.
The storage depth of up to 2M ensures the creation of more waveform cycles and better waveform details.
A 4.3-inch color TFT LCD screen, a clear and intuitive user interface.
Rich modulation function, support for AM, DSB - AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc.
1μHz frequency resolution: When the impedance is high, the amplitude range is 2mV~20Vpp. When the impedance is 50Ω, the amplitude range is 1mV~10Vpp.
Built-in 80MHz high-resolution frequency meter.
Standard communication interface: front USB 2.0 high speed (USB Host) and rear USB 2.0 full speed (USB Device).
More than 160 kinds of arbitrary signals, such as exponential rise, exponential decline, ECG signal, Gaussian, semi-positive vector, Lorentz, dual-tone multi-frequency, DC voltage, etc.
Built-in 16 harmonic generator function, output with specified frequency, amplitude and phase of harmonics, usually used in harmonic detection equipment or harmonic filter equipment test.

Function:

1. Equip with the sine wave with the maximum output bandwidth of 100MHz.

Frequency range: 1μHz~100MHz; Adjustable offset: ±5V; Adjustable phase: 0°~ 360°.

2. Equip with the square wave with the maximum output bandwidth of 15MHz.

Frequency range: 1μHz~15MHz; Adjustable offset: ±5V; Adjustable phase: 0°~ 360°.

3. Equip with the triangle wave with the maximum output bandwidth of 2MHz.

Frequency range: 1μHz~2MHz; Adjustable offset: ±5V; Adjustable phase: 0°~ 360°; Adjustable symmetry: 0%~100%.

4. Equip with more than 160 kinds of arbitrary waveform output.

Index rise, index fall, ECG signal, Gauss, half vector, Lorentz, dual tone multi-frequency, DC voltage and other more than 160 kinds of arbitrary signals.

5. Equip with dual channel output modulation waveform AM/FM.

Rich modulation functions, support for AM, DSB - AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc.

6. Equip with dual channel output burst function.

Support control of burst output by internal, manual or external trigger sources. Three burst types are supported, including multi cycle, infinite cycle, and gated.

7. Equip with an 80MHz frequency meter.

The instrument can measure the frequency, period, duty cycle, positive pulse width and negative pulse width and other parameters of the external input signal.

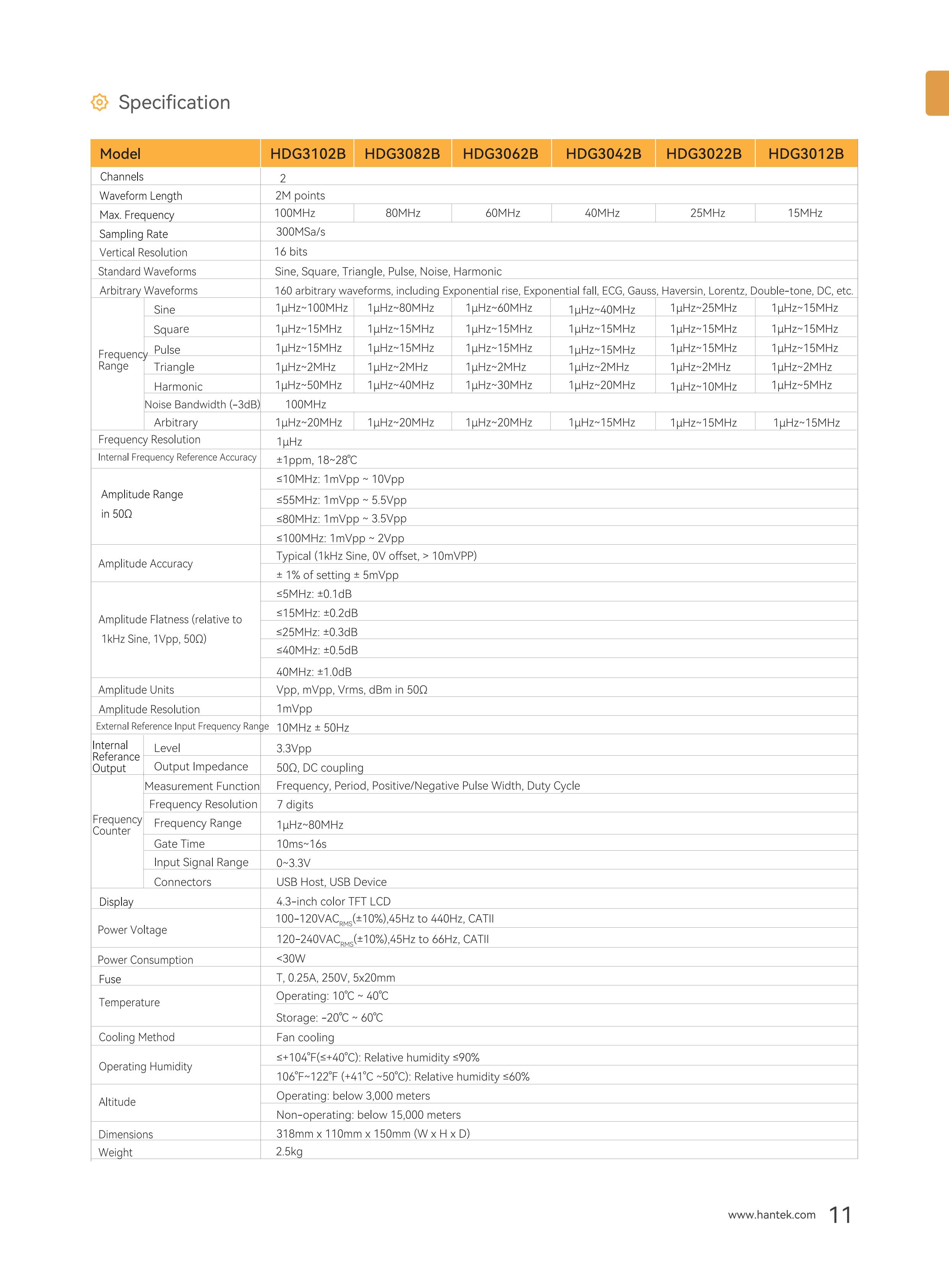

Specifications:

Model	HDG3102B	HDG3082B	HDG3062B	HDG3042B	HDG3022B	HDG3012B
Channel	2
Wavelength	2M
Frequency range	100MHz	80MHz	60MHz	40MHz	25MHz	15MHz
Sampling rate	300MSa/s
Voltage resolution	16Bits
Waveform
Standard waveform output	sine wave, square wave, triangular wave, pulse wave, noise, harmonics
Arbitrary waveform output	160 kinds of arbitrary waveforms, including exponential rise, exponential fall, ECG signal, Gauss, half vector, Lorentz, dual tone μlti-frequency, DC voltage, etc
Frequency property
Sine wave	1 μHz ~ 100 MHZ	1 μHz ~ 80 MHZ	1 μHz ~ 60 MHZ	1 μHz ~ 40 MHZ	1 μHz ~ 25 MHZ	1 μHz ~ 15 MHZ
Square wave	1 μHz ~ 15MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ
Pulse wave	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ
Triangle wave	1 μHz ~ 2 MHZ	1 μHz ~ 2 MHZ	1 μHz ~ 2 MHZ	1 μHz ~ 2 MHZ	1 μHz ~ 2 MHZ	1 μHz ~ 2 MHZ
Harmonic	1 μHz ~ 50 MHZ	1 μHz ~ 40 MHZ	1 μHz ~ 30 MHZ	1 μHz ~ 20 MHZ	1 μHz ~ 10 MHZ	1 μHz ~ 5 MHZ
Noise (3 db)	100 MHZ bandwidth
Arbitrary wave	1 μHz ~ 20 MHZ	1 μHz ~ 20 MHZ	1 μHz ~ 20 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ	1 μHz ~ 15 MHZ
Resolution	1μHz
Precision	±1ppm, 18~28℃
Triangular wave property
Linear	≤ 1% of peak output (typical, 1kHz, 1Vpp, symmetry 100%)
Symmetry	0% ~ 100%
Arbitrary wave property
Wavelength	2M
Vertical resolution	16 Bits
Sampling rate	1μSa/s~62.5 MSa /s, 1μSa/s resolution
Time of rise/fall	Ns of 9 or higher
Overshoot	Typical (1Vpp)
Overshoot	≤5%
Harmonic property
Harmonic frequency	≤16
Harmonic type	Even harmonics, odd harmonics, all harmonics
Harmonic amplitude	All harmonic amplitude can be set.
Harmonic phase	All harmonic amplitude can be set.
Amplitude property (50Ω terminal)
