Turbo Charger for Mitsubishi Shogun Pajero L200 L300 2.5L 93-96 Water Cooing

Description



Application

For Mitsubishi L200/Pajero 2.5L 4D56PB/4D56 1993-1996
For Mitsubishi Shogun 4D56PB/4D56 1993-1996
For Mitsubishi L300 4D56PB/4D56 1993-1996

*Notice:The flange of turbine outlet is 3-bolts,not 5-bolts.
Please be sure to check your engine code is 4D56PB,4D56 before purchasing



Turbo Model
TD04



Turbo Part Number & OEM Number

49177-01502, 4917701502, 49177-01503, 4917701503,
49177-01504, 4917701504, 49177-01505, 4917701505,
49177-01512,4917701512, 49177-01513, 4917701513,
49177-01514, 4917701514, 49177-01515, 4917701515,
MR355220, MR355221,MR355222 ,MR355223,
MD195396,MD194841,MD194842, MD1948843,

This turbo is with oil and water-cooling bearing housing that would fit original oil-cooled turbo with OE/PN number below,but need to close water hole:
49177-01500, 49177-01500, 49177-01501, 49177-01501,
49177-01510, 4917701510, 49177-01511, 4917701511,
MD168053, MD168054, MD094740, MD106720


Specification:

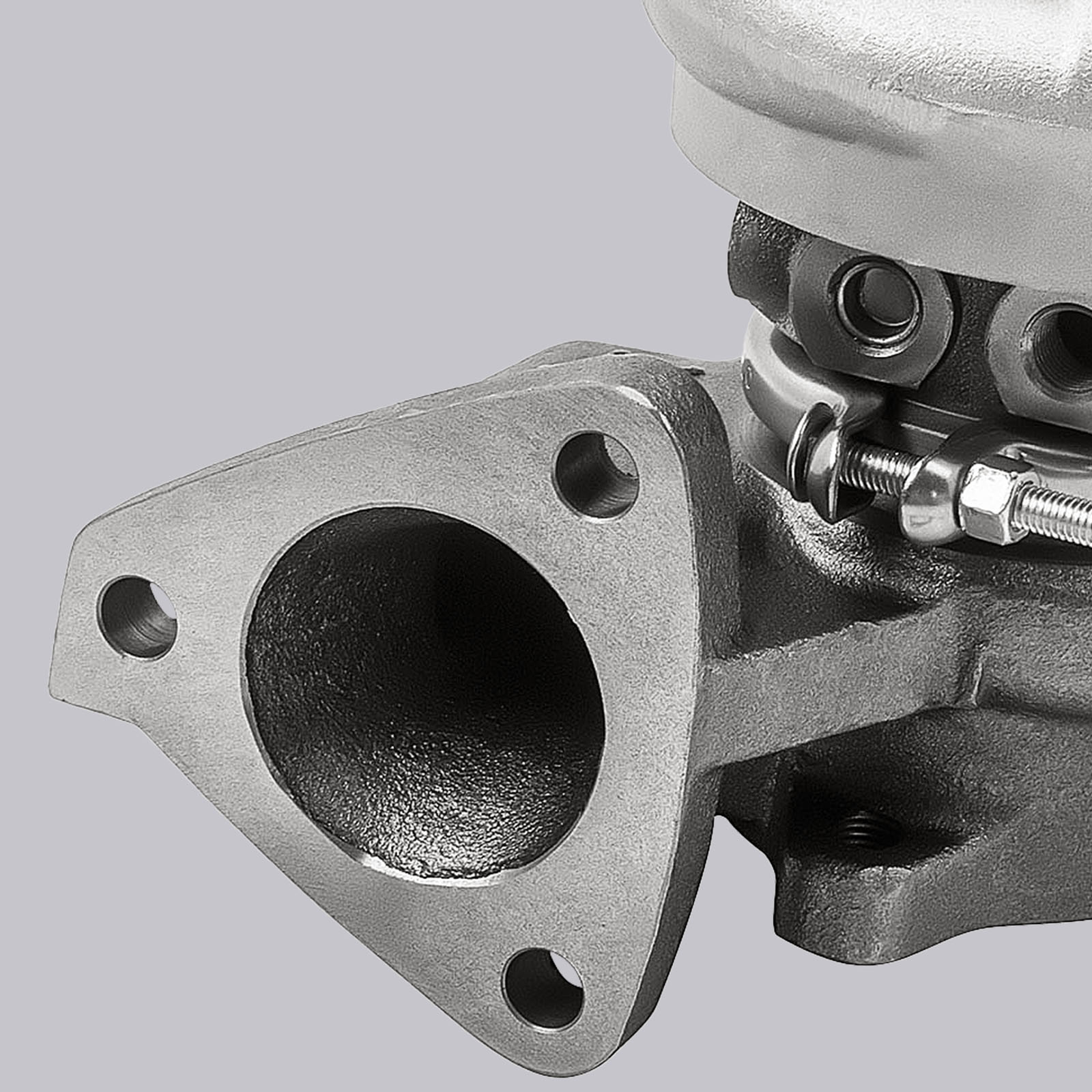

Exhaust Inlet Flange: 3 Bolts
Exhaust Outlet Flange: 3 Bolts

Turbo Model: TD04
Engine Code: 4D56PB,4D56
Cooling Type:Water + Oil Cooling
Bearing Type: Journal Bearing
Thrust bearings: 270 Degrees
Hosepower: 73kw/98hp
Turbo Type: Individual
Universal Fitment: No
Finish: Matte
Condition: 100% Brand New

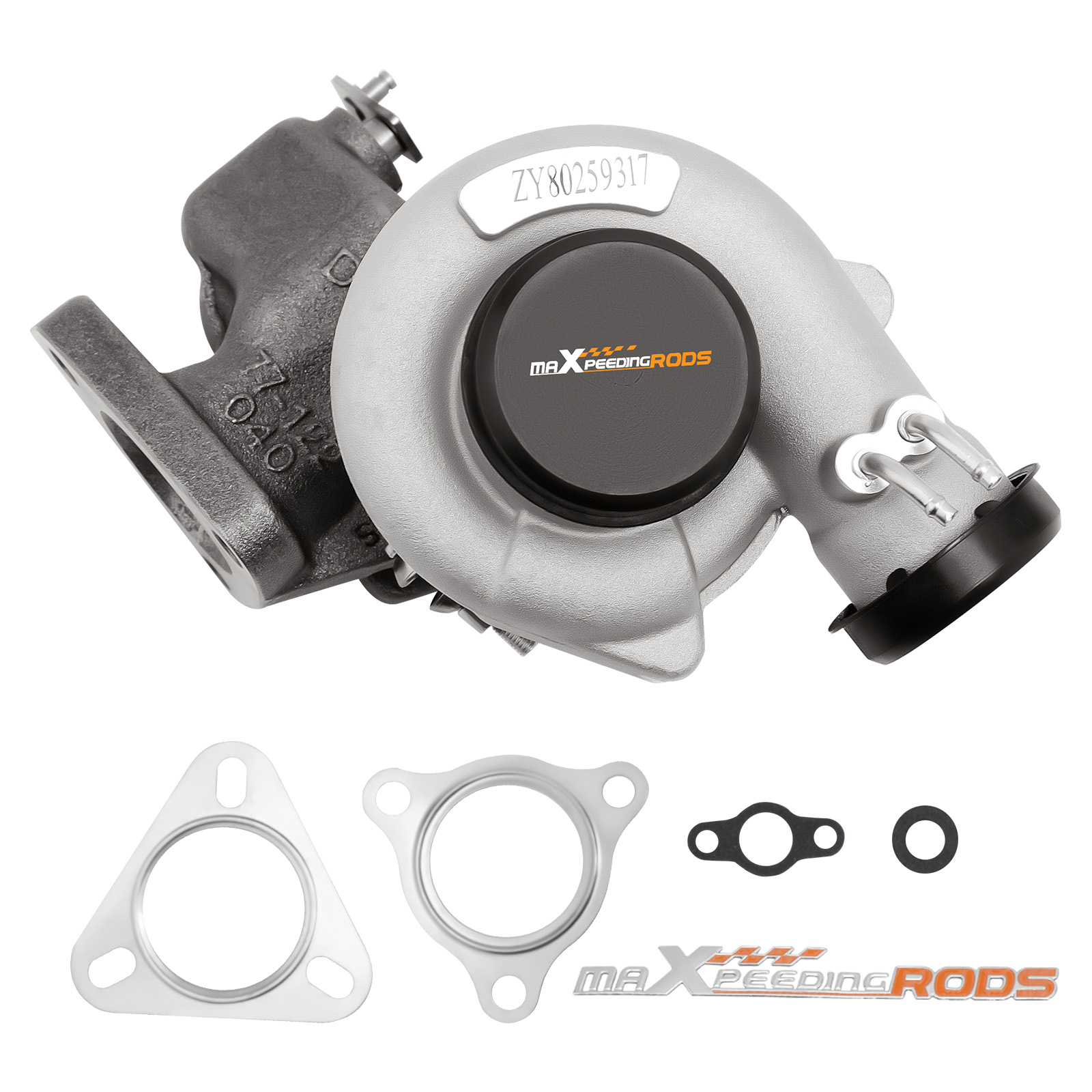

Accessories: You will receive the parts exactly as shown in the picture above
Package Size: 26 x 24 x 23cm
Package Weight: 5380g

Feature

* Product Material
1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy -  high  oxidation stability and resistance  up  to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance

* Product
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS  VSR3
2.  G3-min-Flow VNT Turbo testing
3.  Advanced Actuator Tester/Programmer



Notice

* Please confirm your original turbo PART NUMBER before Purchasing
* Professional installation is highly recommended
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
