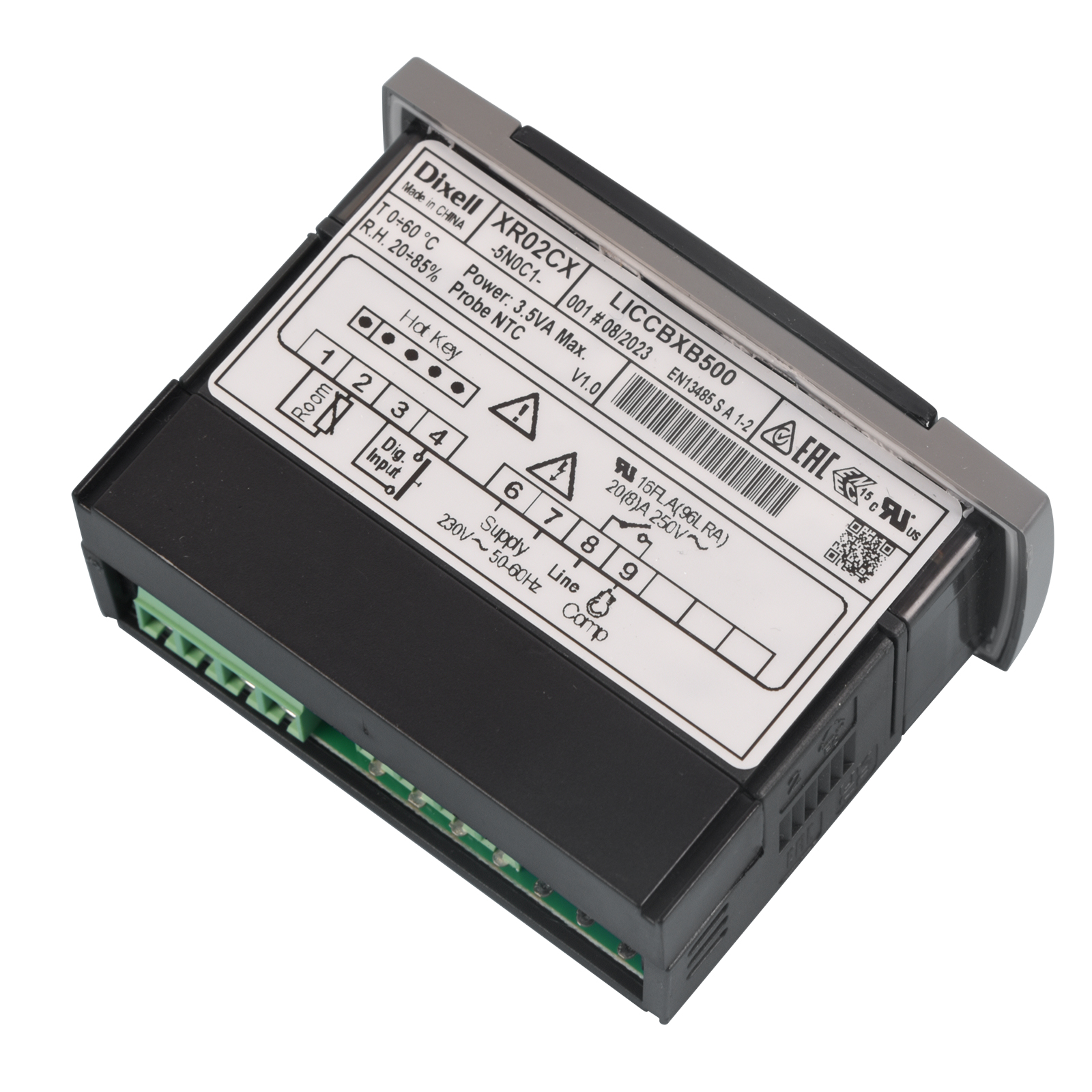

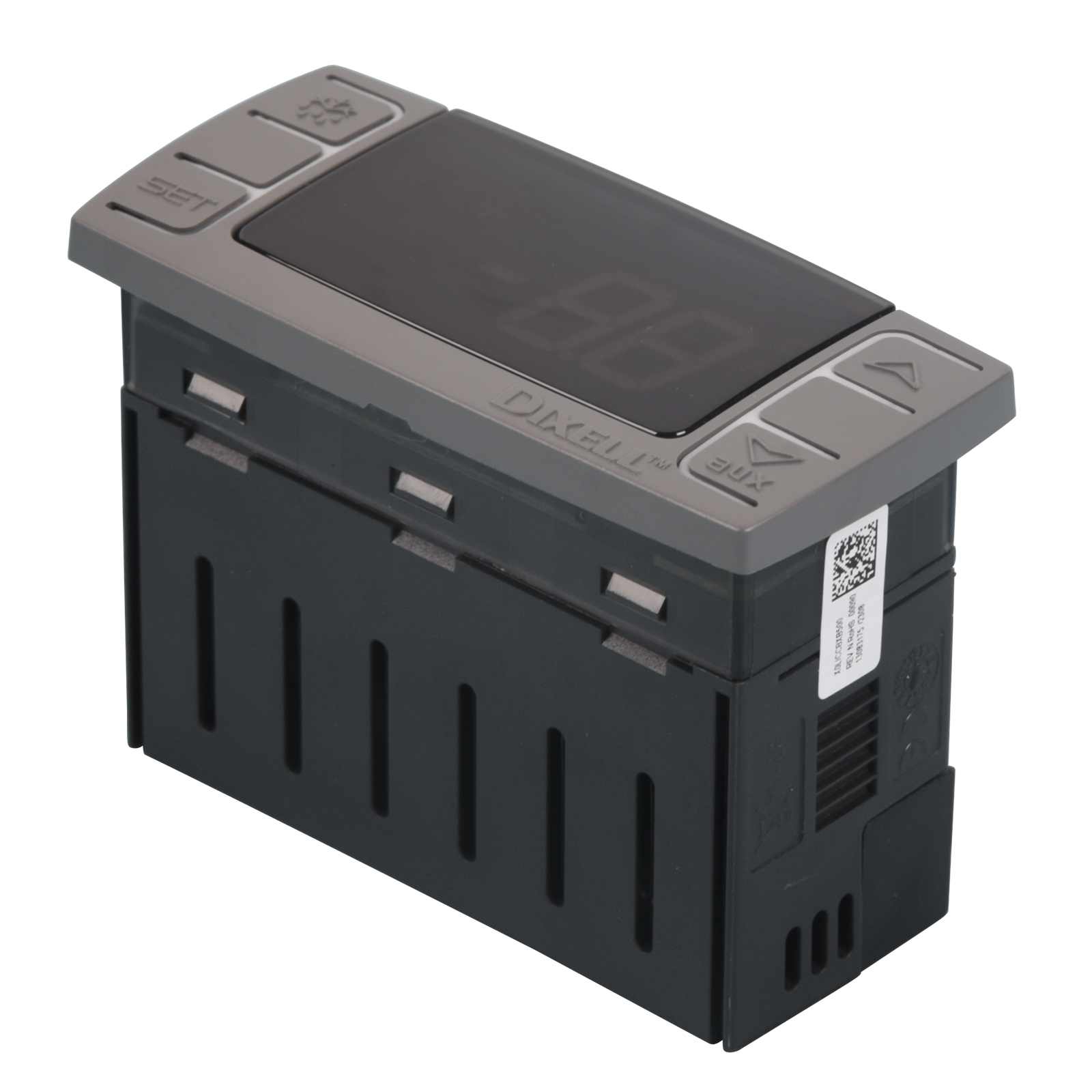

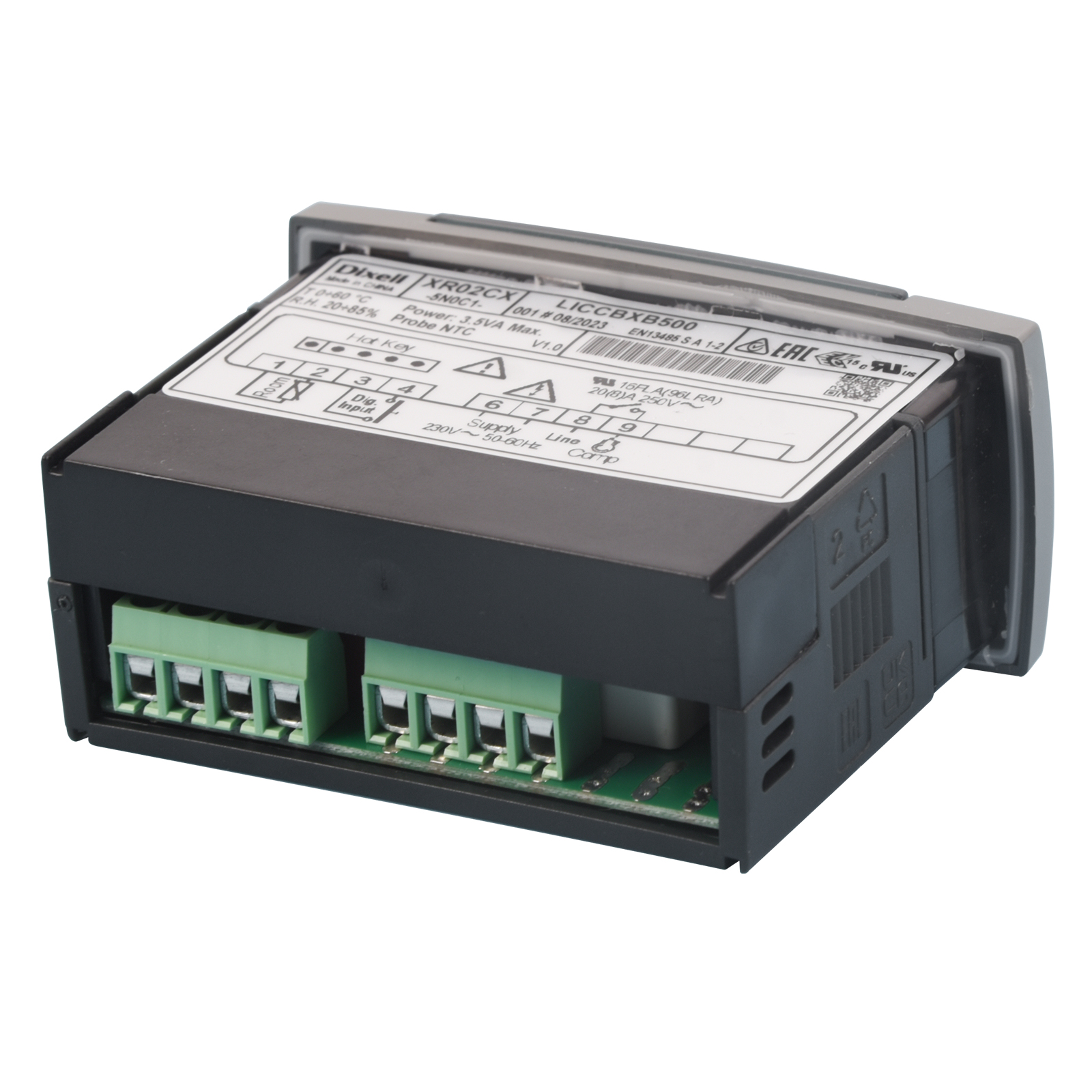

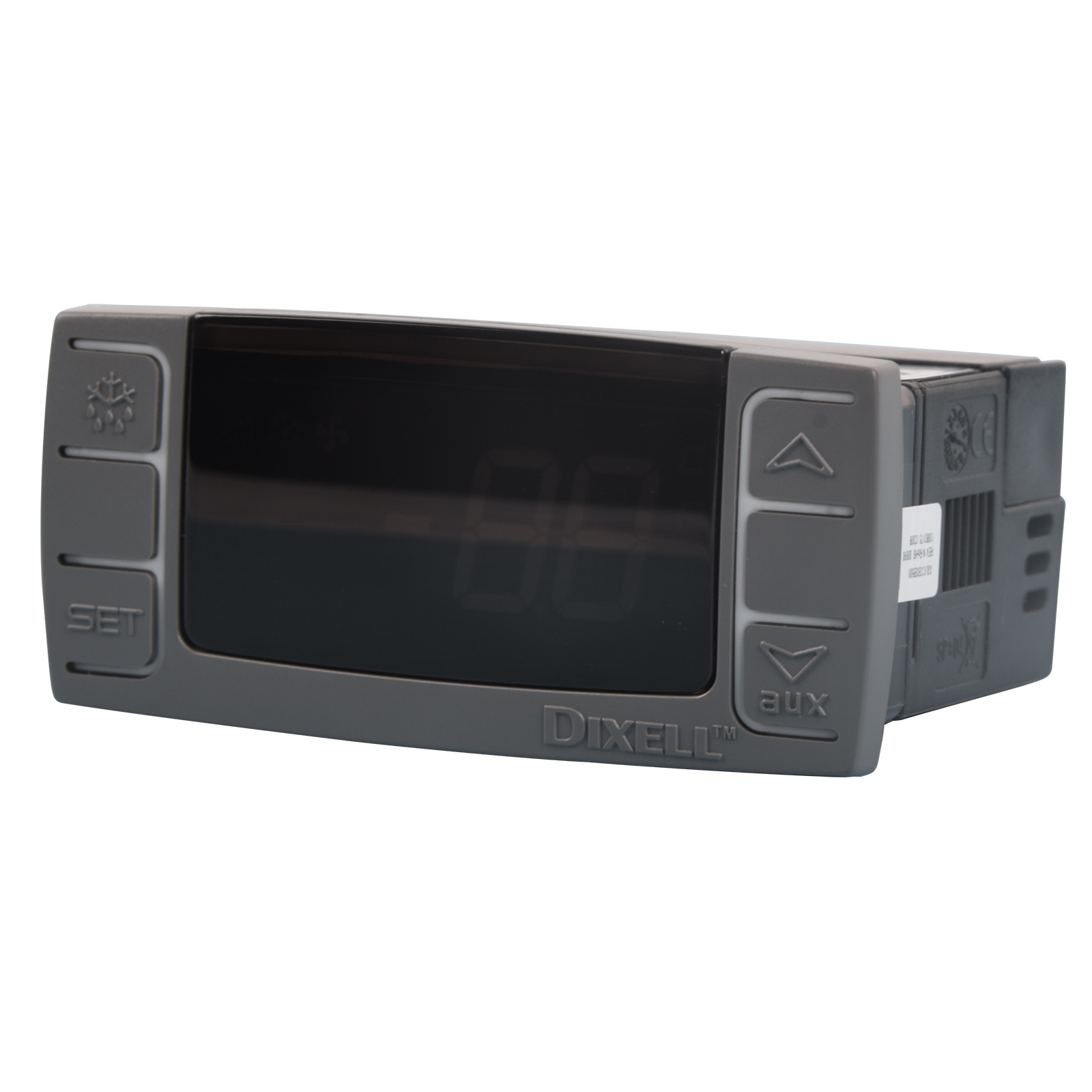

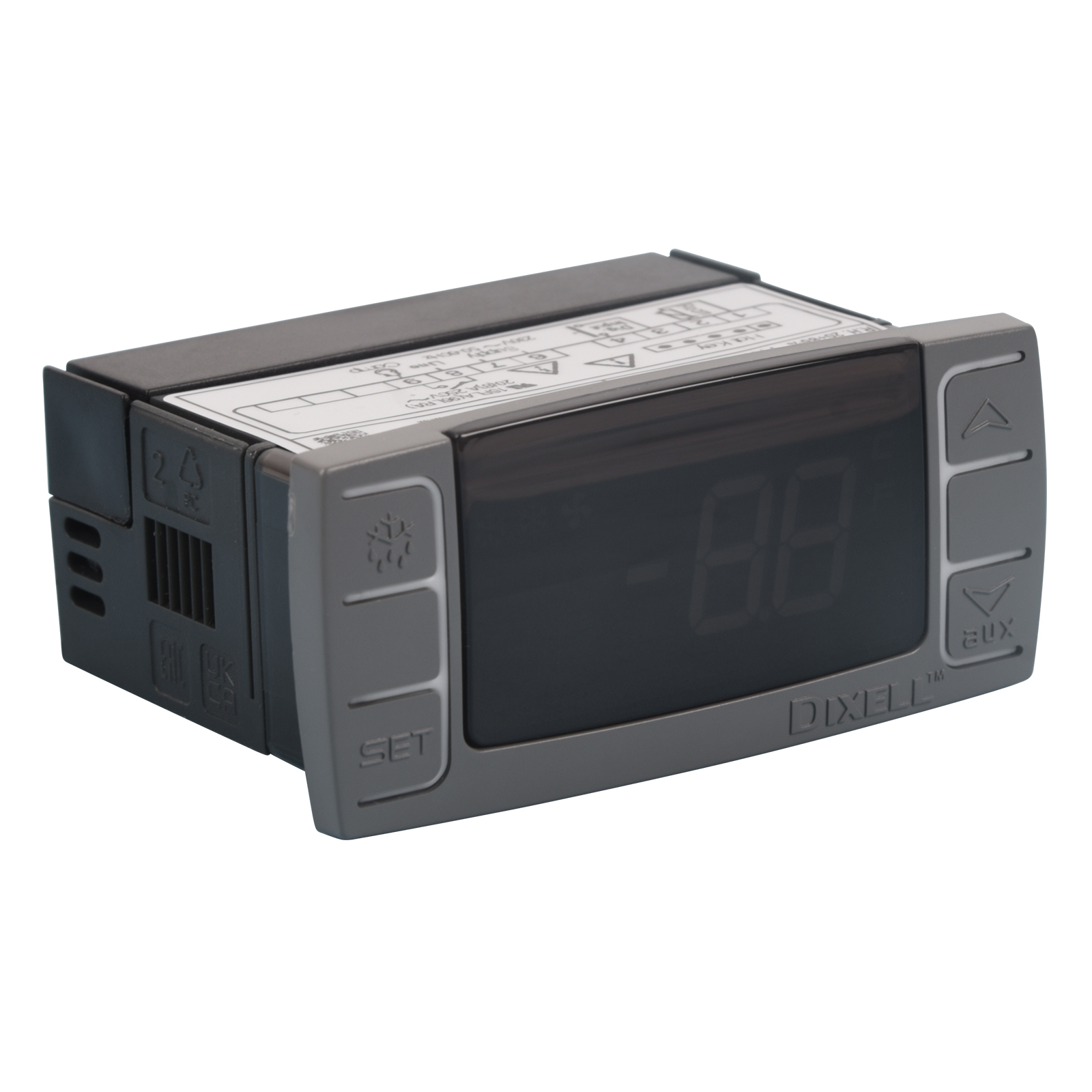

1PC Dixell XR02CX-5N0C1 Digital Thermostat Controller For Refrigeration Freezer
Details:
Description
Model XR02CX-5N0C1, format 1.26” x 2.91” x 1.97”(32 x 74 x 50 mm), is a digital thermostat with off cycle defrost designed for refrigeration applications at normal temperature. It provides a relay output to drive the compressor. It is also provided with 1 NTC probe input and one configurable digital input. The instrument is fully configurable through special parameters that can be easily programmed through the keyboard or the by HOTKEY.

Specification
Supply voltage: 230V/AC
Sensor type: NTC
Buzzer: No
Display unit: ℉/℃
Compressor load current: 20A
Operating Temperature: 32~140℉(0~60℃)
Applicable temperature range: -40~210.2℉(-40~99℃)
Product dimensions: Front 1.26” x 2.91” (32x74 mm);
Mounting dimensions: Opening 2.79” x 1.14”(71x29 mm)
Built-in depth: 1.97” (50mm)
Cooling/Heating/Stop Defrost Type Thermostat

Defrost
Defrost is performed through a simple stop of the compressor. Parameter "id" controls the interval between defrost cycles, while its length is controlled by parameter "Md" .

Instrument and Mounting
The instruments shall be mounted on vertical panel, in a 1.14” x 2.79”(29x71 mm) hole, and fixed using the special bracket supplied. The temperature range allowed for correct operation is 32~140℉(0-60℃). Avoid places subject to strong vibrations, corrosive gases, excessive dirt or humidity. The same recommendations apply to probes. Let air circulate by the cooling holes.

Package List
1*Manual
1*Thermostat Controller
1*Temperature Sensor
2*Special Bracket
