Products Introduction：

DMX 512/1990 standard, maximum 1024 control channels, photoelectric isolation signal output. L control 96 largest amount of dimming or 96 road,use pearl lamp base. L built-in graphics trajectory generator, there are 135 built-in graphics, convenient for user to graphics trajectory control of amount, picturesque, spiral, rainbow, chasing, and other effects. Graphic parameters (e.g. amplitude, speed, interval, wave, direction) can beset independently. L l console has the function of writing lamp library. L60 repeat scenario, a multi-step scenario is used to store and single-stepscenario. A multi-step scenario can store up to 600 steps. L with backlit LCD display, l shutdown data maintain in both Chinese and English. L U diskbackups and upgrades. L work professional gooseneck lamp, suitable forindoor and outdoor performances.

Specifications:

Colour: Black

Material: metal + plastic

Voltage: AC100-240v/50-60Hz

Product size: 48.5*40.2*11cm

Product weight: 5.8kg

Carton size: 56*48*21cm

Carton packing weight: 7.8kg

Product Features:

1. 512/1990 standard, maximum 1024 control channels, opto-isolated signal output -L control 96 maximum dimming volume or 96 channels, using pearl lamp head.

2. Built-in graphic trajectory generator with 135 built-in graphics, convenient for users to control the amount of graphic trajectory, such as painting, spiral, rainbow, chasing and other effects. Graphic parameters (e.g. amplitude, speed, interval, wave, direction) can be set independently.

3. The console has the function of writing a library of lights. the L60 repeats the scene, using a multi-step scene.

4. 600 steps can be stored in a multi-step scene.

5. LCD display with backlight, maintenance of shutdown data in English and Chinese, backup and upgrade possible.

Product Specifications.

Shell color: silver

Product material: stainless steel and ABS

Input voltage: 5V 1A

Power input: 5VDC,±5%

Power consumption: 5W

Communication distance: 400 meters working band: 2.400-2.4835GHz, ISM, 126 bands modulation mode: GFSK

Maximum transmit power:23dBm

Battery capacity: 600 mA

Charging time: 2.5 hours

Use time: 16 hours

Receiving sensitivity: -94dBm

DMX signal interface: RS485

Reliability: Auto restart timer: Built-in WDT

System information: CPU: 32-bit ARM core

Operating temperature: -40 ~ 85 ° C, 5 ~ 95% RH humidity storage temperature: -65 ~ 150 ° C, 5 ~ 95% RH humidity

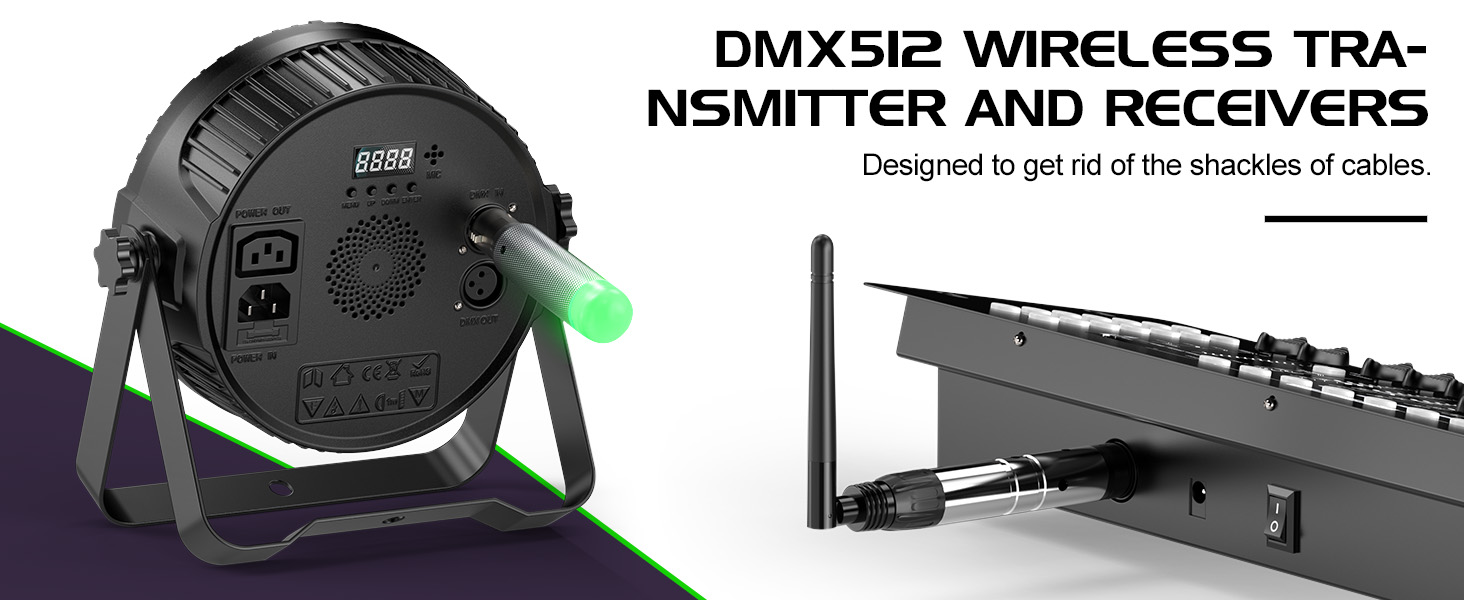

Control mode: controlled by DMX512 console. The transmitter is plugged into the dmx console, the receiver is plugged into the fixture

Control channel: DMX512

Working mode: the transmitter indicator flashes red, the receiver indicator flashes green, which is the state of signal transmission.

Service life: 10 years

Power cord length: 92cm

Scope of application: stage lighting, large-scale cultural performances, stadium lighting, temporary stage performances, city lighting system, television

TV stations, conference centers, professional theaters, theme parks, dance halls, bars and small cultural performances, etc.

Product Features.

1. Standard DMX512 three-core interface, transmission without delay, no packet loss, sending and receiving as one, automatic switching, three-color LED display working status and parameters, single key operation 126 frequency bands automatic frequency hopping, automatic selection of interference-free frequency bands, to ensure the reliability of communication.

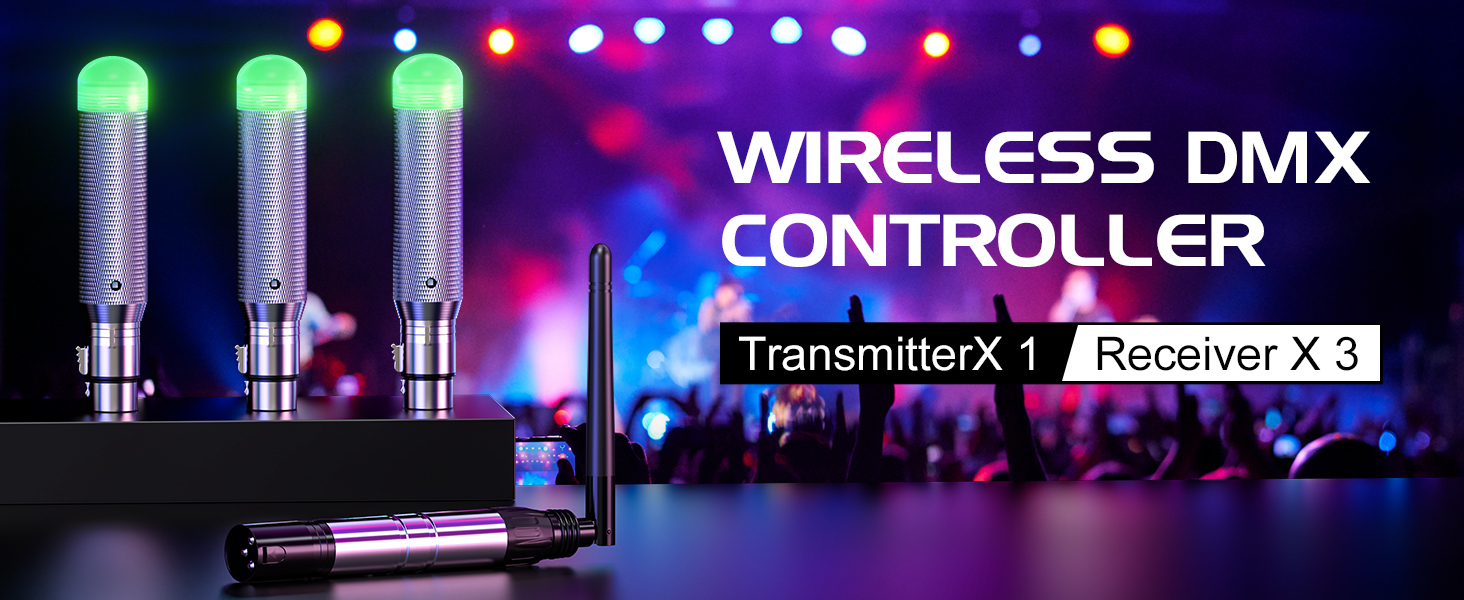

2. 7 groups of ID codes can be set, the user can use independent 7 groups of wireless network in a place without interfering with each other wireless DMX512 transceiver YXR-512X to wirelessly transmit the standard DMX512 console data, but also to transmit the online data between the lamps and lanterns.

3. The product completely solves the wireless transmission of data between lighting console and lamp, lamp and lamp, and completely removes the twisted pair cable which has been relied on for a long time. In the process of data transmission to do no time delay, data real-time reliable!

4. The product uses 2.4G global open ISM band, license-free use. High efficiency GFSK modulation, 126 channels automatic frequency hopping communication design, strong anti-interference ability.

Grouping operation instructions.

(Note: need to use the grouping setting items, customers must be in two transmitters at the same time to control their respective lamps, this time only need to set the grouping, if the customer has only one transmitter does not need to set anything, after the power supply plug and play)

1. Press the button to display the current ID settings, and then press the ID settings, each press the ID value plus 1

2. working status: LED always on: no DMX or wireless signal; red LED flashing: transmitting; green LED flashing: receiving.
