Details
Features
1. Adopting high-performance industrial-grade main control chip, stable and reliable.

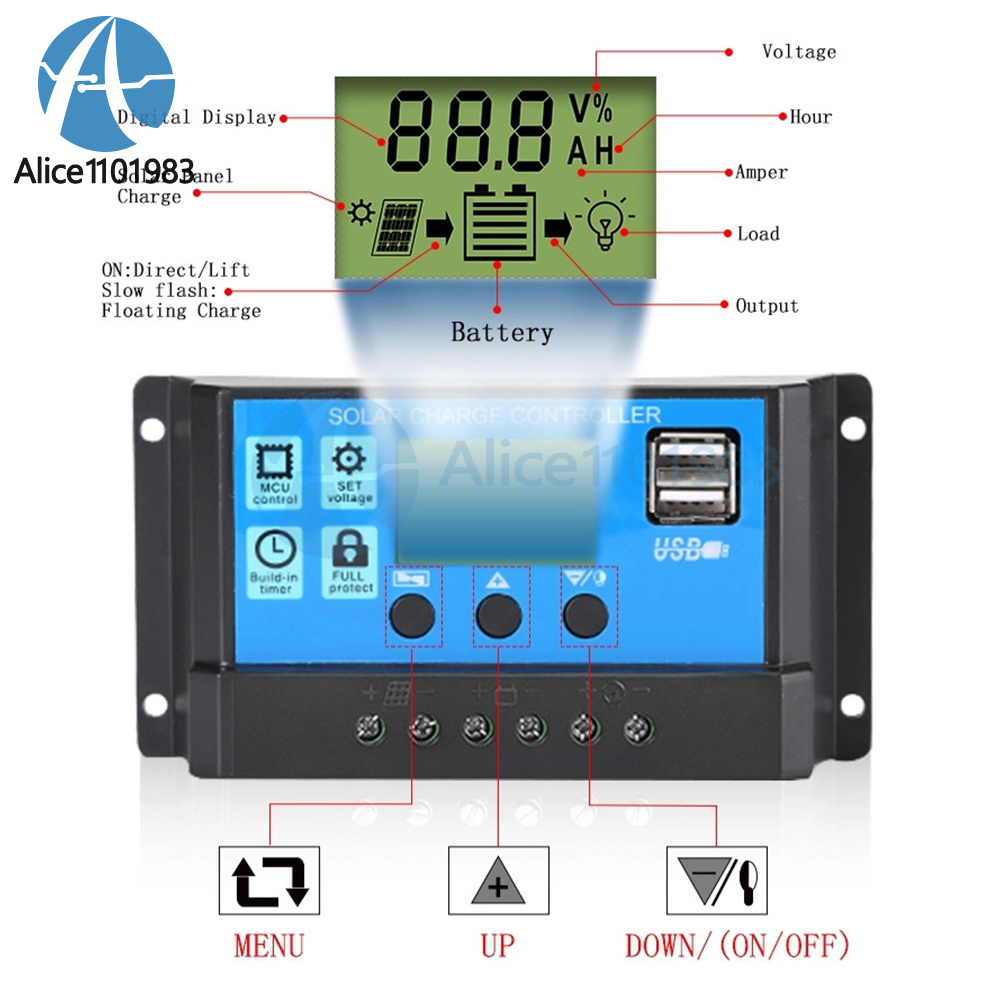

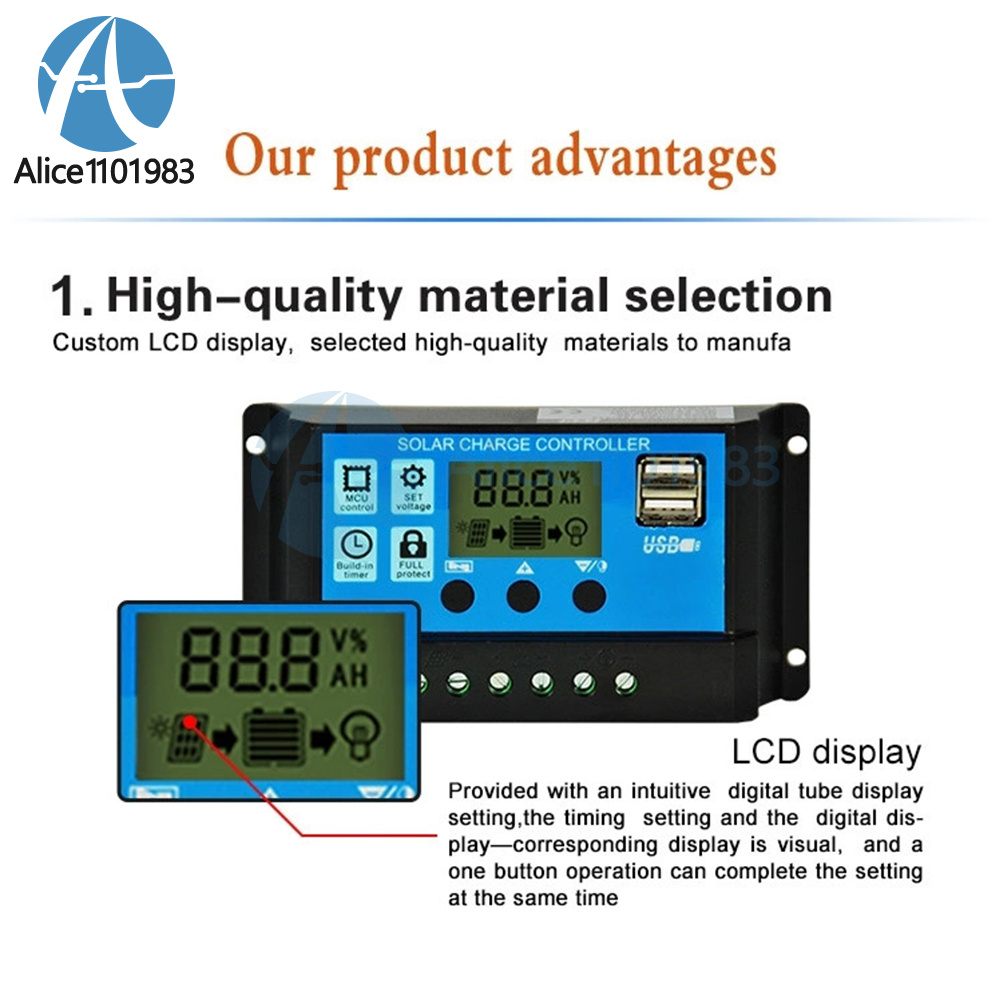

2. LCD display, battery power grid display, intuitive and easy to operate
3. Intelligent light control timing, energy saving and environmental protection, more convenient and efficient operation.
4. Built-in overcurrent/short circuit protection, open circuit protection, reverse connection protection, overcharge protection, over-discharge protection.
5.MOS anti-backup circuit chip to protect the battery from damage and enhance stability.
6. Support a variety of battery types: lithium batteries / acid / lithium iron phosphate
2. LCD display, battery power grid display, intuitive and easy to operate
3. Intelligent light control timing, energy saving and environmental protection, more convenient and efficient operation.
4. Built-in overcurrent/short circuit protection, open circuit protection, reverse connection protection, overcharge protection, over-discharge protection.
5.MOS anti-backup circuit chip to protect the battery from damage and enhance stability.
6. Support a variety of battery types: lithium batteries / acid / lithium iron phosphate
Specification
Name: 12V/24V solar controller
System voltage: 12V/24V adaptive
Rated charging current: 30A
Rated discharge current: 10A
Maximum PV voltage: 12V battery <(18V-23V)/24V battery <(36V-46V)

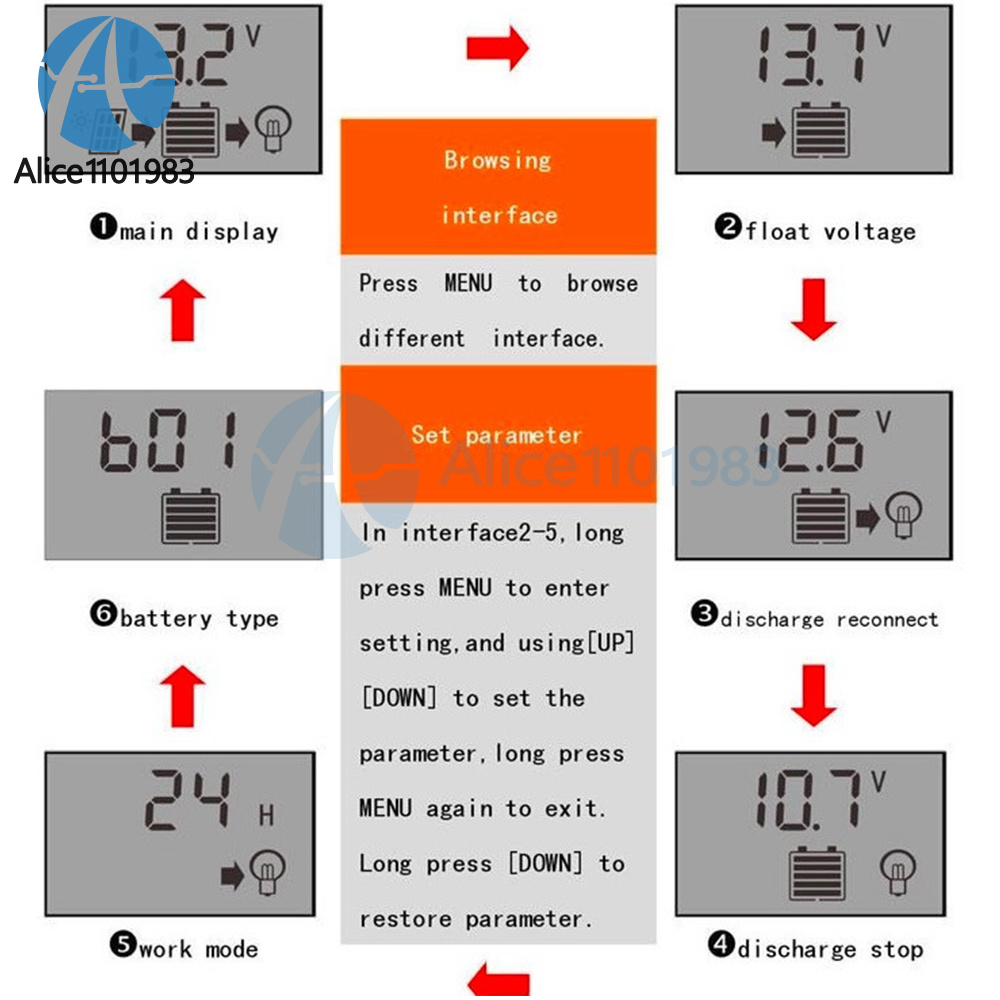

Float charging voltage: 14.4V (default value, adjustable)
Discharge cut-off voltage: 10.7V (default value, adjustable)
Discharge recovery voltage: 12.6V (default value, adjustable)

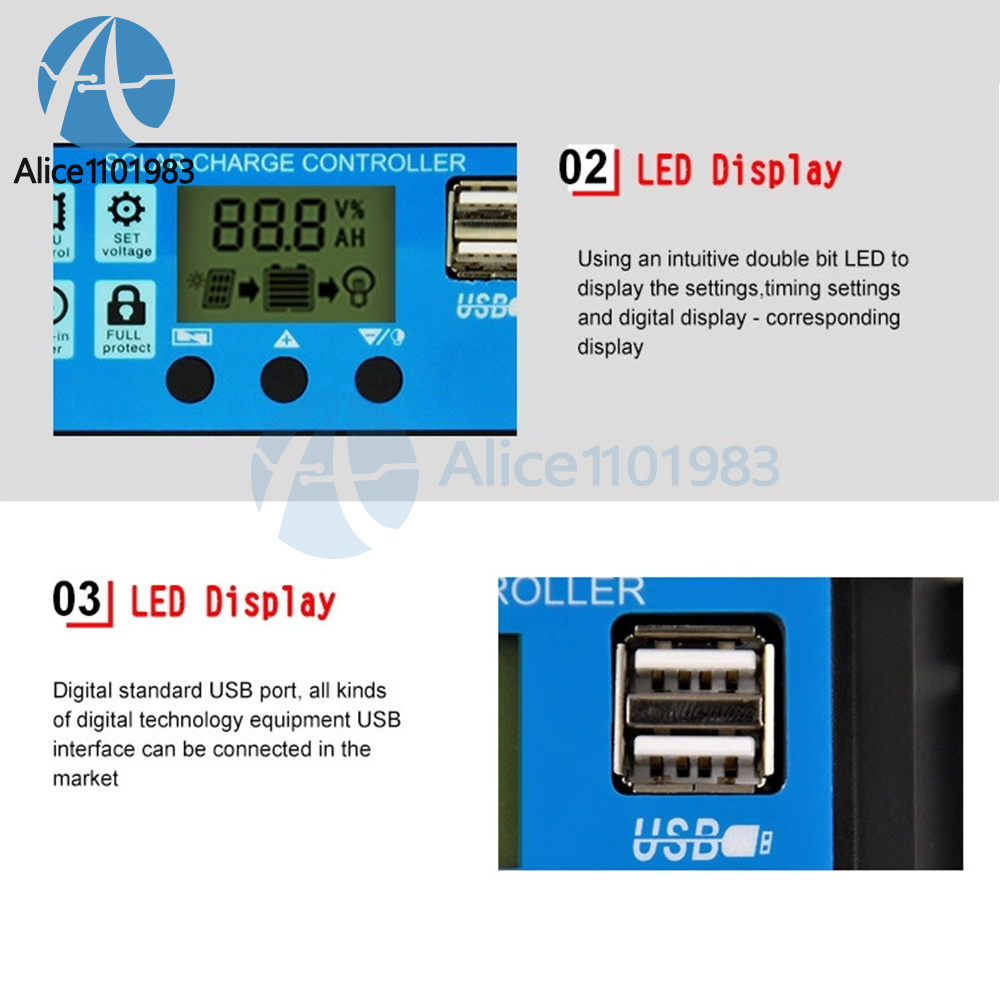

USB output: 2-channel USB output, 5V/1A
Standby current: <10mA
Operating Temperature: -35~+60°C
Note: Some of the product parameters only correspond to 12V system, such as the use of 24V system, please refer to the instruction manual
Name: 12V/24V solar controller
System voltage: 12V/24V adaptive
Rated charging current: 30A
Rated discharge current: 10A
Maximum PV voltage: 12V battery <(18V-23V)/24V battery <(36V-46V)
Float charging voltage: 14.4V (default value, adjustable)
Discharge cut-off voltage: 10.7V (default value, adjustable)
Discharge recovery voltage: 12.6V (default value, adjustable)
USB output: 2-channel USB output, 5V/1A
Standby current: <10mA
Operating Temperature: -35~+60°C
Note: Some of the product parameters only correspond to 12V system, such as the use of 24V system, please refer to the instruction manual
Safe use recommendations:
1. This controller is 12V/24V auto adaptive by default, when installing for the first time, please make sure to connect the battery first and ensure that the battery
There is enough voltage so that the controller can recognize the correct type of battery.
2. Install the controller as close as possible to the battery to avoid voltage drop caused by long wires, which may affect the normal voltage judgment.
3. This controller is only applicable to B1 acid batteries, B2 lithium batteries, B3 lithium iron phosphate batteries.
4. The controller can only use photovoltaic panels as a charging power source, please do not use DC or other power sources as a charging power source.
5. The controller will be hot when running, please pay attention to install the controller on a flat, well-ventilated surface.
1. This controller is 12V/24V auto adaptive by default, when installing for the first time, please make sure to connect the battery first and ensure that the battery
There is enough voltage so that the controller can recognize the correct type of battery.
2. Install the controller as close as possible to the battery to avoid voltage drop caused by long wires, which may affect the normal voltage judgment.
3. This controller is only applicable to B1 acid batteries, B2 lithium batteries, B3 lithium iron phosphate batteries.
4. The controller can only use photovoltaic panels as a charging power source, please do not use DC or other power sources as a charging power source.
5. The controller will be hot when running, please pay attention to install the controller on a flat, well-ventilated surface.

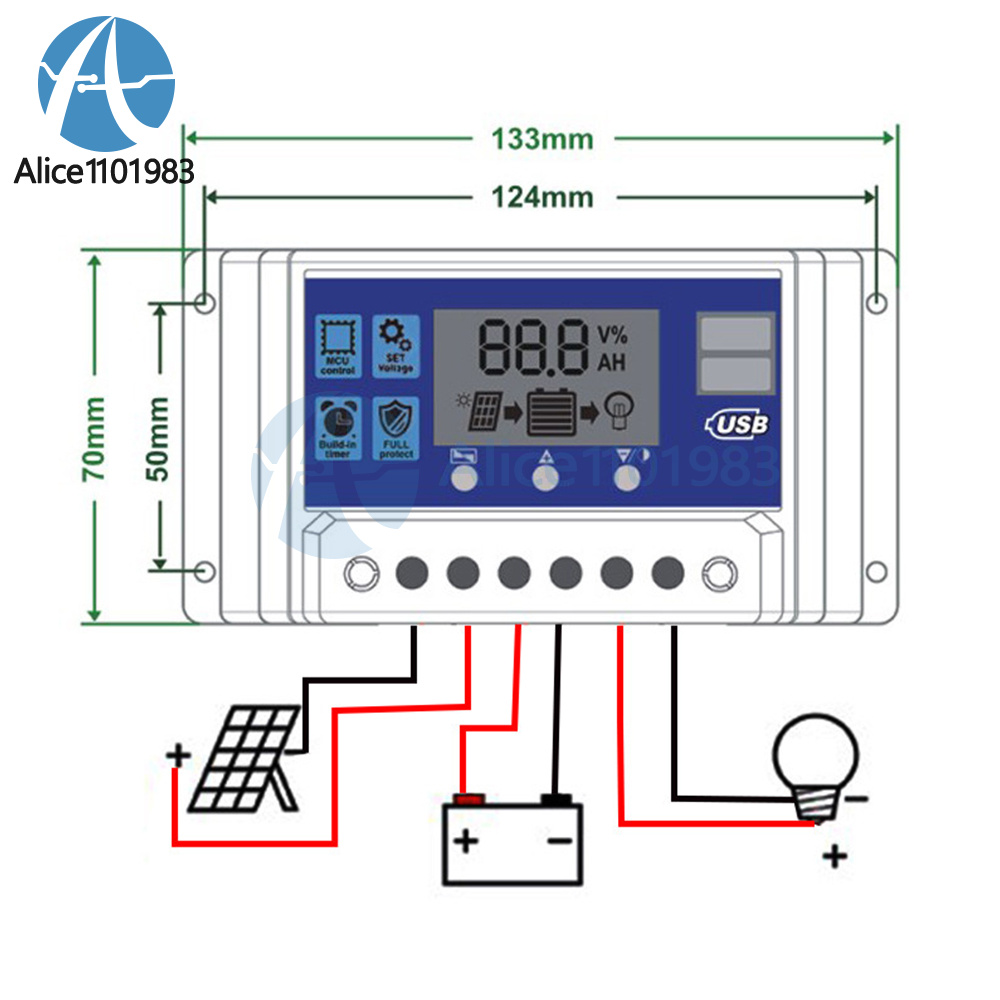

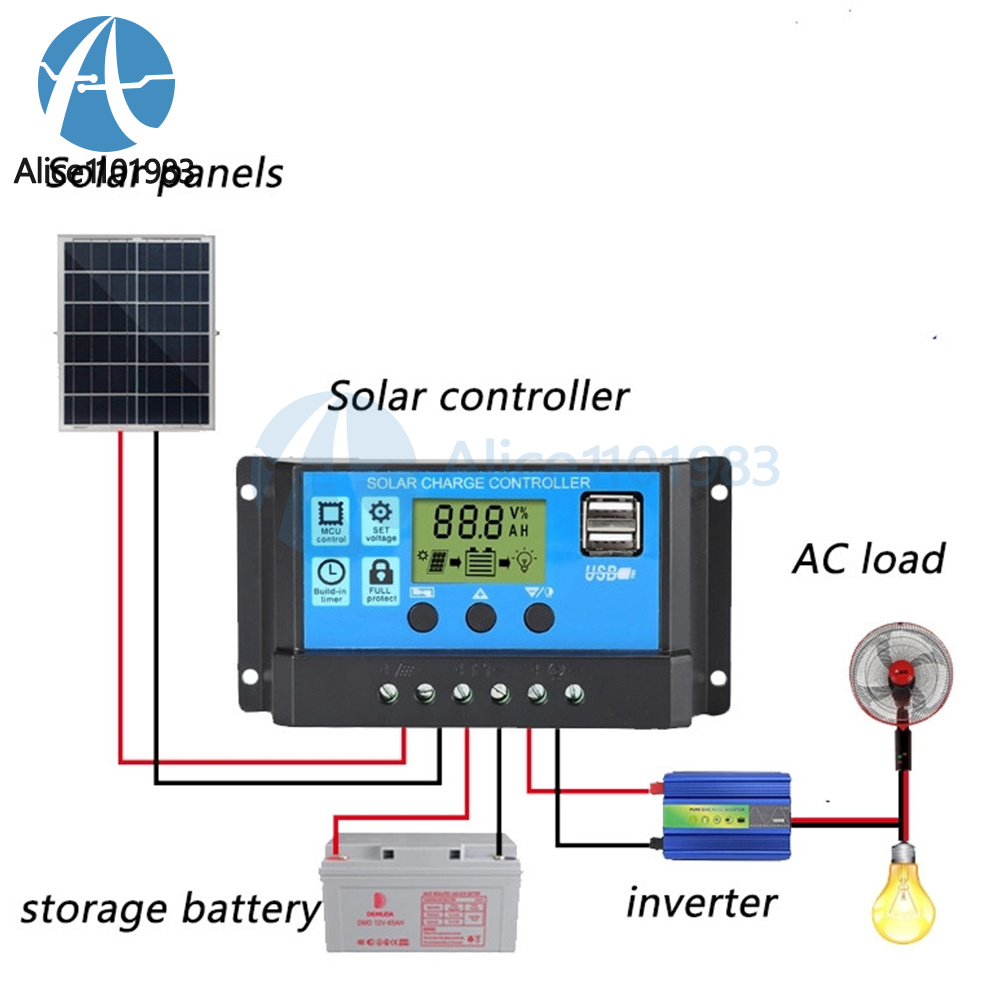

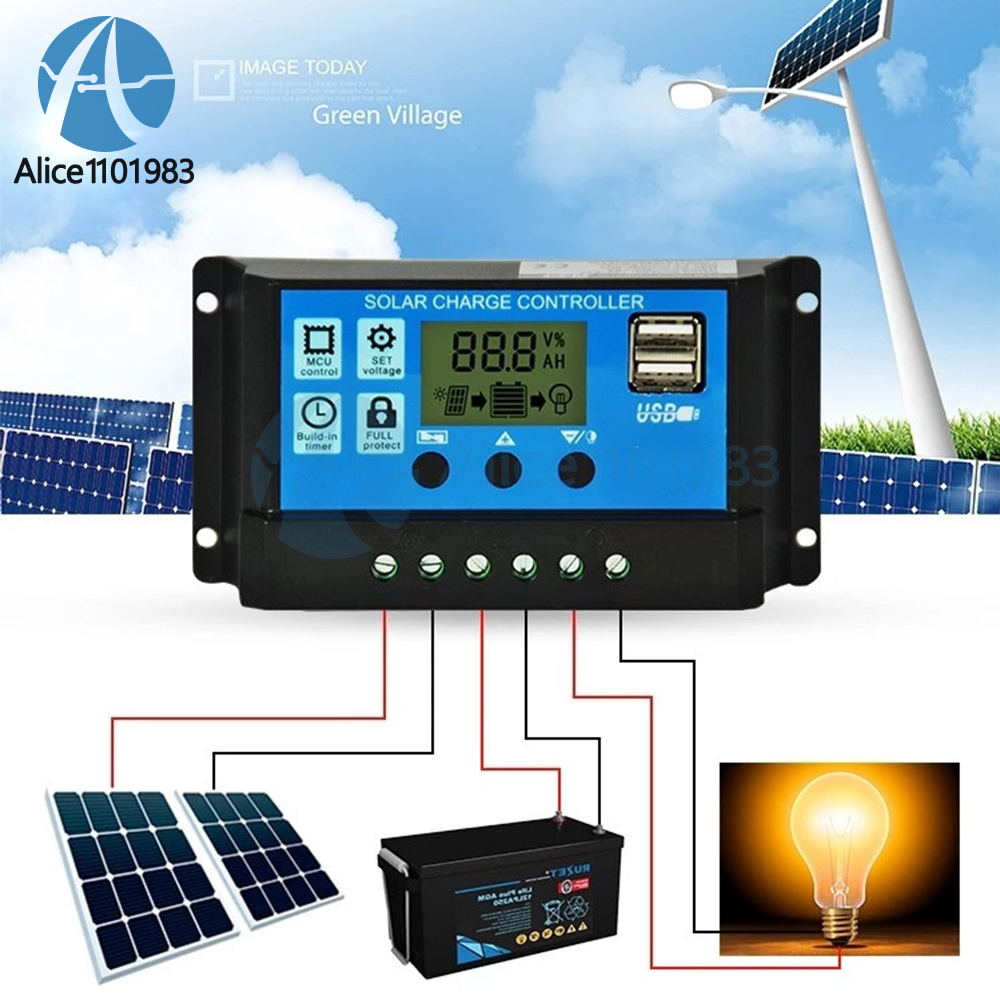

System connection:
1. Connect the positive and negative terminals of the battery to the controller according to the wiring diagram, the controller will automatically detect the battery voltage.
2. Connect the positive and negative terminals of the load to the controller according to the wiring diagram, and be careful not to reverse the connection.
3. Connect the solar panel to the controller according to the wiring diagram.
Note: Please follow the above order strictly to connect, otherwise it may damage the controller. The disassembly order is opposite to the wiring order.
1. Connect the positive and negative terminals of the battery to the controller according to the wiring diagram, the controller will automatically detect the battery voltage.
2. Connect the positive and negative terminals of the load to the controller according to the wiring diagram, and be careful not to reverse the connection.
3. Connect the solar panel to the controller according to the wiring diagram.
Note: Please follow the above order strictly to connect, otherwise it may damage the controller. The disassembly order is opposite to the wiring order.
Package includes
1 x Solar controller
1 x Solar controller
