Type 1--DC 6.0V Air Valve: Rated voltage: DC 6.0V Rated current: <280mA
Type 2--DC 12V Air Valve: Rated voltage: DC 12V Rated current: <160mA
Type 3--DC 24V Air Valve: Rated voltage: DC 24V Rated current: <100mA
Pressure range: 0-450mmhg
Sealability: The inflation is stopped after the inflation pressure is from 0 to 300 mmHg in a 500
cc container, and the pressure reduced is less than 5 mmHg/min after 30 seconds of stabilization.
Use fluid: Water / Air
Service life: In a 500CC container, inflate for 10 seconds and exhaust for 5 seconds for a loop
test more than 50,000 times.
Operating temperature range: 0°C ~ 55°C
Power: <3W
Working mode: Normally closed
Package Include:

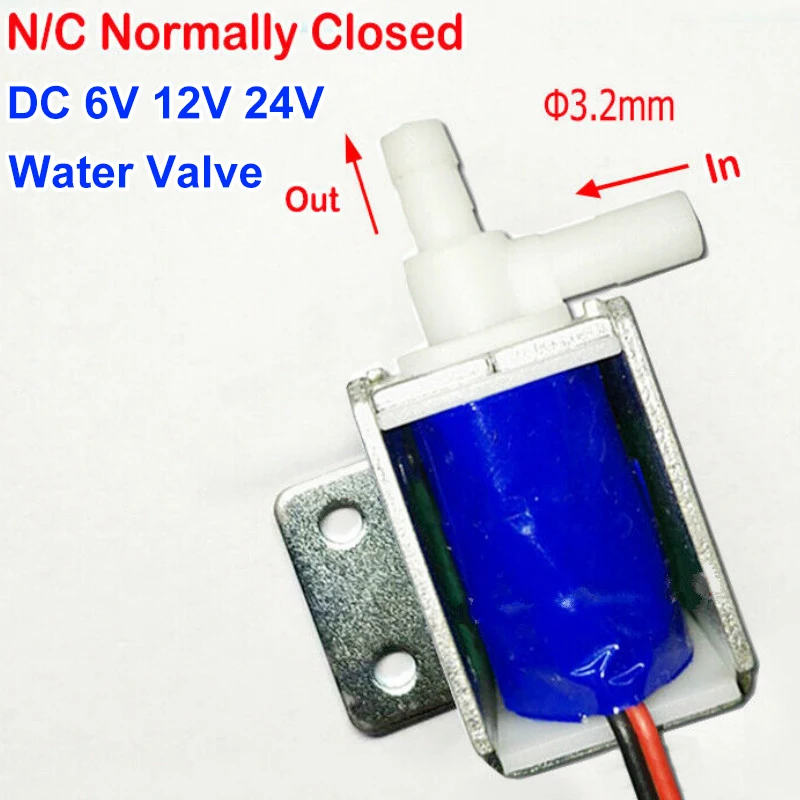

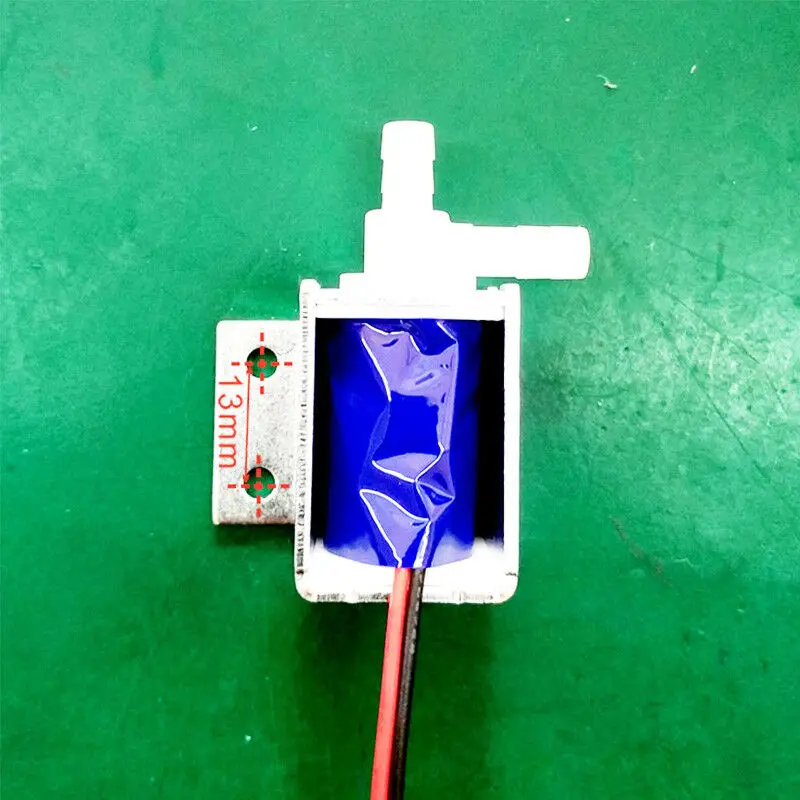

1PCS * Micro Electric Solenoid Valve
