Details
Features:
1. Compatible with 3.2V lithium iron phosphate 3.7V lithium batteries
2. Can be used for solar integrated street light modification or maintenance
3. Microwave induction full bright 10 seconds to micro bright
4. Multi-mode low light and long light, can be timed
5. Simple and convenient to use, suitable for a variety of DIY operations
1. Compatible with 3.2V lithium iron phosphate 3.7V lithium batteries
2. Can be used for solar integrated street light modification or maintenance
3. Microwave induction full bright 10 seconds to micro bright
4. Multi-mode low light and long light, can be timed
5. Simple and convenient to use, suitable for a variety of DIY operations
Product parameters:

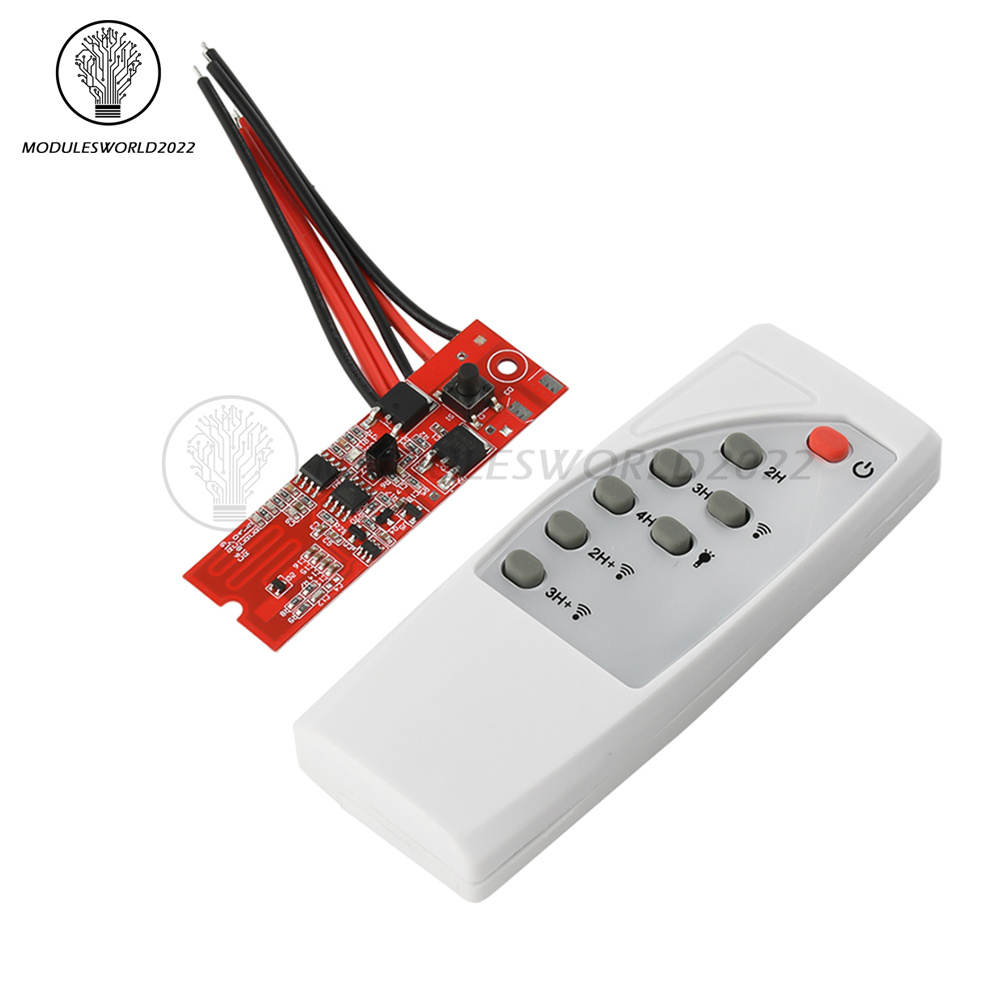

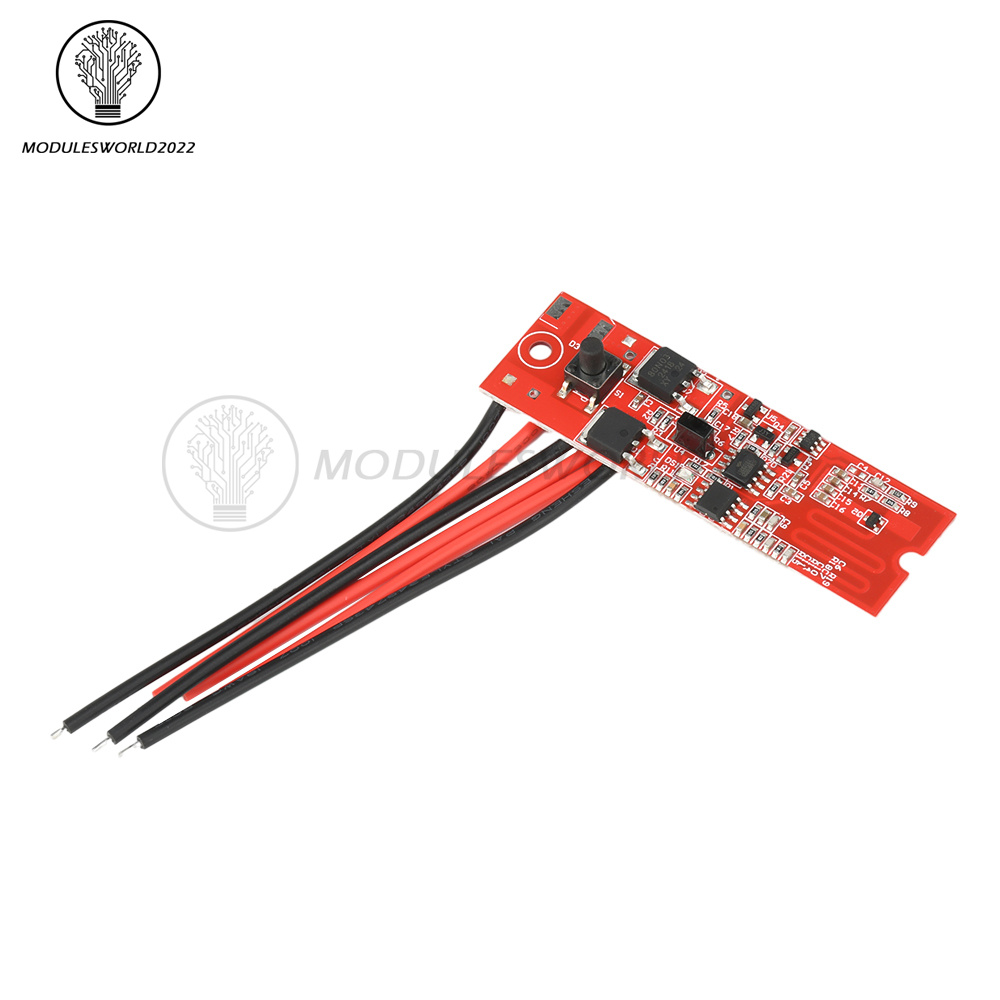

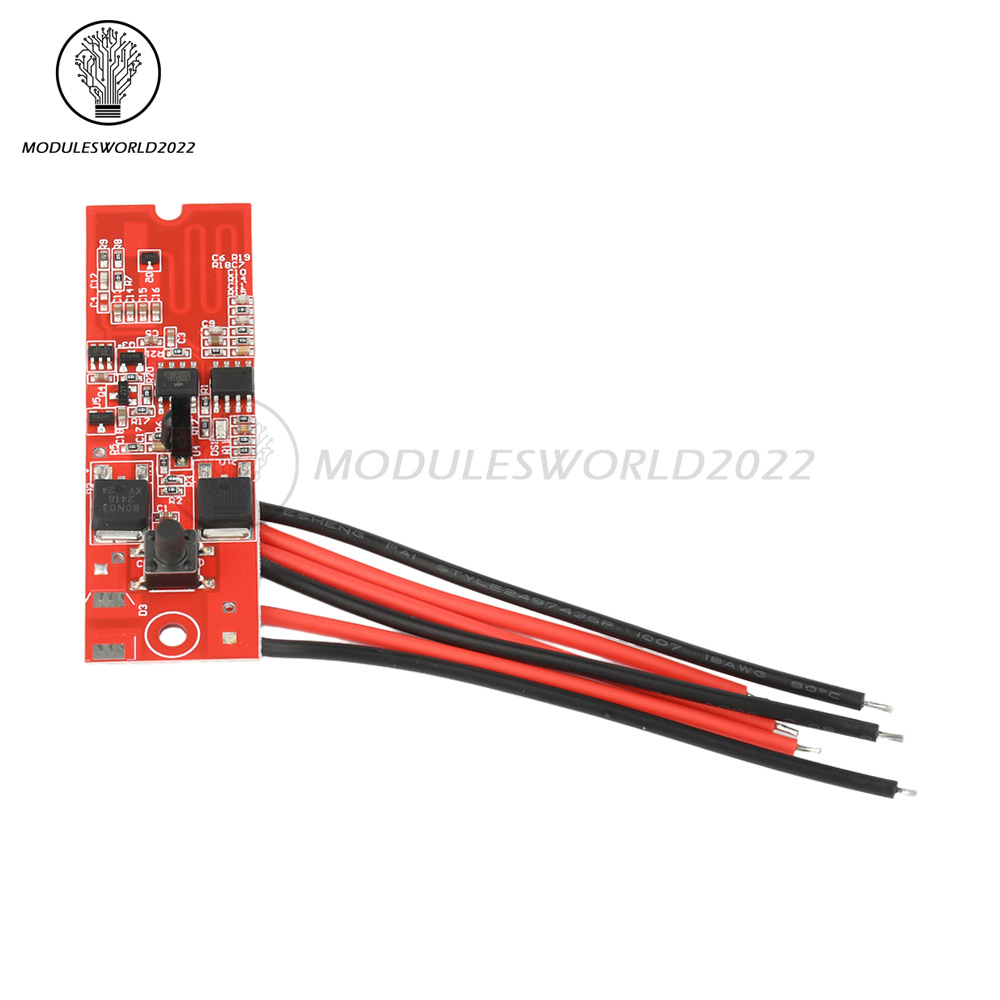

Red board
Rated voltage: 3.2V/3.7V
Application LED voltage: 2.8V-3.3V
Power: <10W
Solar panel maximum input: 5V-6V/<30W
Sensing mode: light control sensor + radar human body sensor
Sensing time: high light about 10 seconds + low light long light / extinguish the light
Sensing distance: about 5-10 meters
Function: Timing to radar function
Module size: 65mm*20mm
Remote control size: 104mm*37.5mm
Function: Timing backshell to radar function
Red board
Rated voltage: 3.2V/3.7V
Application LED voltage: 2.8V-3.3V
Power: <10W
Solar panel maximum input: 5V-6V/<30W
Sensing mode: light control sensor + radar human body sensor
Sensing time: high light about 10 seconds + low light long light / extinguish the light
Sensing distance: about 5-10 meters
Function: Timing to radar function
Module size: 65mm*20mm
Remote control size: 104mm*37.5mm
Function: Timing backshell to radar function

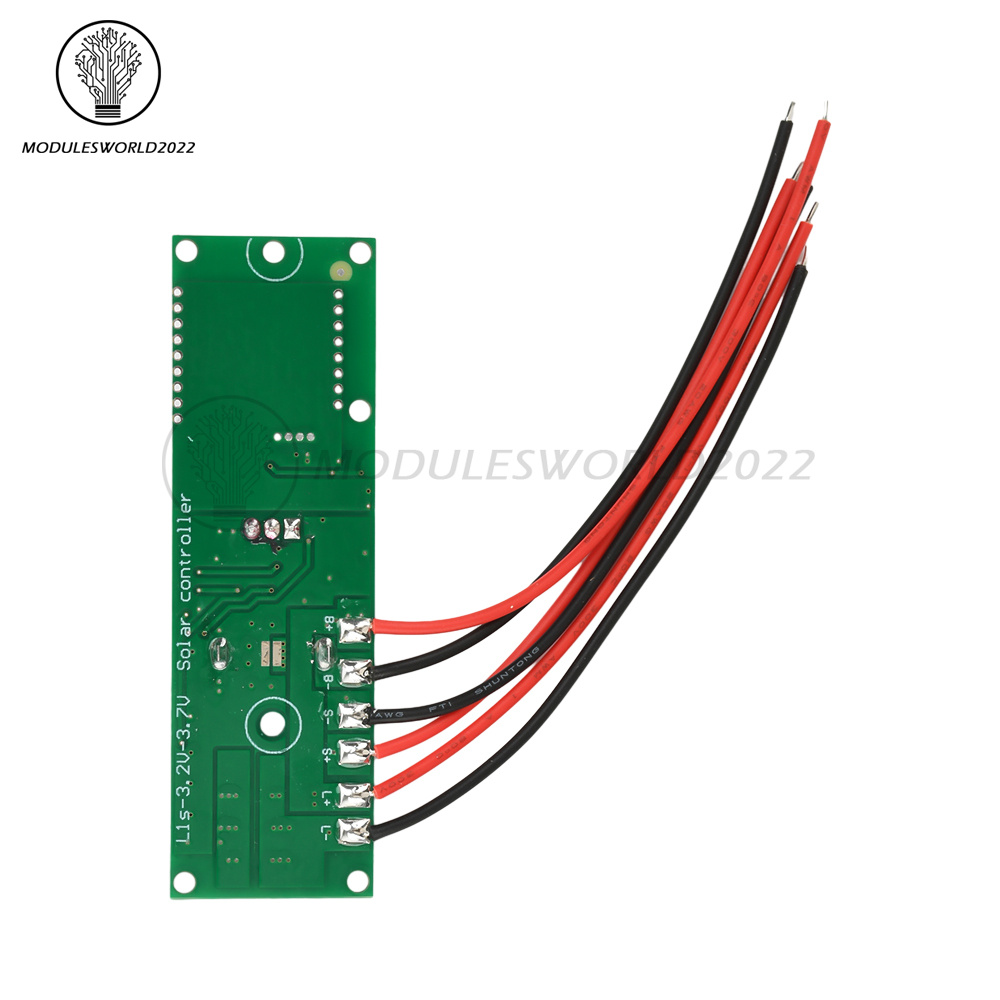

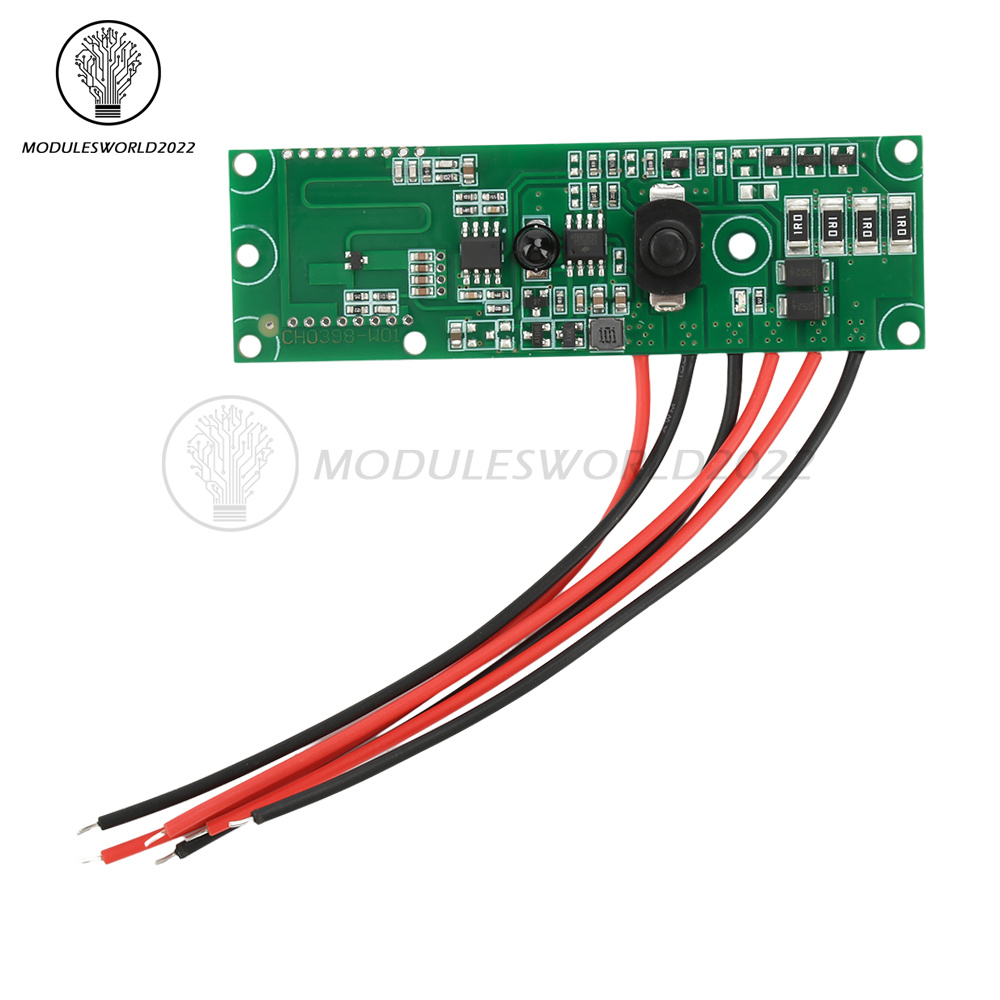

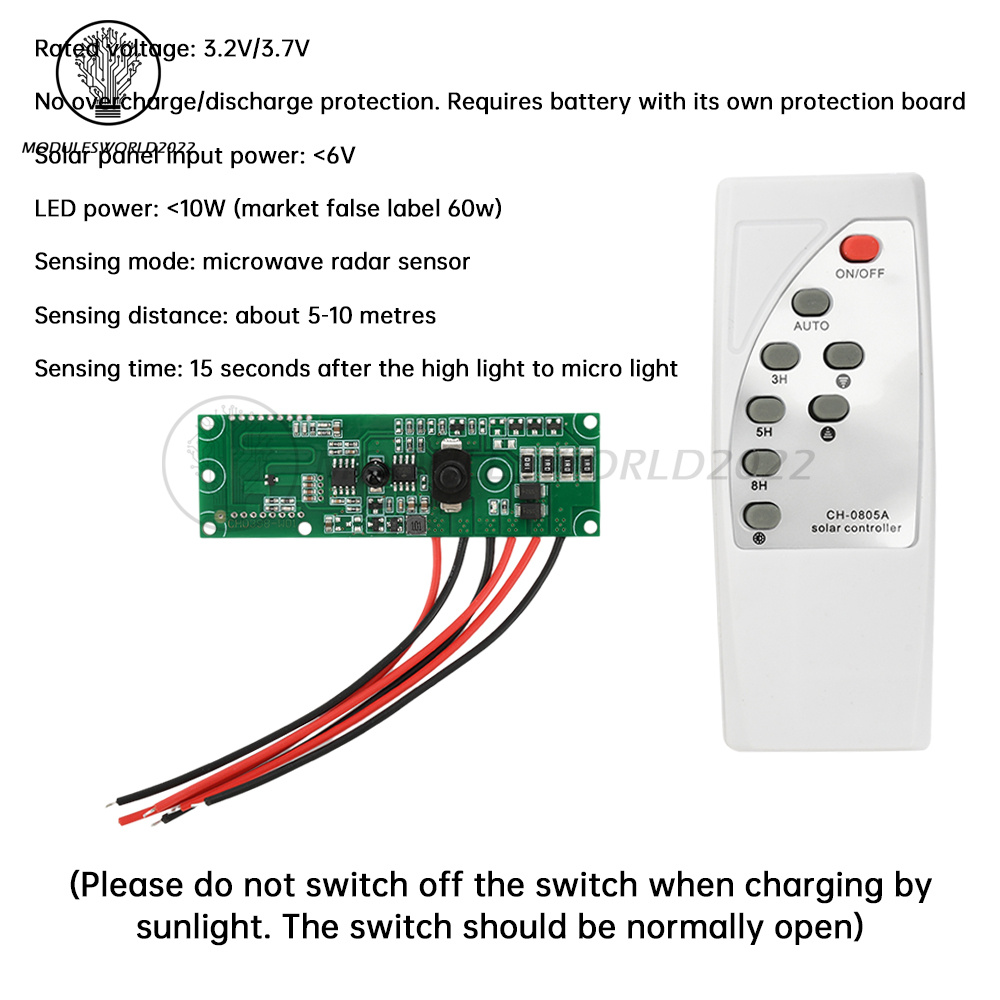

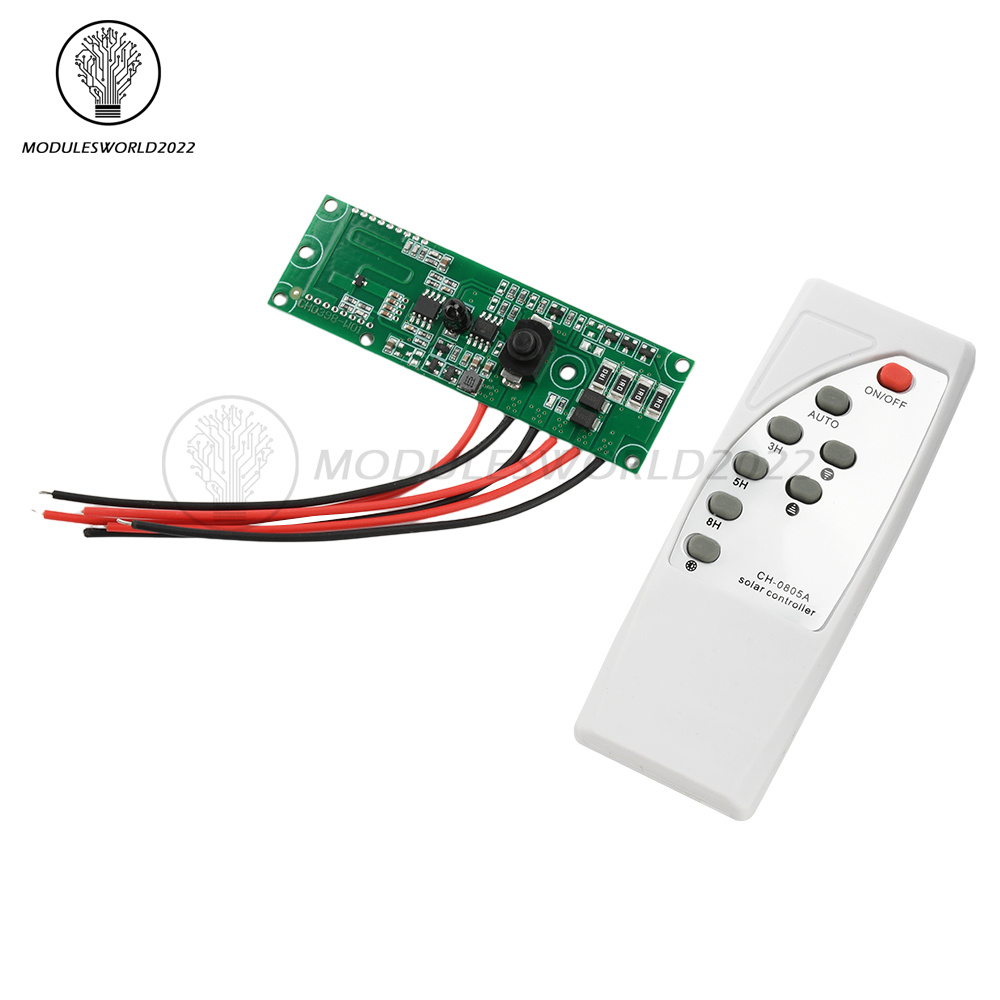

Green board
Rated voltage: 3.2V/3.7V
Applied LED voltage: 2.8V-3.3V
LED power: <8W (market false label 60w)
Solar panel maximum input: 5V-6V/<20W
Sensing mode: light control sensor + radar human body sensor
Sensing time: high light about 10 seconds + low light long light / extinguish the light
Sensing mode: microwave radar sensor
Sensing distance: about 5-10 meters
Module size: 84mm*25mm
Remote control size: 104mm*37.5mm
Function: only adjust the brightness after timing, can not turn radar mode
Rated voltage: 3.2V/3.7V
Applied LED voltage: 2.8V-3.3V
LED power: <8W (market false label 60w)
Solar panel maximum input: 5V-6V/<20W
Sensing mode: light control sensor + radar human body sensor
Sensing time: high light about 10 seconds + low light long light / extinguish the light
Sensing mode: microwave radar sensor
Sensing distance: about 5-10 meters
Module size: 84mm*25mm
Remote control size: 104mm*37.5mm
Function: only adjust the brightness after timing, can not turn radar mode
Instructions for use:

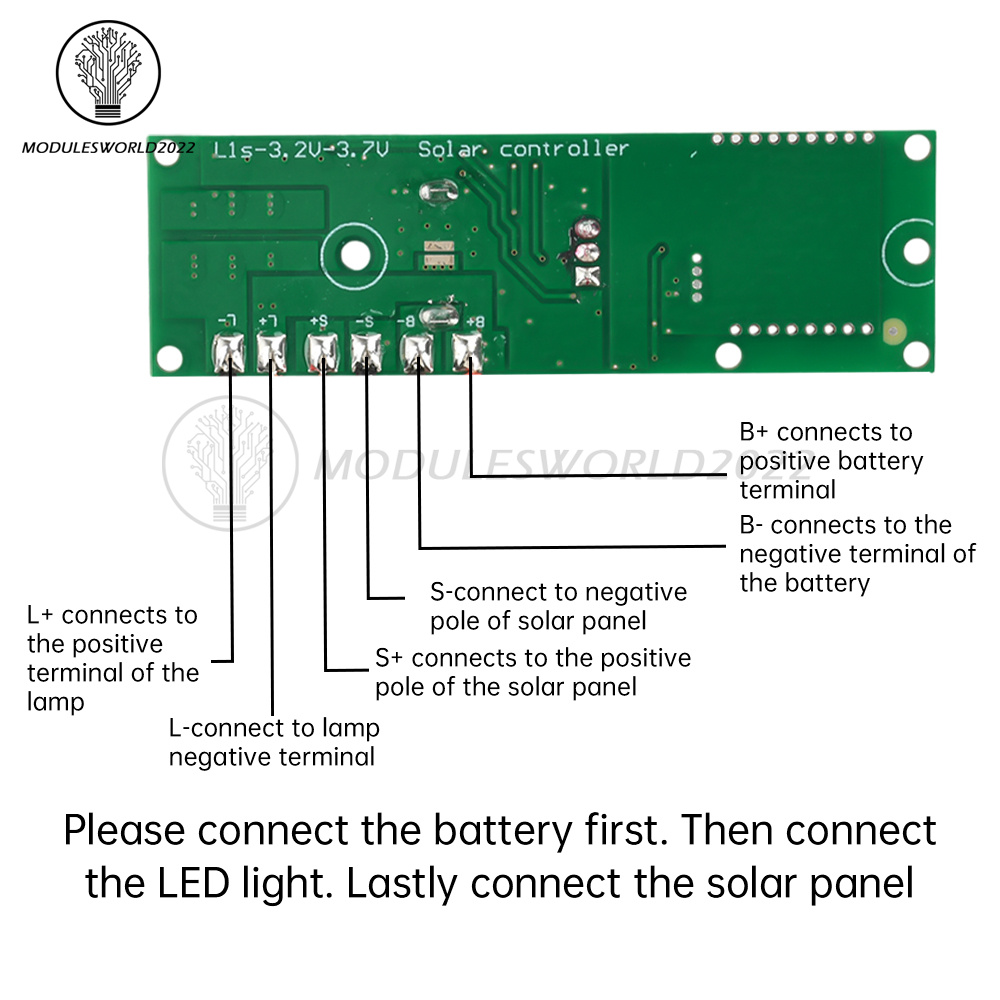

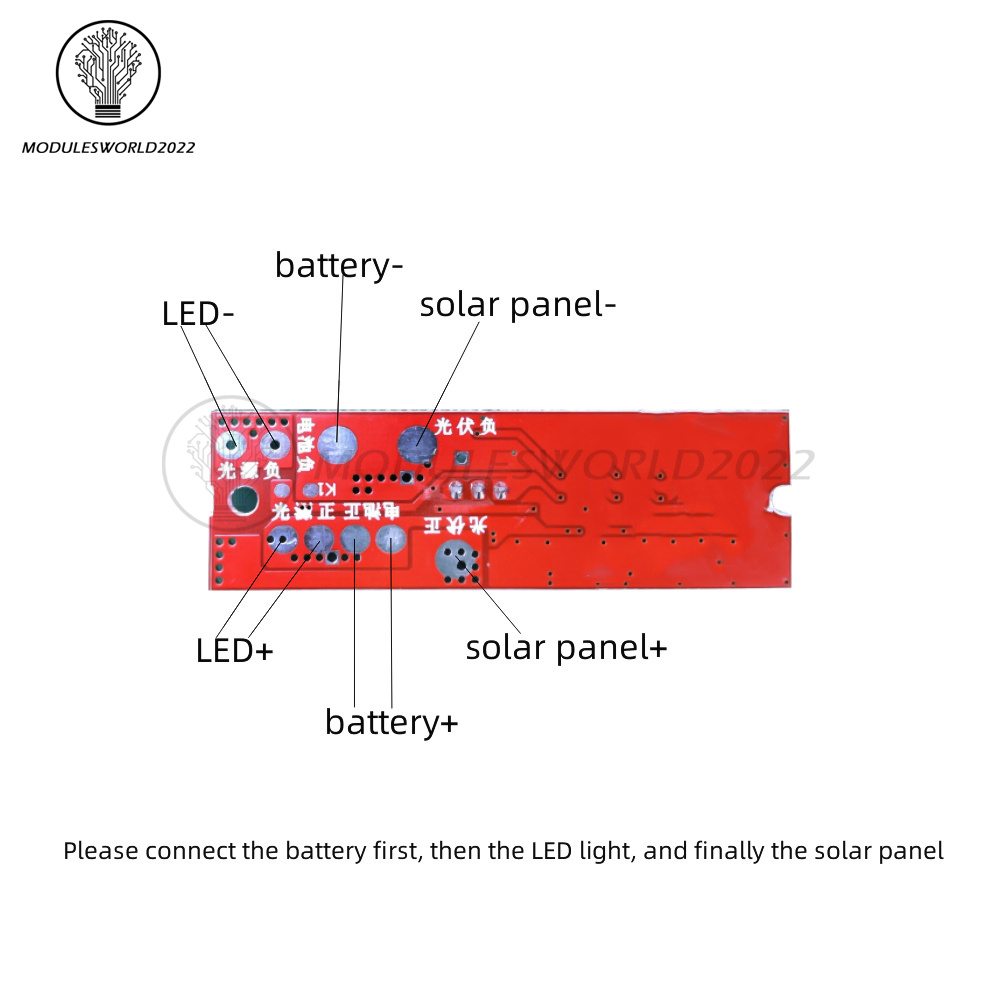

Please connect the battery first, then connect the LED lights, and finally connect the solar panel, this control board does not come with overcharge and overdischarge protection, please install a good protection board on the battery to prevent overcharge and overdischarge;
This control board does not come with overcharge and overdischarge protection. Connect the battery need battery comes with a protection board, compatible with 3.2V lithium iron phosphate 3.7V lithium battery, can be used for solar integrated street light modification or maintenance.

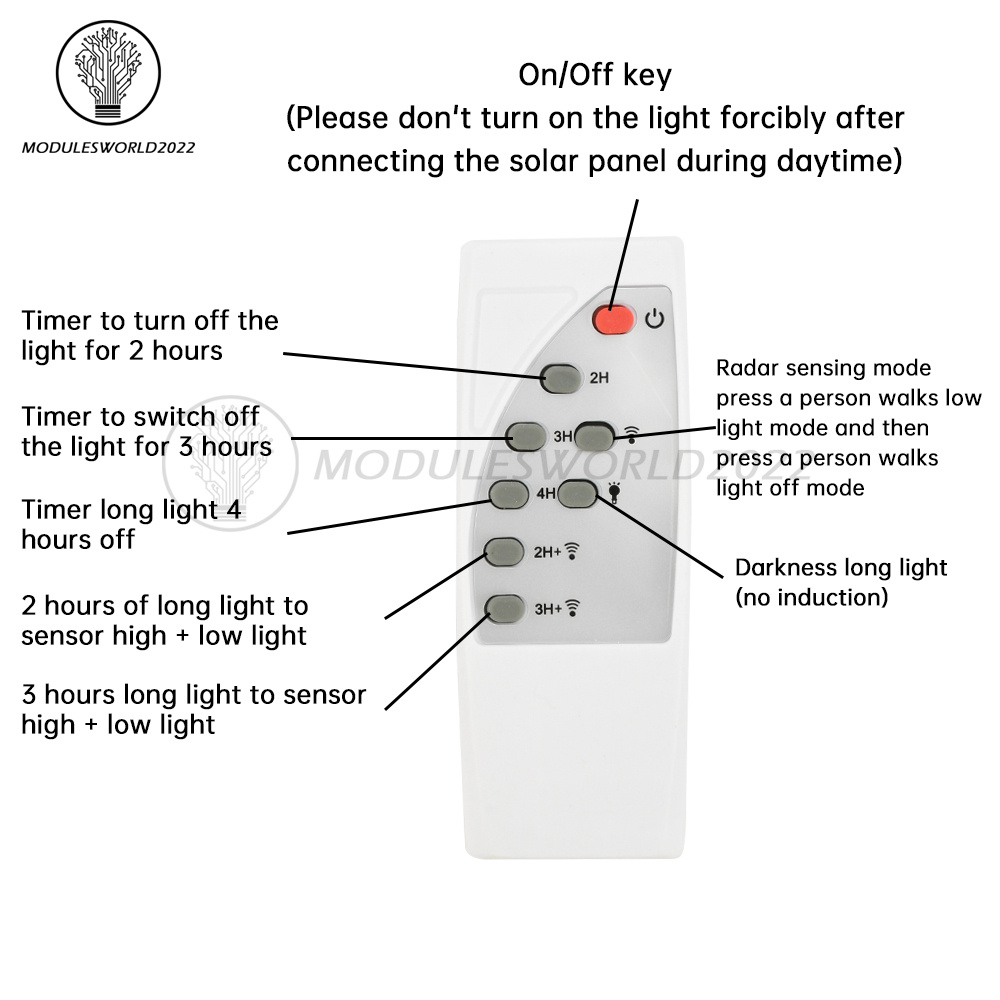

Microwave induction full light 10 seconds to light. The remote control of this product is not equipped with batteries. Need to buy their own local 7 batteries to use.
Test notes:
1. When testing the induction mode, there can be no moving objects within 12 meters around, including hand and foot movement, otherwise it will be detected.
2. Multiple sensing modules together will interfere with each other resulting in inductive insensitivity, or false triggering phenomenon will occur.
3. Patch parts surface is the emitting surface, this side can not stick stickers and glue, otherwise it will lead to short sensing distance.
4. The distance between the front and back of the sensor and the metal is not less than 2CM.
5. Patch parts face, can not have metal blocking, otherwise the detection of the signal can not be emitted to lead to the induction distance becomes shorter
6. The inductive signal can penetrate the glass plastic wall, etc..
Please connect the battery first, then connect the LED lights, and finally connect the solar panel, this control board does not come with overcharge and overdischarge protection, please install a good protection board on the battery to prevent overcharge and overdischarge;
This control board does not come with overcharge and overdischarge protection. Connect the battery need battery comes with a protection board, compatible with 3.2V lithium iron phosphate 3.7V lithium battery, can be used for solar integrated street light modification or maintenance.
Microwave induction full light 10 seconds to light. The remote control of this product is not equipped with batteries. Need to buy their own local 7 batteries to use.
Test notes:
1. When testing the induction mode, there can be no moving objects within 12 meters around, including hand and foot movement, otherwise it will be detected.
2. Multiple sensing modules together will interfere with each other resulting in inductive insensitivity, or false triggering phenomenon will occur.
3. Patch parts surface is the emitting surface, this side can not stick stickers and glue, otherwise it will lead to short sensing distance.
4. The distance between the front and back of the sensor and the metal is not less than 2CM.
5. Patch parts face, can not have metal blocking, otherwise the detection of the signal can not be emitted to lead to the induction distance becomes shorter
6. The inductive signal can penetrate the glass plastic wall, etc..

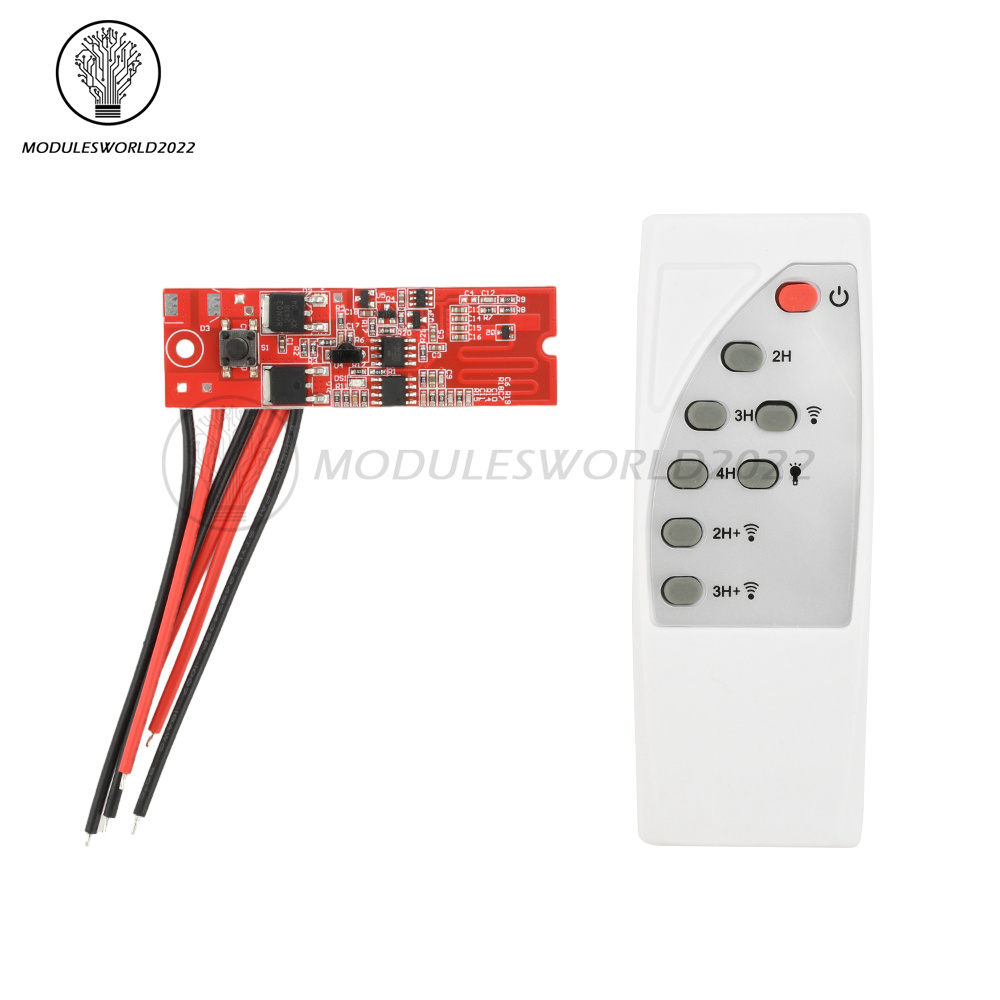

Product list:
Module *1
Remote control (batteries not included)*1
Module *1
Remote control (batteries not included)*1
