Engine Rebuild Kit Lifters Camshaft Fit 19-23 Ram 1500 Classic 2500 5.7L Hemi
0 reviews SKU #: MA-9761249624
Ships within 1 business day
- Guaranteed to fit and meet the specifications of the OE parts being replaced
- Utilizes the latest in design and material technology, ensuring quiet and maintenance-free experience
- Produced under strictly observed quality under highest ISO 9001:2000 international standards
- Advanced manufacturing technology ensures durability and optimum operation
- Specialized designs yield significant and noticeable improvements to your car engine
Product Details
Engine Rebuild Kit Lifters Camshaft Fit 19-23 Ram 1500 Classic 2500 5.7L Hemi. Designed using state-of-the-art technology and with customers in mind. This product is made of high-quality materials to serve you for years to come. It will meet your needs and deliver great quality at an affordable cost.
Fits Following Models:
2019-2023 RAM 1500 5.7L 345CID V8 OHV, (16 VALVE)
2019-2023 RAM 1500 Classic 5.7L 345CID V8 OHV, (16 VALVE)
2019 DODGE RAM 2500 5.7L 345CID V8 OHV, (16 VALVE)
This item includes:

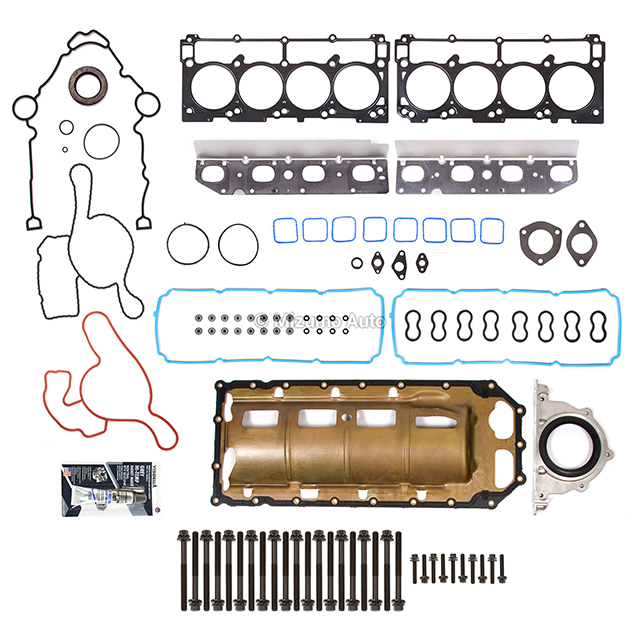

- Full Gasket Set (Multiple Layers Steel (MLS) Head Gasket, Valve Cover Gasket, Intake Manifold Gasket, Other Small Gaskets..., Lower Gasket Set, RTV Silicone)
- 30 Cylinder Head Bolts (20 Long Bolts, 10 Short Bolts)

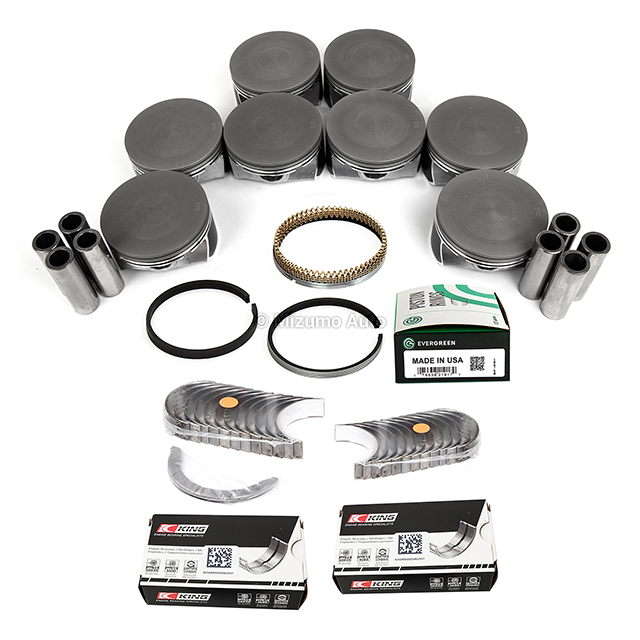

- 8 Pistons with Complete Ring Set (Sizes available: see options above)
- Standard Bore Diameter: 99.50mm
- 1st Group: 1.20mm
- 2nd Group: 1.20mm
- Oil Ring: 2.00mm

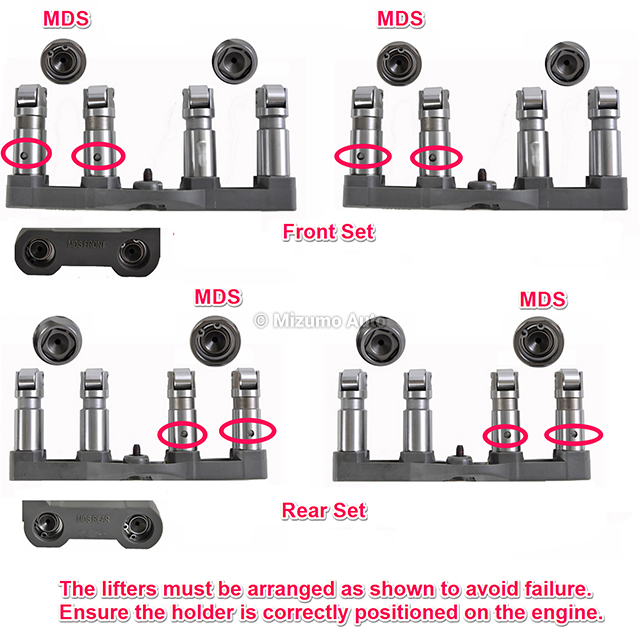

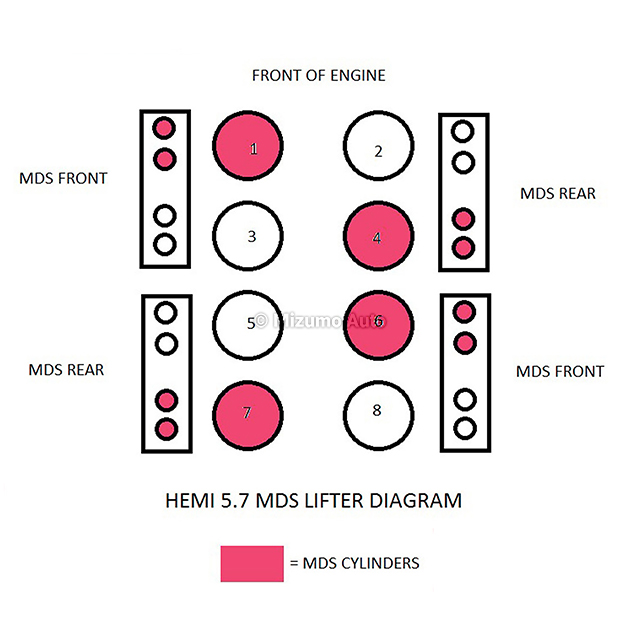

- 8 Front Hydraulic Roller Lifters (MDS)
- 8 Rear Hydraulic Roller Lifters (MDS)
- 2 Front Yoke Assembly
- 2 Rear Yoke Assembly
- 1 Camshaft
- 8 Piston Wrist Pins
- Main Bearing Set (Sizes available: see option above)
- Rod Bearing Set (Sizes available: see option above)
- Thrust Washers

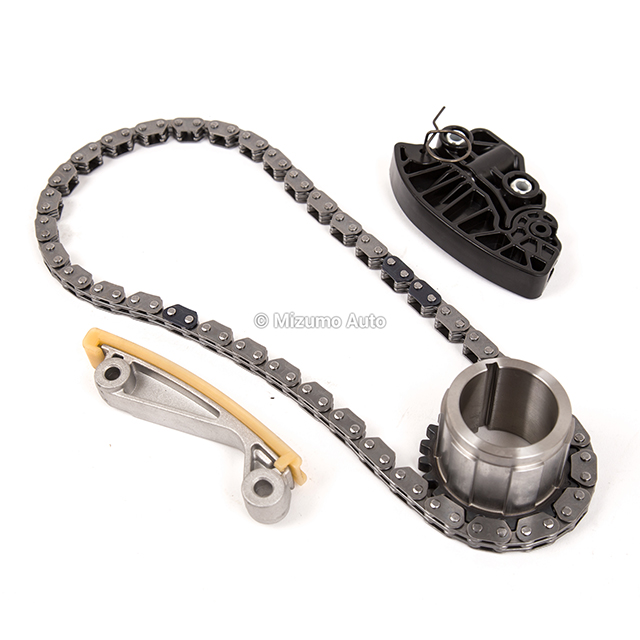

- 1 Timing Chain (76 link fine finish)
- 1 Tensioner (complete assembly)
- 1 Guide Rail (fixed 2 bolt mount)
- 1 Crank Sprocket (23 teeth)
- 1 Cam Gear (46T NGC VVT sprocket)

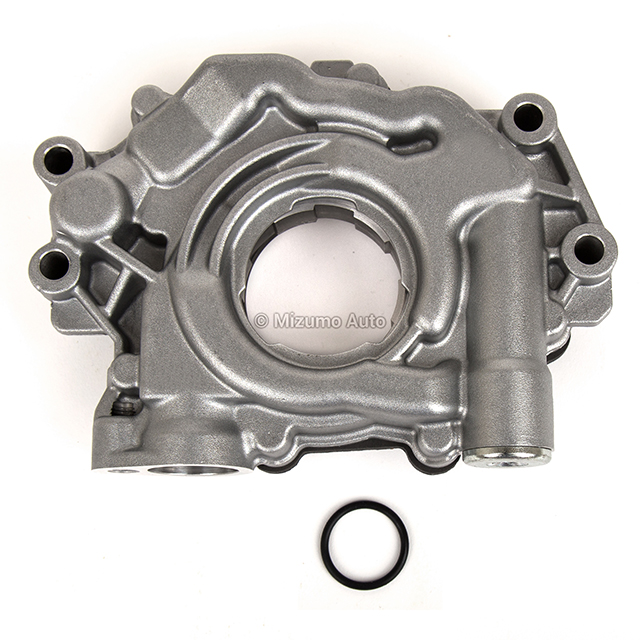

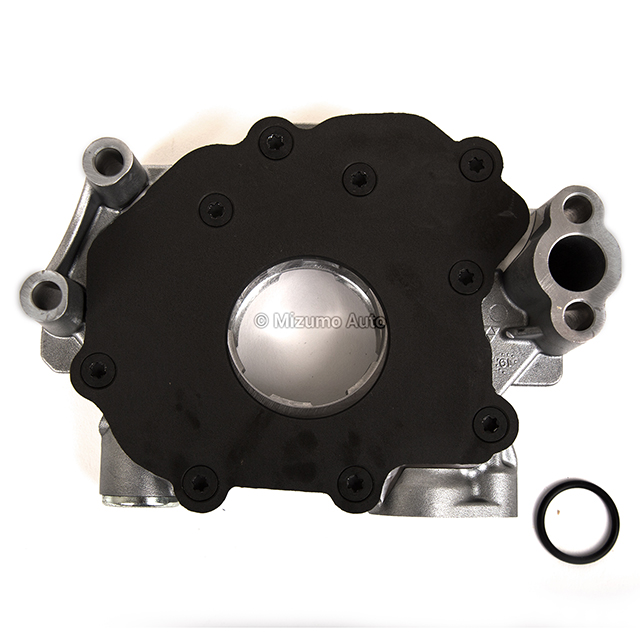

- 1 Oil Pump
- 1 Water Pump w/ Gasket
- 8 Front Hydraulic Roller Lifters (MDS)
- 8 Rear Hydraulic Roller Lifters (MDS)
- 2 Front Yoke Assembly
- 2 Rear Yoke Assembly
- 1 Camshaft
