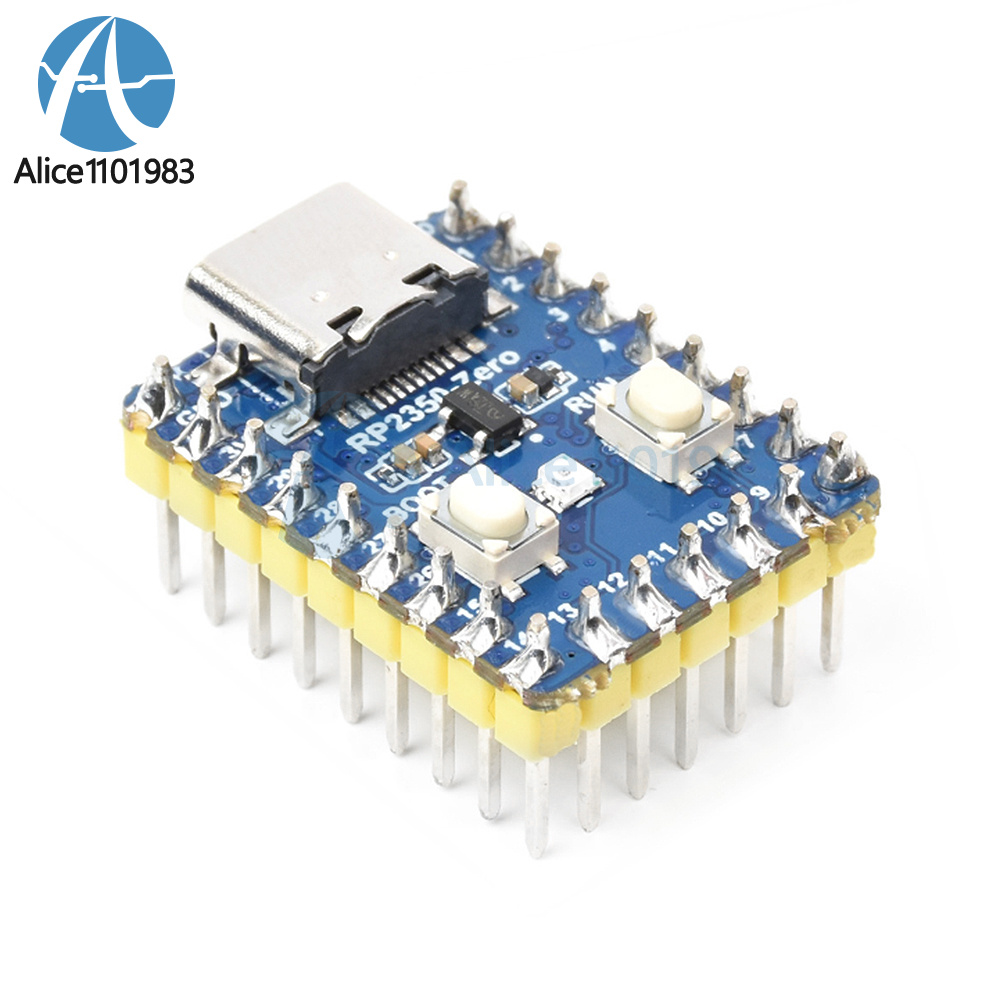

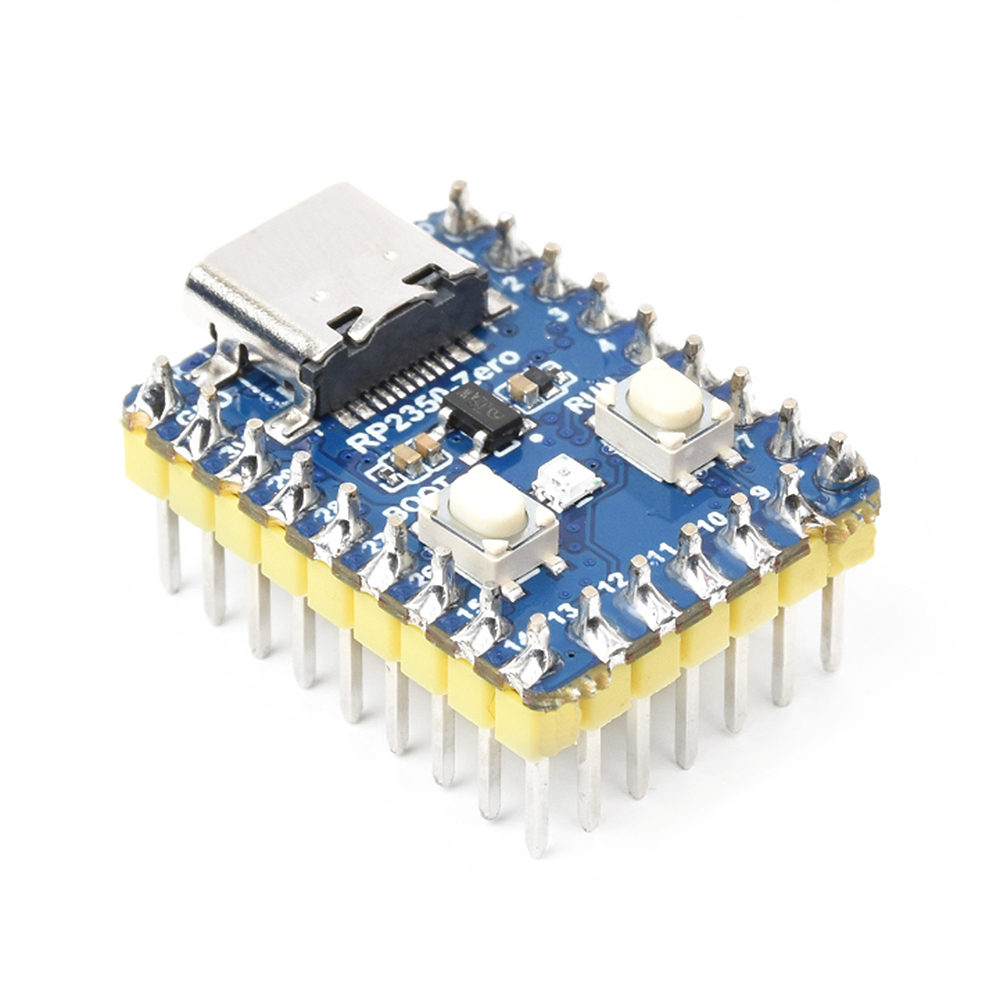

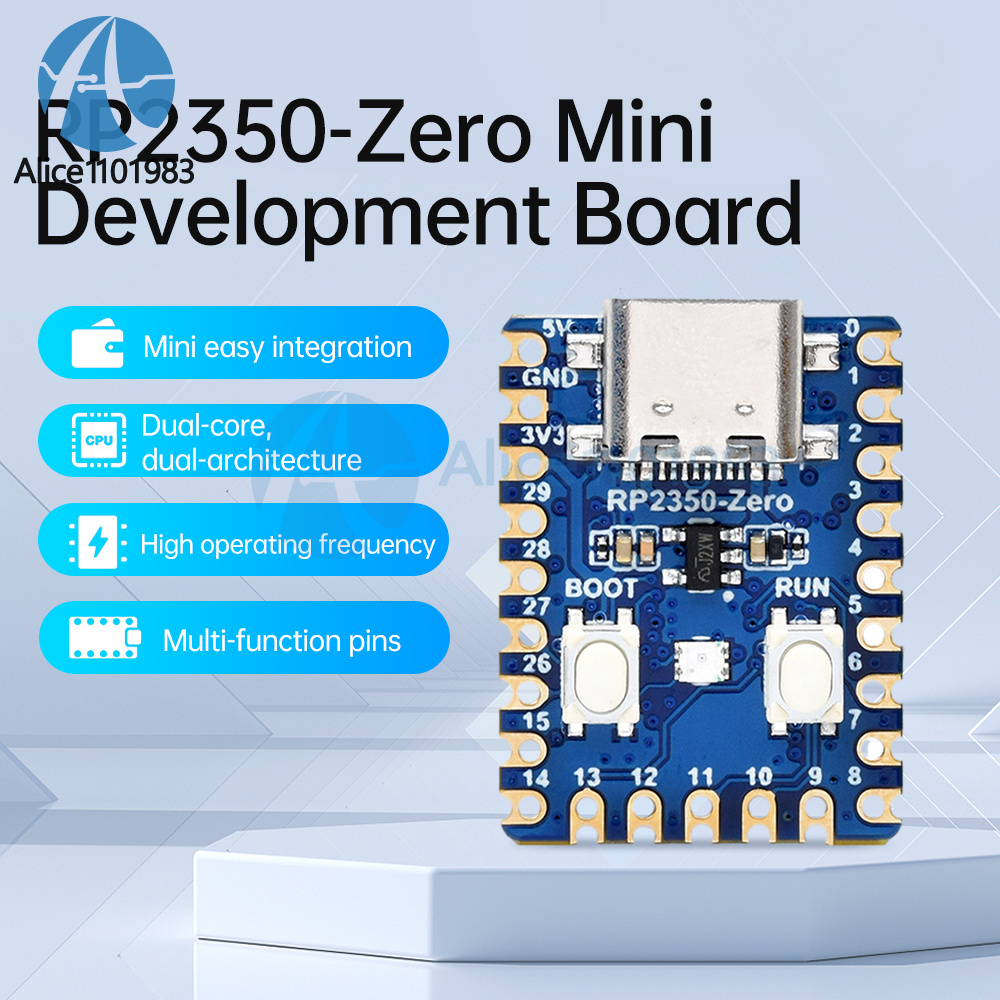

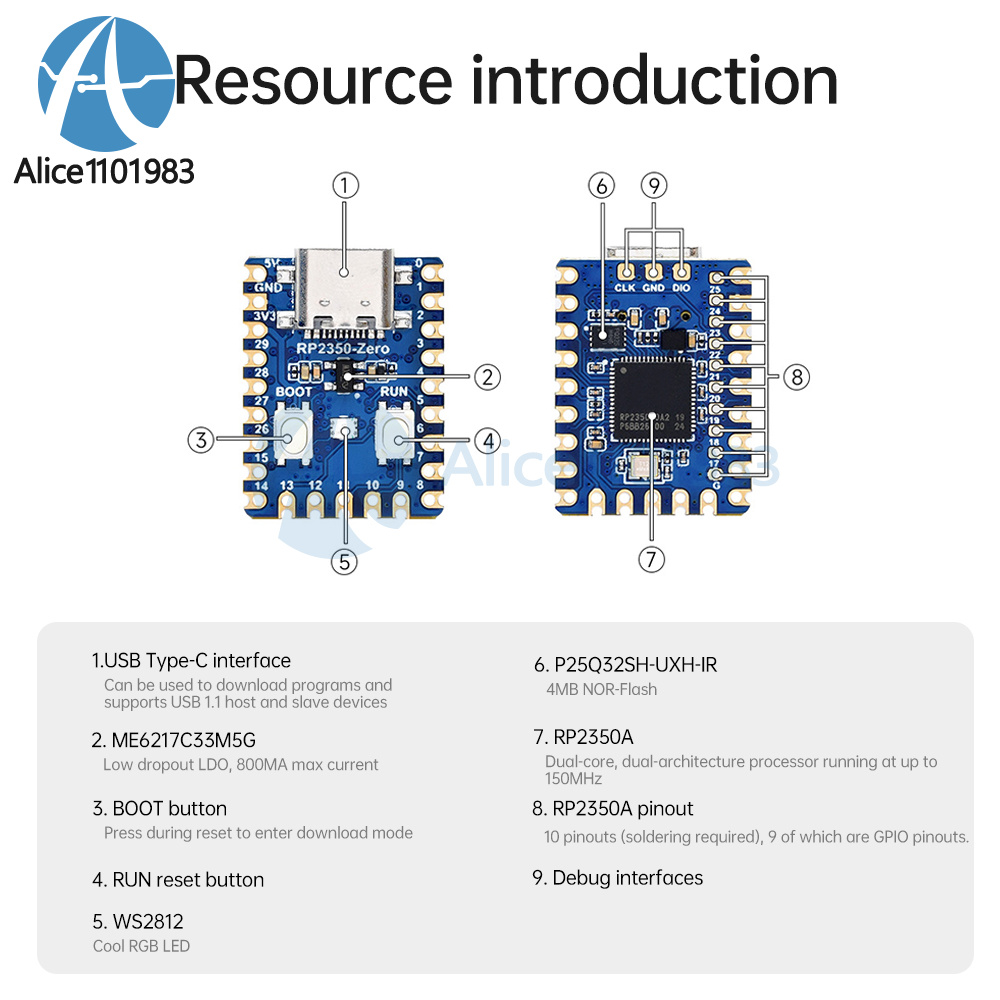

RP2350-Zero Development Board
Features
1. Based on the RP2350A microcontroller core chip, it leads to all unoccupied pins in a very small board size.
2. Adopting half-hole process, can be soldered on customized boards.
3. Adopting Type-C interface, keeping up with the trend of the times, no need to get tangled up with forward and reverse plugging.
4. Unique dual-core and dual-architecture, equipped with a dual-core processor, clock running frequency up to 150MHz.
5. Support C/C++, MicroPython supporting perfect SDK, open source information tutorials, easy to get started, can be quickly embedded into the application.
1. Based on the RP2350A microcontroller core chip, it leads to all unoccupied pins in a very small board size.
2. Adopting half-hole process, can be soldered on customized boards.
3. Adopting Type-C interface, keeping up with the trend of the times, no need to get tangled up with forward and reverse plugging.
4. Unique dual-core and dual-architecture, equipped with a dual-core processor, clock running frequency up to 150MHz.
5. Support C/C++, MicroPython supporting perfect SDK, open source information tutorials, easy to get started, can be quickly embedded into the application.

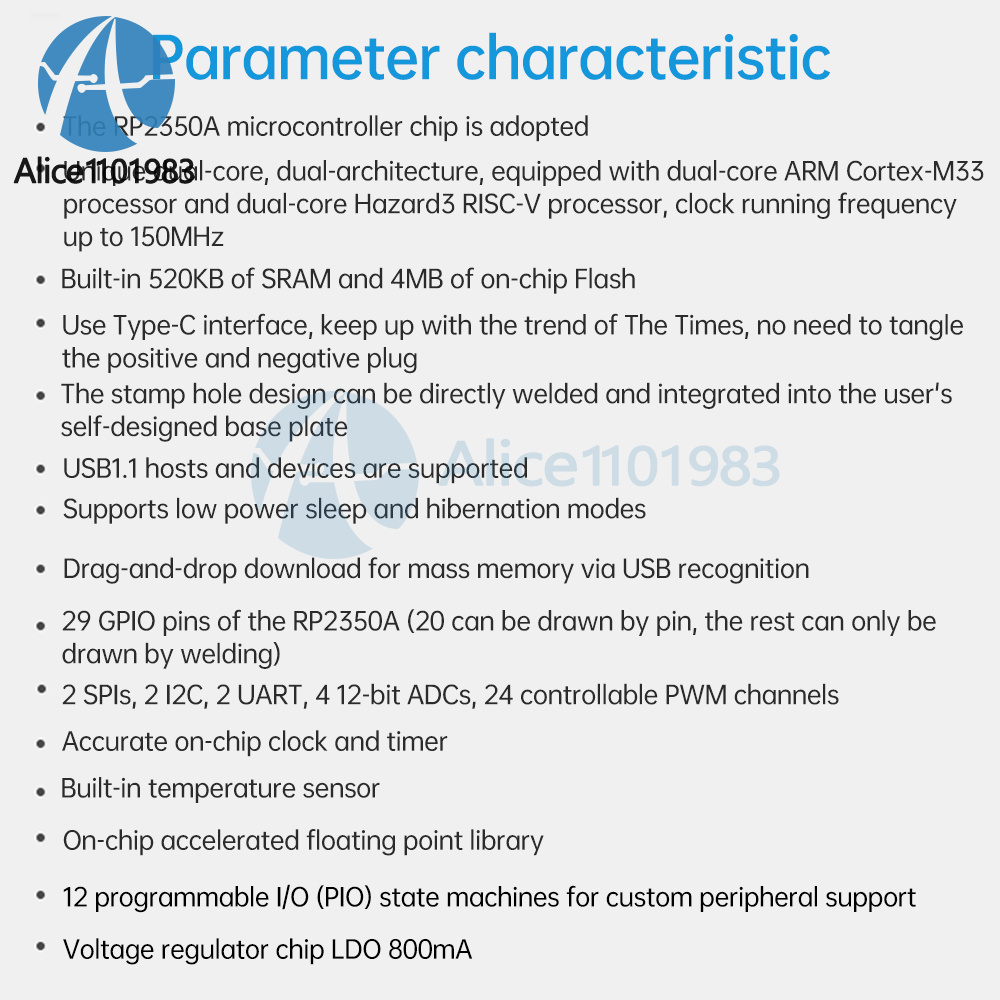

Specification

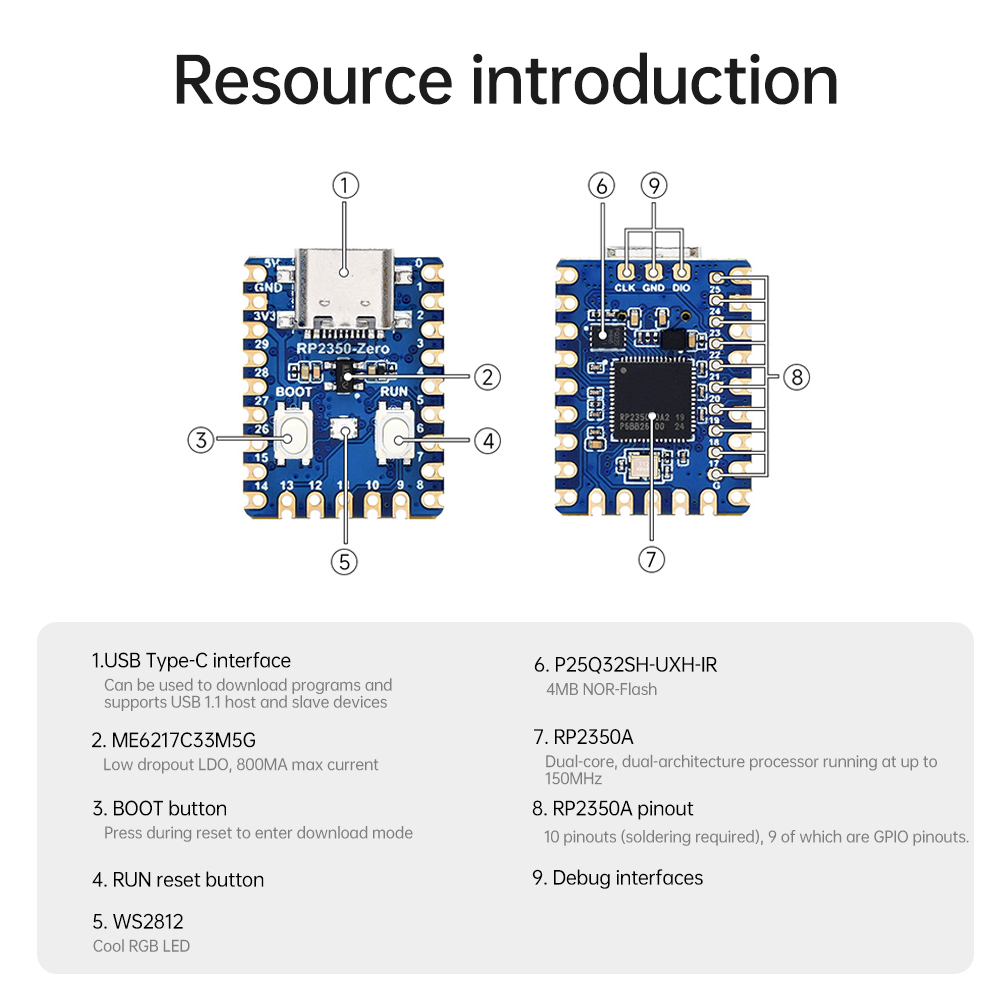

Adopts RP2350A microcontroller chip.
Unique dual-core, dual-architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, running at a clock frequency of up to 150MHz.
Built-in 520KB of SRAM and 4MB of on-chip Flash.
Adopt Type-C interface, keep up with the trend of the times, no need to worry about forward and reverse plugging.
Stamp hole design, can be directly soldered and integrated into the user's own design of the backplane
Supports USB1.1 host and device
Supports low-power sleep and hibernation modes
Recognized as mass storage via USB for drag-and-drop downloads

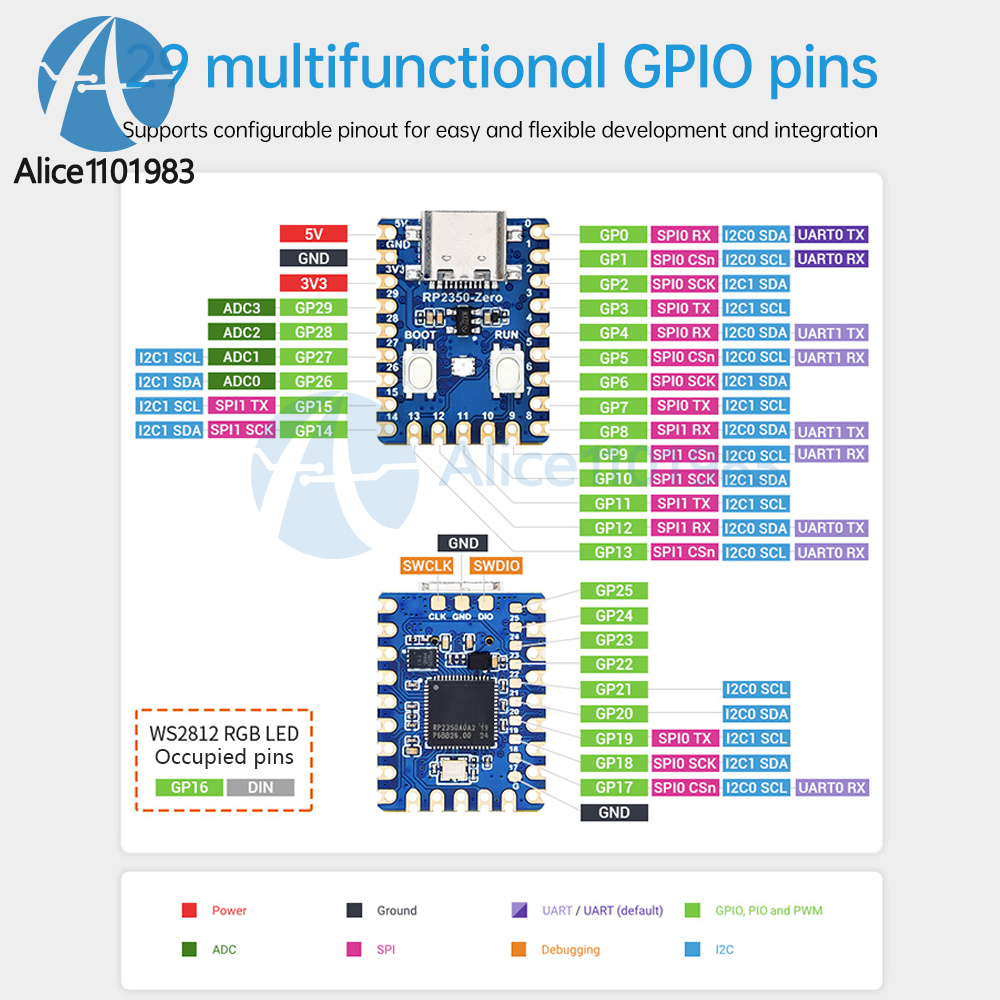

29 GPIO pin-outs on the RP2350A (20 pin-outs via row of pins, the rest are solderable only)
2 SPI, 2 I2C, 2 UART, 4 12-bit ADCs, 24 controllable PWM channels
Precision on-chip clock and timer
Built-in temperature sensor
On-Chip Accelerated Floating Point Library
12 Programmable I/O (PIO) state machines for custom peripheral support
Voltage regulator LDO 800mA
Dimension 23.5mm*18mm
Adopts RP2350A microcontroller chip.
Unique dual-core, dual-architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, running at a clock frequency of up to 150MHz.
Built-in 520KB of SRAM and 4MB of on-chip Flash.
Adopt Type-C interface, keep up with the trend of the times, no need to worry about forward and reverse plugging.
Stamp hole design, can be directly soldered and integrated into the user's own design of the backplane
Supports USB1.1 host and device
Supports low-power sleep and hibernation modes
Recognized as mass storage via USB for drag-and-drop downloads
29 GPIO pin-outs on the RP2350A (20 pin-outs via row of pins, the rest are solderable only)
2 SPI, 2 I2C, 2 UART, 4 12-bit ADCs, 24 controllable PWM channels
Precision on-chip clock and timer
Built-in temperature sensor
On-Chip Accelerated Floating Point Library
12 Programmable I/O (PIO) state machines for custom peripheral support
Voltage regulator LDO 800mA
Dimension 23.5mm*18mm
Package Includes

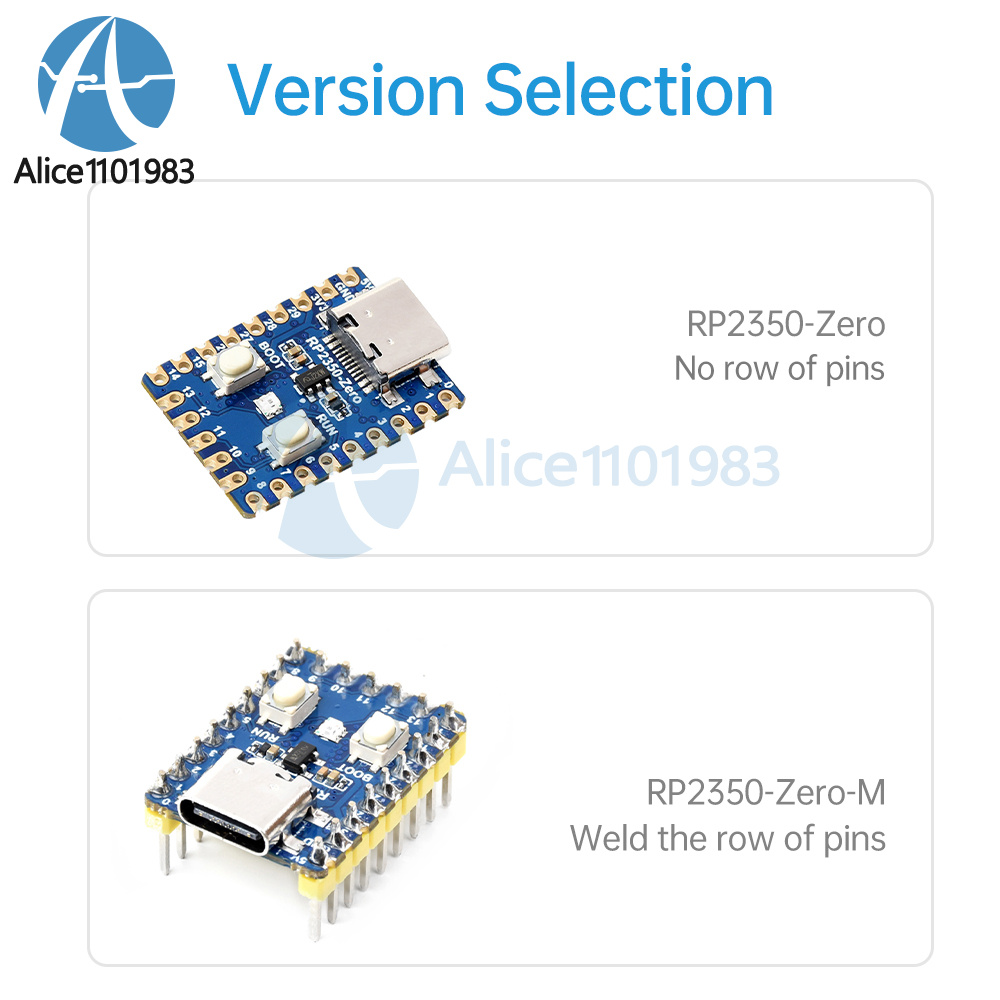

1 x Development Board (with or without Pin)
1 x Development Board (with or without Pin)

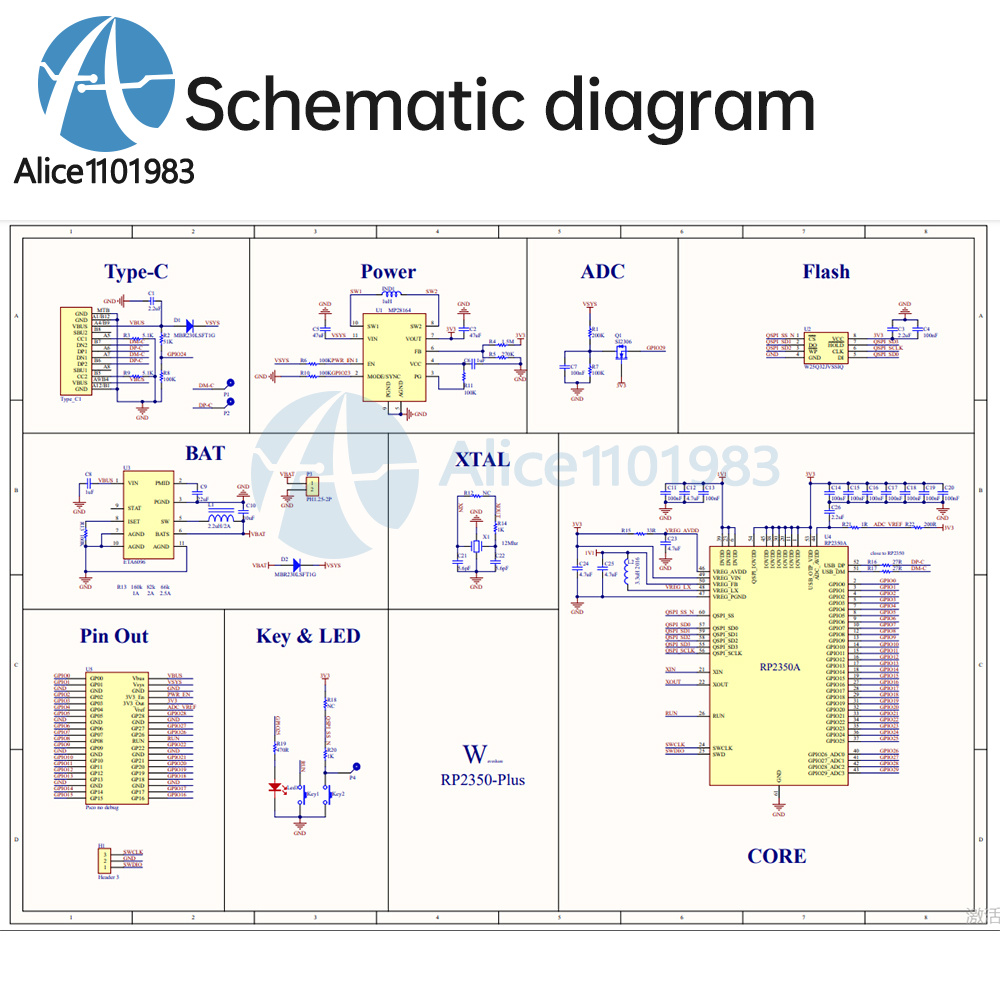

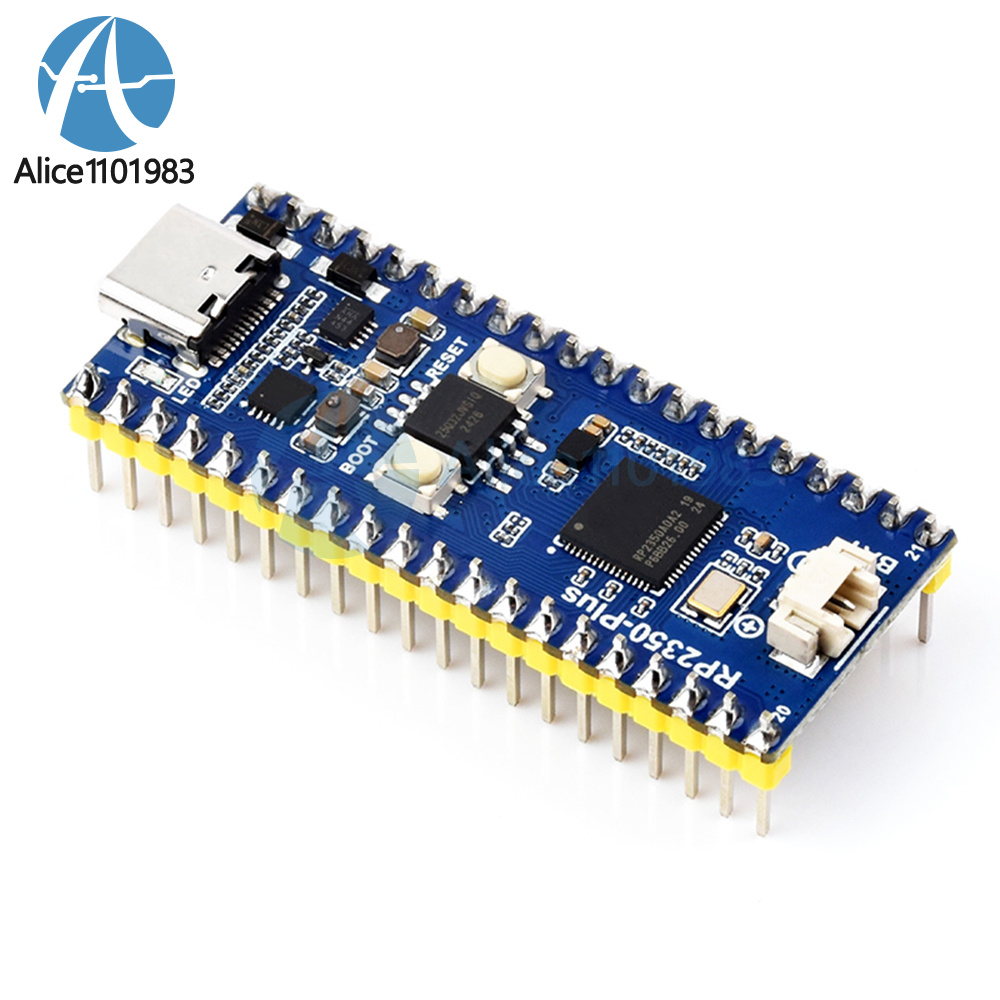

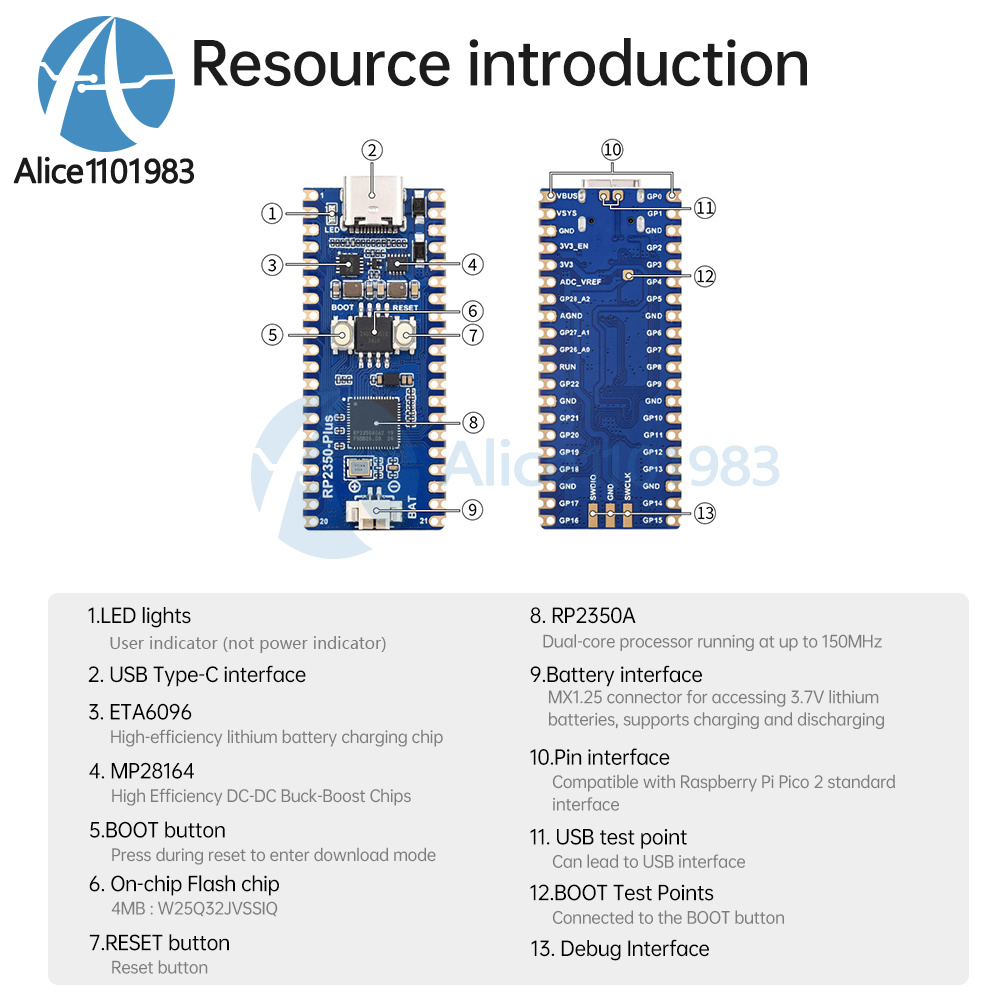

RP2350-Plus Development Board
Features
1. This upgraded version of the RP2350 microcontroller, based on the RP2350A is compatible with most Pi Pico modules.
2. Equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, running at up to 150 MHz.

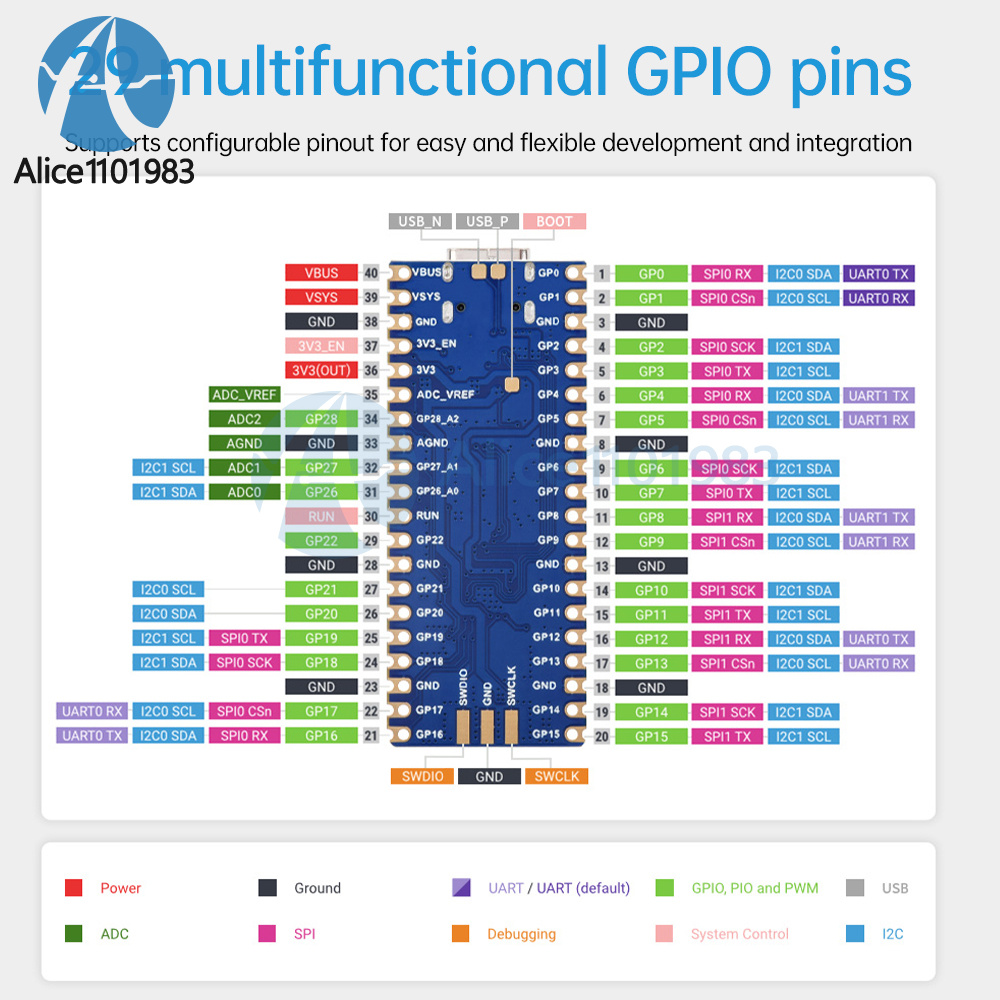

3. 26 multi-functional GPIO pins, support the configuration of the pin function, can be convenient and flexible development and integration.
4. Compact form factor, size 51mm*21mm, small and easy to integrate.
5. Based on the RP2350 mini-development board, it is an enhanced version of the Pi Pico 2, which is compatible with most of the Pi Pico 2 modules, based on the enhancement or addition of some additional features.
1. This upgraded version of the RP2350 microcontroller, based on the RP2350A is compatible with most Pi Pico modules.
2. Equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, running at up to 150 MHz.
3. 26 multi-functional GPIO pins, support the configuration of the pin function, can be convenient and flexible development and integration.
4. Compact form factor, size 51mm*21mm, small and easy to integrate.
5. Based on the RP2350 mini-development board, it is an enhanced version of the Pi Pico 2, which is compatible with most of the Pi Pico 2 modules, based on the enhancement or addition of some additional features.
Specification

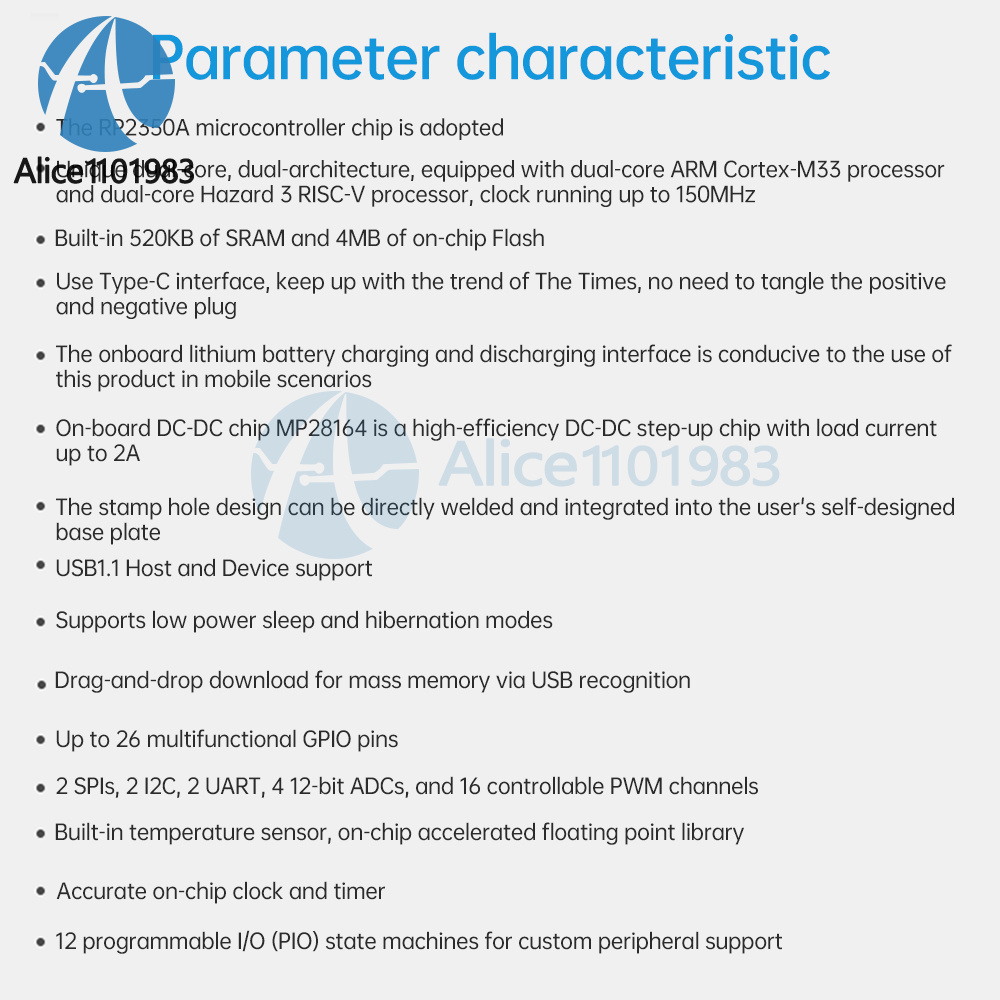

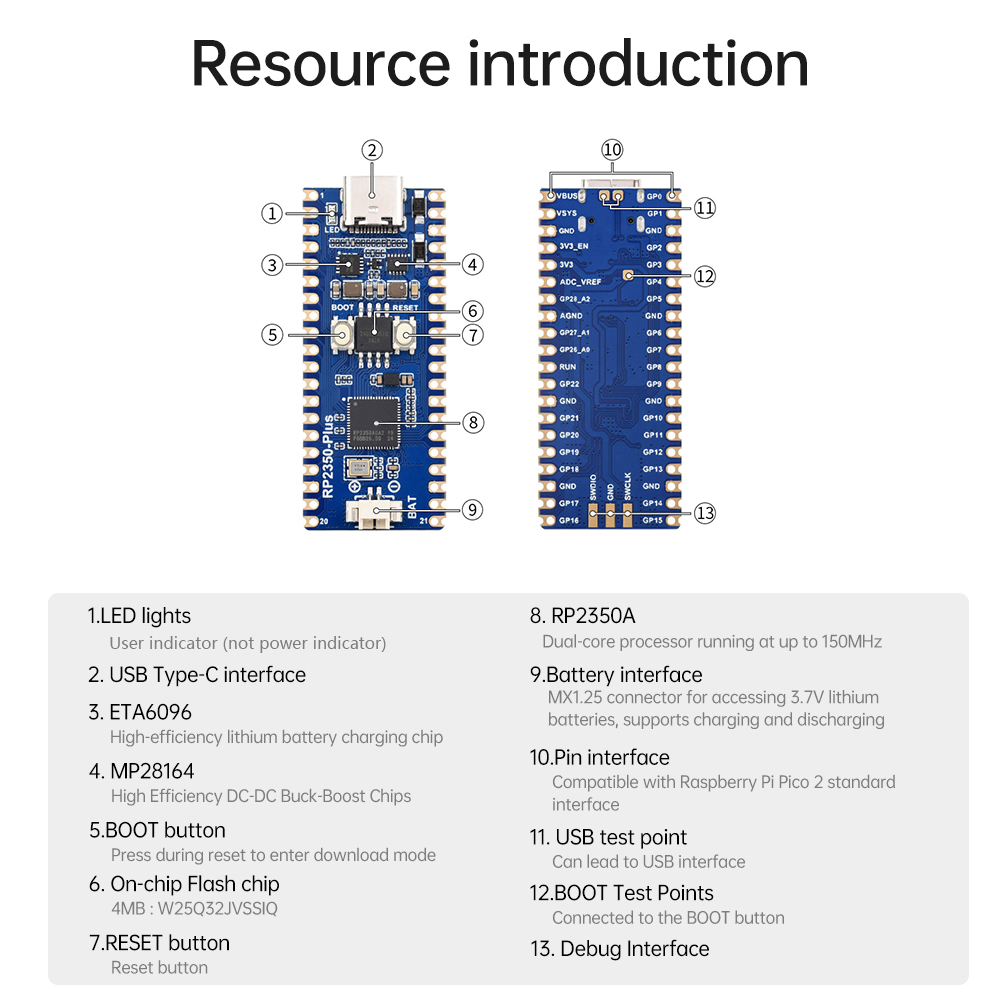

Utilizes the RP2350A microcontroller chip
Unique dual-core, dual-architecture with a dual-core ARM Cortex-M33 processor and a dual-core Hazard 3 RISC-V processor running at up to 150MHz.
Built-in 520KB of SRAM and 4MB of on-chip Flash.
Type-C interface, keeping up with the trend of the times, no need to worry about forward and reverse plugging.
On-board Li-ion battery charging and discharging interface, which is favorable for the product to be used in mobile scenarios.
On-board DC-DC chip, MP28164, is a high efficiency DC-DC buck-boost chip, with load current up to 2A.
Stamp hole design, can be directly soldered and integrated into the user's own design of the base plate
USB1.1 host and device support
Supports low-power sleep and hibernation modes
Recognized as mass storage for drag-and-drop downloads via USB
Up to 26 multi-function GPIO pins
2 SPI, 2 I2C, 2 UART, 4 12-bit ADCs, and 16 controllable PWM channels
Precision on-chip clock and timer
Built-in temperature sensor
On-chip accelerated floating-point library
12 programmable I/O (PIO) state machines for custom peripheral support
Compact size of 51mm*21mm for easy integration
Utilizes the RP2350A microcontroller chip
Unique dual-core, dual-architecture with a dual-core ARM Cortex-M33 processor and a dual-core Hazard 3 RISC-V processor running at up to 150MHz.
Built-in 520KB of SRAM and 4MB of on-chip Flash.
Type-C interface, keeping up with the trend of the times, no need to worry about forward and reverse plugging.
On-board Li-ion battery charging and discharging interface, which is favorable for the product to be used in mobile scenarios.
On-board DC-DC chip, MP28164, is a high efficiency DC-DC buck-boost chip, with load current up to 2A.
Stamp hole design, can be directly soldered and integrated into the user's own design of the base plate
USB1.1 host and device support
Supports low-power sleep and hibernation modes
Recognized as mass storage for drag-and-drop downloads via USB
Up to 26 multi-function GPIO pins
2 SPI, 2 I2C, 2 UART, 4 12-bit ADCs, and 16 controllable PWM channels
Precision on-chip clock and timer
Built-in temperature sensor
On-chip accelerated floating-point library
12 programmable I/O (PIO) state machines for custom peripheral support
Compact size of 51mm*21mm for easy integration
Package Includes
1 x Development Board (with or without Pin)
1 x Development Board (with or without Pin)

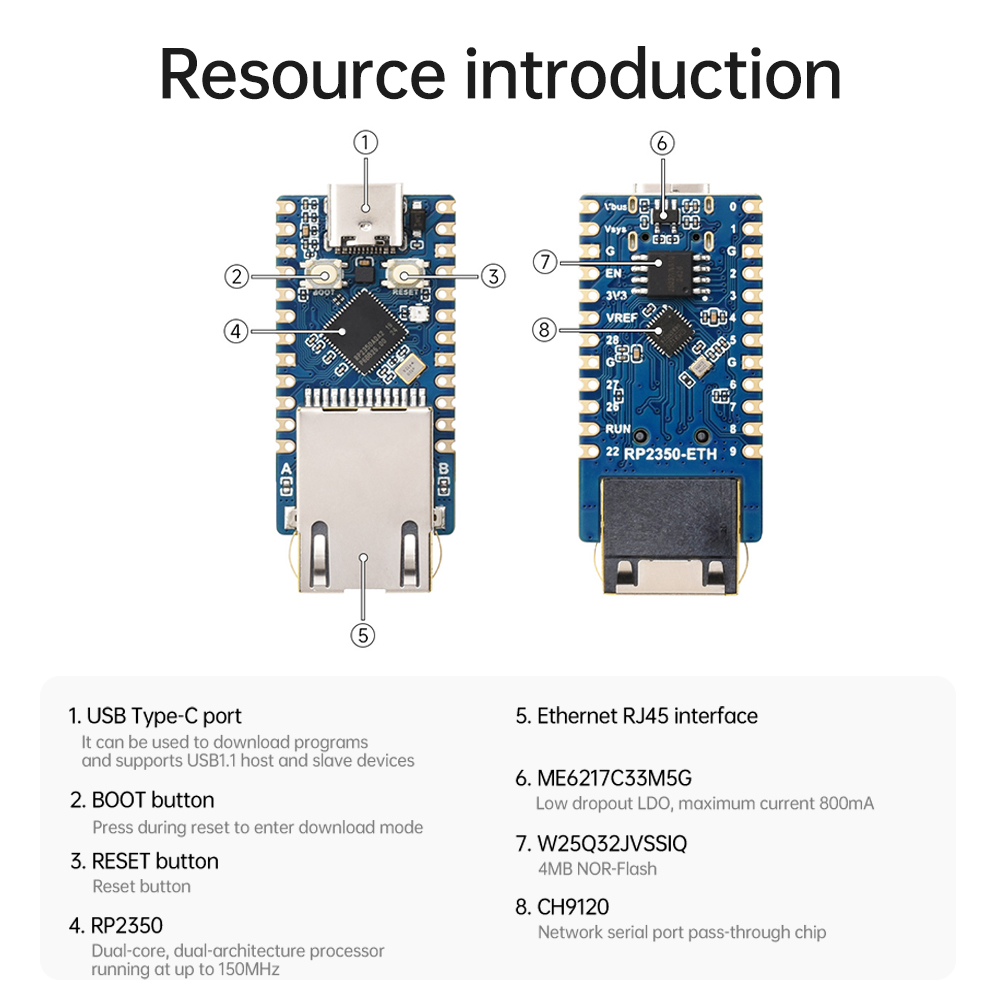

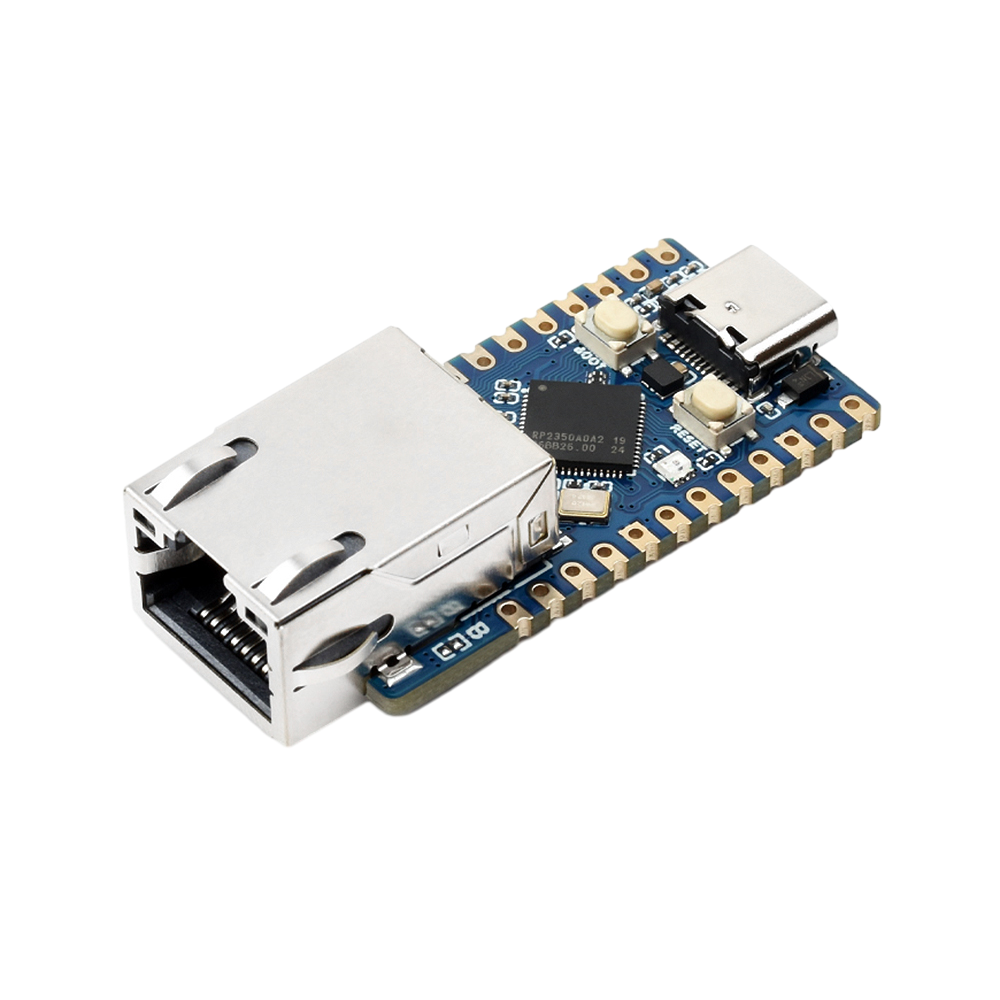

RP2350-ETH Development Board
Features
1. This RP2350-ETH is developed based on RP2350, with on-board ETH interface, easy to use.
2. Built-in 4MB on-board Flash, miniature and compact, easy to integrate, support C/C++, MicroPython, and other development environments, support for a variety of communication modes.
3. Unique dual-core, dual architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, running frequency up to 150MHz flexible clock.
4. Comes with TYPE-C interface, can be recognized as mass storage via USB for drag-and-drop program download.
5. Compact size, easy to integrate, using stamp holes in the gold-immersion process design, highly integrated package, support a variety of ways to embed a combination of various product applications.
Specification
Adopts RP2350 microcontroller chip
Unique dual-core, dual architecture, equipped with a dual-core ARM Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, both running up to 150MHz flexible clock
Built-in 520KB of SRAM and 4MB of on-chip Flash
Onboard CH9120 with integrated TCP/IP stack
14 GPIO pins, compatible with some Pico expansion boards
Stamped holes for direct soldering and integration into user-designed backplanes
Drag-and-drop program download via USB recognized as mass memory
On-chip temperature sensor
12 programmable I/O (PIO) state machines for custom peripheral support
Voltage regulator LDO 800mA
Compact size, only 45.8mm*21mm
Adopts RP2350 microcontroller chip
Unique dual-core, dual architecture, equipped with a dual-core ARM Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, both running up to 150MHz flexible clock
Built-in 520KB of SRAM and 4MB of on-chip Flash
Onboard CH9120 with integrated TCP/IP stack
14 GPIO pins, compatible with some Pico expansion boards
Stamped holes for direct soldering and integration into user-designed backplanes
Drag-and-drop program download via USB recognized as mass memory
On-chip temperature sensor
12 programmable I/O (PIO) state machines for custom peripheral support
Voltage regulator LDO 800mA
Compact size, only 45.8mm*21mm
Package Includes
1 x Development Board (without pins)
1 x Development Board (without pins)
