Bafang Mid Drive Motor 48V 750W BBS02B 68mm DIY Conversion Ebike Kit

Product Description

MID-DRIVE SYSTEMS


Bafang products win the trust of customers with the highest quality and the best flexibility. We provide various driving systems for different applications, providing users with the best driving experience at any time. Learn more about the Eight Directions and how they provide motivation for your life.

WIDE COMPATIBILITY


The BAFANG mid wheel drive kit is compatible with bottom brackets of 68-73mm/100mm/120mm (length) and 34-36mm (inner diameter). You can install a mid wheel drive motor on mountain bikes, road bikes, and commuter bikes, but it is not recommended to use carbon fiber frames or roller coaster brakes on bicycles. The powerful 8fun motor makes your cycling journey more exciting. Looking forward to seeing your electric bike modified, enjoy the fun of cycling now

*Little Tips

1. Before installing the motor, please follow the steps in the manual to connect the motor to see if the motor can work normally. Please DO NOT remove any connection with the power supply is on.

2. If you have any questions about our products or services , feel free to contact us first, please. We will reply you within 24 Hours (Business Day) and provide you with solutions.

3. Both 48V 1000W and 52V 1000W are printed 48V 1000W on the motor, just different controllers. The 52V version needs to match rated 52V battery to work. If the battery you use is rated 48V, you need choose 48V version motor. Please kindly choose the right version based on the battery you use.

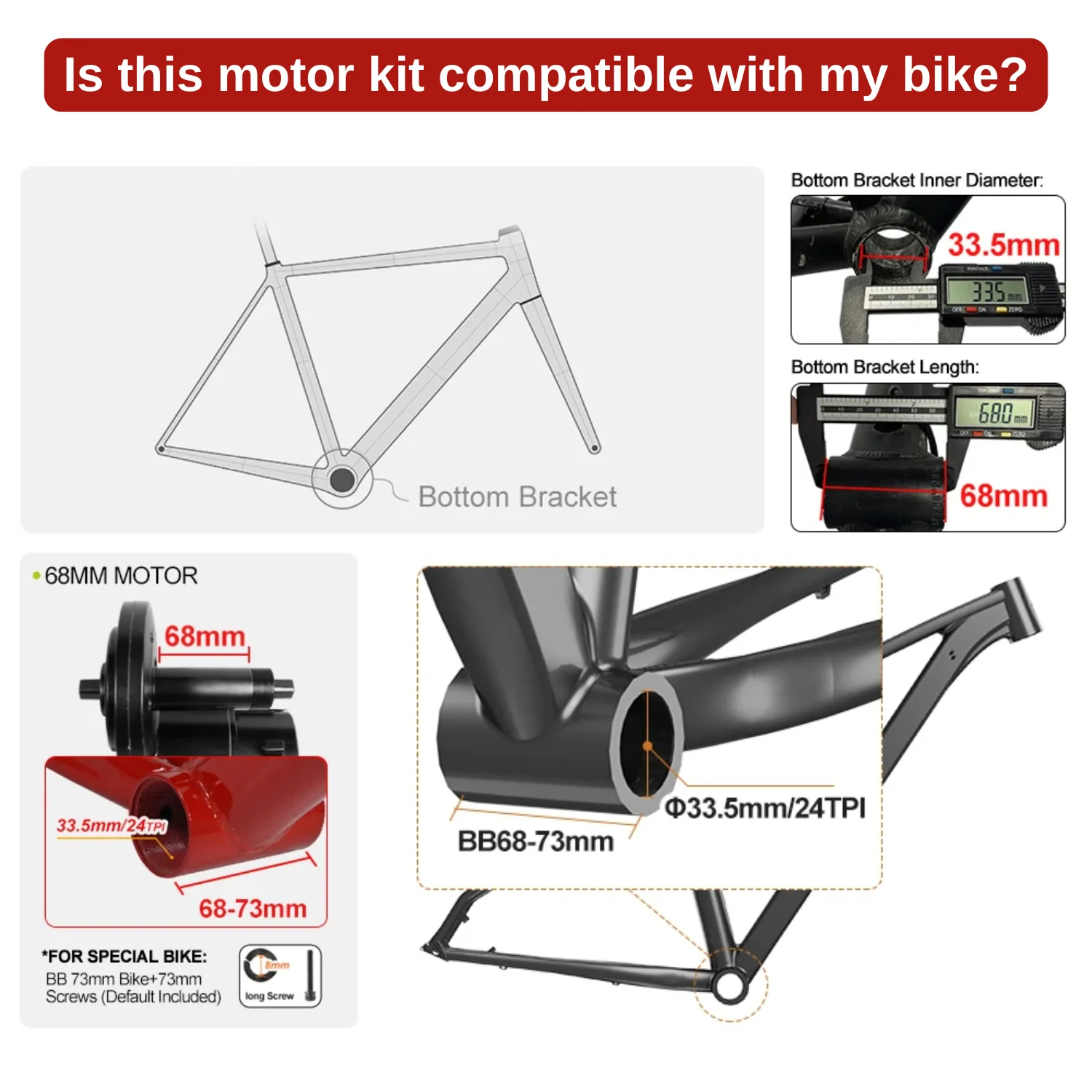

HOW DO I KNOW IF THIS MID DRIVE MOTOR FITS FOR MY BIKE?

250W-750W: This mid drive motor fits for the bike with 68mm or 73mm wide bottom bracket. The inner diamater of the bracket should be not less than 33.5mm.

48V52V 1000W: The BBSHD comes in sizes made to fit the size of your bottom bracket. Please measure your bottom bracket before ordering, in case it does not fit. We have both in standard sizes (68-73mm), wide and fat sizes (74-100mm) and extra fat (100-120mm). If your bike is not regular, additional spacer may be needed and can be bought here:

#68mm BBS: it's suitable for 68mm (2.68inch)-73mm (2.87inch) bike.

#100mm BBS: 100mm bike or 90mm bike +1pc*10mm spacer

#120mm BBS: 120mm bike or 110mm bike +1pc*10mm spacer

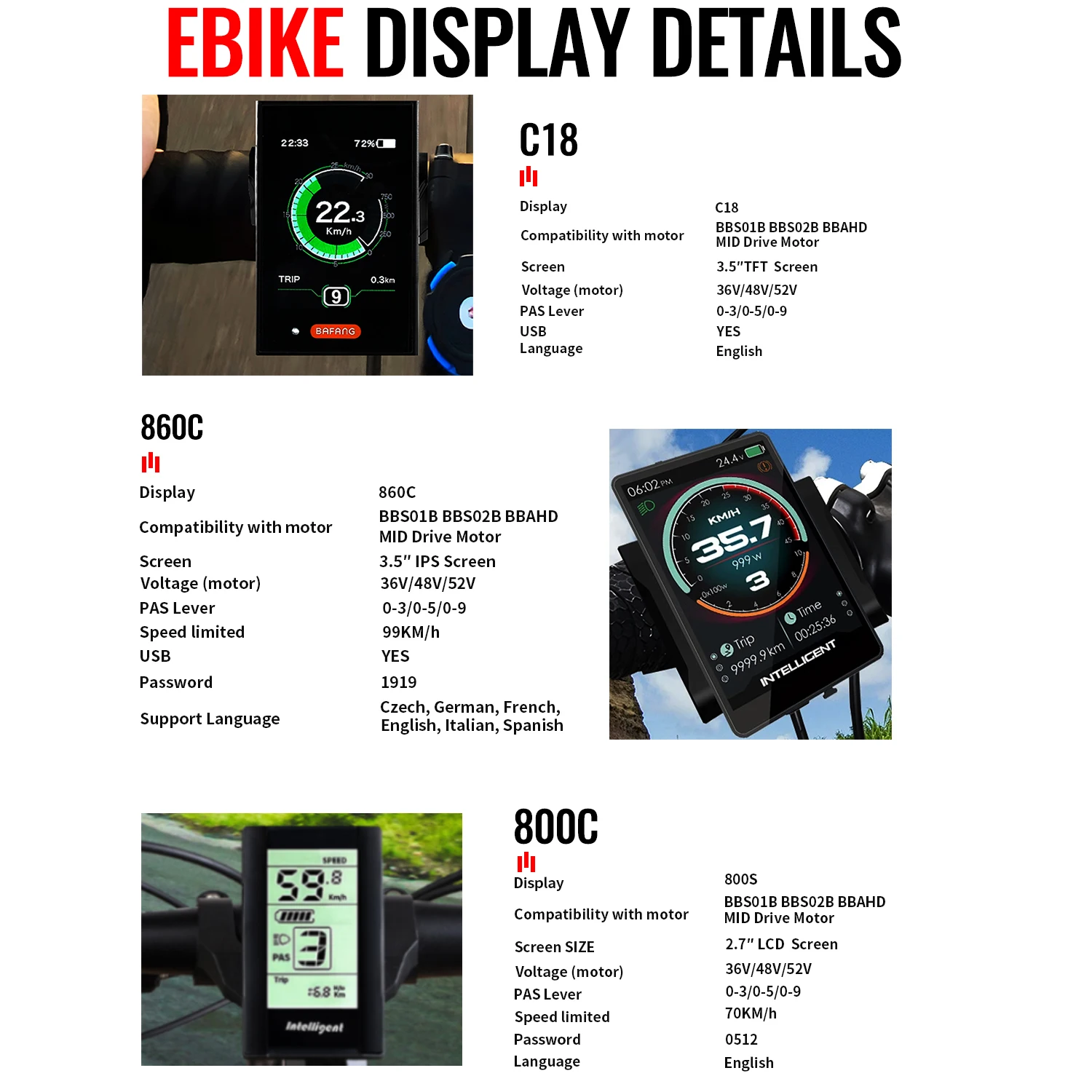

How to choose a display ?


The main differences of the ebike displays are the interface , screen and holder size , specific function (check the display image below). If you want to quick decide which display should you choose, please check:

NEW Arrivals : 750C with Bluetooth Function

Popular Sale Displays : 850C/860C New(Send randomly), DPC18

Cost Effective Displays : C965 (800S)

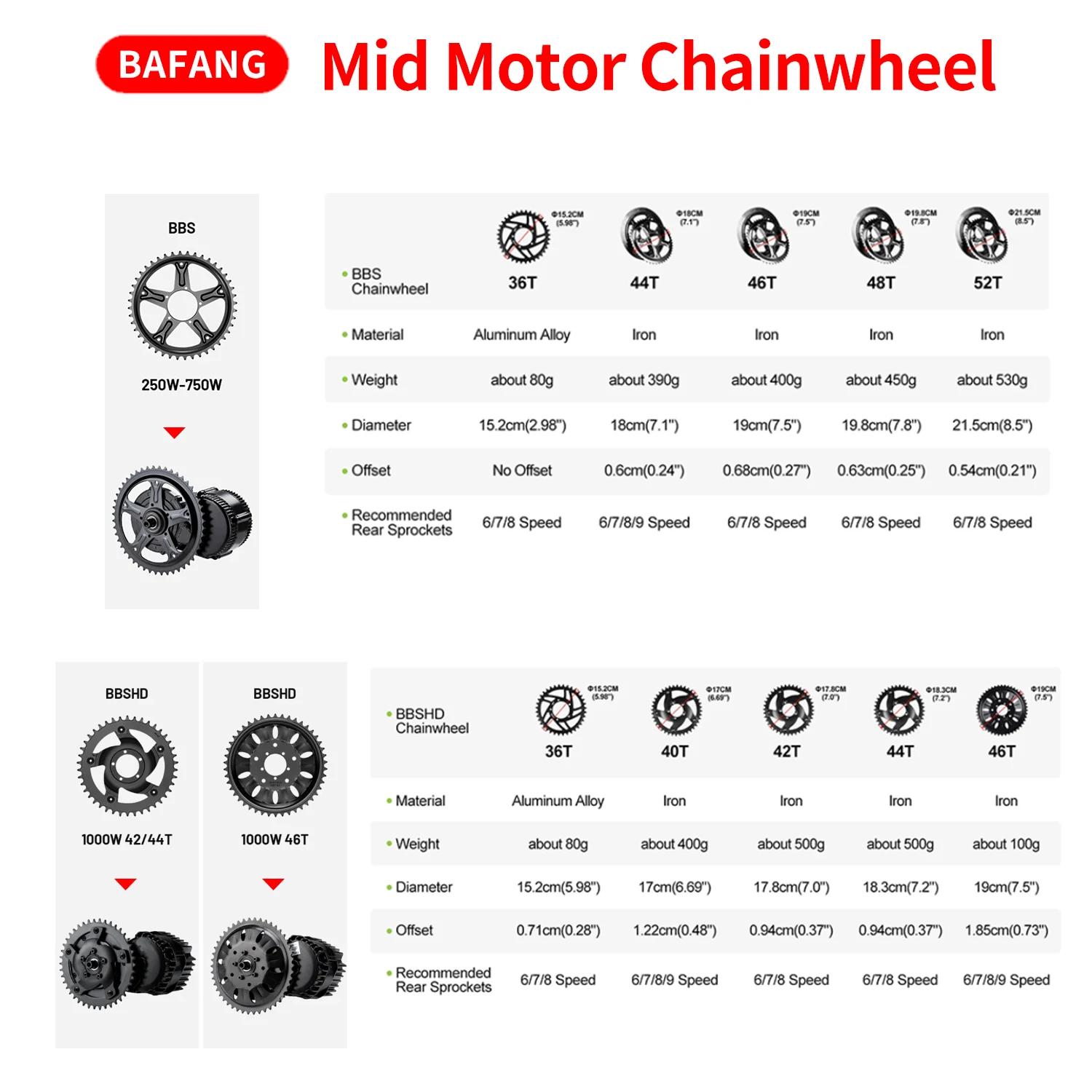

How to choose a chainring for ebike conversion ？



For a normal pedal bike without electricity, small chainring is more compatible with mountain bike which can help you climb easier. Big chaining is more suitable for city bike, road bike and foldable bike which can help you enjoy faster speed .

However , now you are converting a bike to an ebike with motor, the size of chainring won't influence much because there is enough power for you to ride. When you install a mid motor on your bike , the bigger the chainring is , the faster the speed wil be. And please note that the chainring is more compatible with a bike ≤9 speed. If you are not sure which chainring you should use, you can consider the same teeth as your original chainring.

Brake Lever or brake sensor ？



The brake lever we send by default has a power-off function. We provide you with some tips on choosing the appropriate braking system options.

If your bicycle braking system is a mechanical disc brake or a wheel V-shaped brake, you can choose the brake lever option.

If your bicycle braking system is an integrated thumb shifter, it is hydraulic braking, or if you want to keep your own brake lever. You can choose the brake sensor in the BAFANG mid wheel drive kit.

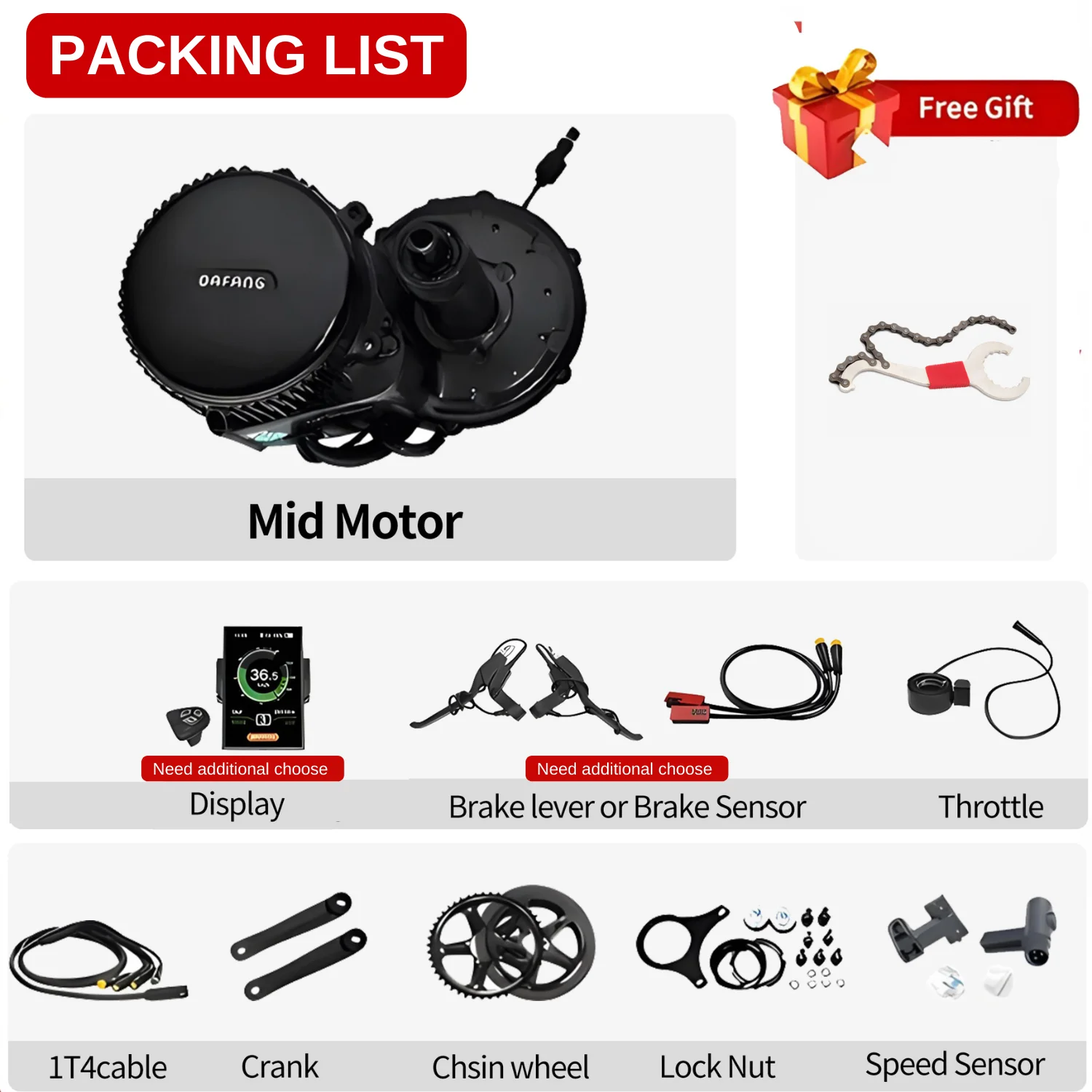

Packing List

1 PC BAFANG Mid Drive Motor

1 PC Display (Optional)

1 PC Chainwheel (Default 44T )

1 Pair Brake Lever or 2PCS Brake Sensor (Optional)

1 Pair Crank

1 PC Thumb Throttle

1 PC Speed Sensor

1 PC 1T4 Cable

1 Set Accessories

1 PC Tool



  • If there are any quality or usage issues,  Please do not open return ，please send an email to our official customer service first or send a video to us
  • Please be patient and we will reply to you within 12 hours.

  • we usually ship in 24 hours,Excluding weekends and holidays
  • We have multiple overseas warehouses, we guarantee delivery within 48 hours after placing the order.
  • We track logistics information in real-time and providing customers with a perfect shopping experience is our bafang-motor-battery-store pursuit.



  •  We are a company specializing in the production of electric bicycle accessories, and we can provide one-stop service to all customers. Our products include Bafang mid motors, controllers, lithium-ion batteries, display , and other conversion kits, Please Follow Our Store. Our vision is to let customers around the world enjoy the fun of cycling. welcome all those who love cycling to join us, We will strive to provide you with a better experience.
  •  If you have any questions, please feel free to contact us and send a message to our Ebay email，Our customer service will contact you within 12 hours.
Warranty：
  • Our motor kits are warranted for one year. If you have any problems within one year, you can contact us, we will serve you wholeheartedly.
  • If you have product problems beyond one year, you can also contact us, and we will provide you with a reference solution.
We don't supply warranty service for the following situation :
  •  1. The battery goes over water.
  • 2. The battery is broken man- made.
  • 3. Return the Item without reason.
  • 4. Open a case without contacting us.
