120hz ! ! !
Buyer's Guide
1.Signal Compatibility:
Please note that this driver board is designed to support DP to DP signal transmission. We advise against using HDM-I to DP, as it may result in functionality issues.
2. Resolution and Display Mode:
The driver board supports a resolution of 2880x1440, allowing for an extended display mode. In this mode, the left and right screens respectively show the left and right portions of the content.
3. Power Supply Recommendation:
We recommend using a USB power supply rated at 5V-2A to ensure optimal performance.
4. Customization and Technical Support:
For a comprehensive understanding of our product specifications, please feel free to contact us for the complete datasheet .
|

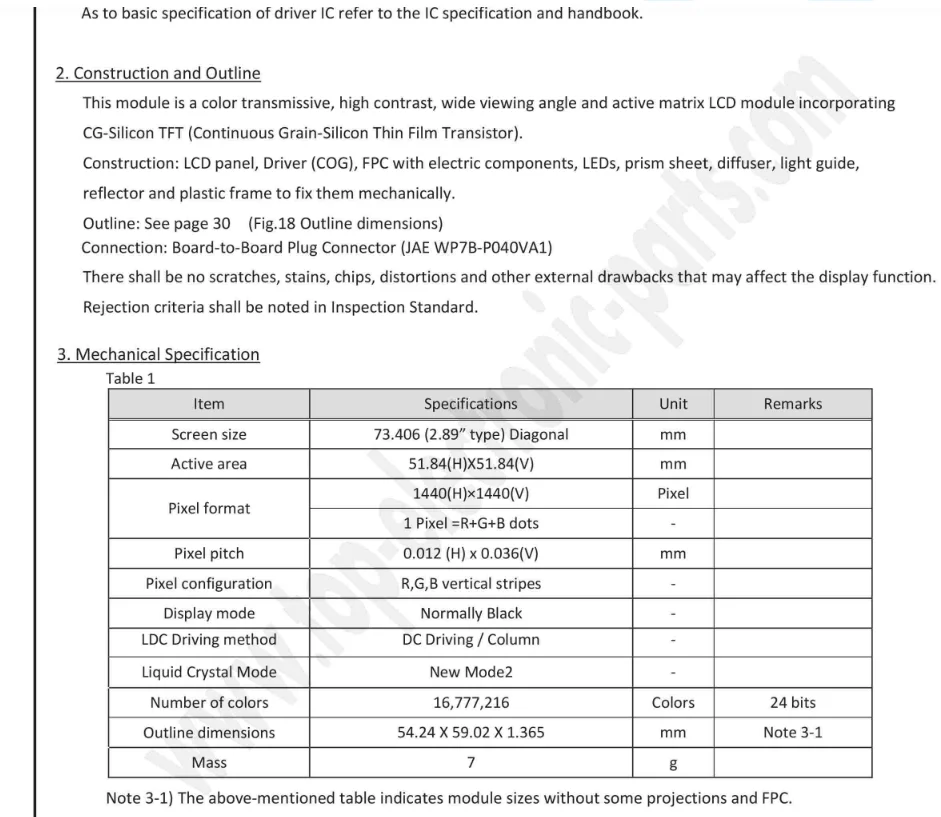

General Features |
|||
|
Diagonal Size |
2.9 inch |
Type |
CG-Silicon , LCM |
|
Pixel Format |
1440(RGB)×1440 |
Configuration |
RGB Vertical Stripe |
|
Active Area |
51.84(H)×51.84(V) mm |
Outline Dim. |
54.24(W)×59.02(H) ×1.51(D) mm |
|
Bezel Area |
- |
Treatment |
10 (Typ.)(Tr+Td) |
|
Luminance |
300 cd/m2 (Typ.) |
Contrast Ratio |
800:1 (Typ.) (TM) |
|
View Direction |
Symmetry |
Response Time |
1100:1 (Typ.) (TM) |
|
Viewing Angle |
80/80/80/80 (Min.)(CR≥10) |
Operating Mode |
New Mode2, Normally Black, Transmissive |
|
Support Color |
16.7M 75% (CIE1931) |
Light Source |
4S2P WLED , Without Driver |
|
Weight |
7.00g (Typ.) |
Designed For |
VR/AR |
|
Frame Rate |
120Hz |
Touch Panel |
optional |
|

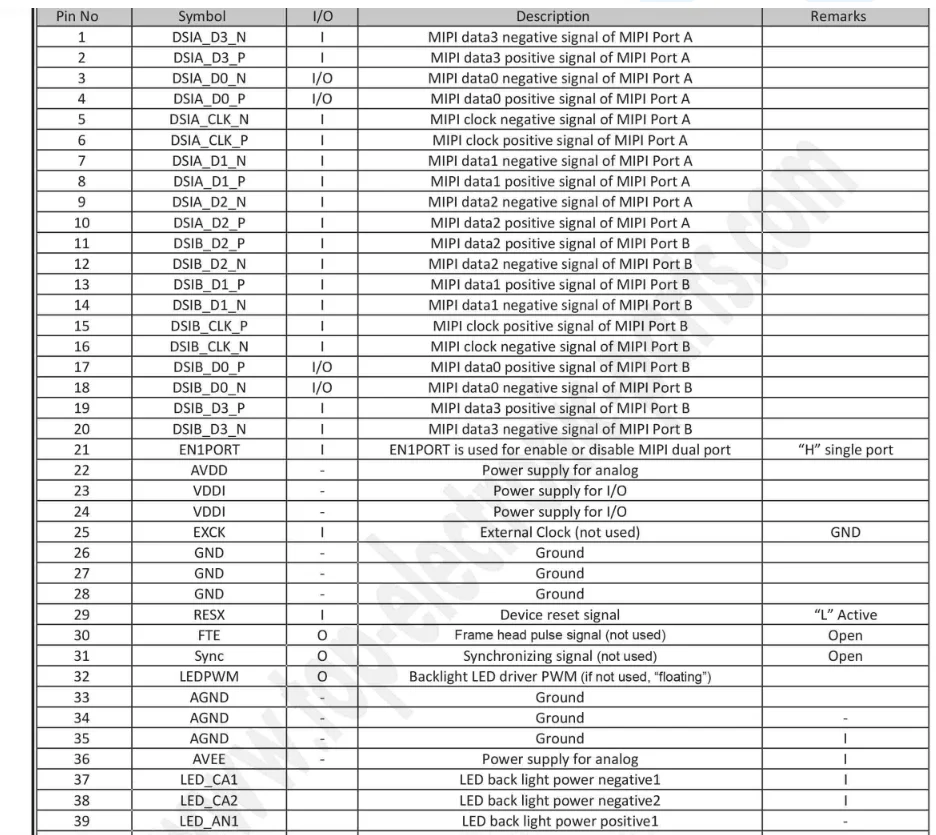

Interface Type |
MIPI (2 ch, 4 data lanes) , 40 pins , Connector |
||
|
Power Supply |
1.8/5.5/-5.5V (Typ.)(VDDI/VSP/VSN) |
||
|
Environment |
Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
||
