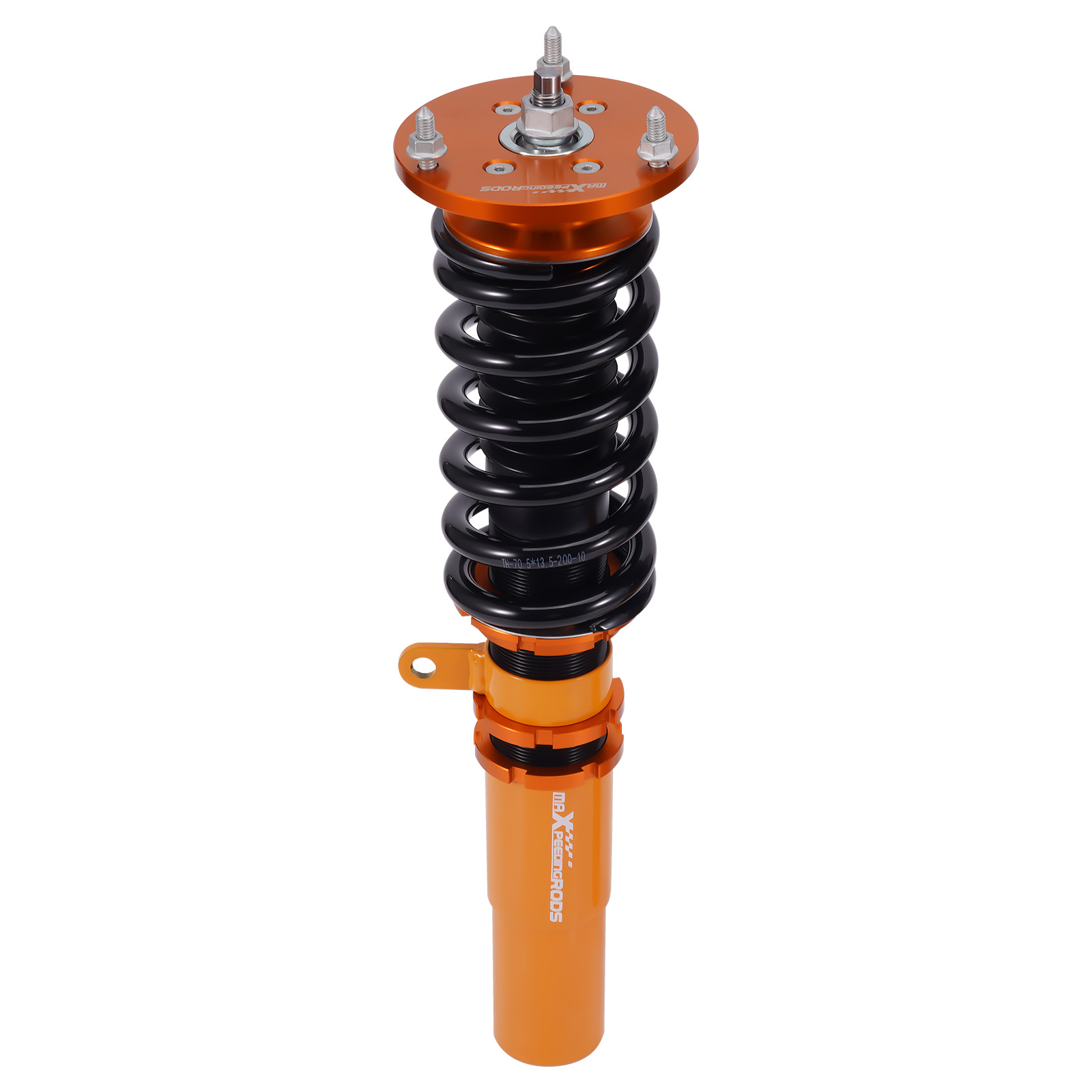

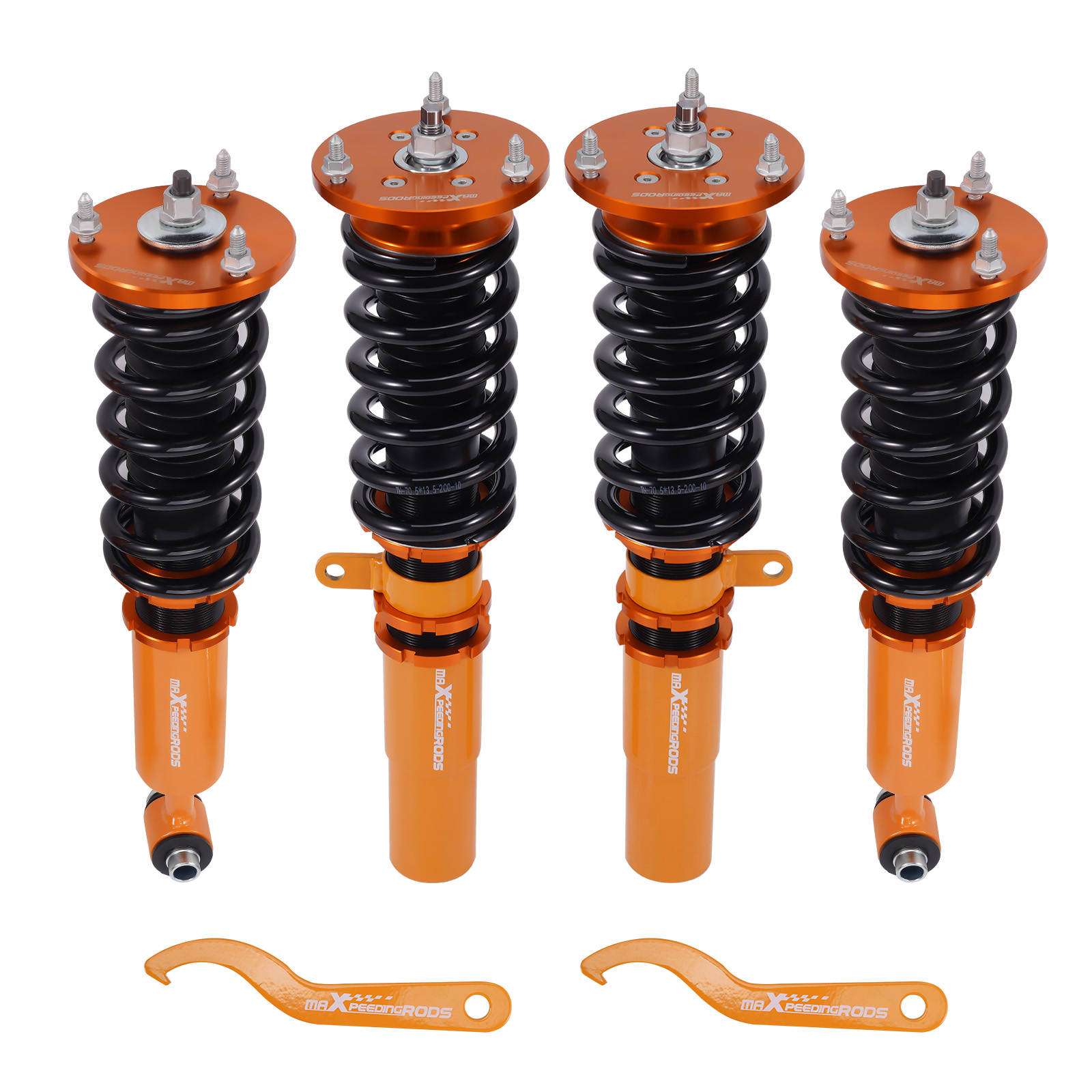

Street Coilover Suspension For BMW E60 5 Series Sedan AWD 525xi 535xi 2004-2010
Application
For BMW 5 series (E60)2004-2010 Sedan AWD
Model: 525xi, 528xi, 530xd, 530xi, 535xi, 525xd, 530xd, 535xd
Note:
- Will not fit models with air suspension.
- The front damper knuckle insert diameter is 56.8mm.
- Please verify the model and dimensions before purchasing to ensure compatibility.
Specification
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

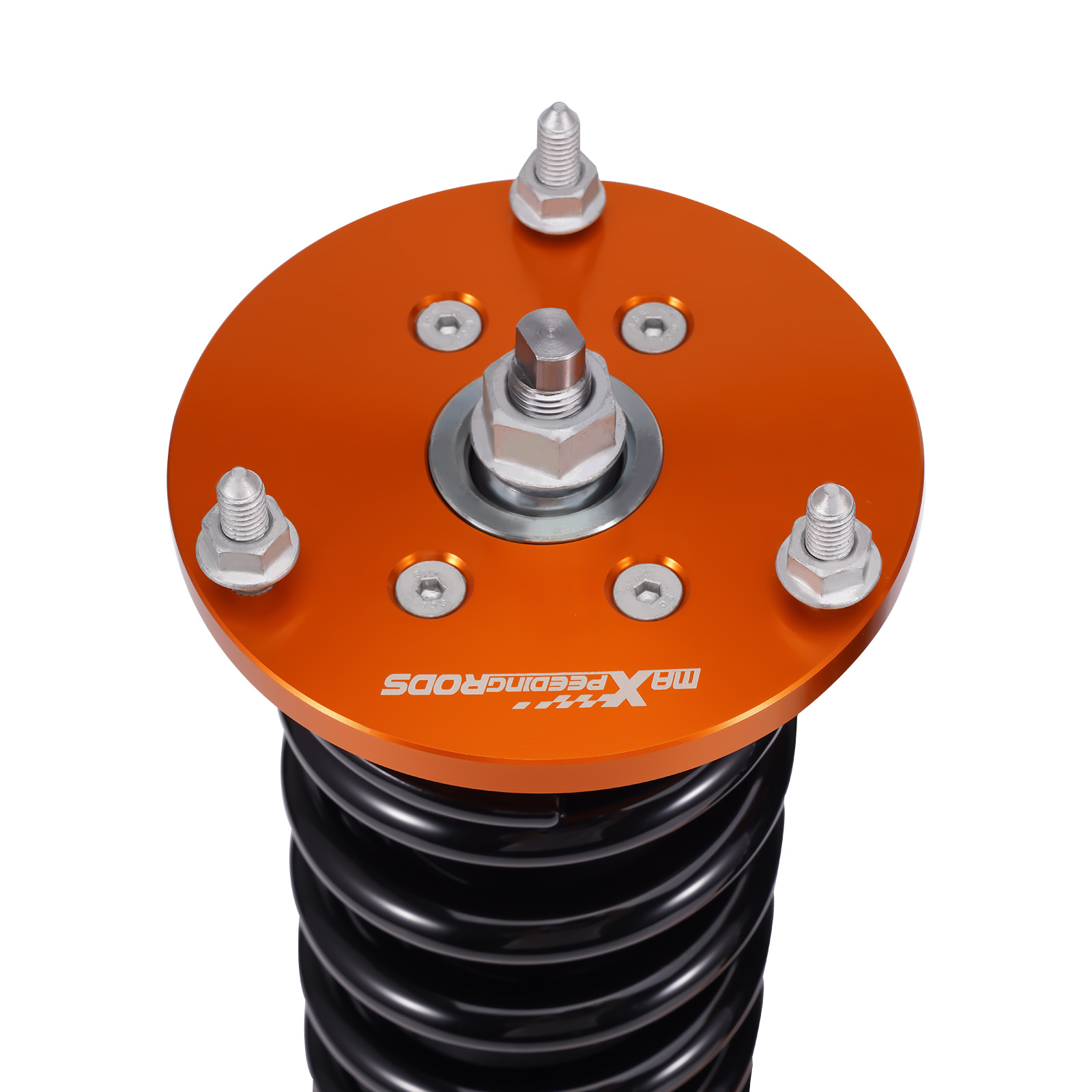

Front top mount: Pillow ball
Rear top mount: Standard rubber
Damping adjustable: Not available
Camber adjustable: Not available
Spring Rate Front: 10 kg/mm(560lbs/in)
Spring Rate Rear: 7 kg/mm(392lbs/in)
Front spring inner diameter: 70.5 mm
Rear spring inner diameter: 70.5 mm
Spring length Front: 200 mm
Spring length Rear: 200 mm
Spring Preload advised: 7-10 mm
Shock type: twin tube

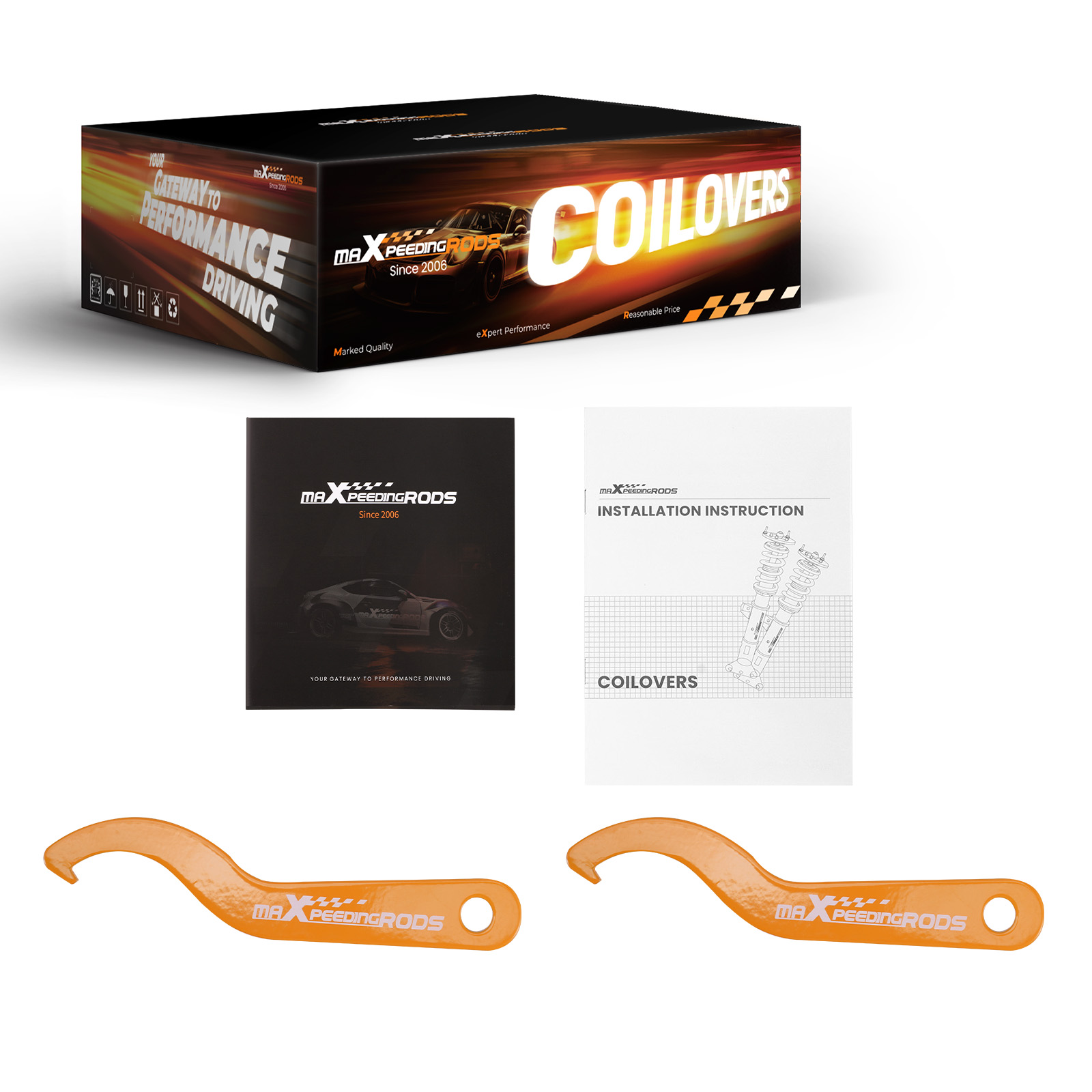

Package included
2x Front coil-overs
2x Rear coil-overs
2x C spanners
Feature
1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)
4. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight
5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
6. High tensile spring--- 600,000 times continuously test to assure its high tensile strength.
7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
Note
1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
Other items you might also like
24 Ways Adjustable Damper Coilover For BMW 3 (E36) Coupe & Roadster 1996-2002

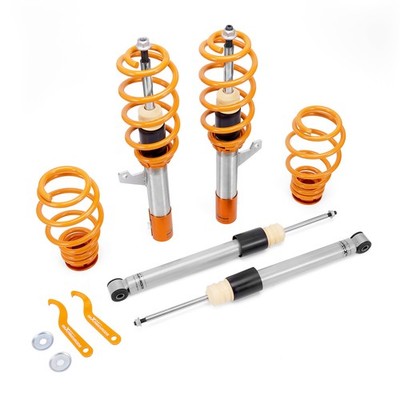

Coilover Lowering Kit For VW Golf MK5 MK6 A6 Typ 5K 2008-2012 Audi A3 8P 06-14
Coilover Suspension Kit For Honda Civic FB2 2012-2015 4 Door Sedan Twin tube
24 Ways Damper Coilover For Lexus LS400 XF10 1990-1994 Toyota Celsior 1990-1994

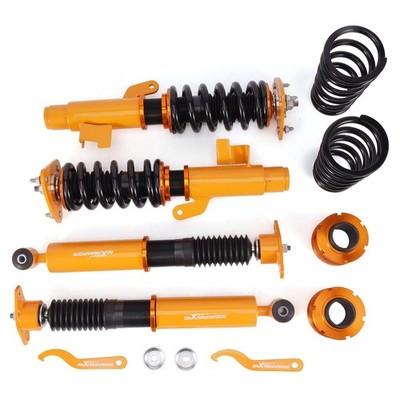

Coilover Suspension Kit For Mazdaspeed 3 Mazda 3 BK 2004-2009 Mazda 3 BL 09-13
