Regarding appearance choices:
Please message me when ordering and tell me what you need: UD, 3K, 12K, 3K Twill, 12K Twill; Matte or Glossy
Specifications
| Size: |
700C |
Type: |
Clincher + Tubeless |
| Depth: |
30mm, 35mm, 40mm, 45mm |
Outer width: |
28mm( inner 21mm ) |
| Spoke holes : |
20H, 21H, 24H, 28H, 32H 36H |
Weave&Finish: |
UD / 3K / 12K, matte or glossy |
| Brake track: |
without |
Nipple position: |
external |
| Tubeless: |
compatible |
Material: |
Toray T700 carbon |
| Max weight limit: |
130kg |
Weight: |
Please refer to the table below for weight |
| Tyre pressure: |
120psi max |
Max spoke tension: |
180KGf |
| ERD: |
579/569/559/549mm (NOT include nipple head part) |
Decal: |
customize |
| Standard: |
EN |
Warranty: |
1 year under normal using |

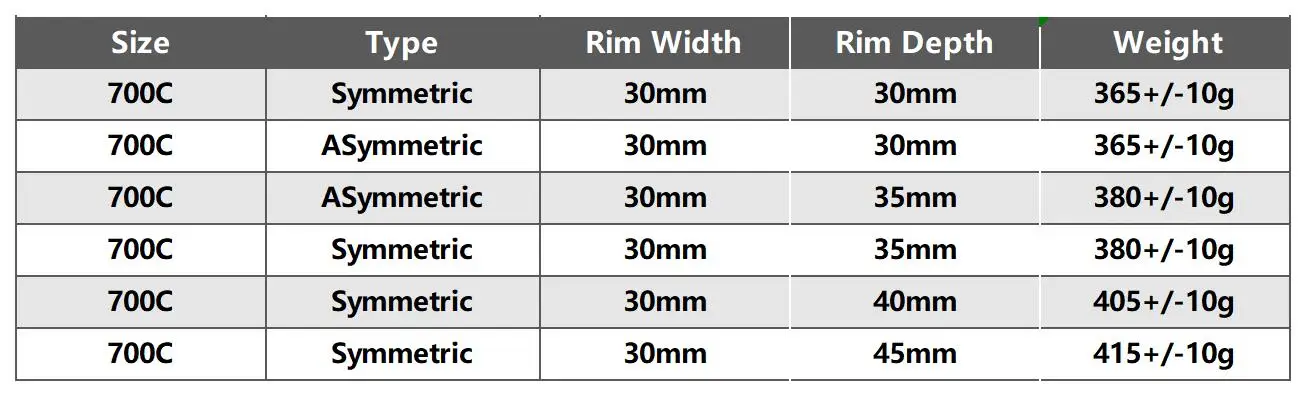

Rims weight List
Notes
If this link is not what you want, please contact the seller and I will recommend the carbon rims you want for you.
We have carbon rims in many specifications:
MTB: XC, AM, ENDURO, DH (E.g: 29er / 27.5er, Symmetric / ASymmetric, 30×25, 30×30, 33×30, 34×30, 34×20, 35×25, 36×25, 36×30, 40×30 and so on)
Road: Disc Brake or V Brake for Racing Bike, Gravel Bike, Topstone, Track Bike
(E.g: 700C / 650, Symmetric / ASymmetric, Hook / Hookless, Depth: 30mm, 35mm, 38mm, 40mm, 45mm, 50mm, 55mm, 60mm, 88mm; Width: 23mm, 25mm, 28mm, 30mm; and so on)
Appearance introduction
More optional specifications
- Nipples position : External, Internal
- Weave : UD, 3K, 12K, 3K Twill, 12K Twill, Marble
- Finish : Matte or Glossy
- Brake: Disc or Rim brake
- Rim Type: Outer holes or Not outer holes ( tapeless )
More detailed pictures
