RV, ambulance, special vehicle, household UPS, lithium energy storage system, communication data room, elevator emergency power supply, outdoor, military and other environment and equipment.
Mobile or standby power supply in the area without power supply.
Off-grid solar or wind power generation system.
Solar or wind power plant with municipal electricity priority.
Solar or wind turbine with inverter priority.
Applicable to all inductive loads, capacitive loads and resistive loads: water pump, generator, cutting machine, electric power plant, air conditioner, refrigerator, washing machine, television and other appliances.

[Pure Sine Wave Inverter] Inverter delivering 3000W continuous 6000W peak power of real pure sine wave, as stable as mains power, good home power backup.
[3000W 24/48Vv to 110/120/220/230/240V Inverter] Transferring 12/24/48 Volt DC to 230/240 Volt AC, 50Hz/60Hz Frequency,
[Inverter with LED display] Dual intelligent cooling fan with temperature control. LED indicators let you know the working status at any time!
[Home Inverter and Car Inverter] Widely used for camping, RV, truck, car, off-grid solar power system and household appliances. It is easy to transfer DC power from battery to AC power to support your laptop, digital cameras, fans, game consoles, GPS, LED LIGHT, lamps, drawing, etc. A good choice even in the event of a power failure!

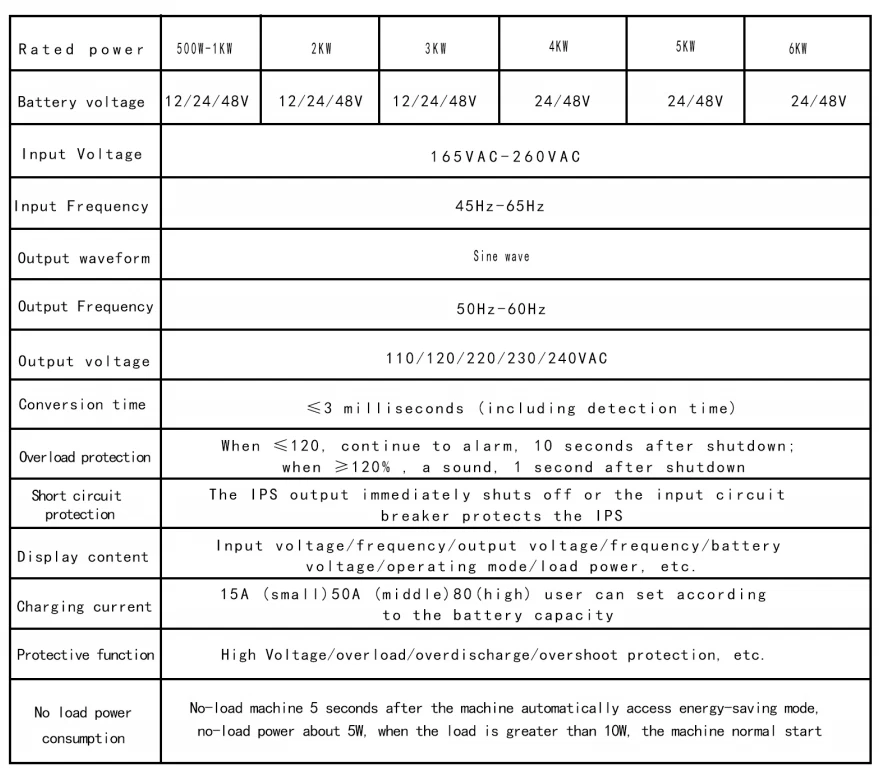

Specification:
Model: WT-SW-3000W
Rated power: 3000W
Peak power: 6000W
Battery voltage: 12/24/48VDC
Working mode: Pv (photovoltaic priority) / AC (AC priority) optional<br>
Machine size: 522818cm

Input:
Mains input voltage range: 160-280VAC
Mains input frequency range: 45Hz-65Hz
DC input voltage range: 10.5VDC-15VDC (single cell voltage)
Output:
Inverter output efficiency: inverter efficiency 90%
Inverter output voltage: 110/120/220/230V/240VAC +1% battery mode
Inverter output frequency: 50Hz/60Hz
Inverter output waveform: Pure sine wave
Mains output voltage range: 220V/230V/240VAC+10%
Mains output frequency range: Intelligent detection
Advertisement:
Show grid priority status: market operation
Show battery status: Battery operated
Mains input voltage display: numerical value
AC output voltage display: numerical value
Display Output Load: Percentage
View battery voltage: values and percentages
Display priority mode: Power priority mode, battery priority mode and sleep mode can be selected on the screen
Show battery type: lead acid, lithium battery loptional setting
Show charging current: Small, medium and high loptional setting
Mains charge display: open or close
UPS Priority DC: Grid priority, inverter backup
UPS priority AC: Inverter priority, grid backup
Battery Compatibility: Lead Acid Battery / Lithium Battery
Charging mode: three-stage charging: constant current, constant voltage and floating charging
Intelligent fan control: implement intelligent speed control according to the internal temperature of the machine
Switching time: <3ms
Working environment temperature/humidity: Intelligent detection
Pure copper toroidal transformer: Standard
AVR voltage stabilization function: standard

Choose the type of battery
lf the battery is connected to a Leadacid battery or gel battery, set the corresponding lead,Lead acid battery,acid or gel battery mode on startup.

1. lf the battery is connected to thelithium iron phosphate battery, please set the lithium iron phosphate battery mode when booting, and select thecorresponding number of batteries inthe settings.

2.lf it is connected to the ternary lithiumbattery, please set the ternary lithium battery mode when booting; and select the corresponding nunber of batteries in the settings.

Step-by-step installation instructions
1. Before wiring is installed：
（1）Check the machine first ，make sure
（2）Turn on the machine key Power input protection switch INVERTER output protection switch
（3）Both are off.

2. Connect the battery
Red Battery indicates the positive Battery input, and black Battery- indicates the negative Battery input
（1）: Positive and negative electrodes can not be reversed, self-installation of Battery Protection Switches; (12V Machine, the battery can only connect 12V battery; 24V machine can only connect 24V battery; 48V machine can only connect 48V battery)
（2）: lf it is connected to the lithium battery, switch to the corresponding type of lithium battery mode after boot;

3. Connect pv panels
Red Pv is photovoltaic input positive pole, red PV- is photovoltaic input negative pole.
Note: The PV input voltage can not be more than 180V, the PV 0pen Circuit Voltage series value to calculate; different battery voltage requirements of pv input voltage range please refer to the specific technical parameters table.

4. Connect to mains power
AC INPUT is power or alternator INPUT,L for Fire Line,N for zero line，G for Ground Line;

5.Connect the load (electrical)
AC OUTPUT for inverter OUTPUT，L stands for Firewire,N stands for Zero Line,G stands for ground line, self-installed AC OUTPUT protection switch
6. Carefully check the wiring again, to prevent faulty connection leakage or short-circuit ;
7.First Press the power-on Button,the machine beeps,followed by the listing of powerinput protection switches, photovoltaic switches,and all the switches installed withpride;
8.Check the data of the LCD screen to make sure that the machine is working properly and has beeninstalled correctly (self-installed fault causesthe machine to be unable to work,intentionally damaged, self-dismantling, force majeure factors,above are not included in the scope of free maintenance)
9.Independent can not confirm the installation,please contact the factory customer service and Technical Personnel ;
[Service] You will receive: 1 * Hybrid inverter; 1 * Instruction Manual; several spare fuses to exchange.
