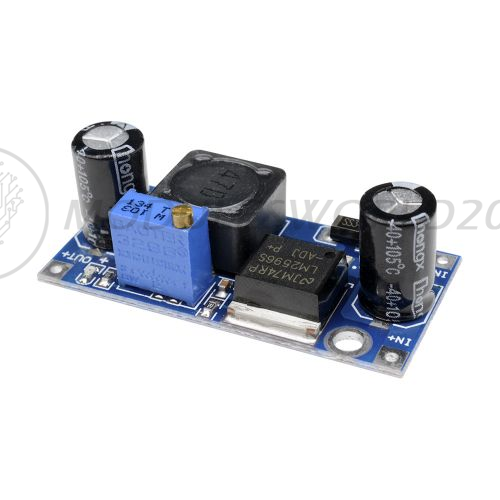

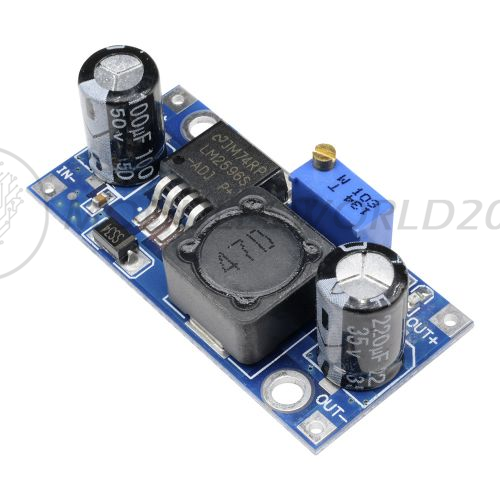

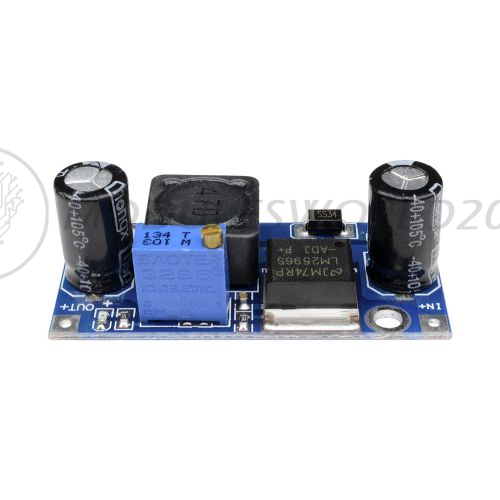

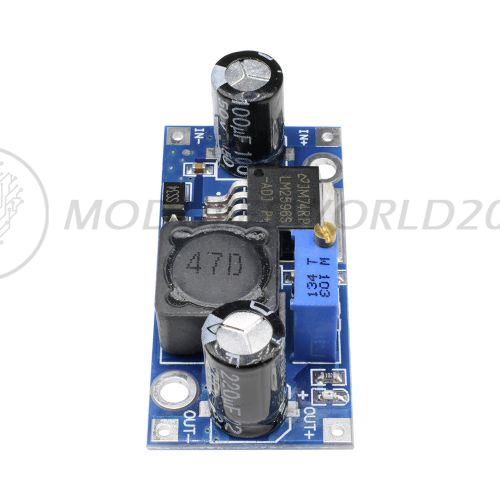

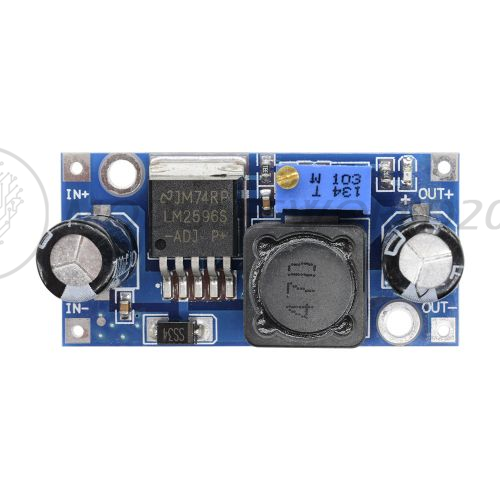

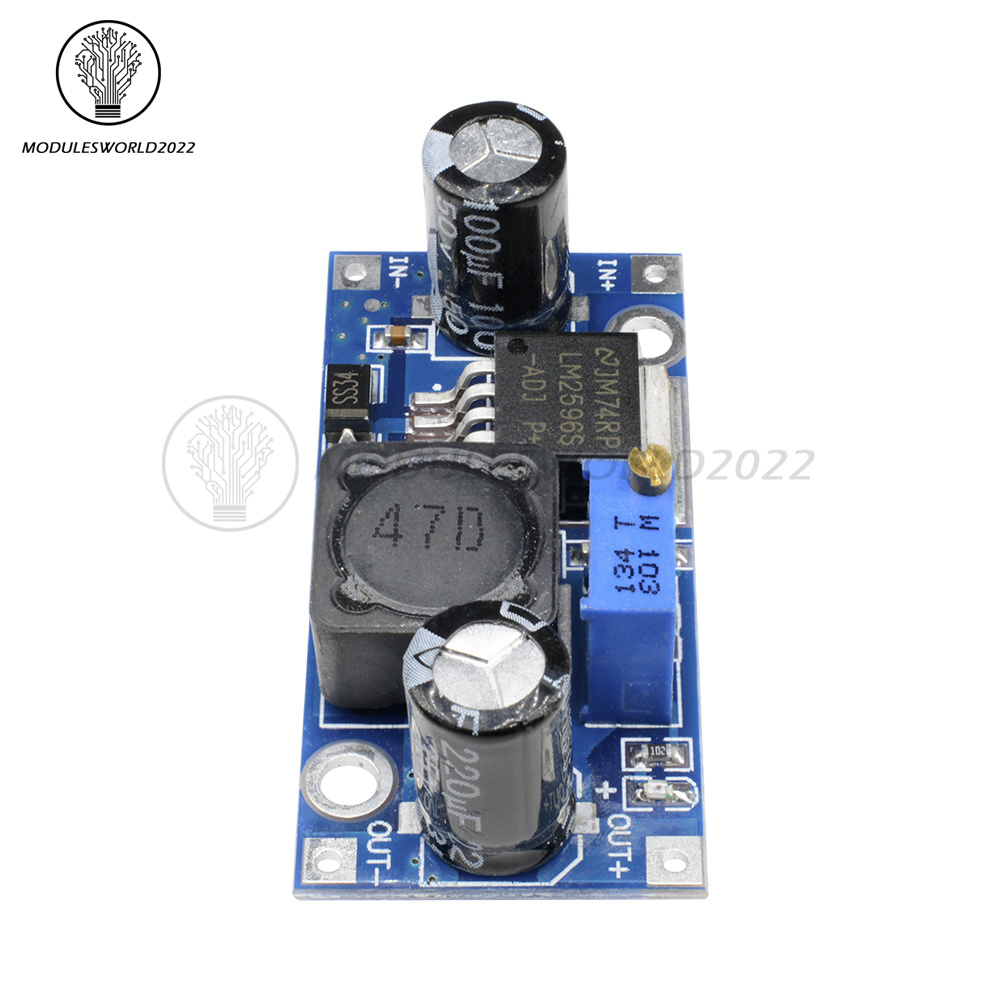

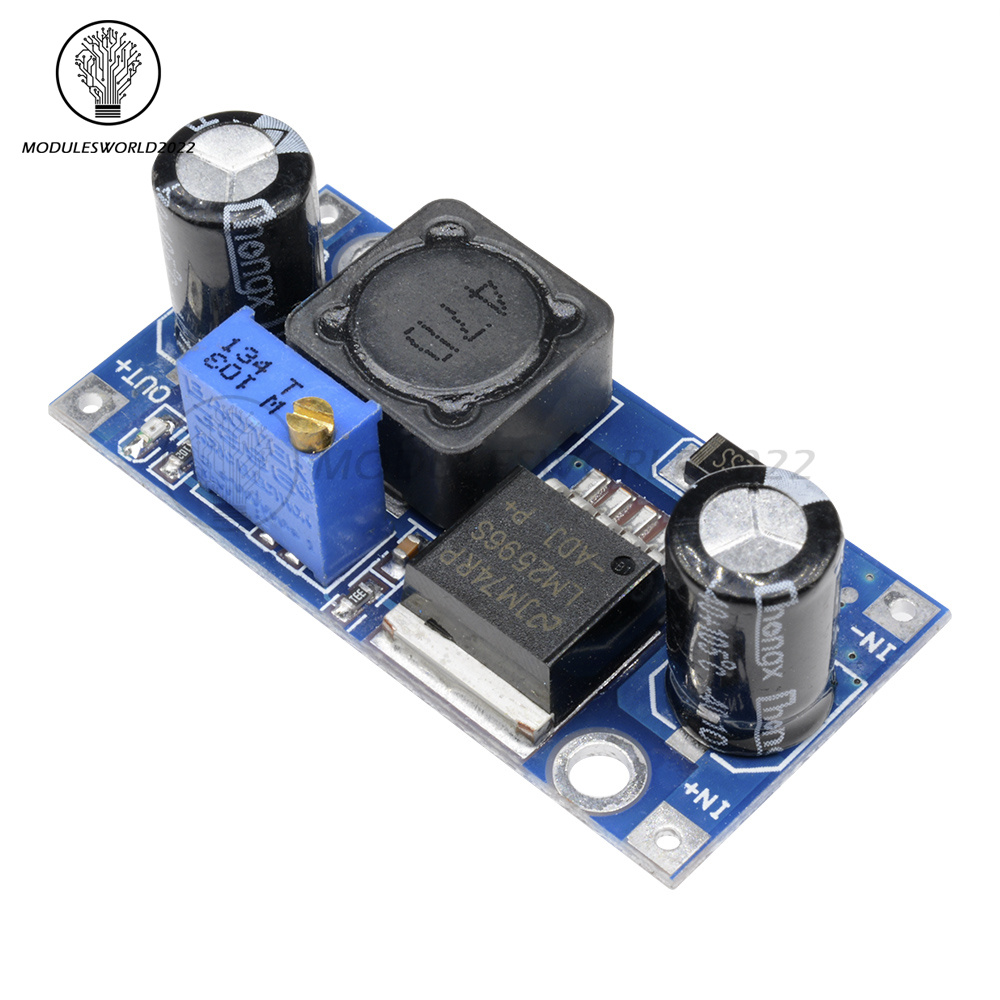

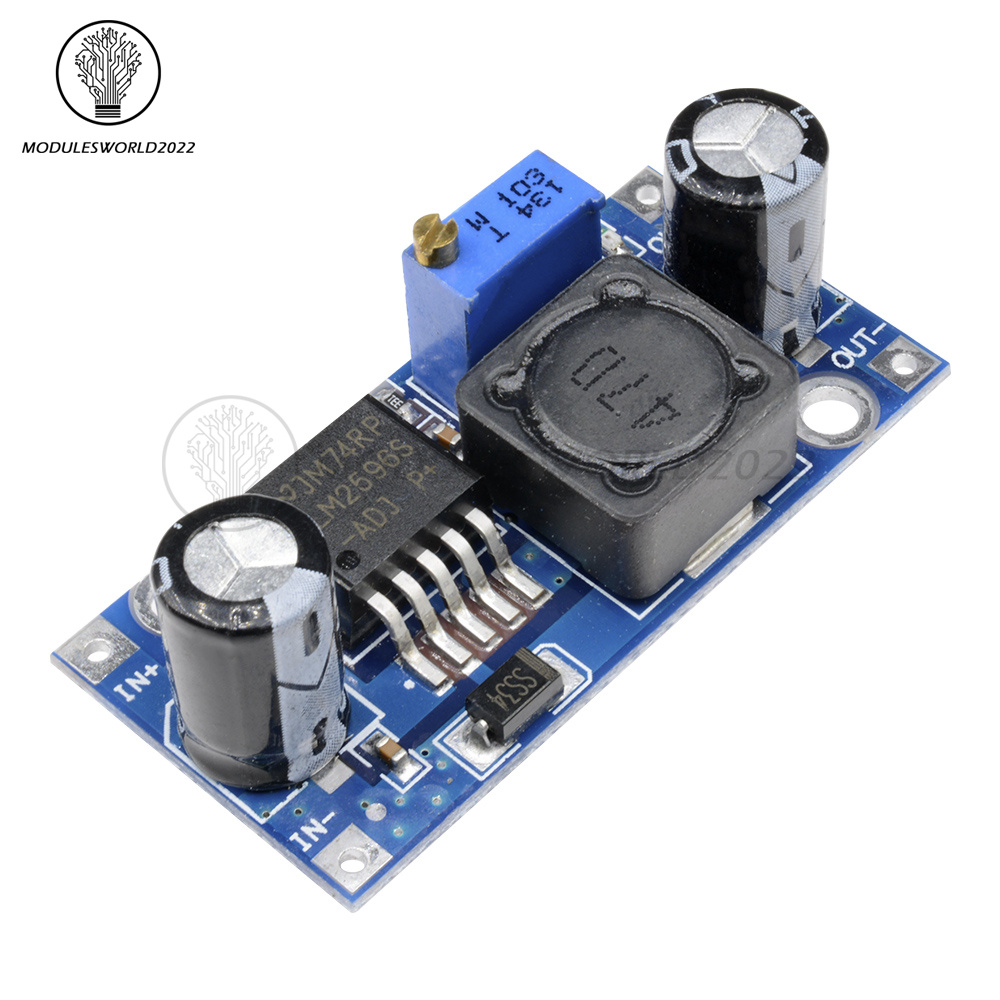

LM2596S DC-DC Buck Power Module 3A Adjustable Buck Module Voltage Regulator Super LM2576
Dense perforations for high heat dissipation!
Add X7R high Q high-frequency bypass capacitors at input and output respectively, super EMC performance!
Input voltage range: DC 3.2V to 35V (the input voltage must be 1.5V higher than the output voltage. Cannot be boosted)
Output voltage range: DC 1.25V to 30V Continuously adjustable voltage, high efficiency (maximum 92%) Maximum output current is 3A.
Measured 12V input, 5V output current 1A when the load regulation rate is less than 1%.
Note: Input and output can not be reversed, reverse may burn the chip;
This is a step-down module, the input voltage must be higher than the output voltage;
Output 2A or less can be a long time without a heat sink Output current greater than 2.5A (or output power greater than 10W) for a long time, please add a heat sink.
Electrical parameters:
Input: DC 3.2V to 35V (The input voltage must be 1.25V higher than the output voltage. No boosting)
Output: DC 1.25V to 30V Voltage continuously adjustable, high efficiency maximum output current is 3A.
Features: All SANYO solid capacitors, 36u thickened circuit board, high power inductors with high Q value Output LED indicator.

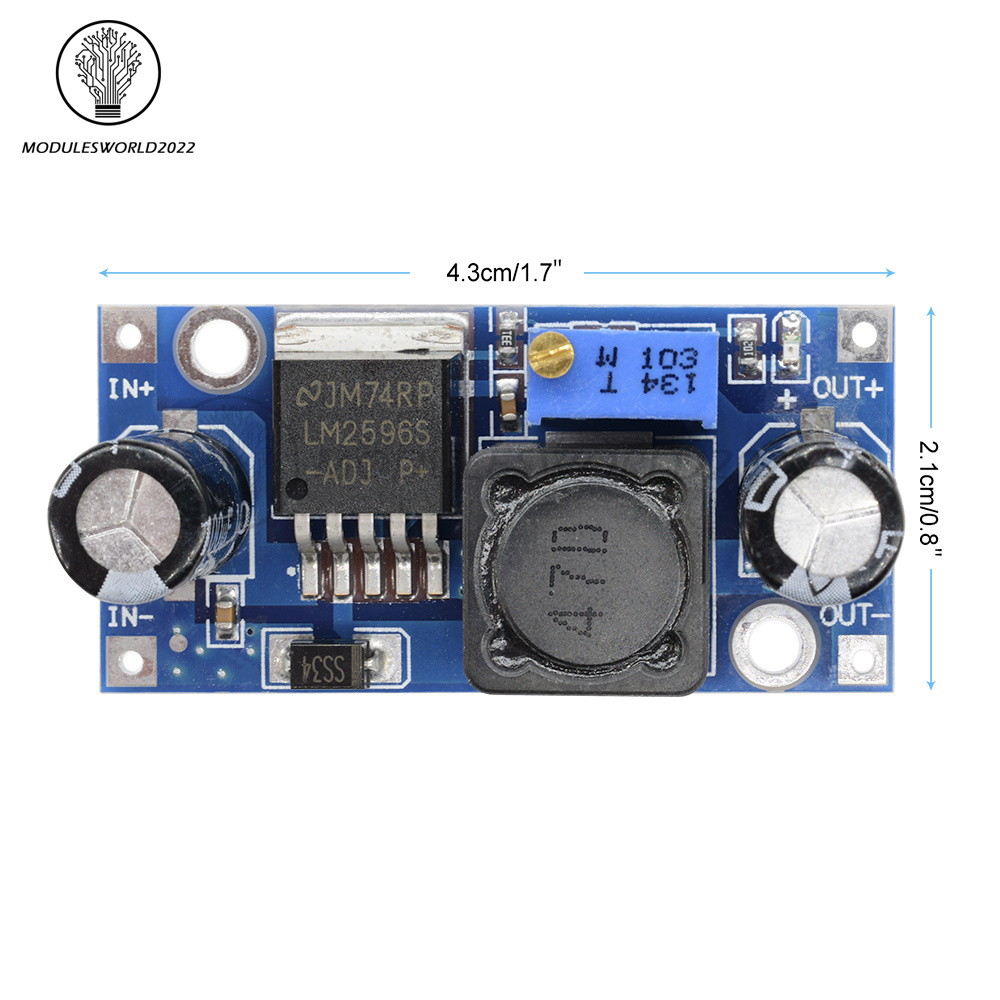

Dimensions: 41(L)*20(W)*14(H) mm (including potentiometer) DC-DC with locating holes with LED indicators
Usage:
Access to the power supply (3-35V), adjust the blue potentiometer knob (generally clockwise rotation boost, counterclockwise rotation buck) and use a multimeter to monitor the output voltage to reach the required voltage.
Wiring method:
1. Welding, directly weld the power cord to the input (output) port;
2. Welding pins, can be inserted through the lead into the pins or inserted in the hole board to use; or add pins and then directly welded to the PCB.

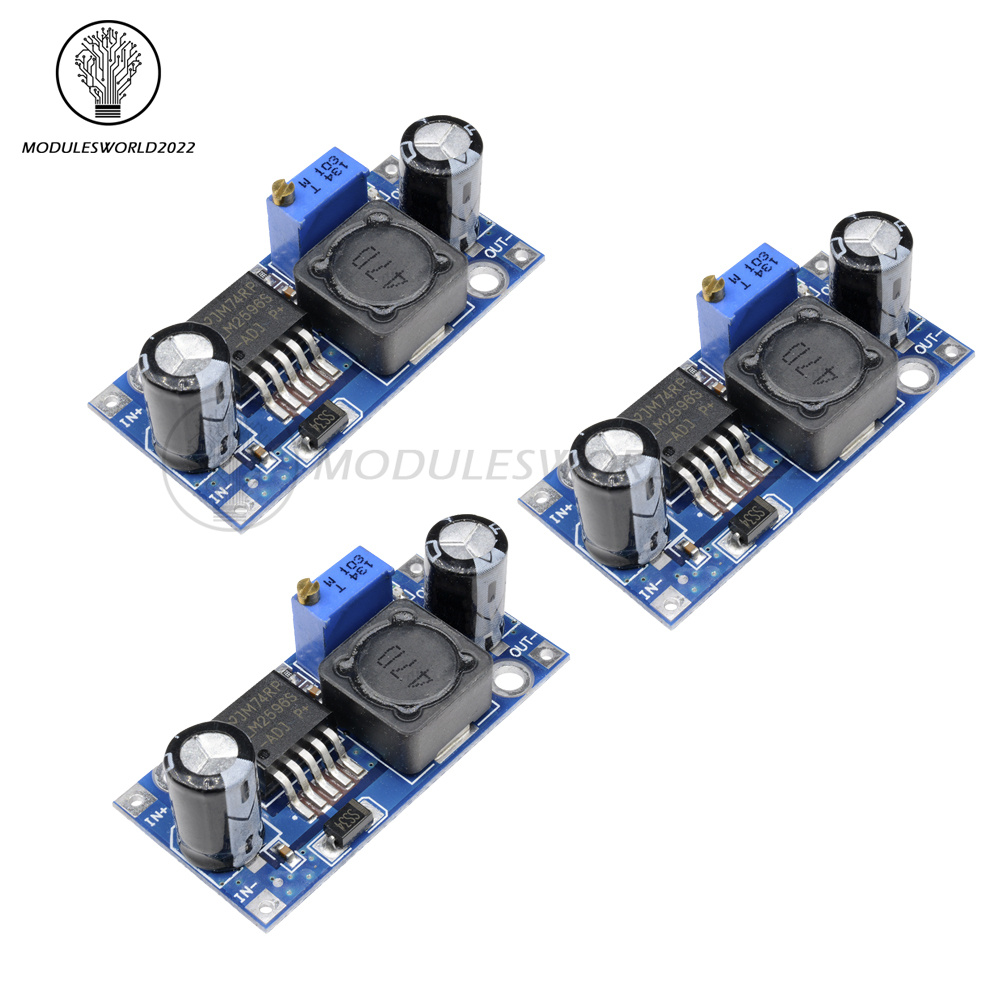

3 x Modules
