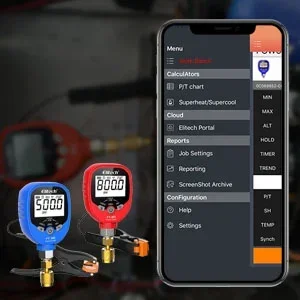

Free App (ioS and Android)



  • Real-time display of current pressure value

  • Auto calculation of the degree of super-heat and sub-cool

  • Settable high/low pressure alarm with App notification

  • Data report and graph in Excel and PDF formats.

  • Wireless bluetooth transmission distance: 98.5 feet

  • Remote unit conversion: psi, inHg, kg/cm⊃2;, cmHg, bar, kPa, Mpa




140 Refrigerant Types



  • It supports more than 87 refrigerant types, which includes but is not limited to R410A,  R22, R12 etc.

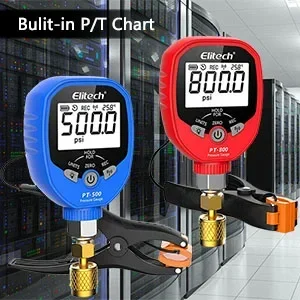

  • Built-in P/T Chart in App is easy for you to select targeted refrigerant gas.

  • Compatible Refrigerants: R152A, R402B, R12, R161, R403A, R170, R403B, R404A, R1234ze, R218,R406A, R124, R22, R407A, R125, R23, R407B, R13, R290, R407C,, R32, R407D, R14, R401A, R407E, R141B, R401B, R407F, R142B, R401C, R408A, R143A, R402A, R409A, R409B, R41, R410A, R410B, R412A, R413A, R414A,R414B, R415B, R416A, R417A, R419A, R420A, R421A, R421B, R422A,R422B, R422C, R422D, R423A, R427A, R437A, R441A, R442A, R443A, R444A, R448A, R449A, R449B, R450A, R452A, R455A, R50, R500, R502, R503, R504,R507A,R508A, R508B, R509A, R513A, R600, R600a, R601, R601a, R740, R744, etc.



Package includes

  • 1 x PT-500 Wireless Digital Pressure Gauge

  • 1 x PT-800 Wireless Digital Pressure Gauge

  • 2 x Clamp-on temperature sensor

  • 2 x 1/4'' Male adapter

  • 2 x 1/4'' Female adapter

  • 1 x Bent adapter

  • 1 x T-joint

  • 2 x Hook&Loop


Pressure Specifications


  • Measuring Range: -14.5~500psi/800psi

  • Resolution: 0.5psi

  • Accuracy: ±0.5%FS

  • Operating Temperature: 0℉~140℉(-178°C~60°C)

  • Offline Records: 9,943 readings

  • Fitting: 1/8'' NPT

  • Battery Life: 600h


Clamp-on temperature sensor specifications


  • Sensor Type: NTC

  • Measuring Range: -58℉~302℉ (-50°C~150°C)

  • Accuracy: ±0.3°C

  • Resolution:0.1°C

  • Sensor Cable Length: 79''

  • Maximum Clamp Opening: 1.5''
