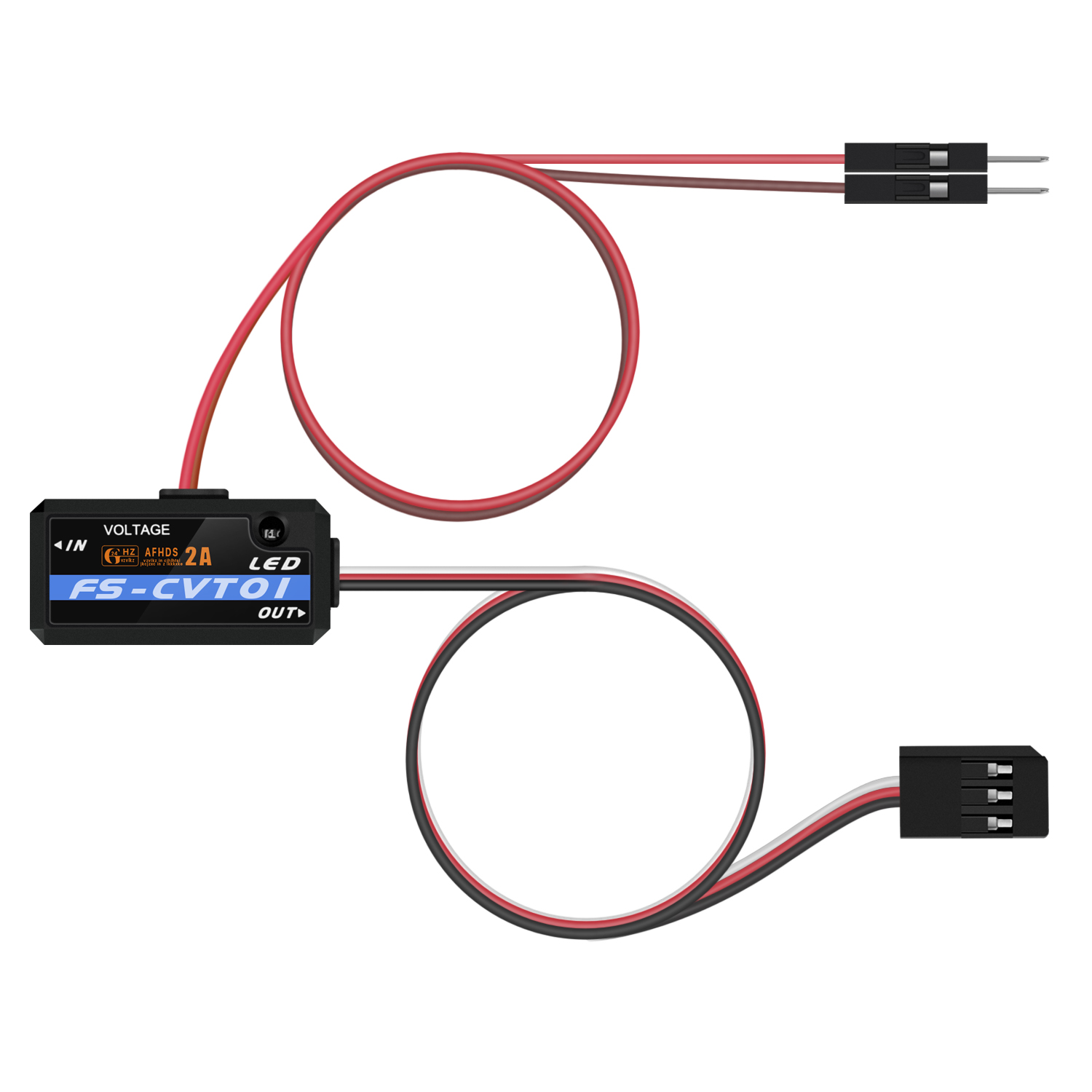

FlySky FS-CVT01 Voltage Collection Battery Sensor Module for Flysky Receiver Box iA6B iA10 PL18 NV14 FrG4 Noble NB4 i10 i8 i6s i6x i6 Terminal Detection Reverse Negative Value Model Airplane Car Boat

FlySky FS-CVT01 Voltage Collection Battery Sensor Module for Flysky Receiver Box iA6B iA10 PL18 NV14 FrG4 Noble NB4 i10 i8 i6s i6x i6 Terminal Detection Reverse Negative Value Model Airplane Car Boat

Introduction:

Detection of anti-anti-function terminal: Yes (reverse will show a negative value)
Adaptation receiver: iA6B (directly), iA10 (need to use conversion line, within the module package contains C header)

Feature:

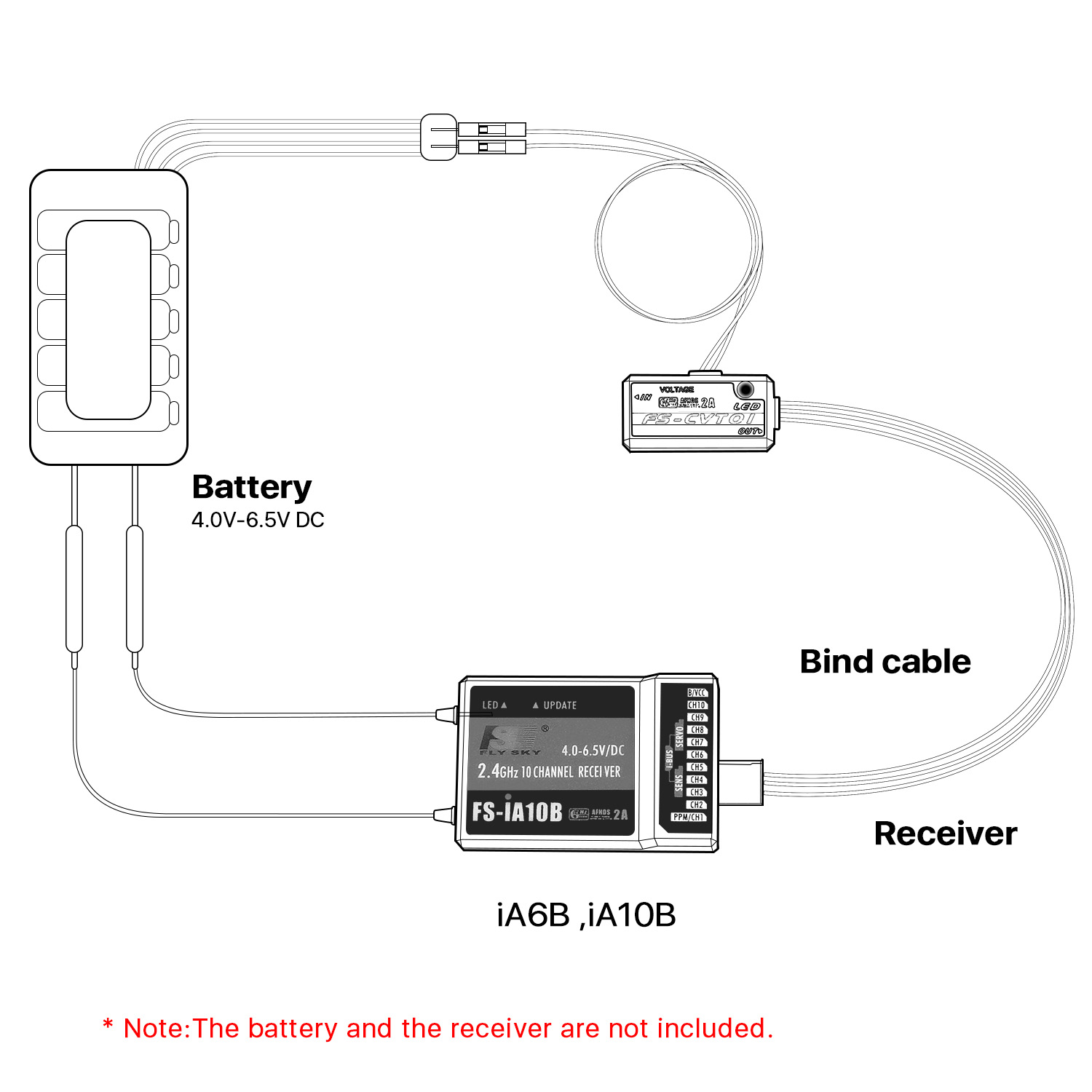

  • Lightweight with Great Features - Monitor the model’s battery voltage. The battery voltage can be monitored through from the transmitter. Warnings can be set.

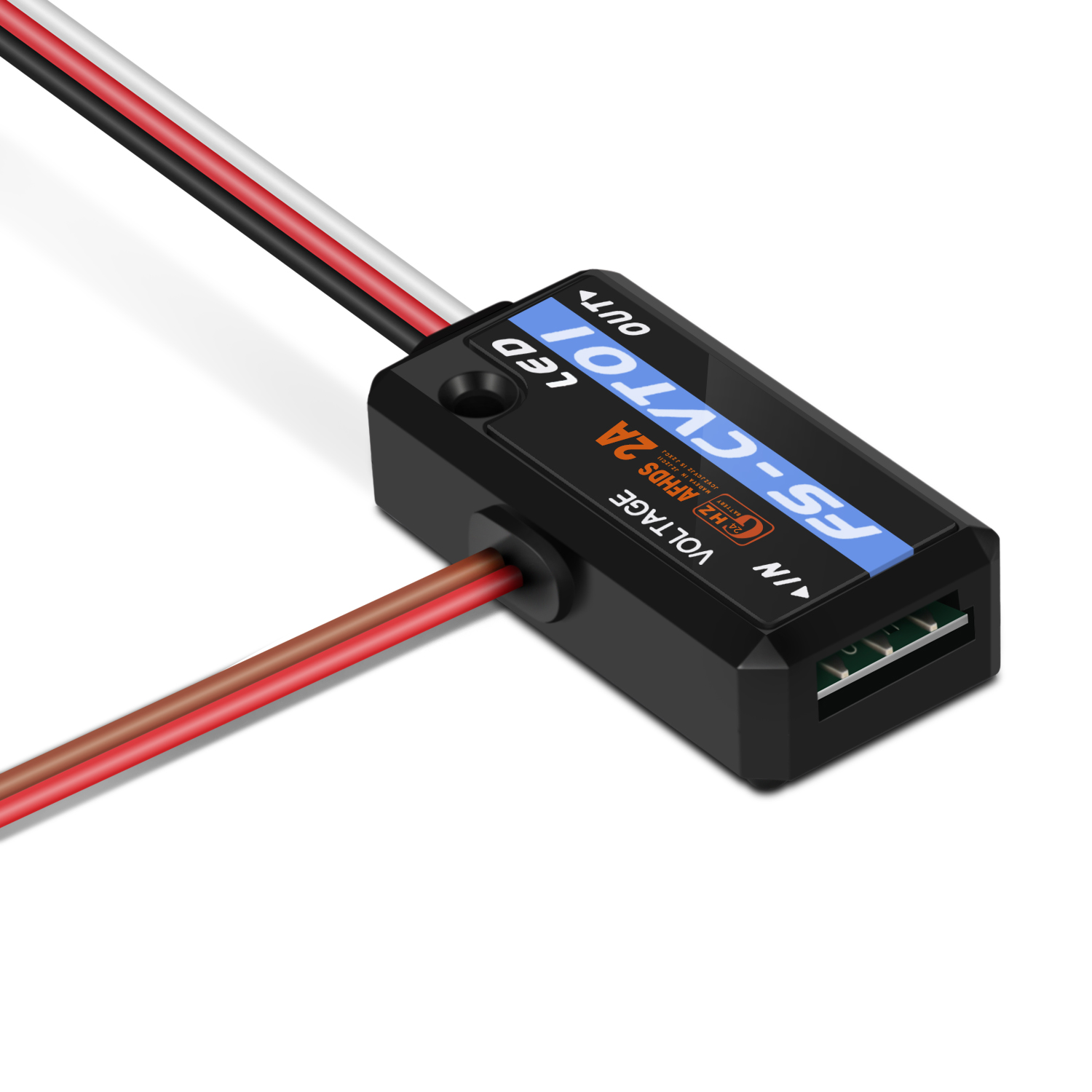

  • Versatile Applications - Boat, Aircraft, RC Cars, Buggies, Truggies, Short Course Trucks, and everything in-between
  • Detection of anti-anti-function terminal: Yes (reverse will show a negative value).
  • Great way to check your battery via your transmitter.

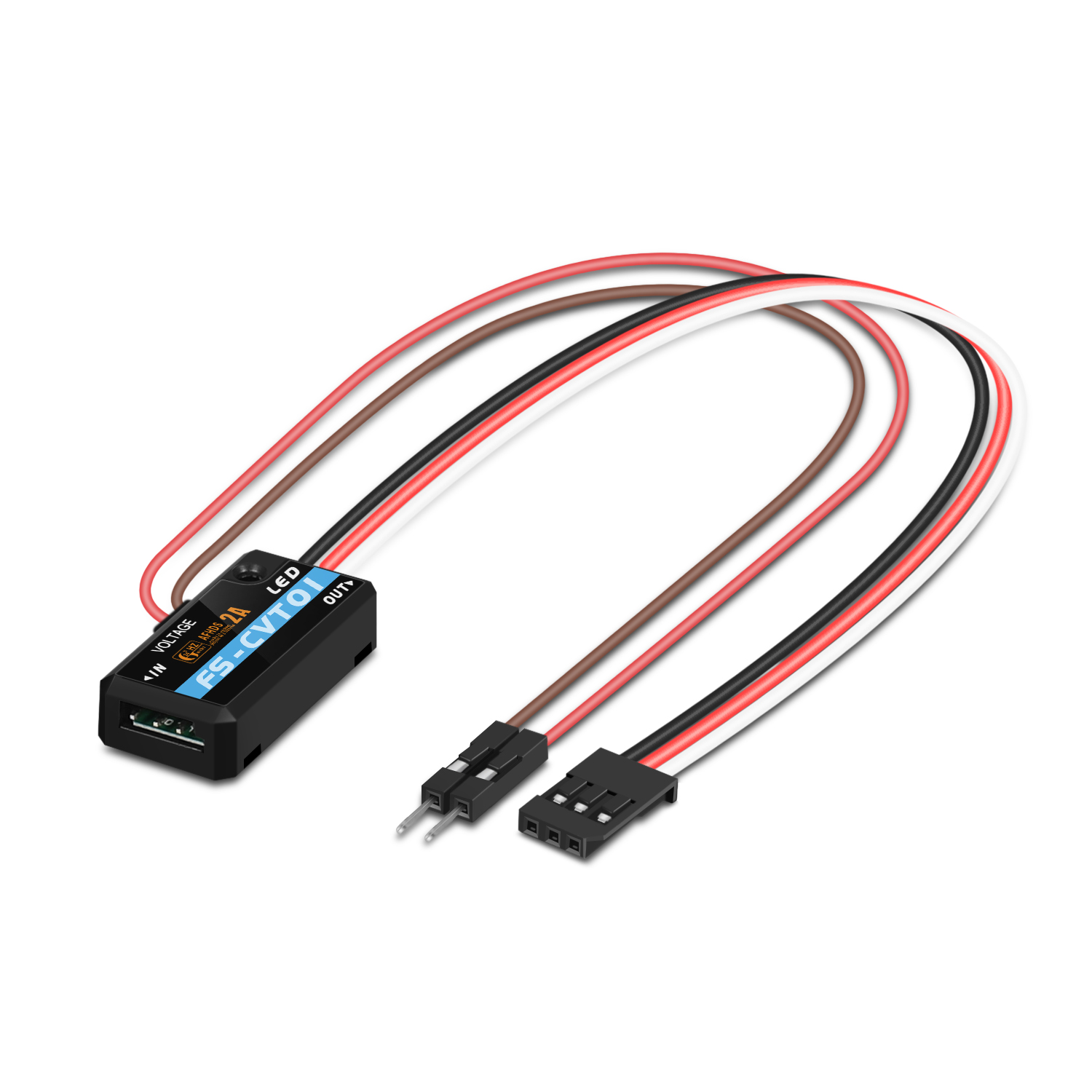

  • Adaptation receiver: iA6B (directly), iA10 (need to use conversion line, within the module package contains C header).

Specification:

  • Brand Name: Flysky
  • Item Name: FS-CVT01
  • Acquisition voltage range: -100 ~ 100V DC
  • Accuracy: 0.1V DC
  • Input Power: 9mA (TYPE)
  • Number of series: 15 (MAX)
  • Weight: 6.0 g
  • Input Power: 4.0-6.5V DC

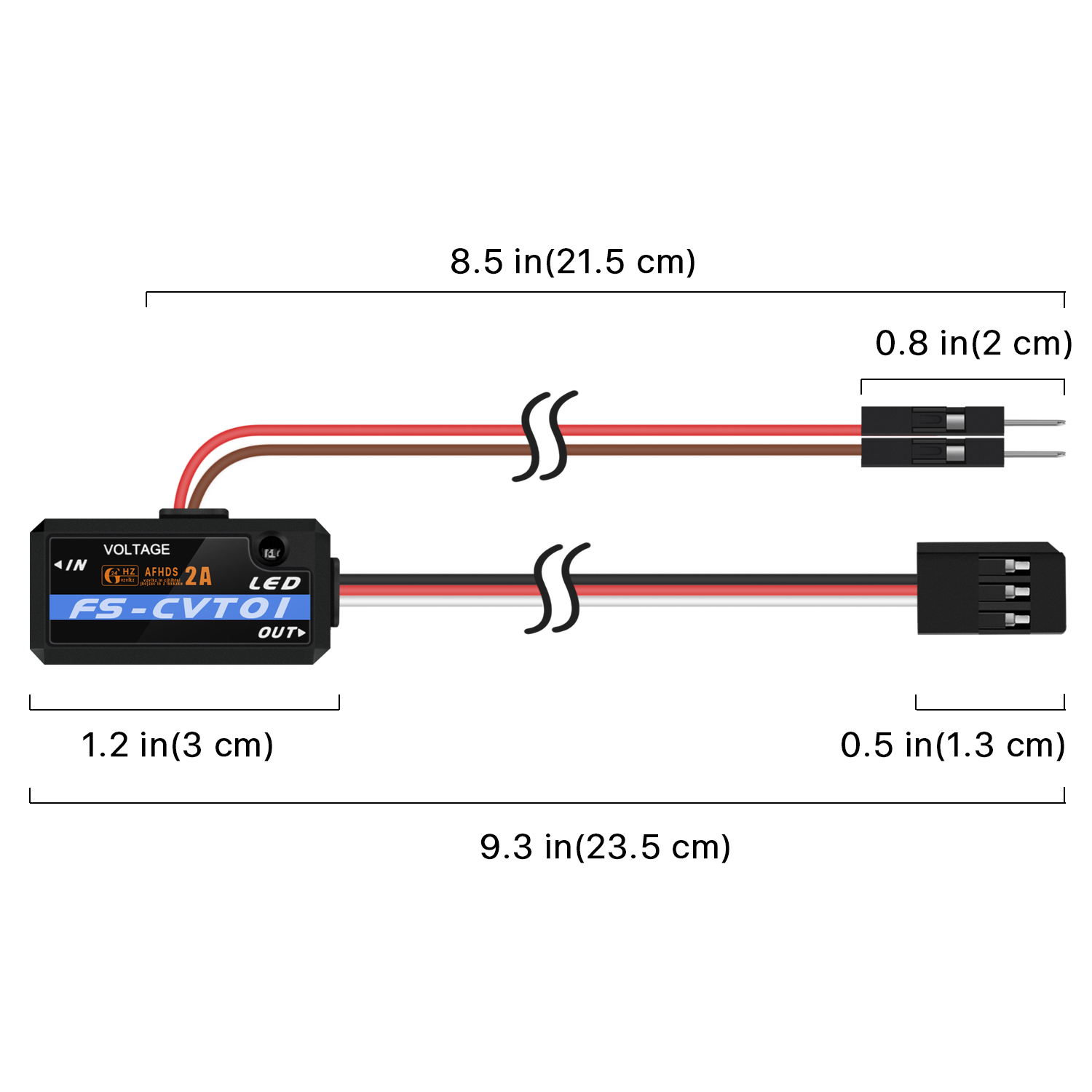

  • Dimensions: 31 * 15 * 8.5 mm
  • Color: Black

Package Content:

  • 1x Flysky FS-CVT01 voltage display module
