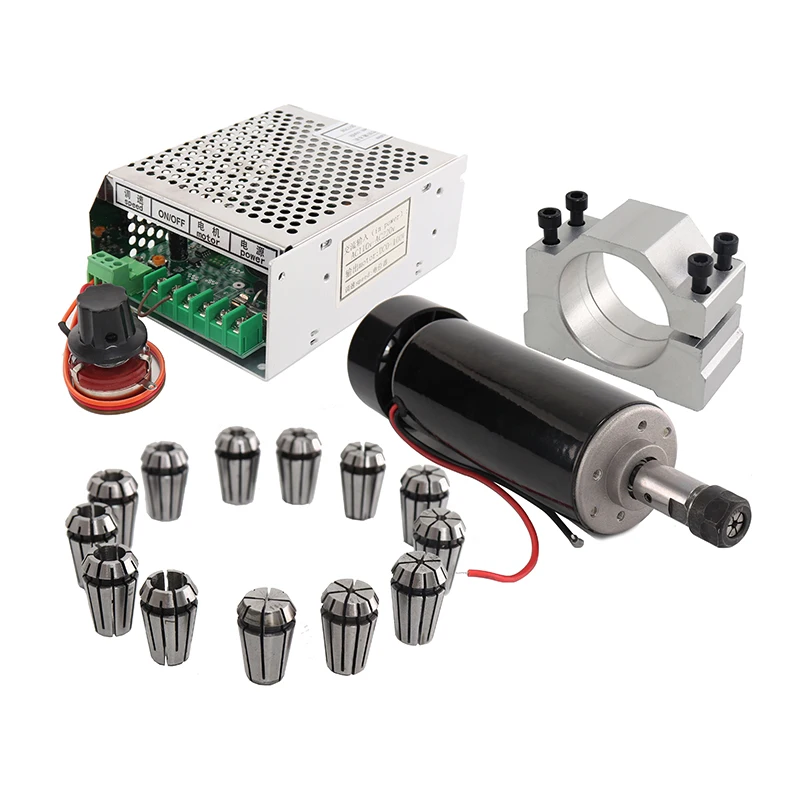

Name: High-speed DC air-cooled motor
Model: 500W
Working voltage: DC 100V
Power: 500W
Speed: 3000-12000RPM
Torque: 5500G/CM
Insulation resistance: > 2 megohms
Dielectric strength: 400V
Diameter: 52mm
Chuck part length: 45MM
Diameter of chuck part: 16mm
Motor length: 200MM
High precision spindle runout: 0.01-0.03
Chuck: 3.175MM
working environment:
1. Ambient air temperature: -10～40℃
2. The relative humidity of the air is below 85%, and the ventilation is good
3. It is installed in a place with good ventilation, no violent shock, no vibration, no explosive dangerous medium and no conductive metal powder.
Note: This motor has quiet operation, low price, small size and high speed, and the rear of the motor is equipped with a cooling fan, which can work for a long time with confidence!
