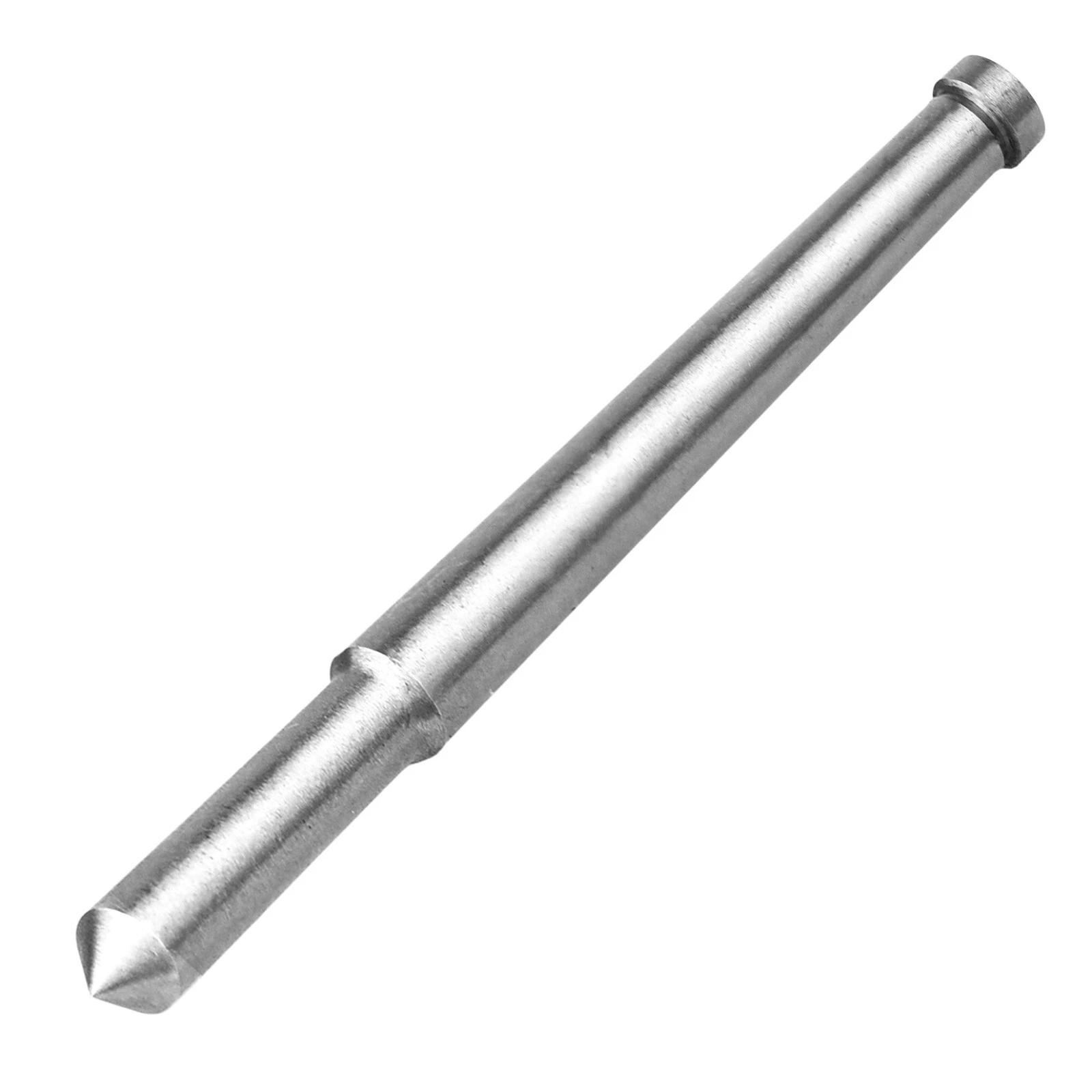

Guiding Pilot Pin;

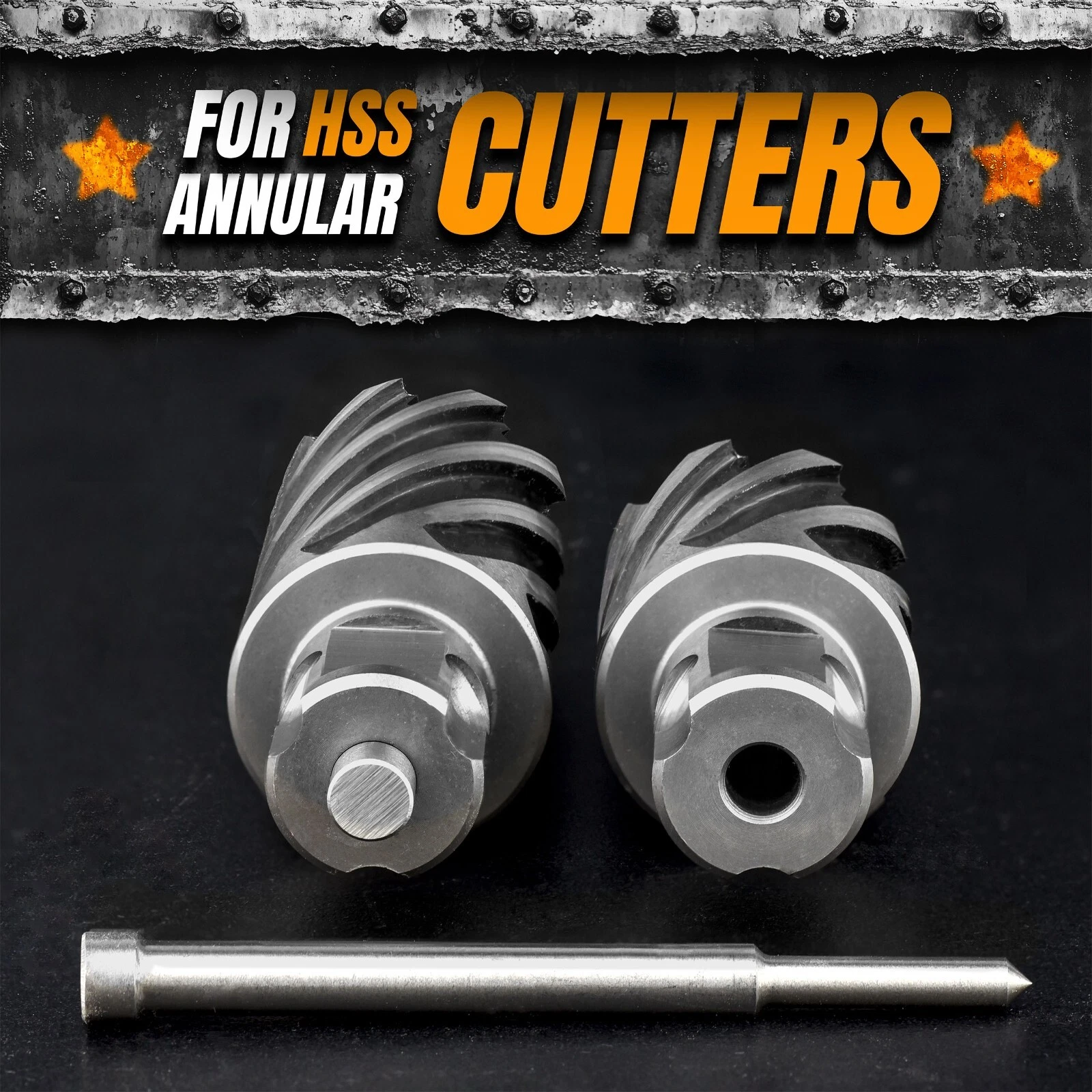

for HSS Anular Cutters;

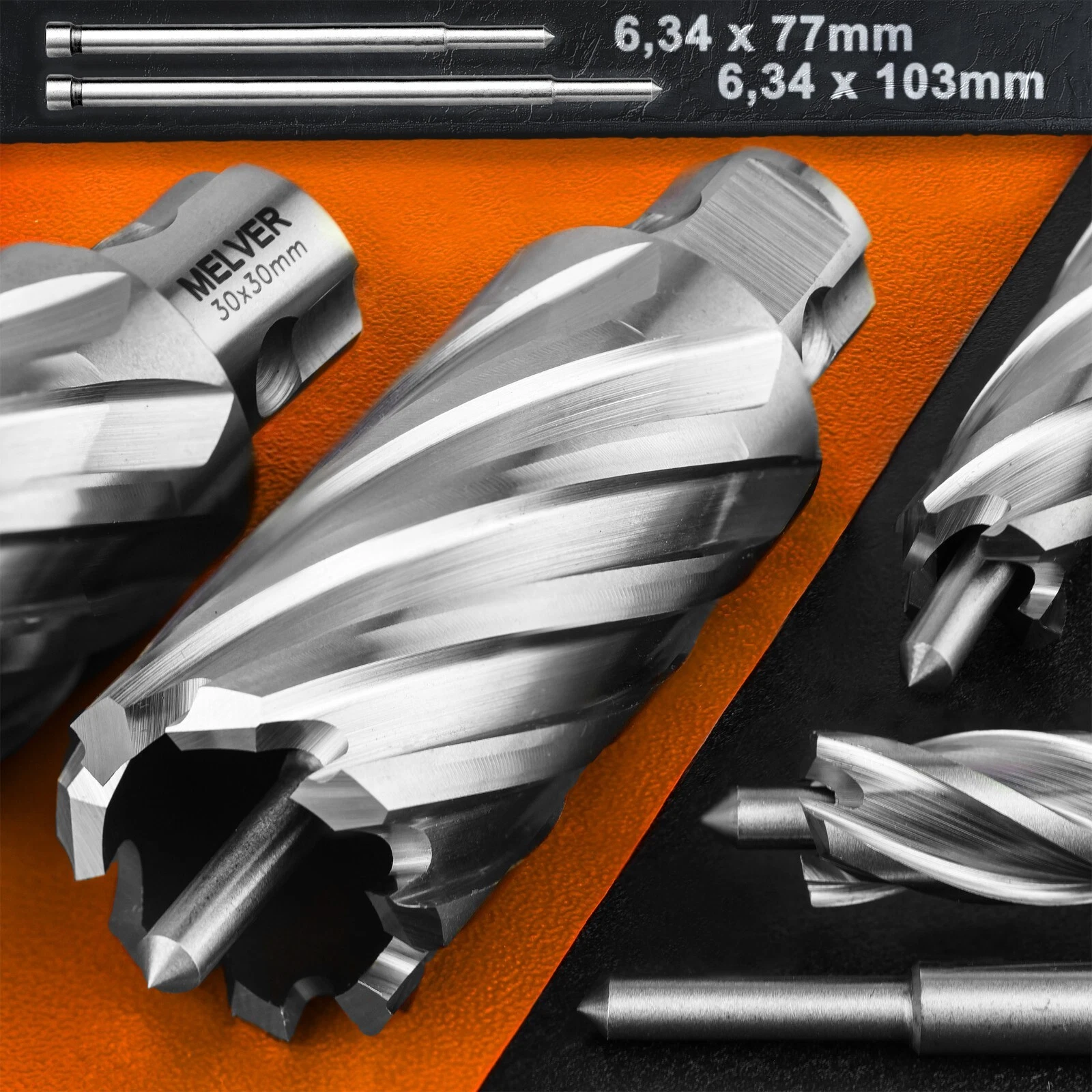

6.34 x 77 mm for Anular Cutters [30 mm]
6.34 x 103 mm for Anular Cutters [55 mm]
special features
- High-quality hardened steel
- For a drill bit with a working length of 30 mm or 55 mm (both variations are available here)

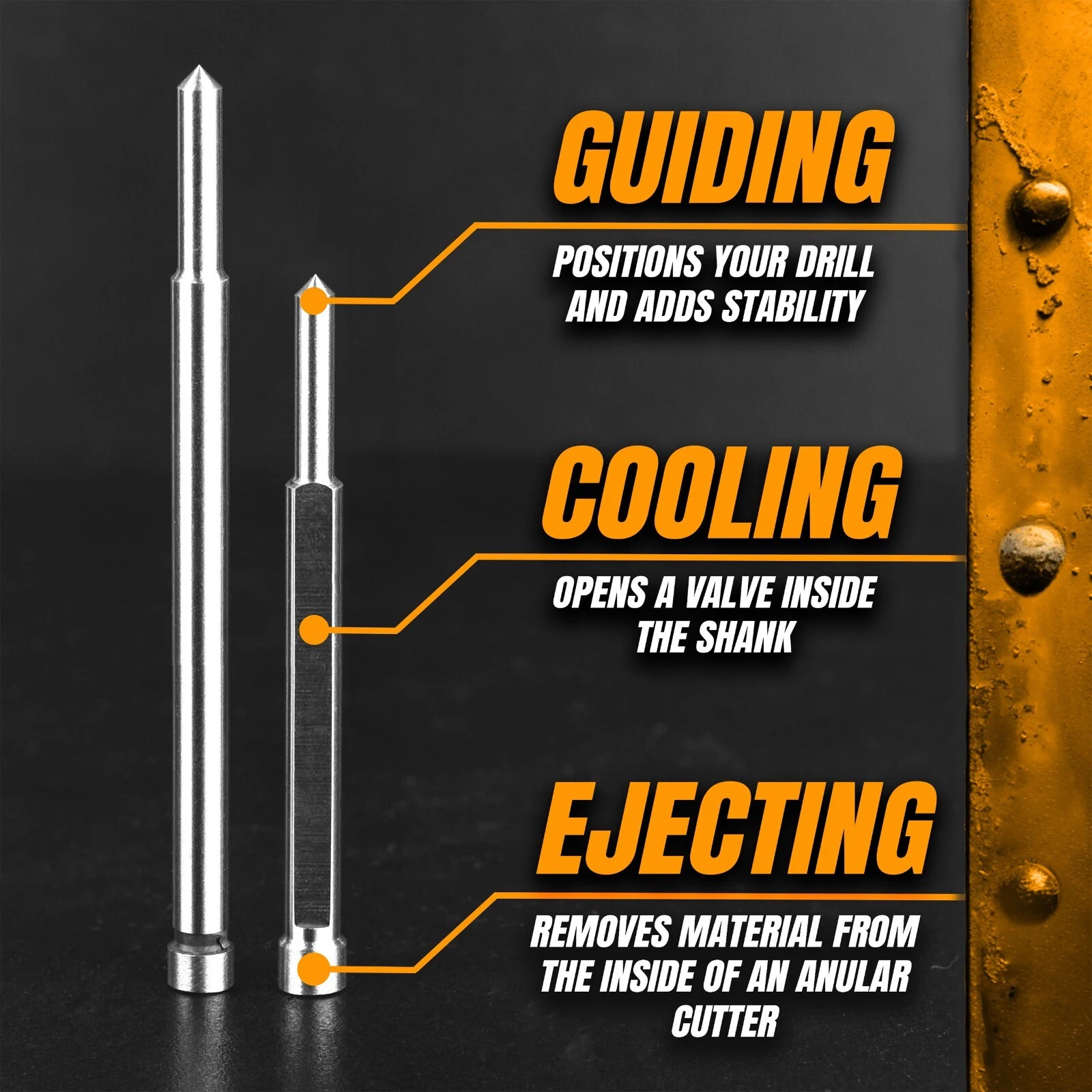

- Functions as a positioning and stabilising element during cutting
- Allows cooling liquid to flow into the drilled hole by opening the valve inside the Weldon shank
- Ejects the remaining material from inside the core drill bit
- Ideal for drilling holes using melver brand electromagnetic drills
ADDAPPLICATIONS (main and additional)
- Standard and alloy steel (with strength up to 1100N/mm²)
- Stainless steel
- Brass
- Aluminium
- Bronze
- Plastics
D1 [diameter]:
5 mm
D2 [diameter]:
8 mm
D3 [pilot pin diameter]:
6,34 mm
L1 [total length]:
30 mm or 55 mm (variants)
Material:
HSS (high-speed steel)
