Overview

EssentialGear Product Line

Overview

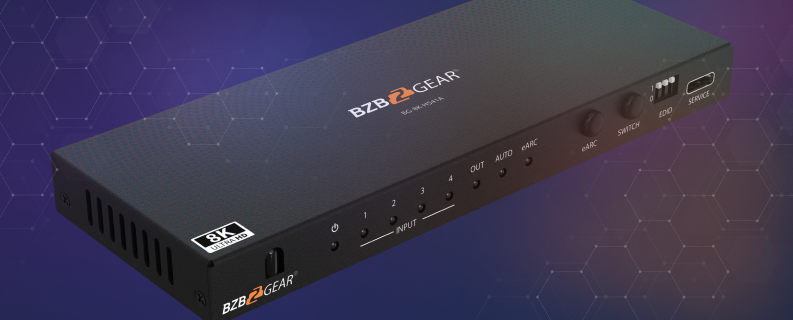

The BG-8K-HS41A 48Gbps 4x1 HDMI Switcher is a high-performance solution designed to seamlessly switch between four HDMI source signals on a single HDMI display. Capable of supporting video resolutions up to 8K@60Hz 4:2:0, this switcher is equipped with cutting-edge features to enhance your audiovisual experience. Its advanced EDID management, CEC control, ARC/eARC support, and comprehensive audio de-embedding options make it an excellent choice for home entertainment, gaming, and more.
U.S.-Based Company
3-Year Warranty
EssentialGear Product Line

Features-in-Depth

Featuring HDCP 2.3 compliance, the BG-8K-HS41A ensures compatibility with the latest copy protection standards for secure playback. It supports high bandwidth of 48Gbps FRL and 18Gbps TMDS, accommodating resolutions up to 8K@60Hz 4:2:0 12bit, 8K@30Hz 4:4:4 12bit, and 4K@120Hz 4:4:4 12bit, adhering to HDMI 2.1 specifications. The switcher also includes HDMI 2.1 protocol support, featuring Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), Quick Media Switching (QMS), Quick Frame Transport (QFT), and Source-Based Tone Mapping (SBTM).

In terms of HDR and audio capabilities, the BG-8K-HS41A supports various formats including HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through. It also accommodates HDMI audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS. The switcher routes four HDMI inputs to a single HDMI output and supports HDMI input and TV eARC audio de-embedding to SPDIF and L/R outputs. It can also output audio to SONOS ARC & Beam or any eARC-compatible soundbar.

Additional features include CEC control, which allows for seamless control from the TV to the source device and volume adjustments from the TV to any eARC sound system. Advanced EDID management is also incorporated to ensure optimal compatibility and signal quality. For ongoing enhancements, firmware updates can be performed via the USB Type-C port. The BG-8K-HS41A is a versatile, high-performance switcher suitable for a wide range of professional and multimedia applications.
U.S.-Based Company
3-Year Warranty
EssentialGear Product Line
U.S.-Based Company
3-Year Warranty
EssentialGear Product Line
U.S.-Based Company
3-Year Warranty

Features

  • HDCP 2.3 Compliance
    Ensures compatibility with the latest copy protection standards for secure playback
  • Video Enhancements
    Includes features such as Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), Quick Media Switching (QMS), Quick Frame Transport (QFT), and Source-Based Tone Mapping (SBTM)
  • HDR
    Dolby Vision, HDR10+, and HLG support
  • CEC Control
    Facilitates control from the TV to the source device and allows volume control from the TV to any eARC sound system
  • Advanced EDID Management
    Offers sophisticated EDID management for optimal compatibility and signal quality
  • High Bandwidth Support
    Handles 48Gbps FRL and 18Gbps TMDS video bandwidth, supporting resolutions up to 8K@60Hz 4:2:0 12bit, 8K@30Hz 4:4:4 12bit, and 4K@120Hz 4:4:4 12bit, in line with HDMI 2.1 specifications

Specification

Technical
HDMI Compliance HDMI 2.1
HDCP Compliance HDCP 2.3
Video Bandwidth 48Gbps FRL and 18Gbps TMDS
Video Resolution Up to 8K@60Hz 4:2:0 12bit, 8K@30Hz 4:4:4 12bit, 4K@120Hz 4:4:4 12bit
Audio Latency No Latency
Video Latency No Latency
Color Depth 8/10/12bit
Color Space RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Audio Formats HDMI Input/Output:
LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
eARC Audio Out:
LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
Audio De-embedded Output:
Optical: LPCM 2.0CH/Dolby/DTS 5.1CH
Analog: LPCM 2.0CH
HDR HDR, HDR10, HDR10+, Dolby Vision, HLG
ESD Protection

 IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Input 4 x HDMI IN [Type A, 19-pin female]
Output 1 x HDMI OUT [Type A, 19-pin female]
1 x OPTICAL [S/PDIF]
1 x L/R [3.5mm Stereo Mini-jack]
Control 1 x SERVICE [USB Type C, Update port]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions (W x D x H) 6.9in x 2.7in x 0.71in [176mm x 68mm x 18mm]
Weight 0.69 lbs [315g]
Power Supply Input: AC 100-240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption 2.5W (Max)
Operation Temperature 32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature -4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity 20~90% RH (non-condensing)
Recommended HDMI Cable
Video Resolution 8K 4K60 4K24 1080P
HDMI Cable Length
(HDMI in / out)		 2m/6.6ft
(Ultra HDMI 2.1)		 8m/26ft 12m/39ft 15m/49ft
The use of “Premium High Speed HDMI” cables is highly recommended.

Interfaces

1. IR Window:
IR input signal receiving window.
2. POWER LED:
The red LED is on when the device is powered on.
3. INPUT LED (1~4):
When the HDMI IN 1/2/3/4 port is selected as the signal source input channel, the corresponding green LED will be on.
4. OUT LED:
When the HDMI OUT port connects to a display device, the green LED will be on.
5. AUTO LED:
When the auto-switching function (switch to the corresponding signal input channel when the signal source is connected.) is turned on, the green AUTO LED will be on.
6. eARC LED:
On: The ARC/eARC function is turned on. CEC communication and ARC/eARC are working properly.
Flashing: The ARC/eARC function is turned on. CEC communication and ARC/eARC are not working properly.
Off: The ARC/eARC function is turned off.
7. eARC switch:
Press the button to turn on/off ARC/eARC function.
8. SWITCH button:
Used to select a signal source for the OUT port. Short press this button to circularly switch the HDMI input signal to the OUT port. Long press for 3 seconds to turn on/off the auto-switching function.
9. EDID Dip switch:
Use the DIP switch to set EDID.
10. SERVICE:
Firmware update and debug port.
11. INPUT 1/2/3/4:
HDMI input ports, connected to HDMI source devices such as DVD, PS4, or Set-top Box with HDMI cable.
12. OUT (eARC):
HDMI output port, connect to HDMI display device such as HDTV or Projector with HDMI cable.
13. OPTICAL:
Optical fiber audio output port.
14. L/R:
Analog audio output port.
15. DC 5V:
DC 5V/1A power input port.

Package Contents

  • 1x 48Gbps 4x1 Switcher
  • 1x 5V/1A Multinational Power Supply
  • 1x IR Remote
  • 1x User Manual
