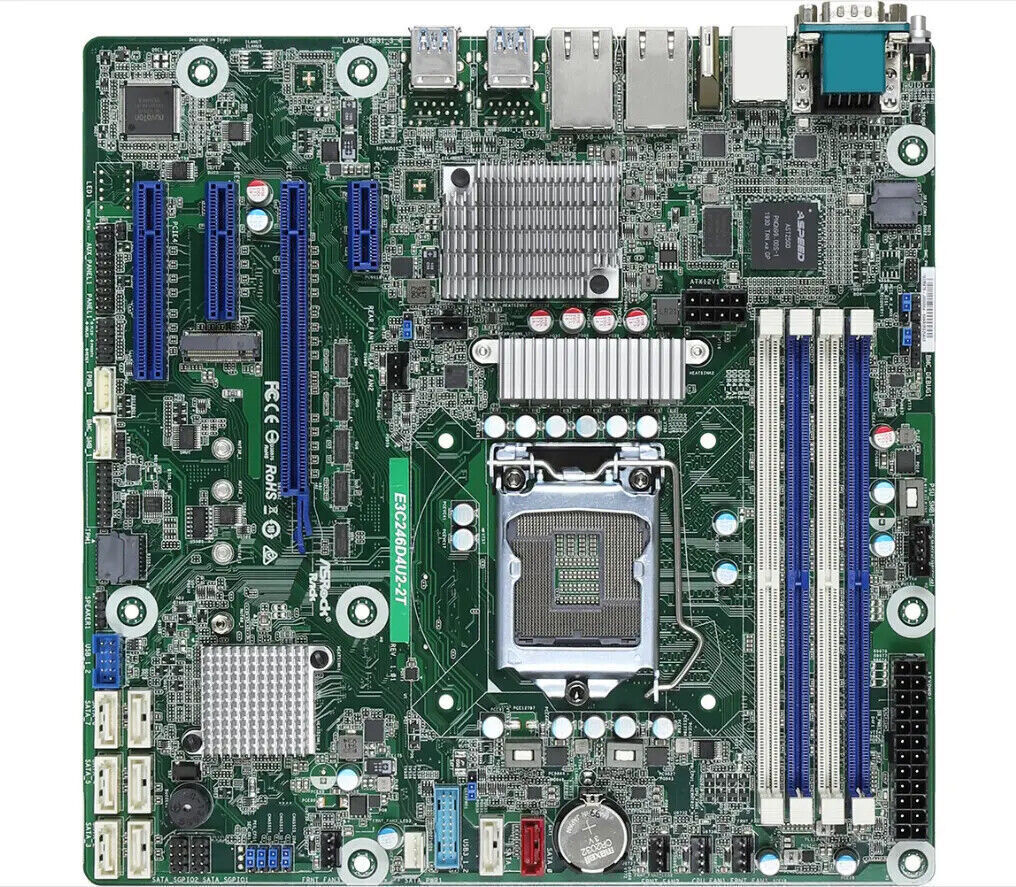

New ASRock Rack E3C246D4U2-2T LGA1151 Dual 10GbE DDR4 8xSATA mATX Support Server Nas, FedEx or DHL Expedited Shipping
Physical Status
Form Factor
mATX
Dimensions
9.6'' x 9.6'' (244 mm x244 mm)
Processor System
CPU
Supports Intel® Xeon® E-2100/E-2200 Series Processors
Socket
Single Socket LGA 1151
Thermal Design Power
Max. 95W
Chipset
Intel® C246
System Memory
Supported DIMM Quantity
4 DIMM slots
Supported Type
Dual Channel memory technology
DDR4 288-pin ECC/non-ECC UDIMM
Max. Capacity per DIMM
32GB
Max. DIMM Frequency
ECC/Non-ECC UDIMM: 2666/2400/2133 MHz
Voltage
1.2V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
- SLOT6: PCIe3.0 x16, auto switch to x8 when SLOT4 is occupied [CPU]
PCIe x 8
- SLOT4: PCIe3.0 x8 [CPU]
PCIe x 4
- SLOT5: PCIe3.0 x4 [PCH]* *Only supported for E3C246D4U2-2L2T
PCIe x 1
- SLOT7: PCIe3.0 x1 [PCH]
Other PCIe Expansion Connectors
M.2 slot
- (2230/2242/2260/2280, Supports PCIE3.0(X4)/SATA3)
SATA/SAS Storage
PCH Built-in Storage
- 8 x SATA3 6Gb/s (SATA0-7, SATA_0 supports SATA DOM)
- 7 x SATA3 6Gb/s (SATA1-7) and 1 x M.2 SSD SATA connected*
*The M.2 slot (M2_1) is shared with the SATA_0 connector. When M2_1 is populated with a M.2 SATA3 module, the Pin 7 of SATA_0 is disabled.
Ethernet
Interface
- 10000/1000 /100 Mbps
Additional GbE Controller
- 2 x RJ45 10G base-T by Intel® X550-AT2
- 1 x RJ45 Dedicated IPMI LAN port by RTL8211E
- Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 supports NCSI
Server Management
BMC Controller
- ASPEED AST2500
IPMI Dedicated GLAN
- 1 x Realtek RTL8211E for dedicated management GLAN
Features
- Watch Dog
- NMI
Graphics
Controller
- ASPEED AST2500
VRAM
- DDR4 256MB (128MBx16)
Rear I/O
UID Button/LED
- 1
VGA Port
- 1 x D-Sub
Serial Port
- 1
USB 3.2 Gen1 Port
- 2
USB 3.2 Gen2 Port
- 2
RJ45
- 2x RJ45: 2x 10GbE by Intel® X550-AT2
- 1x IPMI dedicated LAN
- LAN Ports with LED (ACT/LINK LED and SPEED LED)
HDMI
- 1
Internal Connector/Headers
Power Connector
- 1x (24-pin) + 1x (8-pin)
Auxiliary Panel Header
- 1 (includes chassis intrusion, location button & LED, and front LAN LED)
System Panel
- 1 (RST, PWRBTN, HDDLED, PWRLED)
Buzzer
- 1
Fan Header
- 6(1CPU/3Front/2Rear)
Thermal Sensor Header
- 1 TR1
TPM Header
- 1
SGPIO Header
- 2
SMBus header
- 1
PMBus header
- 1
IPMB Header
- 1
Clear CMOS
- 1 (header and short pin)
ME/SPS Recovery
- 1
USB 3.2 (Gen1) Header
- 1 (supports 2 USB 3.1 Gen1 ports)
USB 2.0 Header
- 1 (supports 2 USB 2.0 ports)
LED Indicators
80 Debug Port LED
- 1
Fan Fail LED
- 6 (Header)
System BIOS
BIOS Type
- 256 Mb AMI UEFI Legal BIOS
BIOS Features
- Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8.0 Support
- ASRock Rack Instant Flash
Hardware Monitor
Temperature
- CPU/PCH/DDR/LAN/Storage Temperature Sensing
- MB/Card side/TR1 Temperature Sensing
Fan
- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control
Voltage
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB
Supported OS
OS
Microsoft® Windows®
- Server 2016 (64 bit)
- Server 2019 (64 bit)
Linux
- RedHat Enterprise Linux Server 6.9 (64 bit) / 7.4 (64 bit)
- SUSE Enterprise Linux Server 12 SP1 (64 bit) /
12 SP3 (64 bit)
- Ubuntu 15.10 (64 bit) / 16.04 (64 bit)
Environment
Temperature
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity
- Non operation humidity: 20% ~ 90% ( Non condensing)
