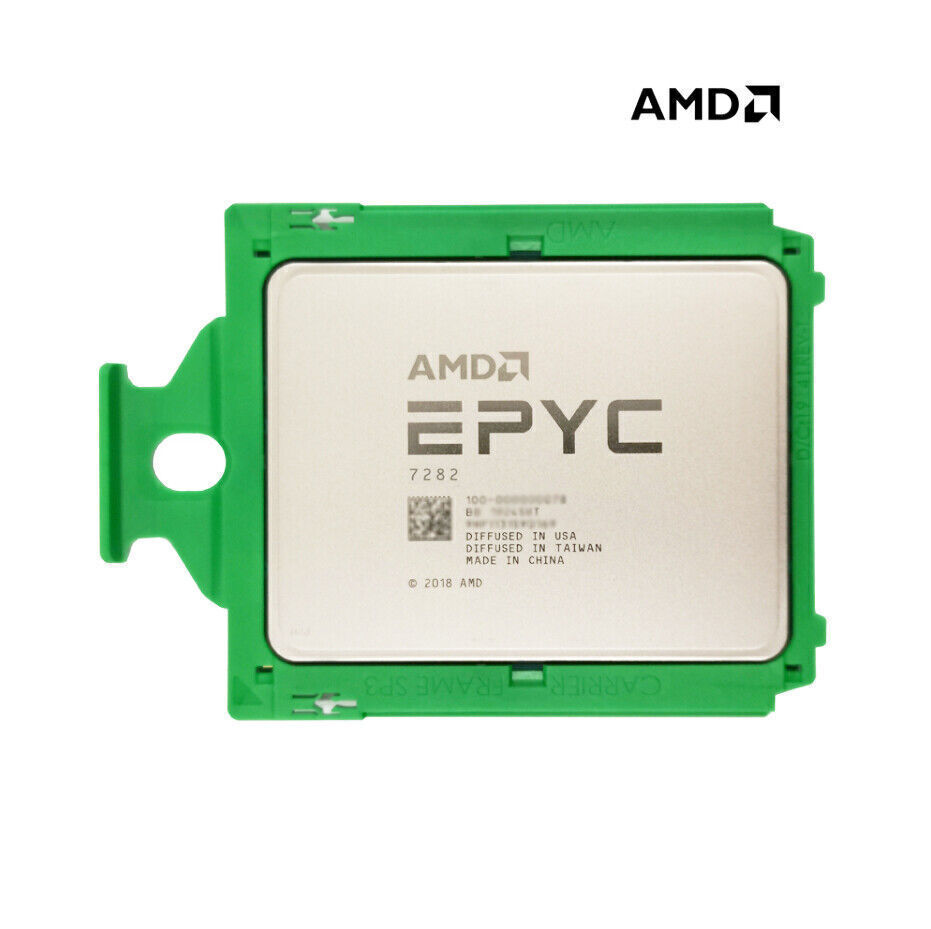

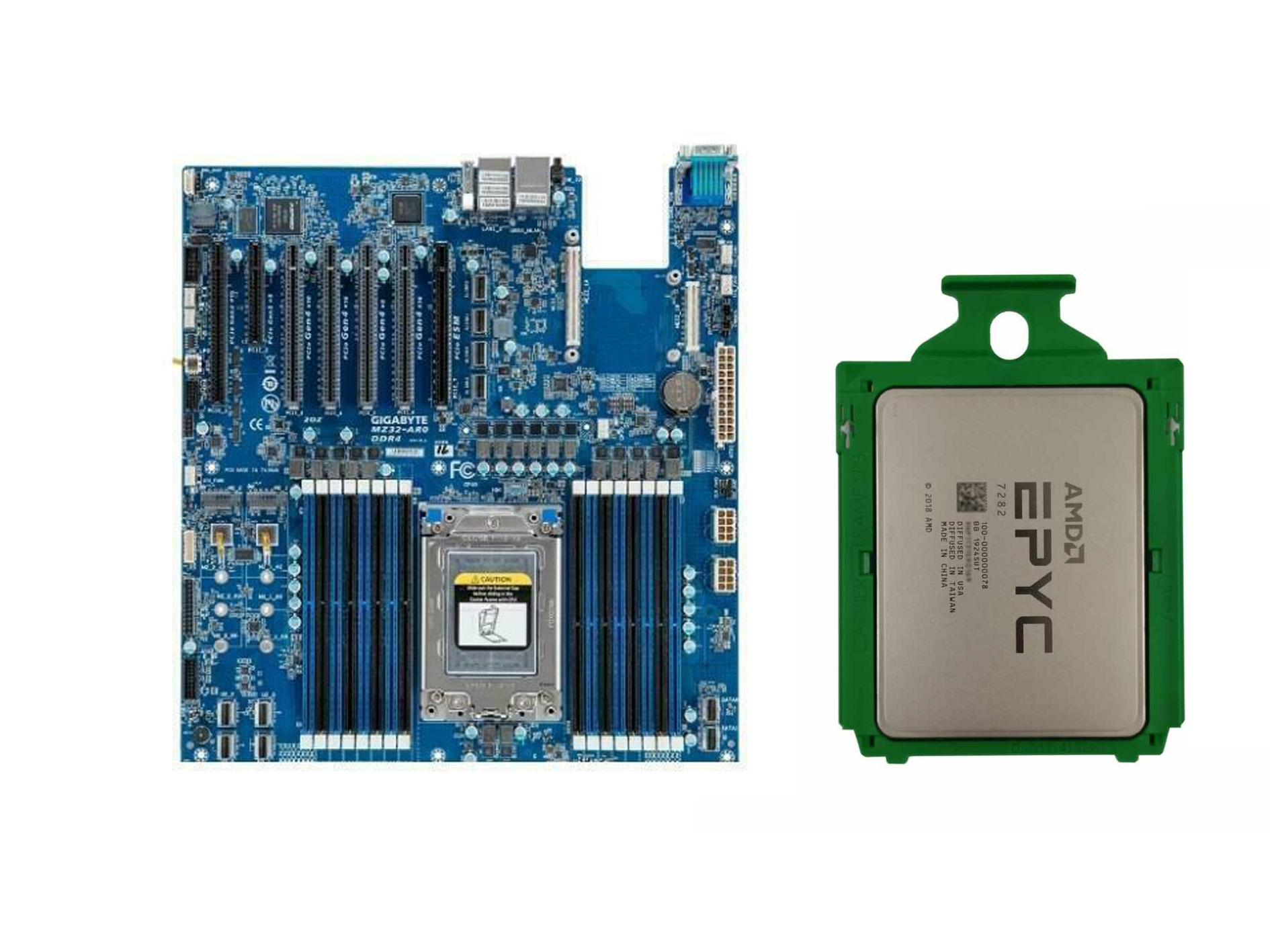

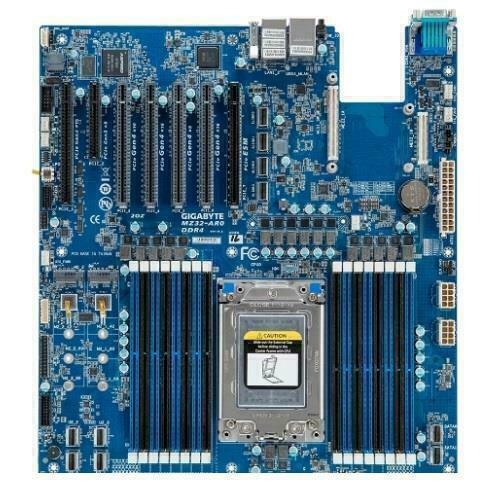

1x AMD epyc 7282 + 1x Gigabyte mz32-ar0 motherboard Rev 1.0 cpu Description of Motherboard Board Size Bulk: 9MZ32AR0NR-00 AMD EPYC™ 7282
305W x 330D (mm)
Single processor, 7nm, Socket SP3
Up to 64-core, 128 threads per processor
cTDP up to 240W
Fully support 280W
NOTE: Please make sure Fan-sink supports over 280W CPU
Compatible with AMD EPYC™ 7001 series processor family
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/ 2933 MHz
- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
1 x 10/100/1000 management LAN
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot
Slot_5: 1 x PCIe x16 (Gen4 x8 bus) slot
Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot
Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot
Slot_2: 1 x PCIe x8 (Gen3 x0 or x8 bus) slot
Slot_1: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot; shared with slot_2
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4; Type2 P5 with NCSI supported)
2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports 2242/2260/2280 cards
4 x NVMe ports:
- SlimSAS 4i type
- PCIe Gen3 x4 per port
- Shared with Slot_7 PCIe Gen4 x16 slot
2 x 8-pin ATX 12V power connectors
10 x SlimSAS connectors
2 x M.2 slots
1 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer
1 x VGA
1 x COM_1
2 x RJ45
1 x MLAN
1 x ID button with LED
Optional TPM2.0 kit: CTM010
Windows Server 2019
Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later
SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later
Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
Citrix Hypervisor 8.1.0 or later
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
2 x 8-pin ATX 12V power connectors
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
1 x I/O shield
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm
- I/O shield: 12AIO-MZ32A0-00R
- SlimSAS for 4 x SATAIII 6Gb/s cable: 25CFM-600800-A4R
- Fan-sink: 12SF2-01A067-00R ( in option)
