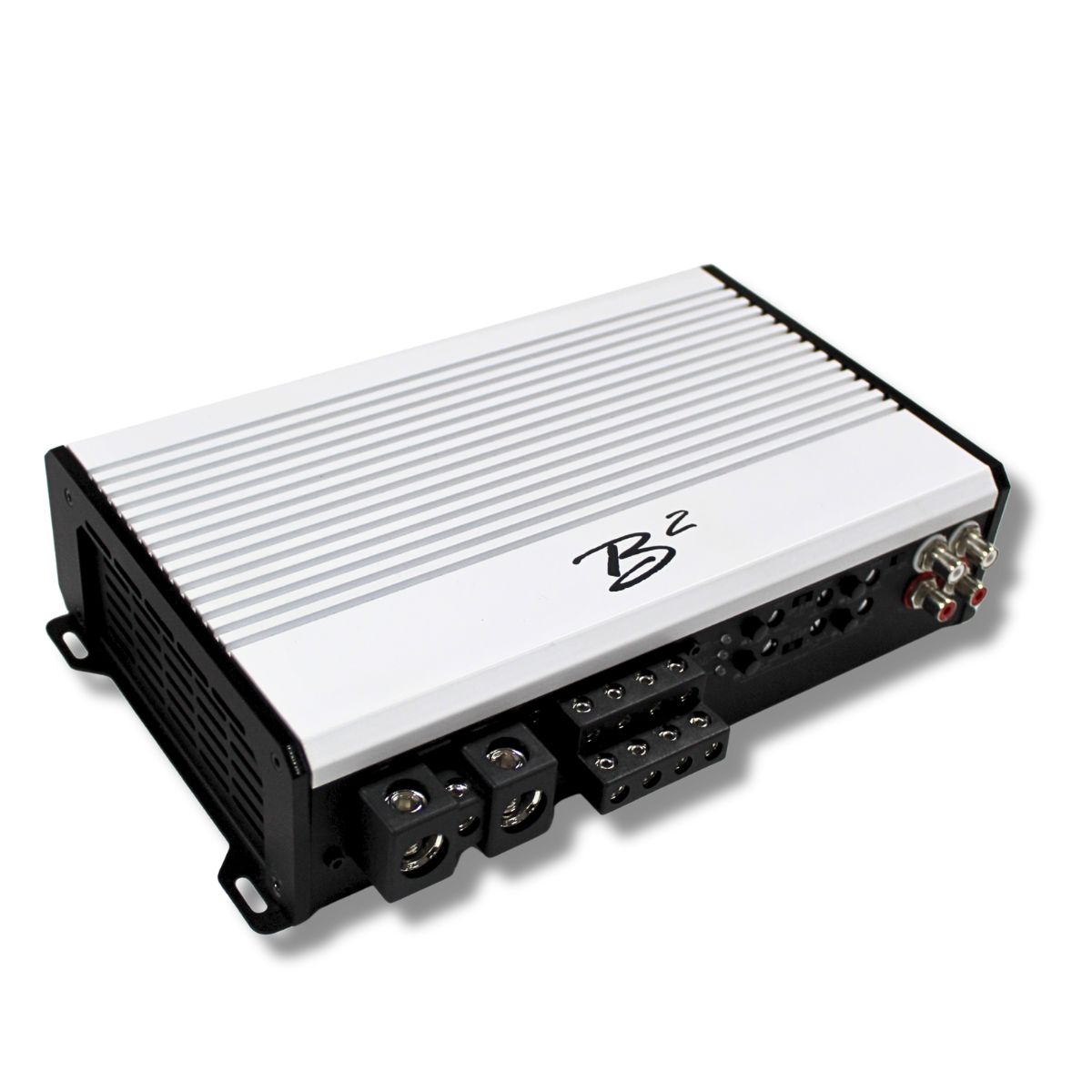

B2 Audio RAGE Series 1.2K 4-Channel 1200 Watt 2-Ohm Full Range Class D Amplifier



B2 Audio RAGE Series 1.2K 1200 Watt 4-Channel 2-Ohm Full Range Class D Amplifier


This Listing Includes:



  • (1) B2 Audio RAGE-1200.4-V2 Amplifier

  • Mounting Hardware


The B2 Audio RAGE-1200.4-V2 is a high-output 4-channel amplifier designed for clean, reliable power in full-range car audio systems. Delivering 1200 watts total RMS, it provides strong, consistent output for midrange speakers, tweeters, and component sets.


Built with Hi-EF Class D circuitry, the RAGE-1200.4-V2 offers high efficiency and low distortion across the full frequency range, making it well suited for both daily-driven and higher-output systems. Its stable, controlled output ensures clear mids, tight bass response, and crisp highs even at elevated volume levels.


Housed in a durable chassis with integrated protection against thermal overload, short circuits, and overcurrent, this amplifier is engineered for long-term reliability in demanding installations.


The RAGE-1200.4-V2 is a versatile choice for powering multi-speaker setups where efficiency, sound quality, and dependable performance matter.


Features



  • 1200 Watts Total Power — serious output across four channels

  • Hi-EF Class D Circuitry for maximum efficiency and reduced heat

  • Crystal-clear highs, tight mids, and controlled bass

  • Advanced protection features guard against thermal overload, short circuit, and over-current

  • Bridging capability for flexible system builds

  • Rugged chassis built for high-demand installations


Specifications:



  • RMS Power Output: 4-Ohms: 4 x 200 Watts

  • RMS Power Output: 2-Ohms: 4 x 300 Watts

  • RMS Power Output: 4-Ohms Bridged (1-Ohm per pair): 2 x 1200 Watts

  • Circuit Type: Hi-EF Class D

  • Frequency Response: 20 Hz - 20 kHz

  • Signal-to-Noise Ratio: > 90 dB

  • Input Sensitivity: 6V - 0.2V

  • Crossover Slope: 12 dB / Octave

  • Low-Pass Filter: 40 Hz - 4 kHz

  • High-Pass Filter: 40 Hz - 4 kHz

  • Damping Factor: > 200

  • Power Terminals: 0 AWG Compatible

  • Fuse Rating: 100A


Dimensions:



  • Length: 10.25"

  • Width: 6.38"

  • Height: 2.5"

  • Width including inputs and outputs: 7.25"


Own the soundscape and elevate your entire audio system with an amplifier that refuses to compromise.


Product Details

BrandB2 Audio
ColorWhite
Size10.25 x 6.69 x 2.50 in
Style4 Channel
ManufacturerB2 Audio
MpnRAGE-1200.4-V2
  • Powerful 4-Channel Performance: Delivering 1200 watts of high-octane power across four channels, this amplifier provides intense, balanced sound for an unmatched audio experience.
  • Hi-EF Class D Technology: Experience the cutting-edge efficiency and precision of Hi-EF Class D technology, maximizing power output while minimizing heat and energy consumption.
  • Versatile Configuration: Whether you're powering a full-range car audio system or a dynamic home theater setup, the versatile 4-channel design adapts to your needs for custom sound solutions.
  • Advanced Protection Features: Keep your system running at peak performance with built-in safeguards against thermal overload, short circuits, and overcurrent, ensuring reliability even under heavy use.
  • Rugged and Compact Design: Engineered for durability and ease of installation, the amplifier's sleek and compact build fits seamlessly into any setup while standing up to the most demanding conditions.




-
