Product Details
Product Features:

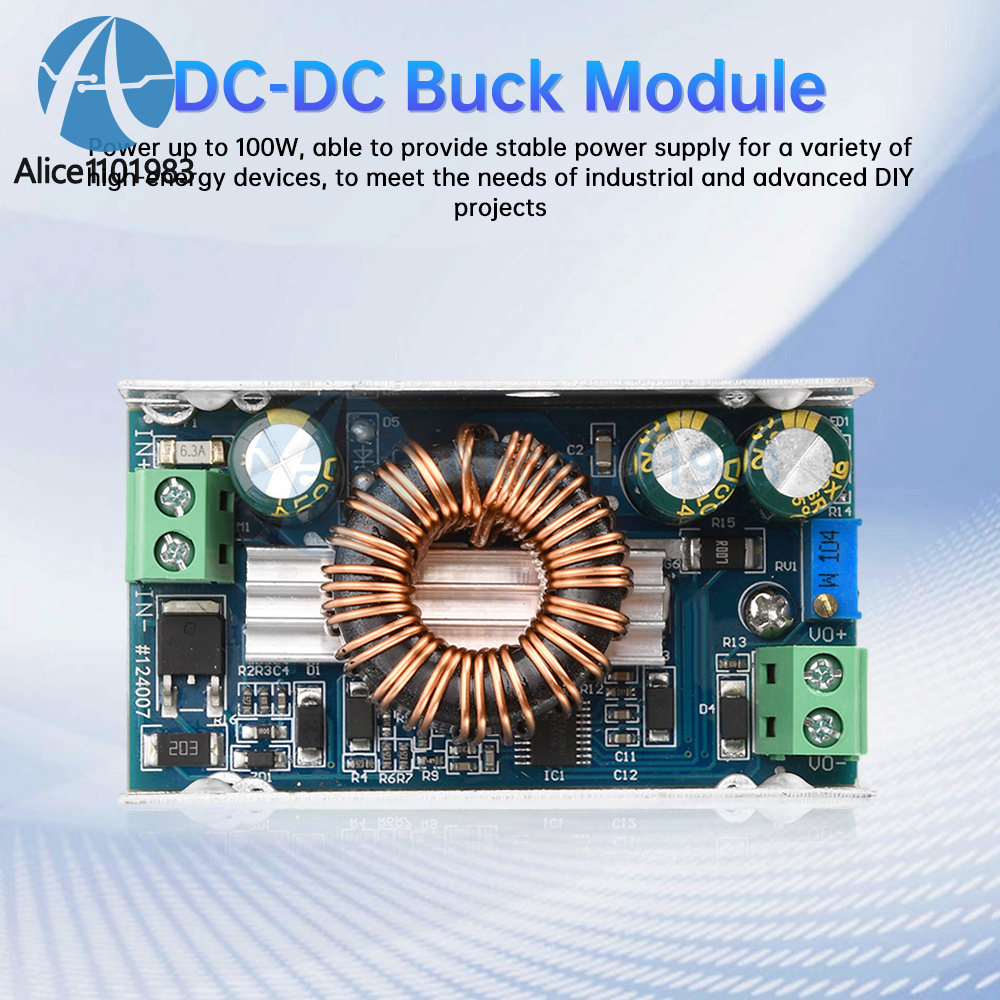

1. Power up to 100W, able to provide stable power supply for a variety of high-energy equipment, to meet the needs of industrial and advanced DIY projects

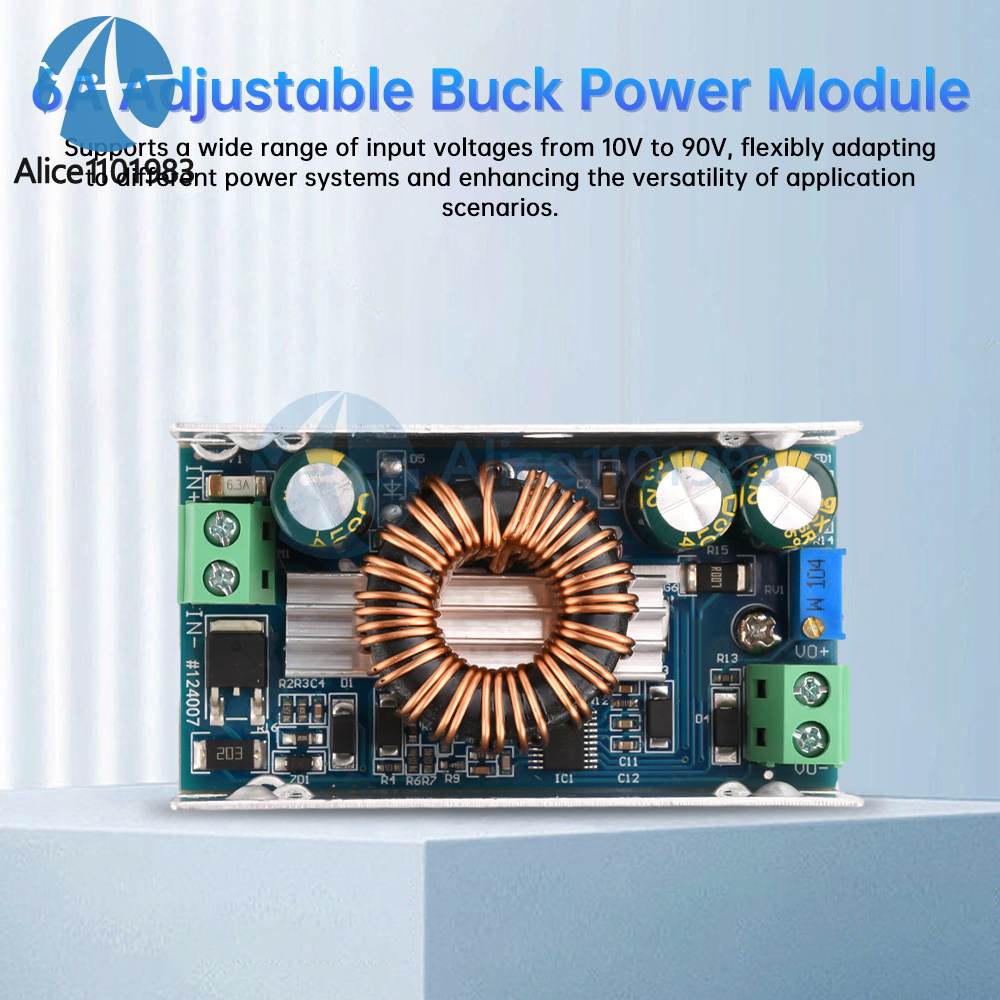

2. Supports a wide range of input voltages from 10V to 90V, flexibly adapting to different power systems and enhancing the versatility of application scenarios.

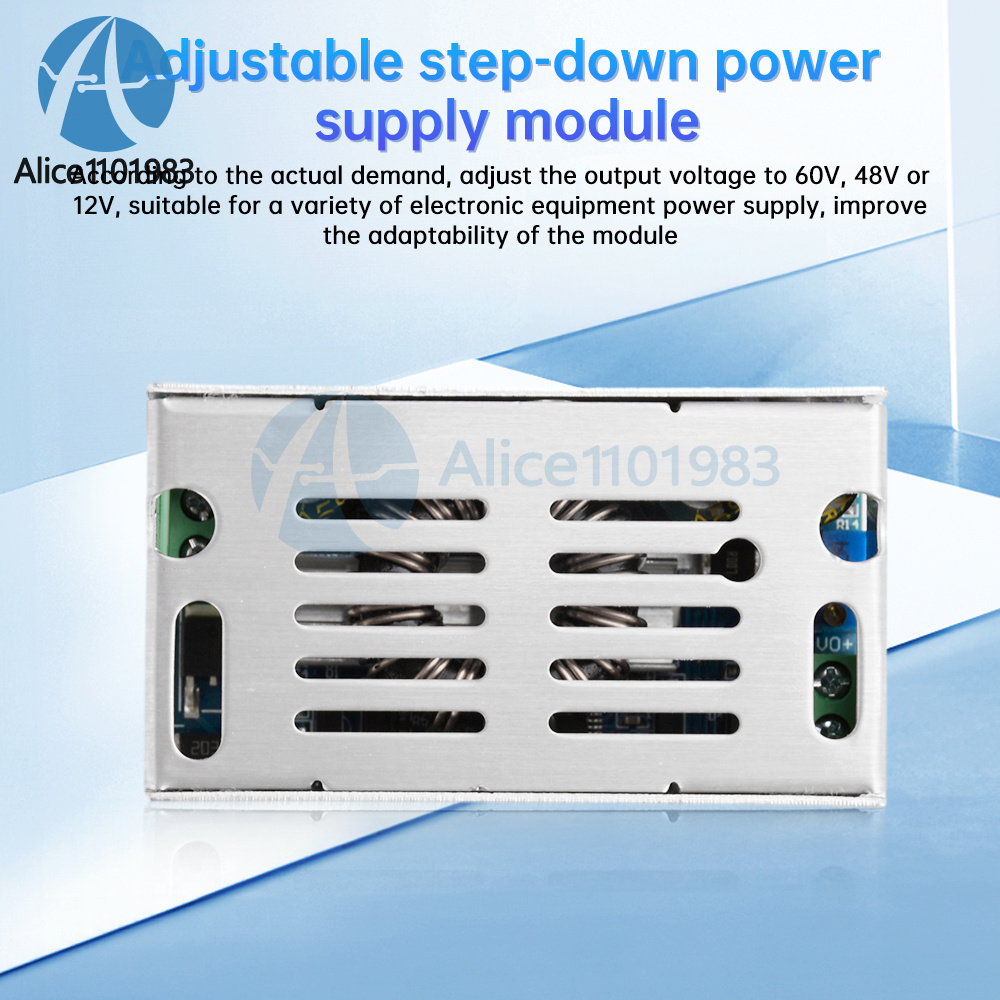

3. Adjust the output voltage to 60V, 48V or 12V according to the actual demand, applicable to a variety of electronic equipment power supply, improving the adaptability of the module.
4. Adopting high-efficiency synchronous rectification design, compared with the traditional buck method, it significantly improves the conversion efficiency, reduces energy waste, and generates less heat.

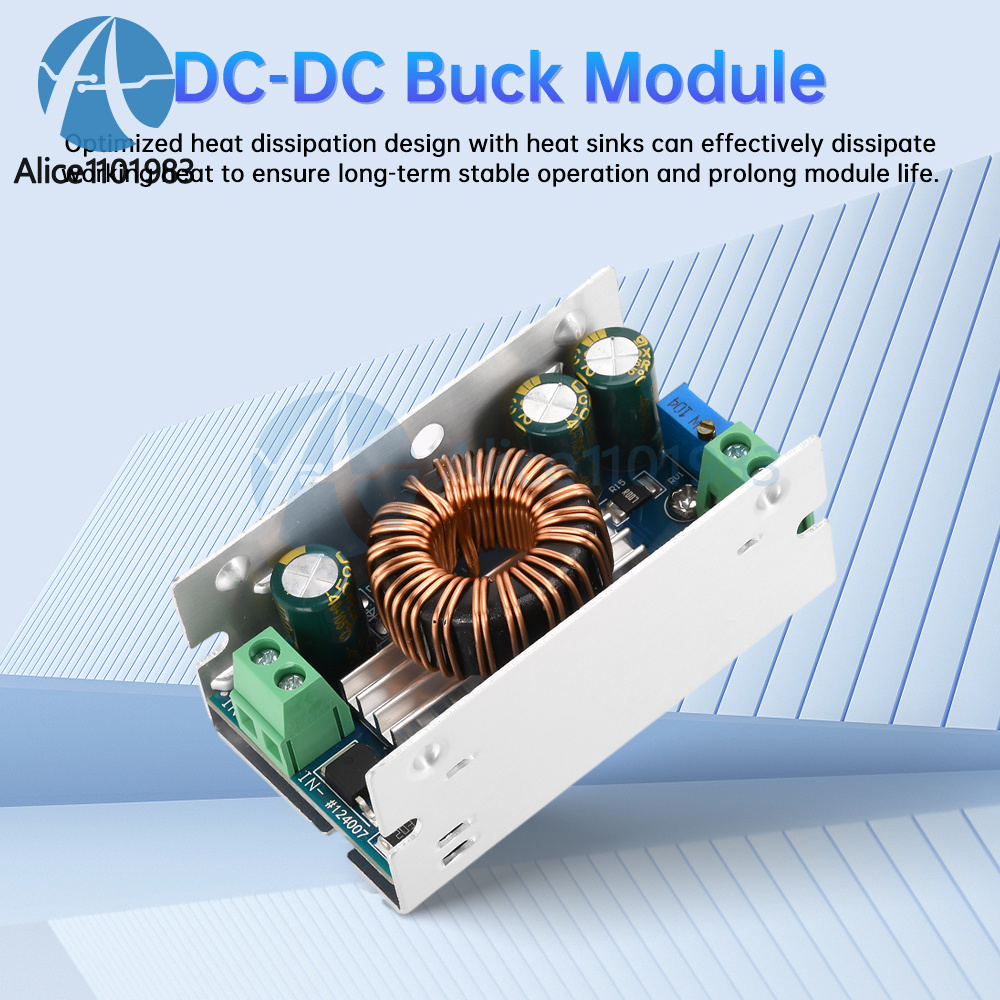

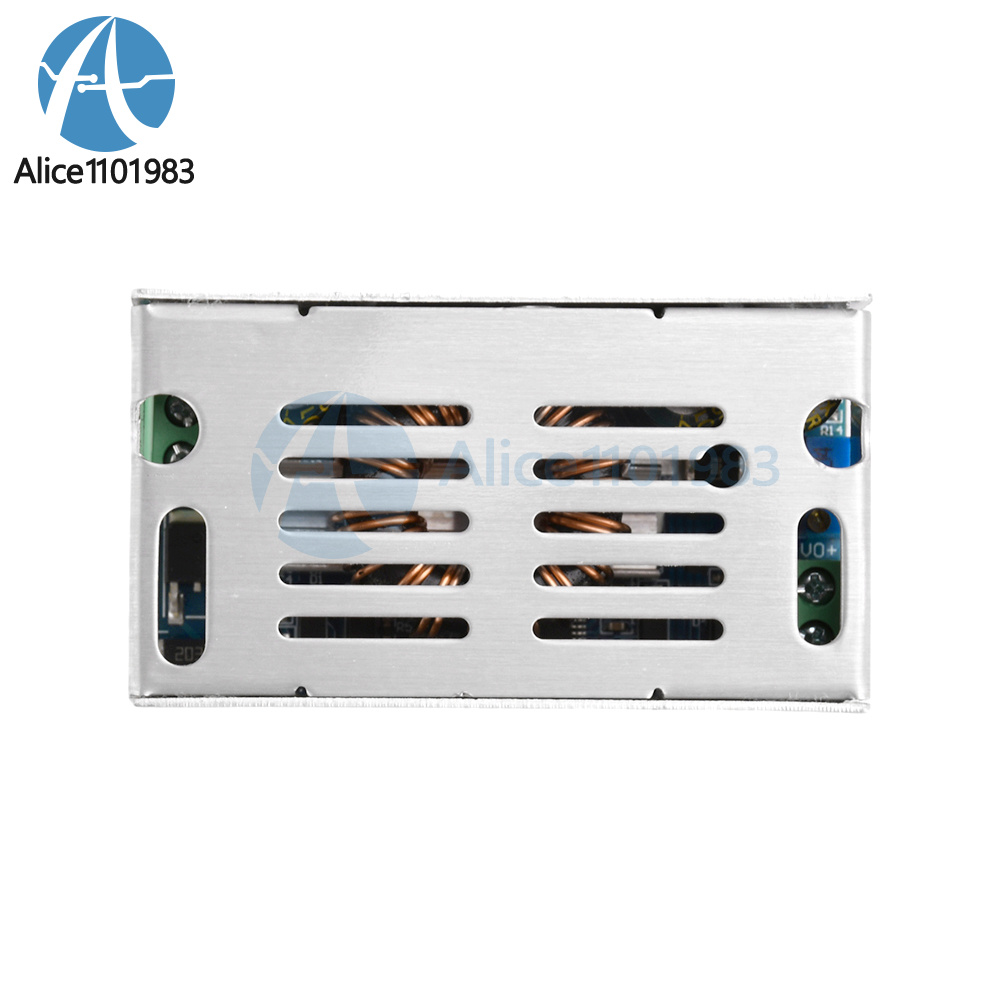

5. Optimised heat dissipation design, with heat sinks, can effectively dissipate heat, ensure long-term stable operation and prolong the module life.

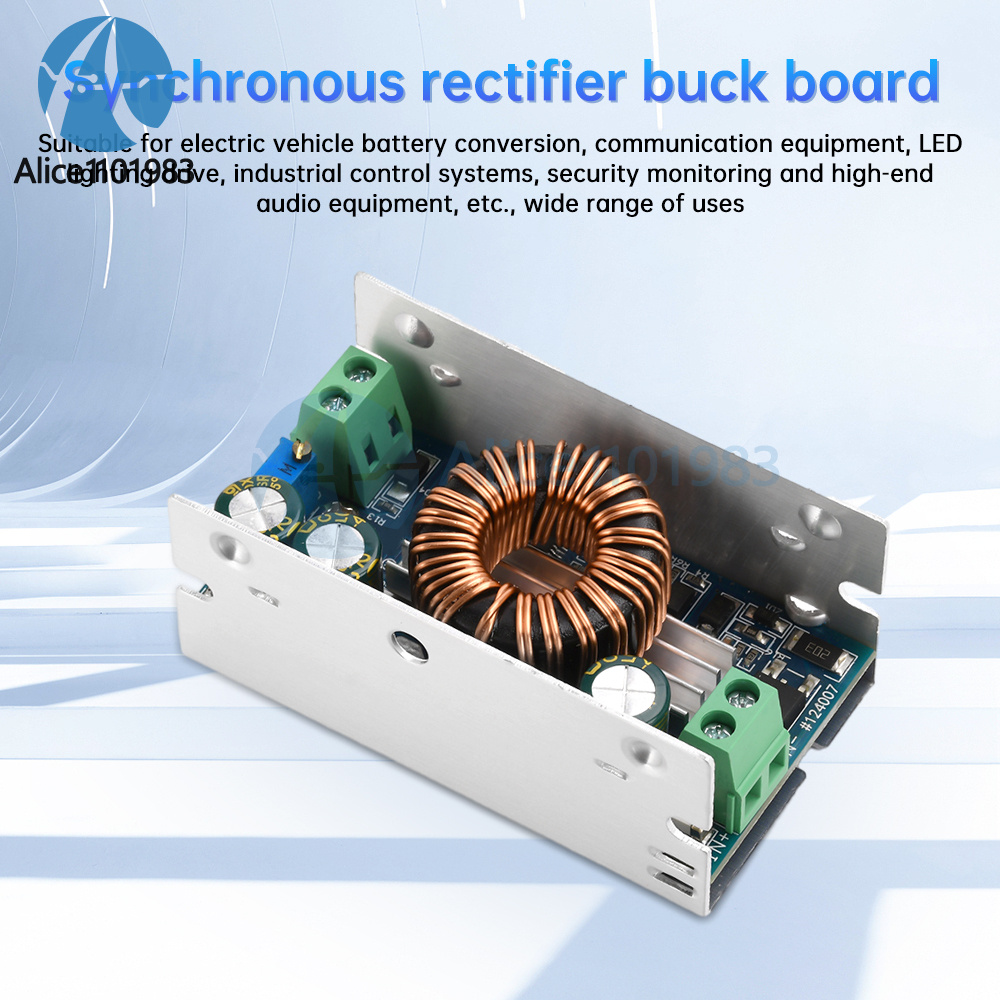

6. Suitable for electric vehicle battery conversion, communication equipment, LED lighting driver, industrial control systems, security monitoring and high-end audio equipment, etc., a wide range of uses.
1. Power up to 100W, able to provide stable power supply for a variety of high-energy equipment, to meet the needs of industrial and advanced DIY projects
2. Supports a wide range of input voltages from 10V to 90V, flexibly adapting to different power systems and enhancing the versatility of application scenarios.
3. Adjust the output voltage to 60V, 48V or 12V according to the actual demand, applicable to a variety of electronic equipment power supply, improving the adaptability of the module.
4. Adopting high-efficiency synchronous rectification design, compared with the traditional buck method, it significantly improves the conversion efficiency, reduces energy waste, and generates less heat.
5. Optimised heat dissipation design, with heat sinks, can effectively dissipate heat, ensure long-term stable operation and prolong the module life.
6. Suitable for electric vehicle battery conversion, communication equipment, LED lighting driver, industrial control systems, security monitoring and high-end audio equipment, etc., a wide range of uses.
Product parameters:

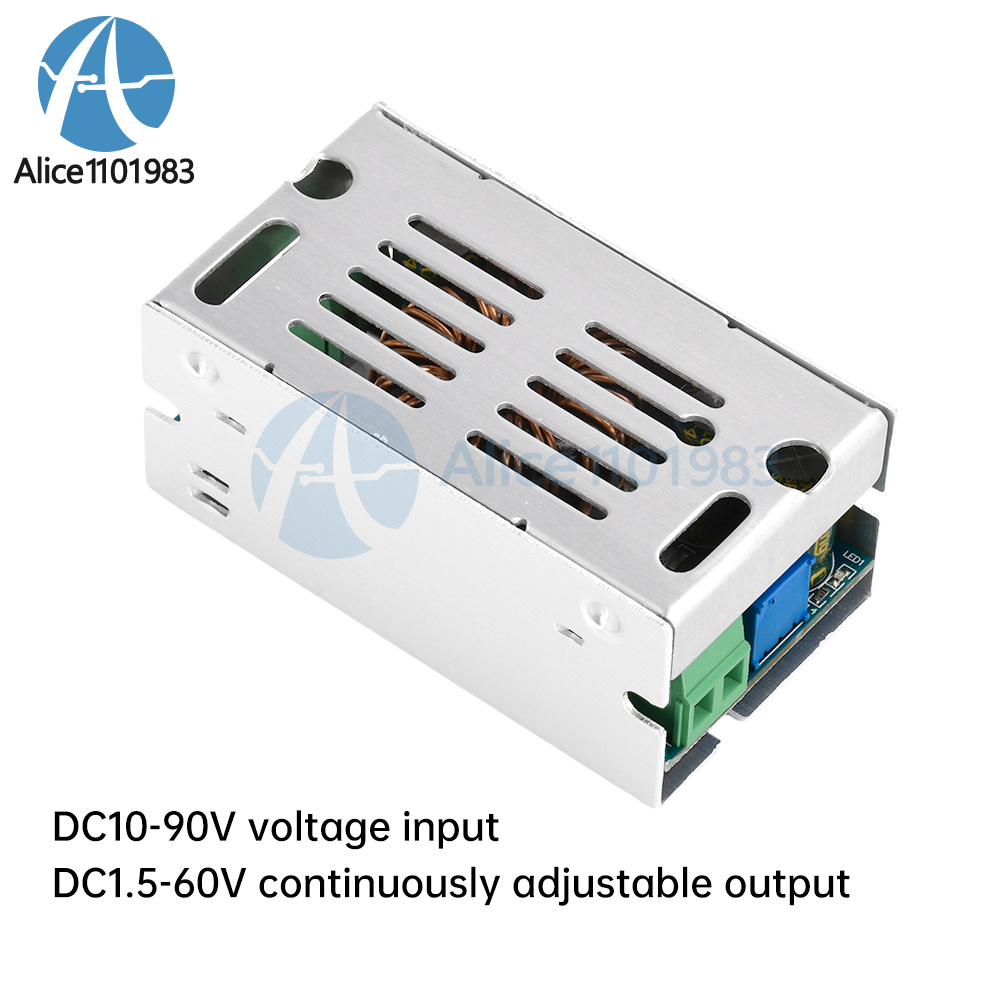

Input voltage: DC10-90V
Output voltage: DC1.5-60V (for applications where the input voltage is higher than the output voltage cannot be boosted)
Output current: MAX6A (high voltage output, please reduce the amount of use, the temperature exceeds 65 degrees need to add heat dissipation)
Maximum power: 100W (Maximum current 6A at low voltage output, Maximum power 100W at high voltage output)
Operating frequency: 180KHz
Conversion efficiency: 97.5% (typical)
Operating Temperature: -40℃ to +85
Potentiometer adjustment direction: clockwise (increase), counterclockwise (decrease)

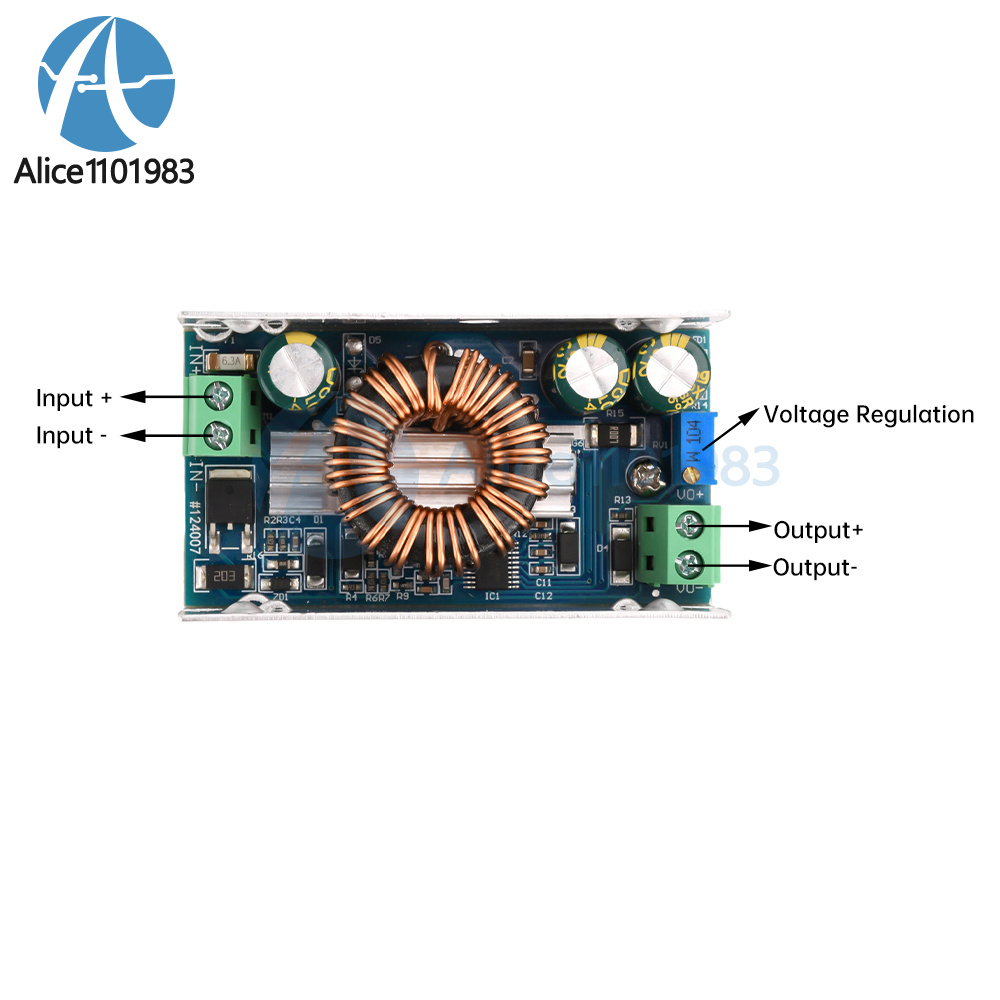

Wiring: terminal block
Input voltage: DC10-90V
Output voltage: DC1.5-60V (for applications where the input voltage is higher than the output voltage cannot be boosted)
Output current: MAX6A (high voltage output, please reduce the amount of use, the temperature exceeds 65 degrees need to add heat dissipation)
Maximum power: 100W (Maximum current 6A at low voltage output, Maximum power 100W at high voltage output)
Operating frequency: 180KHz
Conversion efficiency: 97.5% (typical)
Operating Temperature: -40℃ to +85
Potentiometer adjustment direction: clockwise (increase), counterclockwise (decrease)
Wiring: terminal block
Product Description:
Synchronous rectification is a new technology that uses a special power MOSFET with extremely low on-state resistance to replace the rectifier diode in order to reduce the rectification loss. It can greatly improve the efficiency of DC/DC converter and there is no dead zone voltage caused by Schottky barrier voltage. Power MOSFET belongs to the voltage control device, it is in the on-time volt-ampere characteristic is linear. Power MOSFET as a rectifier, the gate voltage must be required with the phase of the rectified voltage to maintain synchronisation to complete the rectification function, it is called synchronous rectification. Synchronous rectification technology is to greatly reduce the rectification loss at the output of the switching power supply, thus improving the conversion efficiency and reducing the heating of the power supply itself.
Synchronous rectification is a new technology that uses a special power MOSFET with extremely low on-state resistance to replace the rectifier diode in order to reduce the rectification loss. It can greatly improve the efficiency of DC/DC converter and there is no dead zone voltage caused by Schottky barrier voltage. Power MOSFET belongs to the voltage control device, it is in the on-time volt-ampere characteristic is linear. Power MOSFET as a rectifier, the gate voltage must be required with the phase of the rectified voltage to maintain synchronisation to complete the rectification function, it is called synchronous rectification. Synchronous rectification technology is to greatly reduce the rectification loss at the output of the switching power supply, thus improving the conversion efficiency and reducing the heating of the power supply itself.
Package list:
Buck Module *1
Buck Module *1
