Motherboard: 32 bits motherboard with 32 Bits MCU
Firmware: GRBL1.1
OS of Upper Computer: Windows ( Working with LaserGRBL ), MAC OS and Linux /Phone(Bring yourown software)
Power Supply: 12V 5A 60W
USB Interface：Type C
Electrical Power ：80W
Actual Power:10W
Wavelength:450nm
Input Format: NC, BMP, JPG, PNG, DXF, etc.
Carving Area: X: 400MM x Y: 400MM
Image size: No Limit ( The pixel accuracy could be adjusted freely, and the default is 300 pixels per inch, it's about 0.81um pixel precision )

Tip:The gantry structure does not need to be assembled. The others are all parts and need to be assembled by yourself. We provide instructions and video tutorials. Please feel free to contact us if you have any questions.

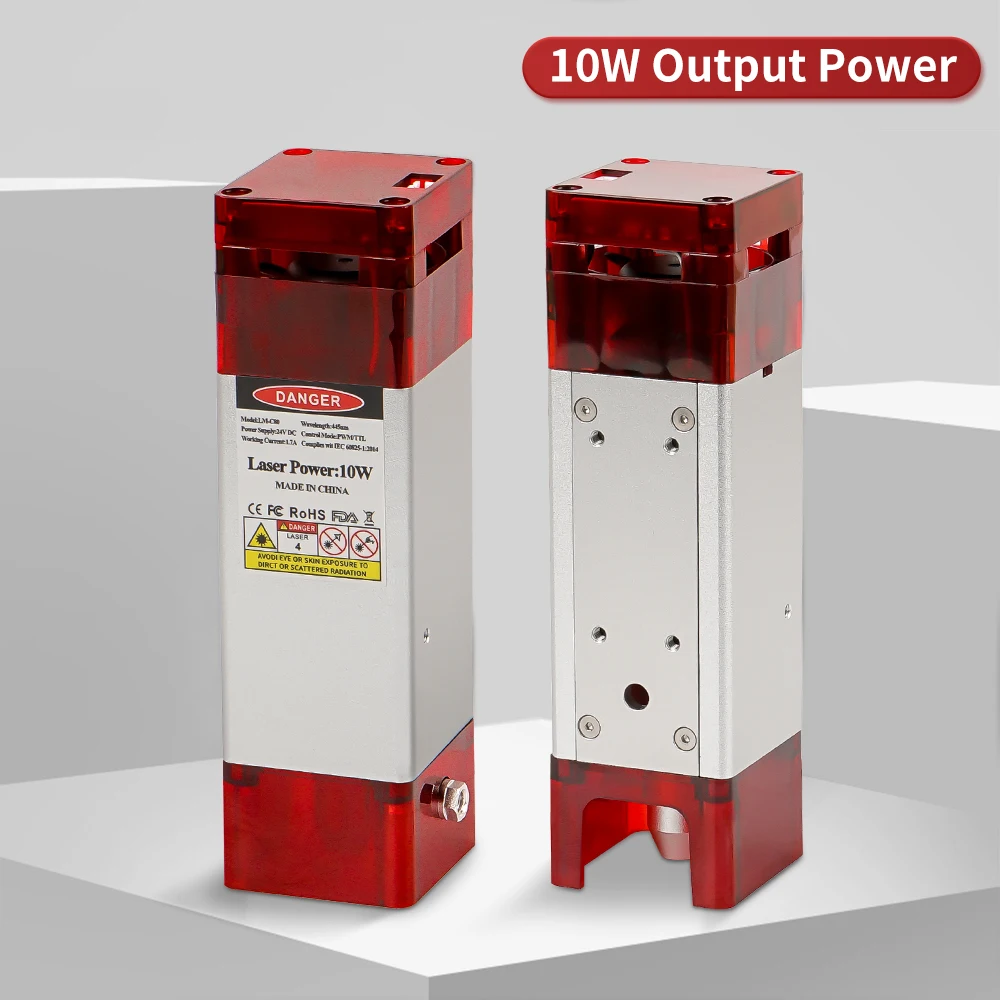

10W Actual Output

Laser:80W Effective Power
Optical power output:10W
Current:3.8A

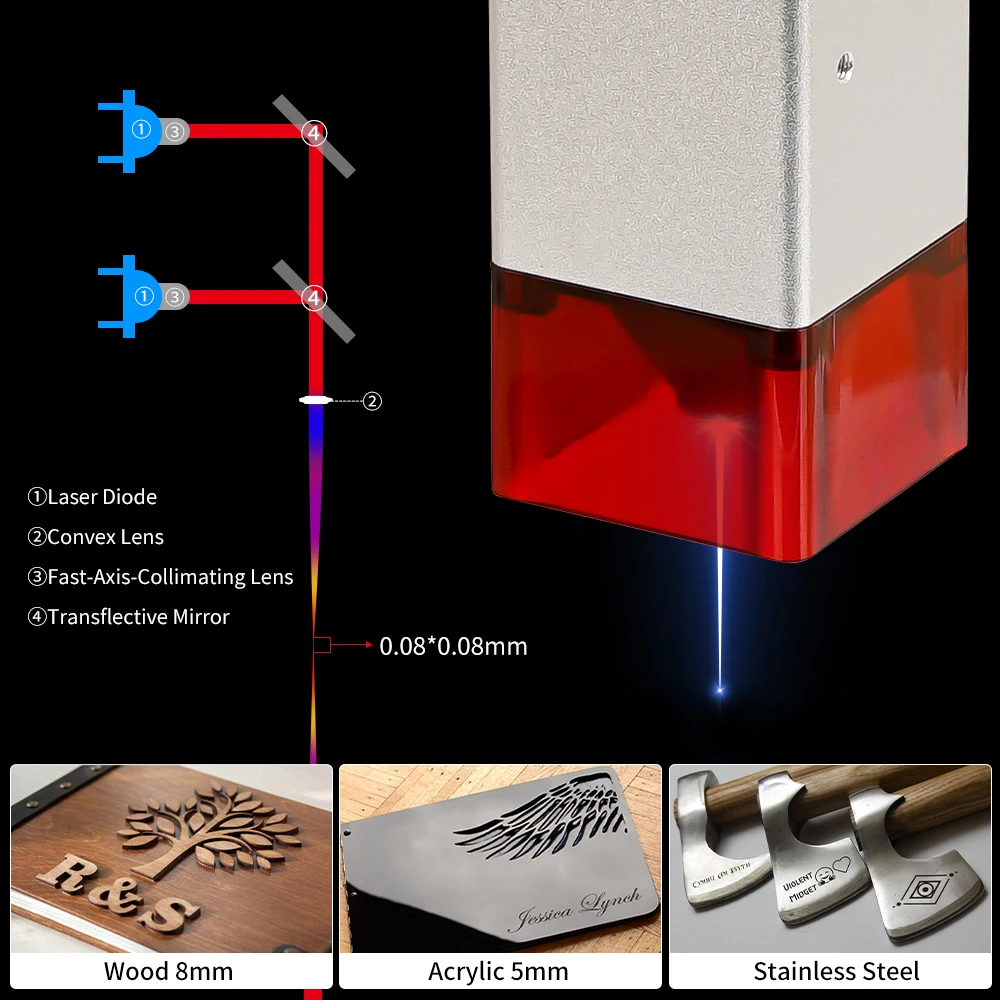

Laser tube:2xLD+FAC+C-Lens
Laser wavelength:445nm±5nm
Beam shape:Dot ( Fixed Focus )
Operating voltage:DC 12V
Focus:0.08*0.08
PWM/TTL input:0-5V
Input interface:XH2.54-3Pin (+,-, PWM/TTL)
TTL output power:> 1K HZ output power = continuous power x 40%
Working frequency:<30KHz
Laser class:Class IV
Safe temperature range:15 ℃ ~40 ℃
Life time:15000~20000 hours
Anti-static: Up to 25kV static electricity can be eliminated
Shell: Frosted material, good heat dissipation

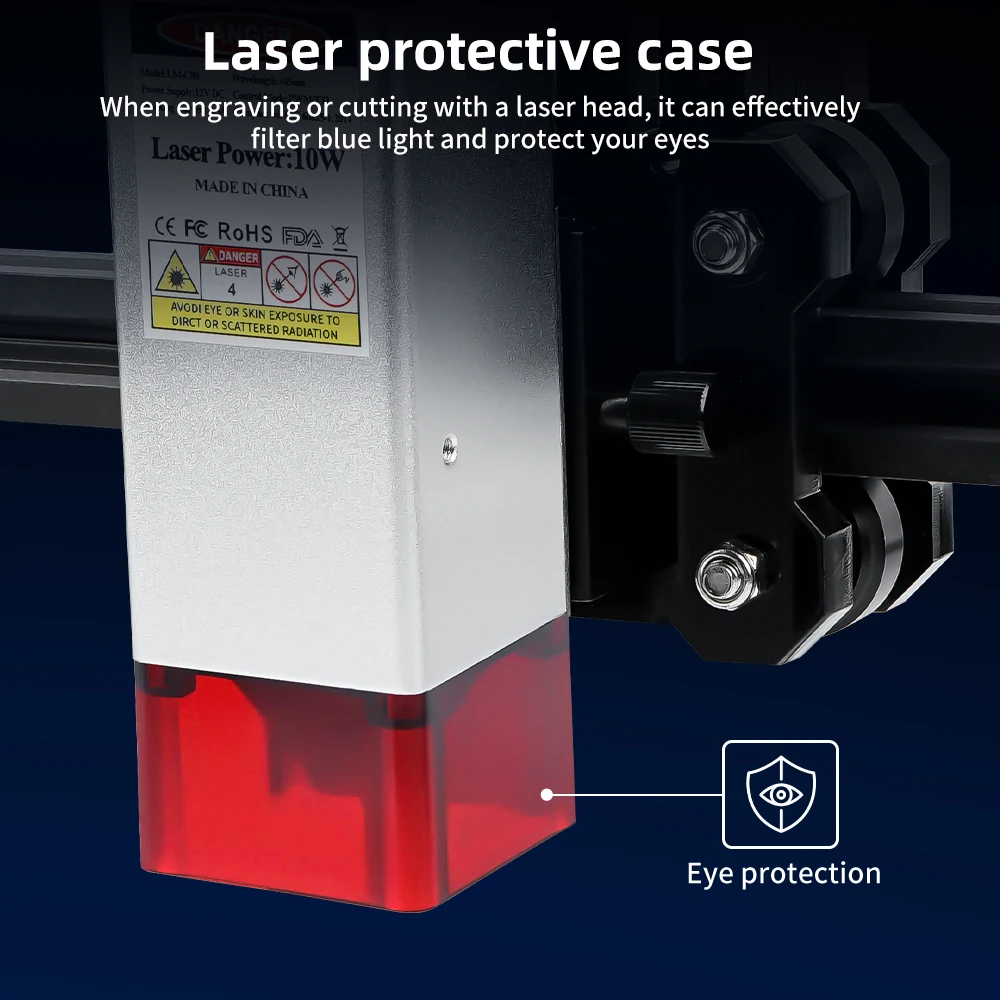

Magnetic blower protective shell:Constitutes an air duct, has good heat dissipation, and protects eyes and lasers

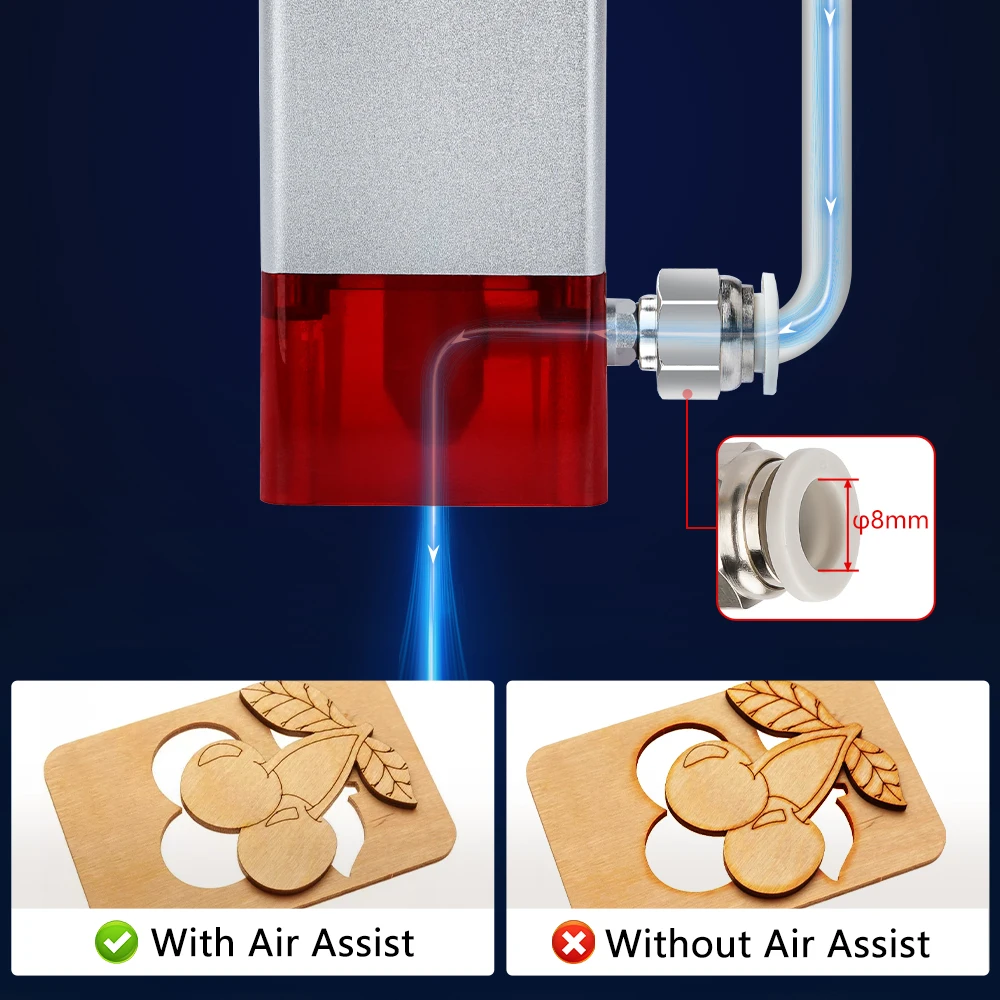

The air pump is not included. If you need an air pump, please purchase the following link:
https://www.ebay.co.uk/itm/196034701547

(The picture is only to show that the laser can be connected to an air pump)

LightBurn( paid software, lightburnsoftware.com ) supports Windows, Mac OS, and Linux. It's the most popular paid carving software in the world, very easy to use.LaserGRBL for engraving and cutting.LaserGRBL( free software ) supports Windows XP, 7, 8, 10.

LaserGRBL is the most popular carving software in the world, could import different format images, you could editing in PhotoShop, Inkscape, CAD, etc. and then connect to the engraver via laser

Motherboard: 32 bits motherboard with 32 Bits MCU

Firmware: GRBL1.1

OS of Upper Computer: Windows ( Working with LaserGRBL ), MAC OS and Linux /Phone(Bring yourown software)

Power Supply: 12V 5A 60W

USB Interface：Type C

Electrical Power ：80W

Actual Power:10W

Wavelength:450nm

Input Format: NC, BMP, JPG, PNG, DXF, etc.

Carving Area: X: 400MM x Y: 400MM

Image size: No Limit ( The pixel accuracy could be adjusted freely, and the default is 300 pixels per inch, it's about 0.81um pixel precision )

Tip:The gantry structure does not need to be assembled. The others are all parts and need to be assembled by yourself. We provide instructions and video tutorials. Please feel free to contact us if you have any questions.

10W Actual Output

Laser:80W Effective Power

Optical power output:10W

Current:3.8A

Laser tube:2xLD+FAC+C-Lens

Laser wavelength:445nm±5nm

Beam shape:Dot ( Fixed Focus )

Operating voltage:DC 12V

**Focus:0.08*0.08**

PWM/TTL input:0-5V

Input interface:XH2.54-3Pin (+,-, PWM/TTL)

TTL output power:> 1K HZ output power = continuous power x 40%

Working frequency:<30KHz

Laser class:Class IV

Safe temperature range:15 ℃ ~40 ℃

Life time:15000~20000 hours

Anti-static: Up to 25kV static electricity can be eliminated

Shell: Frosted material, good heat dissipation

Magnetic blower protective shell:Constitutes an air duct, has good heat dissipation, and protects eyes and lasers

LaserGRBL is the most popular carving software in the world, could import different format images, you could editing in PhotoShop, Inkscape, CAD, etc. and then connect to the engraver via laser
