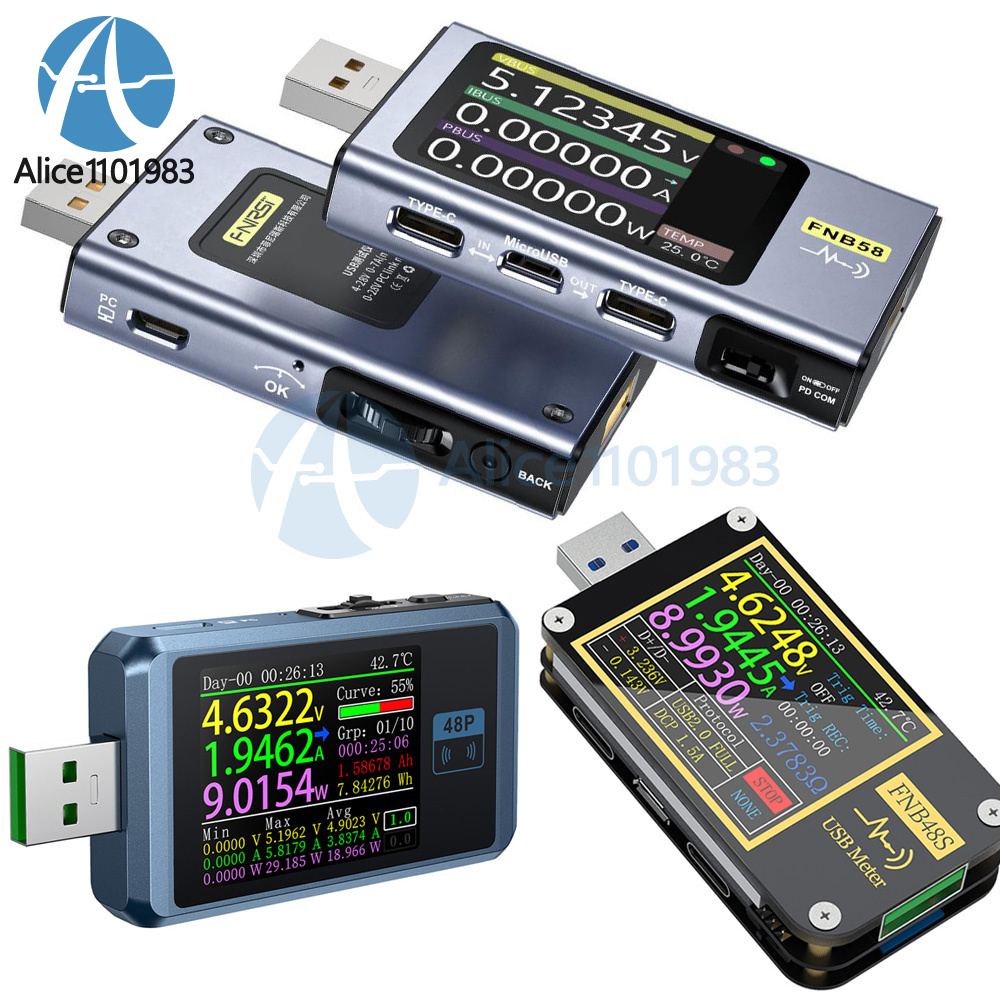

Product Details

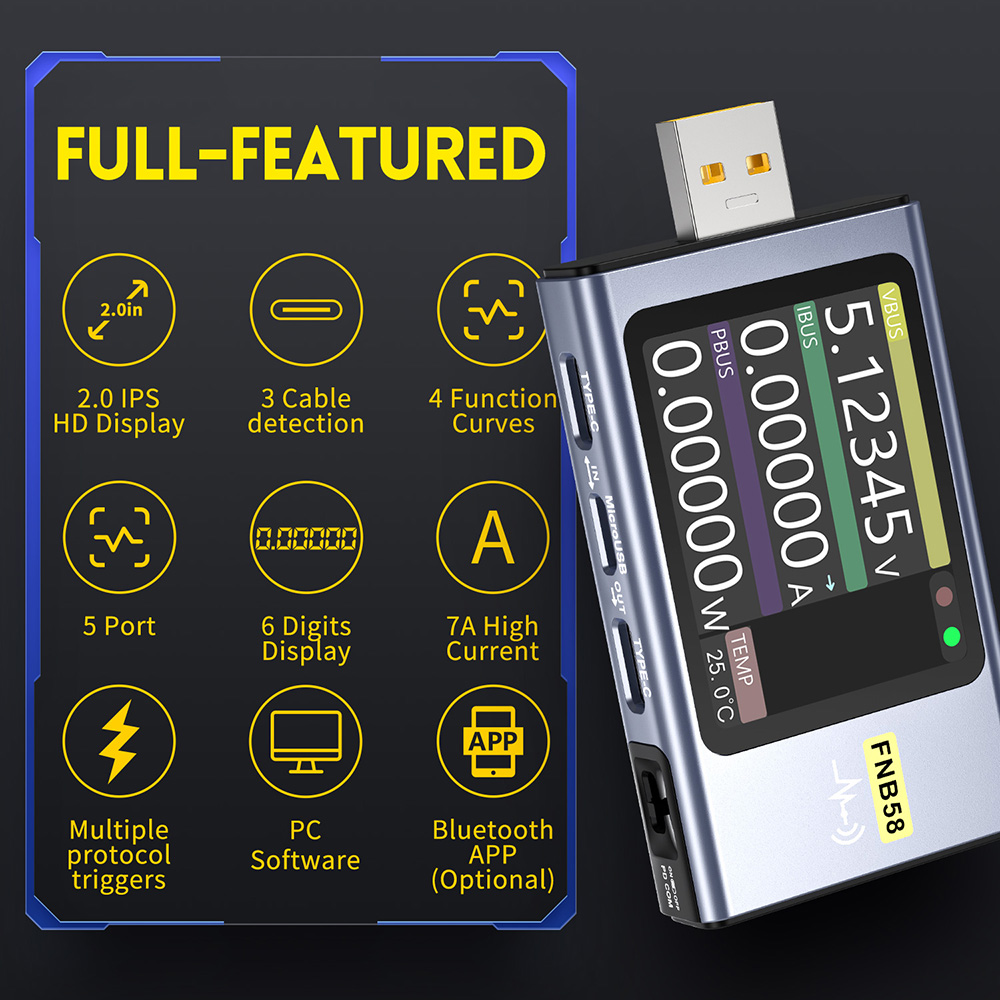

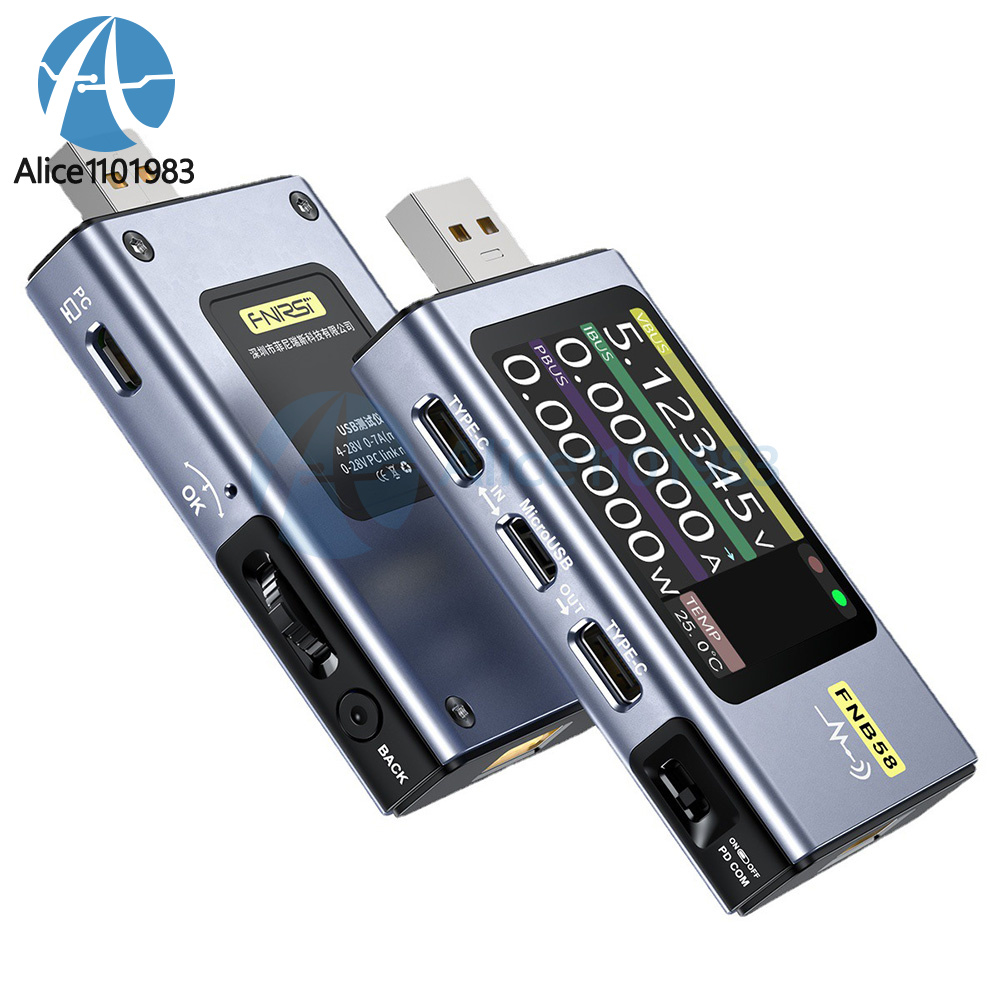

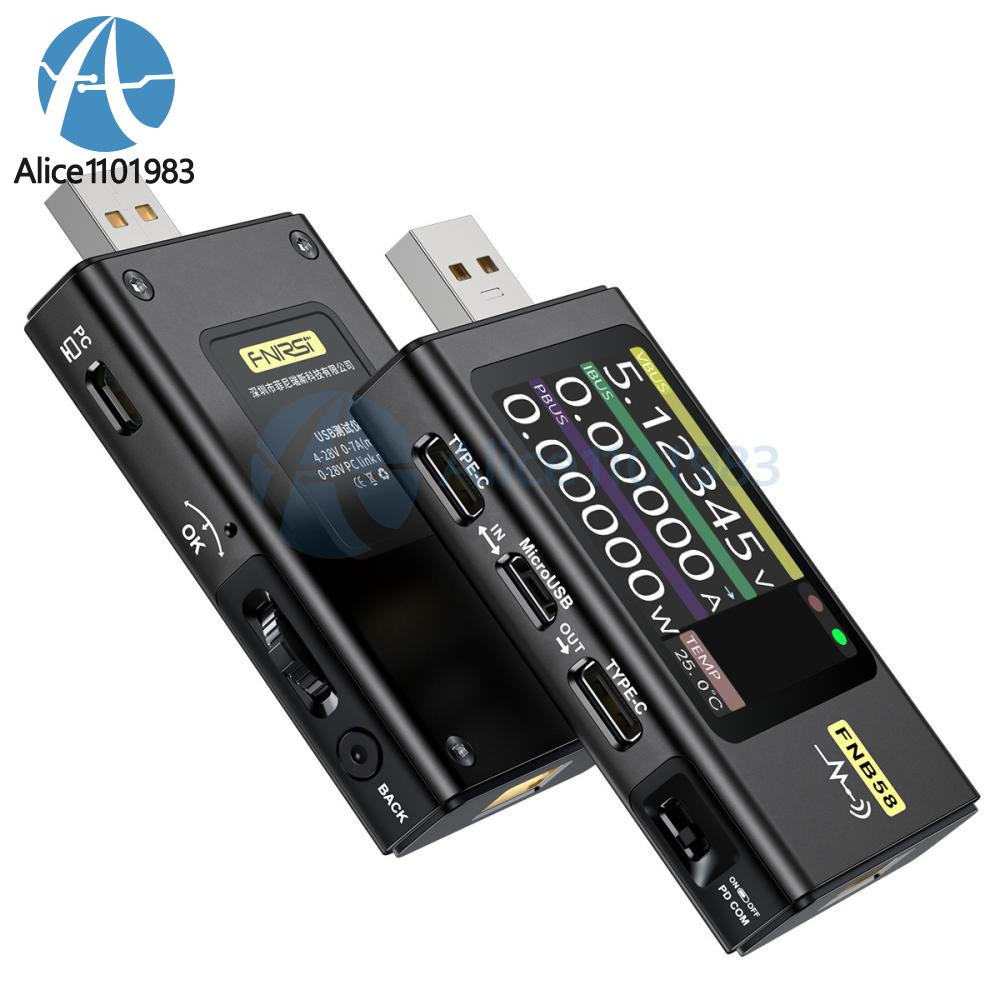

FNB58

Product Features:

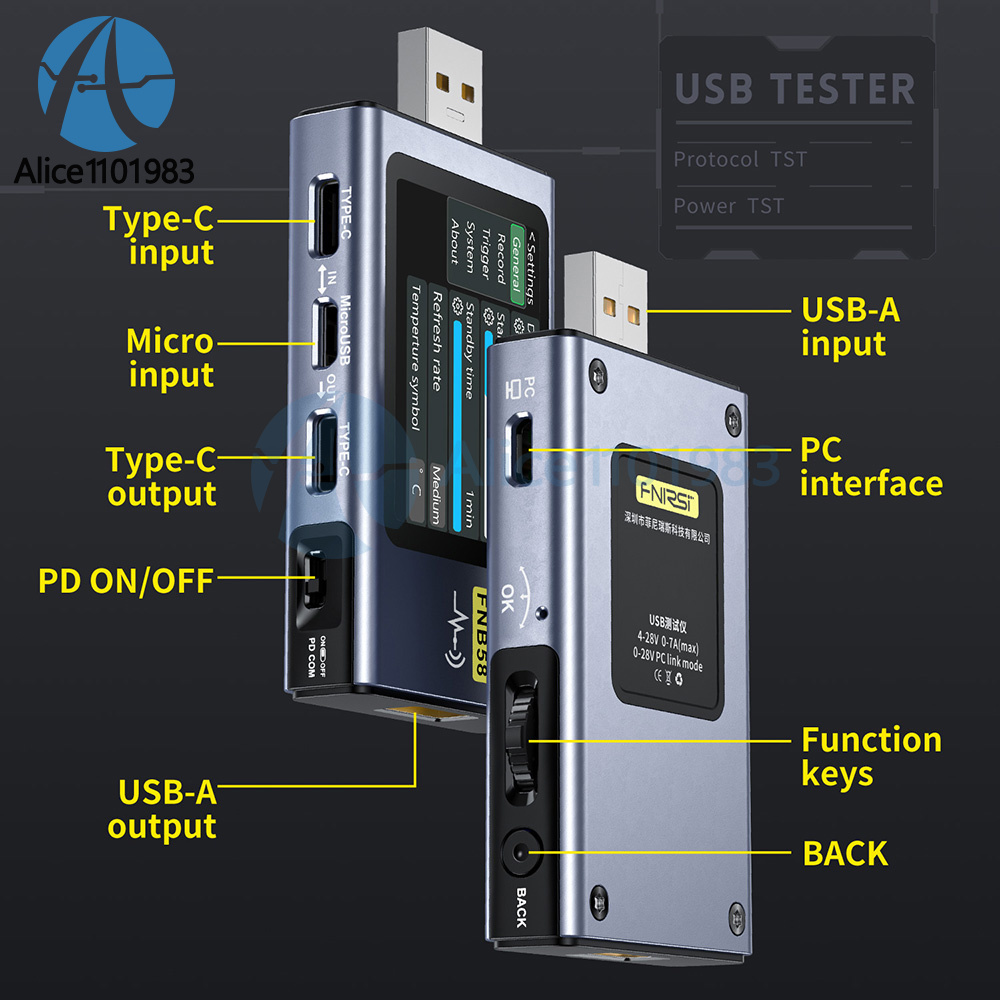

1. Full interface compatible with large display, data at the bottom, equipped with 2.0-inch LCD high-definition display, measurement data clearly visible; with 5P high-current USB-A, 24P full-pin Type-C input and output interface, charging detection, a step faster.
2. strong compatibility, 0.00001 low resolution, real-time monitoring of the subtle changes in voltage, current and power during charging.

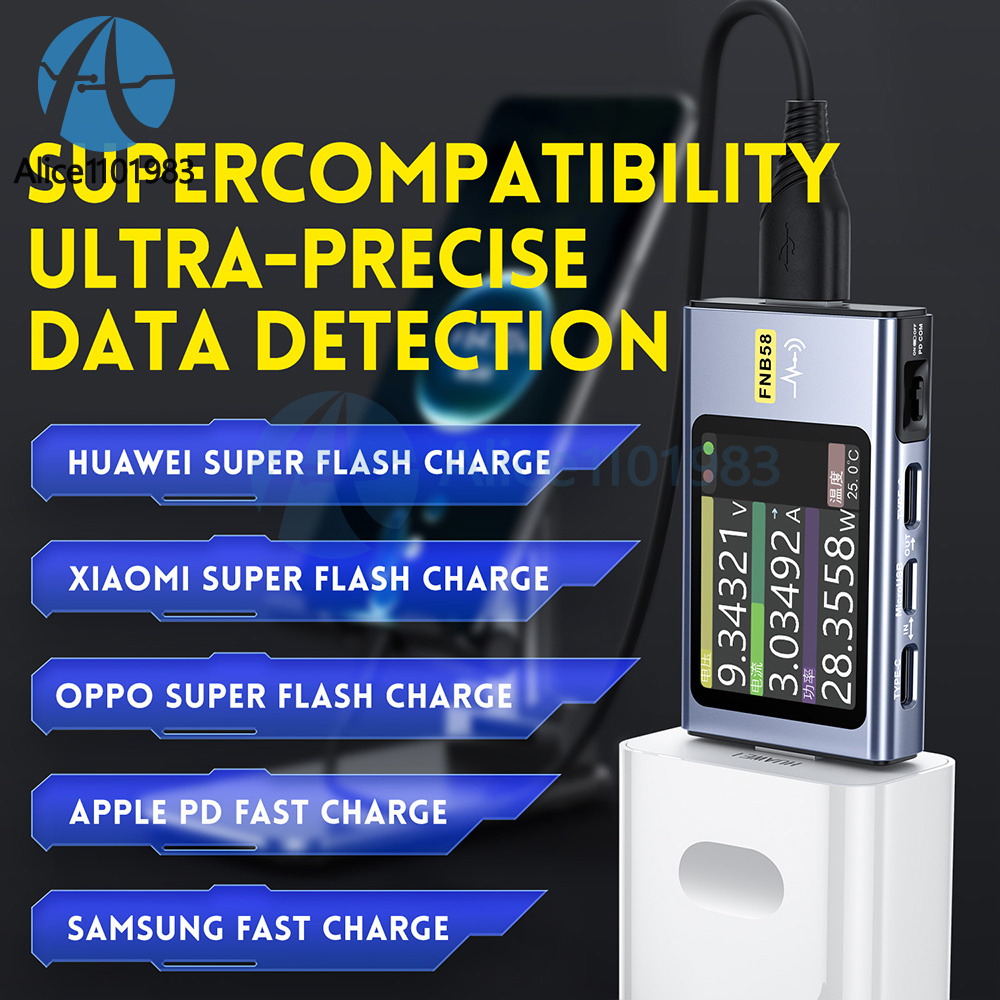

3. Support automatic protocol detection protocol decoy, PD2.0, 3.0, PPS, QC2.0, 3.0, QC4, FCP, SCP, AFC, PE, DASH VOOC, SuperVOOC ......
4. human-computer interaction, cell phone like intelligent operation, simple display interface; independent function menu; humanized operation.
5. 10 groups of energy records, battery capacity calculation in one step, support 10 groups of charge and discharge energy data records; built-in battery capacity calculation formula, through the recorded data can quickly calculate the battery capacity.
6. Bluetooth APP and upper computer, driver-free installation, synchronized data, efficient and convenient; Bluetooth APP over-voltage and over-current alarm. (Only with Bluetooth version)

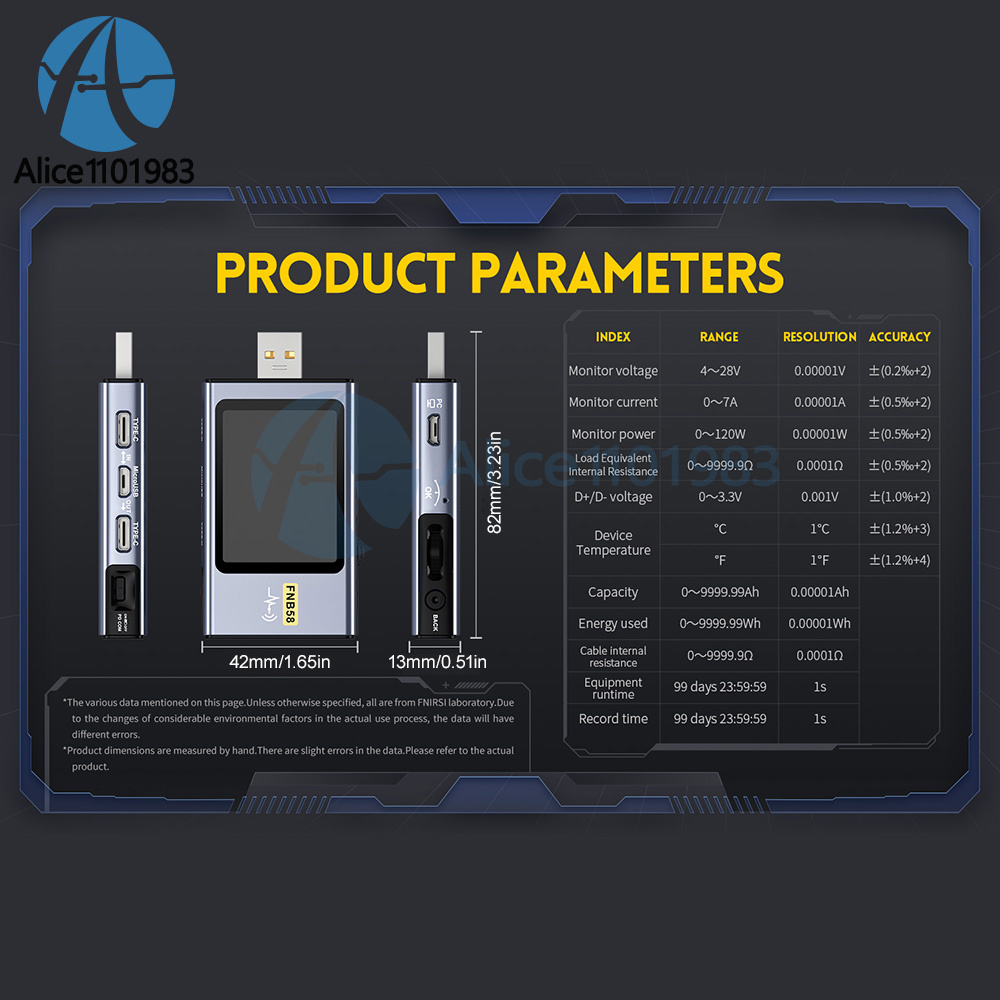

Product parameters:
2 styles: without Bluetooth version, with Bluetooth version
Monitoring voltage: 4~28V resolution 0.00001V ±(0.2%o+2)
Monitoring Current: 0~7V Resolution 0.00001A ±(0.5%o+2)
Monitoring Power: 0~120W Resolution 0.00001W ±(0.5%o+2)
Load Equivalent Internal Resistance: 0~9999.9Ω Resolution 0.0001Ω ±(0.5%o+2)
D+/D- Voltage: 0~3.3V Resolution 0.001V ±(1.0%+2)
Device Temperature: ℃ , °F
Capacity: 0~9999.99Ah
Power consumption: 0~9999.99Wh
Cable internal resistance: 0~9999.9Ω
Equipment running time: 99 days 23 hours 59 minutes 59 seconds
Recording time: 99 days 23 hours 59 minutes 59 seconds

Product list:
FNB 58 Tester X1

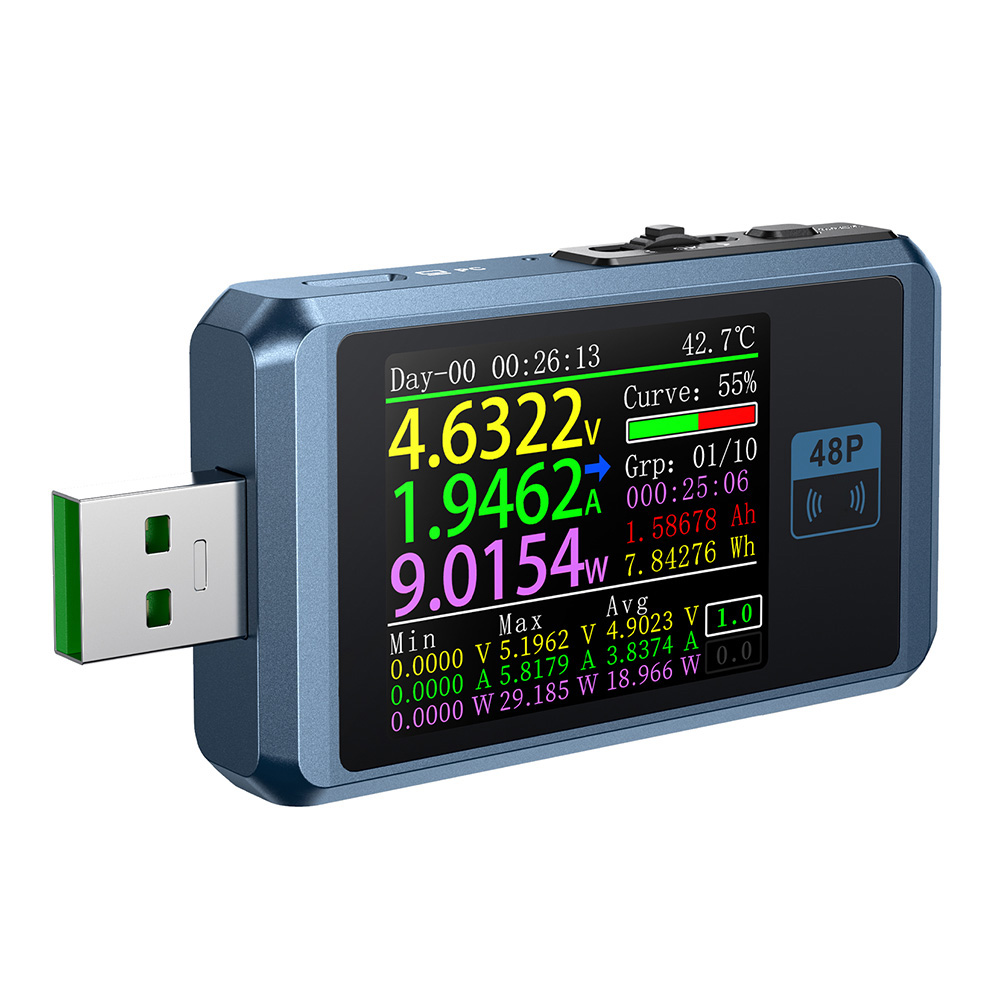

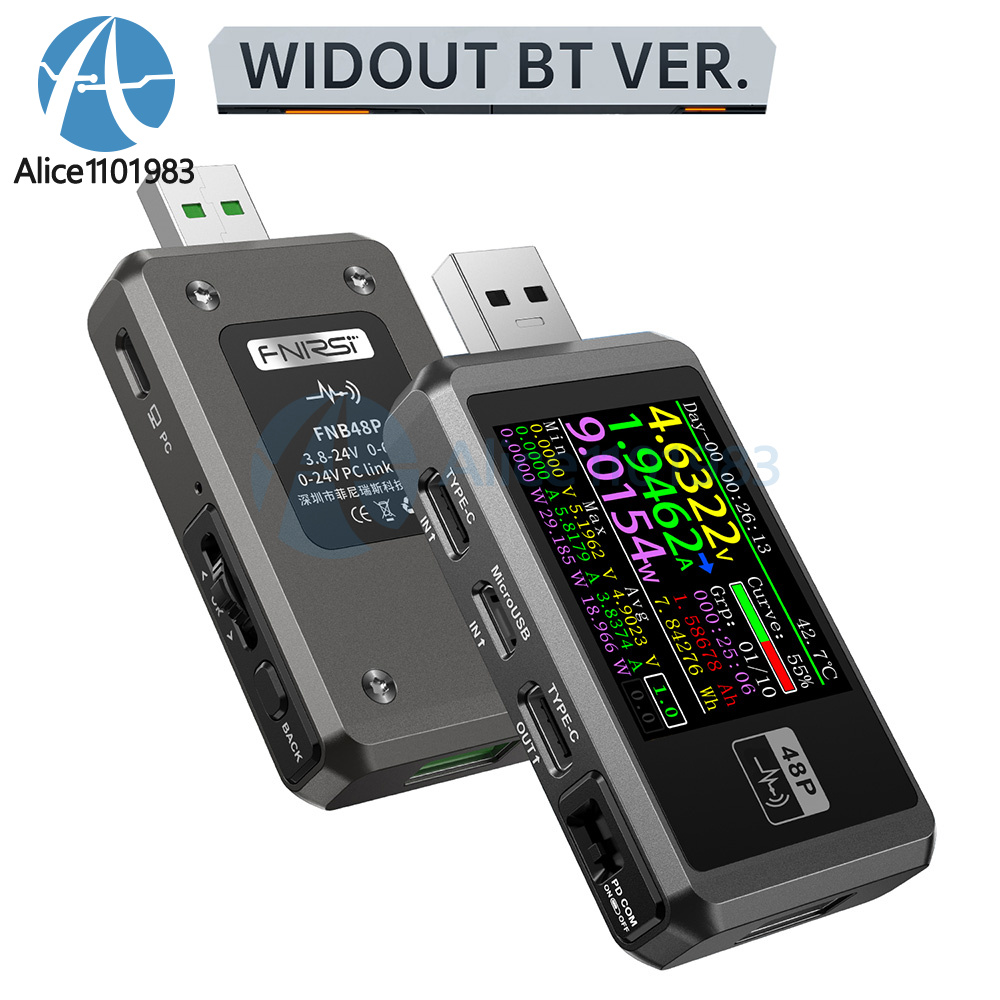

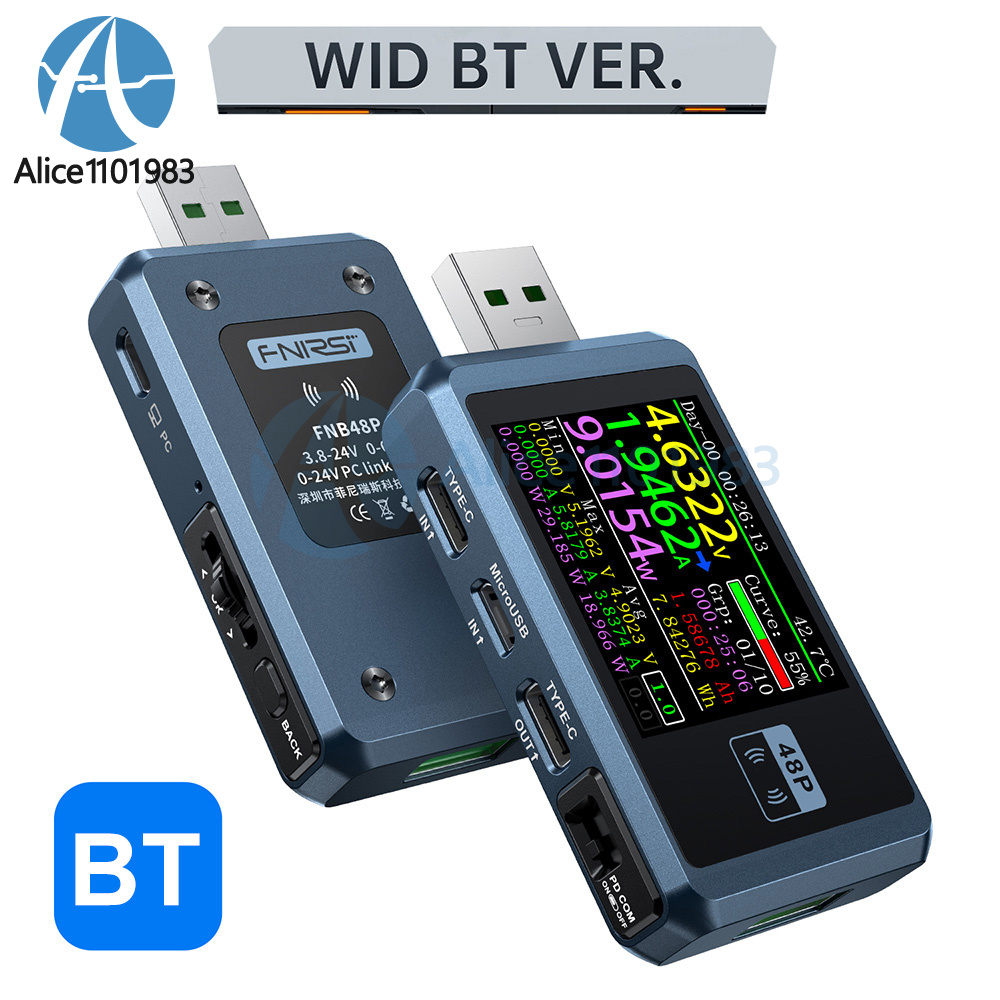

FNB48P

Product features:
1.6.5A large current, maximum resolution 0.00001, real-time monitoring of subtle changes in voltage, current and power during charging
2.6 Digits display high precision, supporting multiple fast charging protocols
3. CNC metal shell design, light and delicate touch, with 1.77-inch high-definition display screen, multiple displays on one screen, and clear data at a glance
4. The mainstream fast charging protocol can detect deception
5. Equipped with gravity sensing function, 360-degree rollover is comprehensive and supports closing/opening
6.10 Group data intelligent recording
7. Multi-USB port compatibility

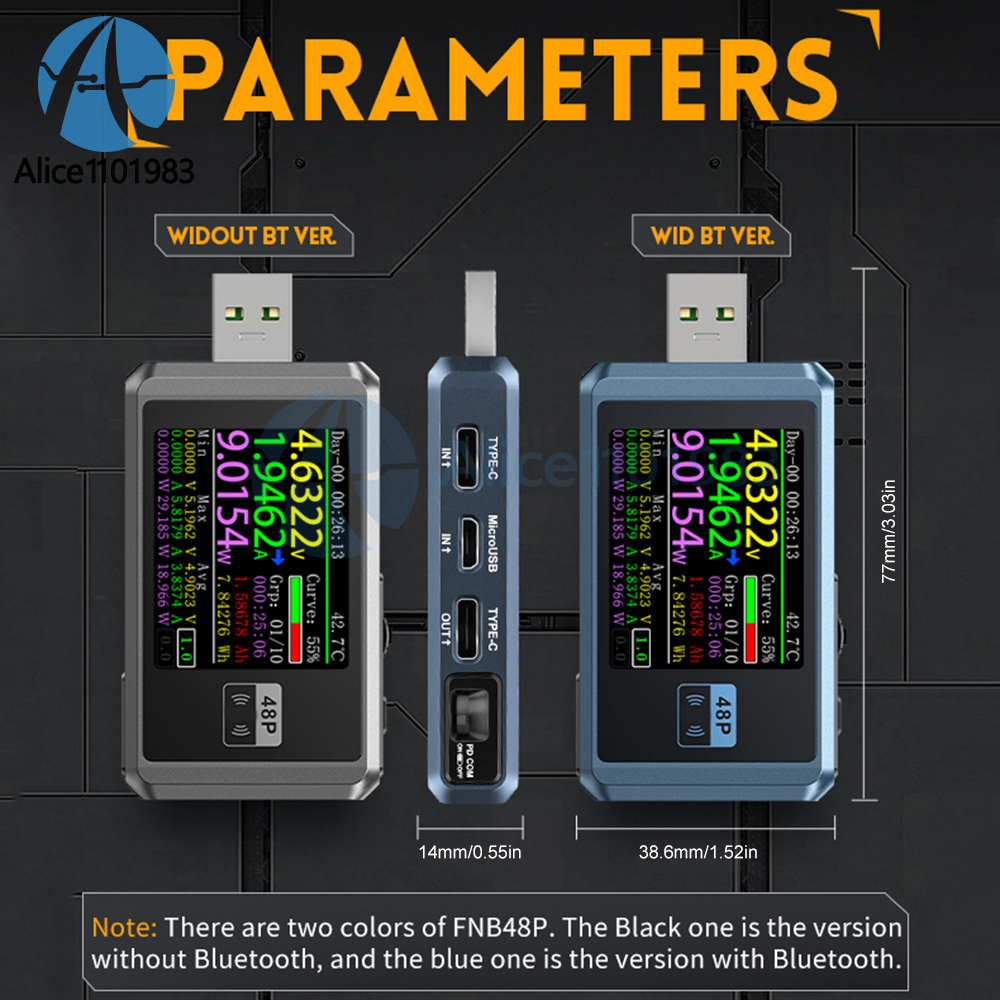

Product parameters:
Monitoring voltage: 4~24V, resolution: 0.00001V, accuracy: ± (0.2%+2)
Monitoring current: 0~6.5A, resolution: 0.00001A, accuracy: ± (0.5%+2)
Monitoring power: 0~156W, resolution: 0.00001W, accuracy: ± (0.5%+2)
Load equivalent internal resistance: 0~9999.9 Ω, resolution: 0.0001 Ω, accuracy: ± (0.5%+2)
D+/D-voltage: 0~3.3V, resolution: 0.001 V, accuracy: ± (1.0%+2)
Equipment temperature: ℃, resolution: 1 ℃, accuracy: ± (1.2%+3), ℉, resolution: 1 ℉, accuracy: ± (1.2%+4)
Capacity: 0~9999.99Ah, resolution: 0.00001Ah
Power consumption: 0~9999.99Wh, resolution: 0.00001Wh
Cable internal resistance: 0~9999.9 Ω, resolution: 0.0001 Ω
Running time: 99 days, 23 hours, 59 minutes, 59 seconds, resolution: 1 second
Recording time: 999 hours, 59 minutes, 59 seconds, resolution: 1 second


Package list:
FNB48P USB charging tester * 1

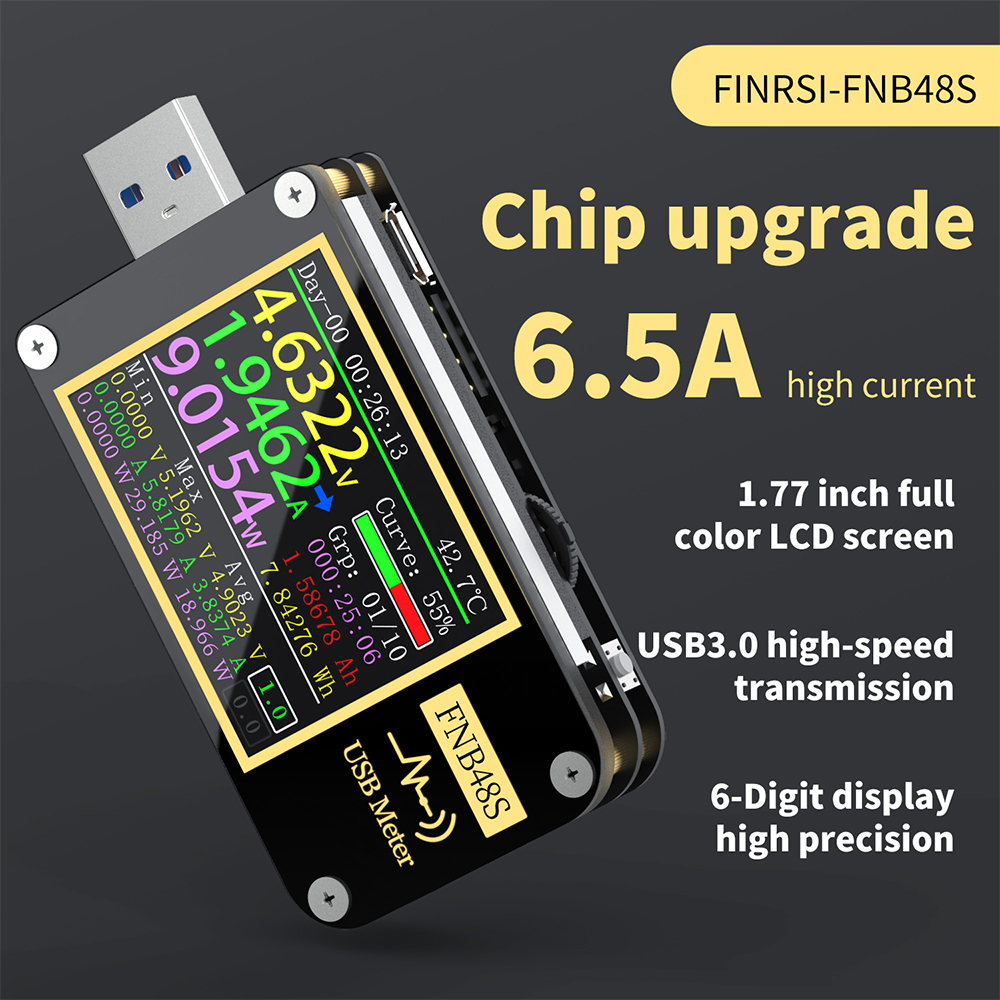

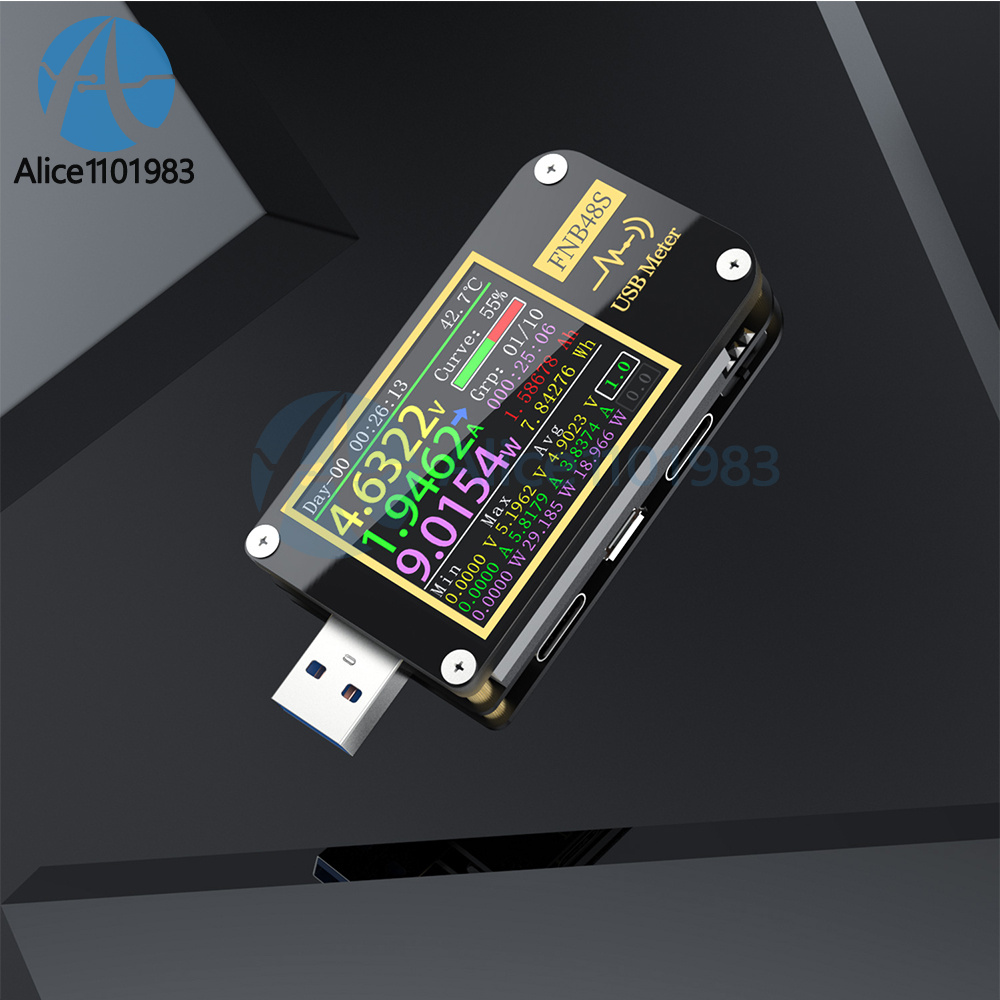

FNB48S

Description:

FNIRSI FNB48 Voltmeter Ammeter Current Quick Recharging Tester Protocol Tool PD Trigger Ammeter USB Tester QC4 PD3.0 2.0 PPS Capacity Test

This tool is an multifunction protocol capacity test tool, it integrated USB-A, Micro-USB, type-C interface, with 1.77 inch high definition display screen, using external 16-bit ADC, PD protocol physical chip, which can real-time monitoring of the voltage, current, power, capacity, recharging protocol, curve waveform and so on, come on and try it, it will not let you down.



Features:

Five-bit or six-bit display can be switched by one button , with the maximum resolution of 0.00001, which can real time monitoring of the subtle changes in voltage, current and power during recharging.

This product uses USB3.0 interface, 9 pin design, downward compatible with USB2.0,+ times the transmission rate of USB2.0.There is no need to use the primary data cable, it can also directly test the recharger agreement of some mobile phones.

It is in small size, so you can take it with you to anywhere you want to use it, or you can take it and share it with your friends.

This product can record 10 sets of measurement data, you can use the data you get to calculate the capacity of battery.

This product directly add the calculate formula on this product, the result multiply 1000 to get the capacity of battery.

This product support read the data of E-Marker and DASH cable, and the chips of e-marker and DASH cables can be easily read after connecting the data lines.

This product support screen flip function, through the gravity-induction, the screen can be free to flip, you can also turn off gravity-direction recognition and flip the screen by long pressing the middle key.

This product uses differential pressure method to measure cable resistance. It is used with constant current load to easily detect cable resistance.



Specifications:

Material: ABS

Monitor voltage: 4~24V

Monitor voltage resolution: 0.00001V

Monitor voltage accuracy: ±（0.2%+2）

Monitor current: 0~6.5A

Monitor current resolution: 0.00001A

Monitor current accuracy: ±（0.5%+2）

Monitor power: 0~156W

Monitor current resolution: 0.00001W

Monitor current accuracy: ±（0.5%+2）

Load equivalent international resistance: 0~9999.9Ω

Load equivalent international resistance resolution: 0.0001Ω

Load equivalent international resistance accuracy: ±（0.5%+2）

Capacity: 0~9999.99Ah

Energy used: 0~9999.99Wh

Cable resistance: 0~9999.99Ω

D+/D- voltage: 0~3.3V

D+/D- voltage resolution: 0.001V

D+/D- voltage accuracy: ±（1.0%+2）

Equipment temperature: ℃/℉

Package size: 91 * 63 * 19mm / 3.6 * 2.5 * 0.7in

Package weight: 55g / 1.9ounce



Packing list:

FNIRSI FNB48S Tester*1
