Model: 1103
Applicable voltage: 1-2S
KV value: 15000

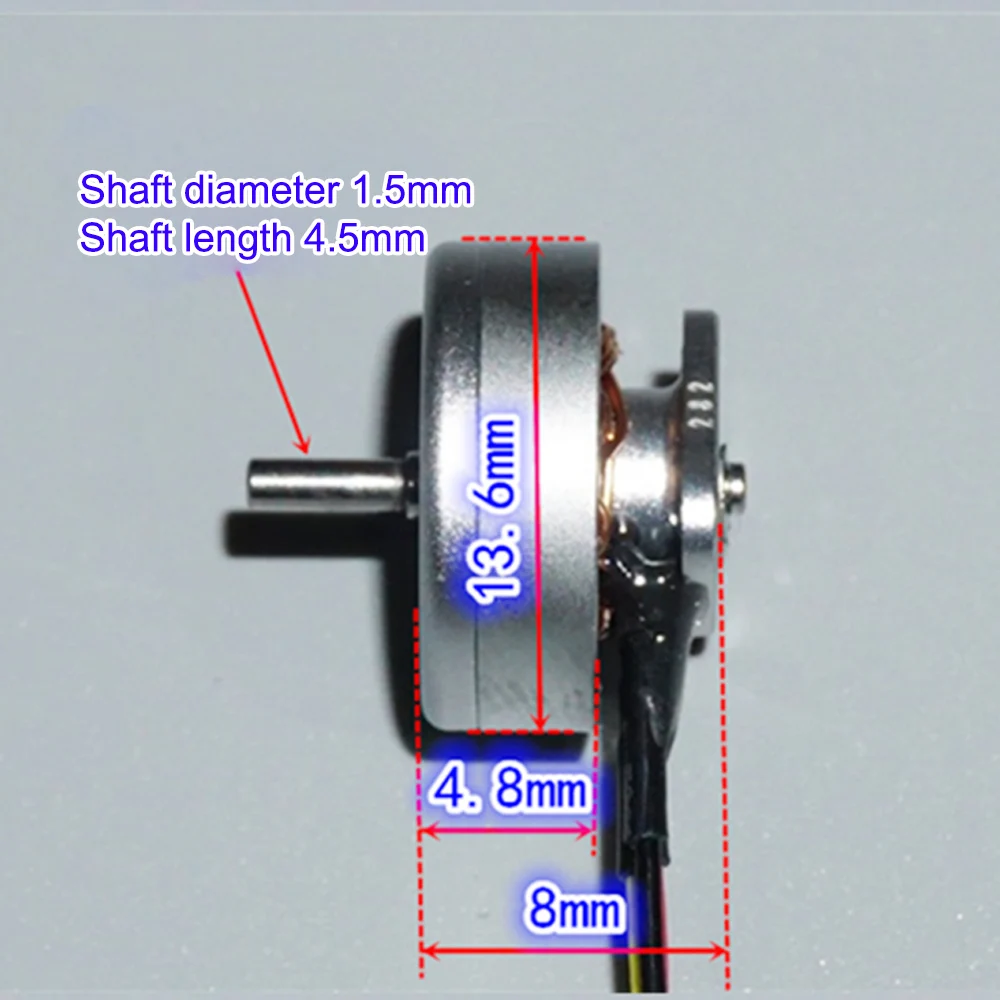

Shaft diameter: 1.5mm
Shaft length: 4.5mm
The motor is suitable for 1-2S lithium battery work, depending on their matching blade size, etc., 2S paddle is recommended as GF1635-4 /GF1610-2 /GF1608-3, recommended inversion, formal outfit may be a little loose, 1S recommended paddle is GF1636-4.
Thrust test data (blade GF1635-4), 1S voltage: 50% throttle 22g, 75% throttle 41g, 100% throttle 50g.
2S voltage: 25%throttle 26g, 50%throttle 54g, 75%throttle 85g, 100% throttle over 100g.
Recommended rack: mobula7 formal, ACK75 flip, beta75pro, toothpick machine and most of the general three-hole rack.
Generally 1S can be used about 10A, 2S is recommended 15-20A
Package Include:
1PCS * DC Motor
