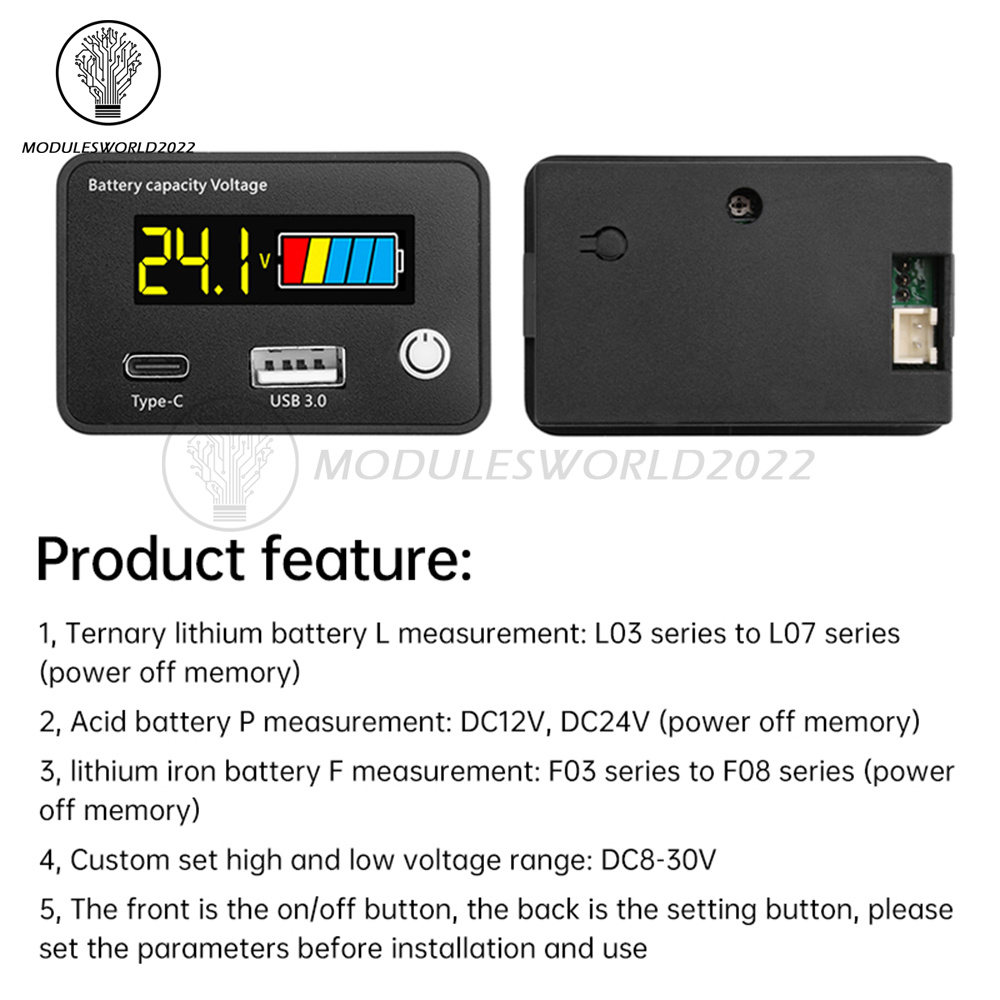

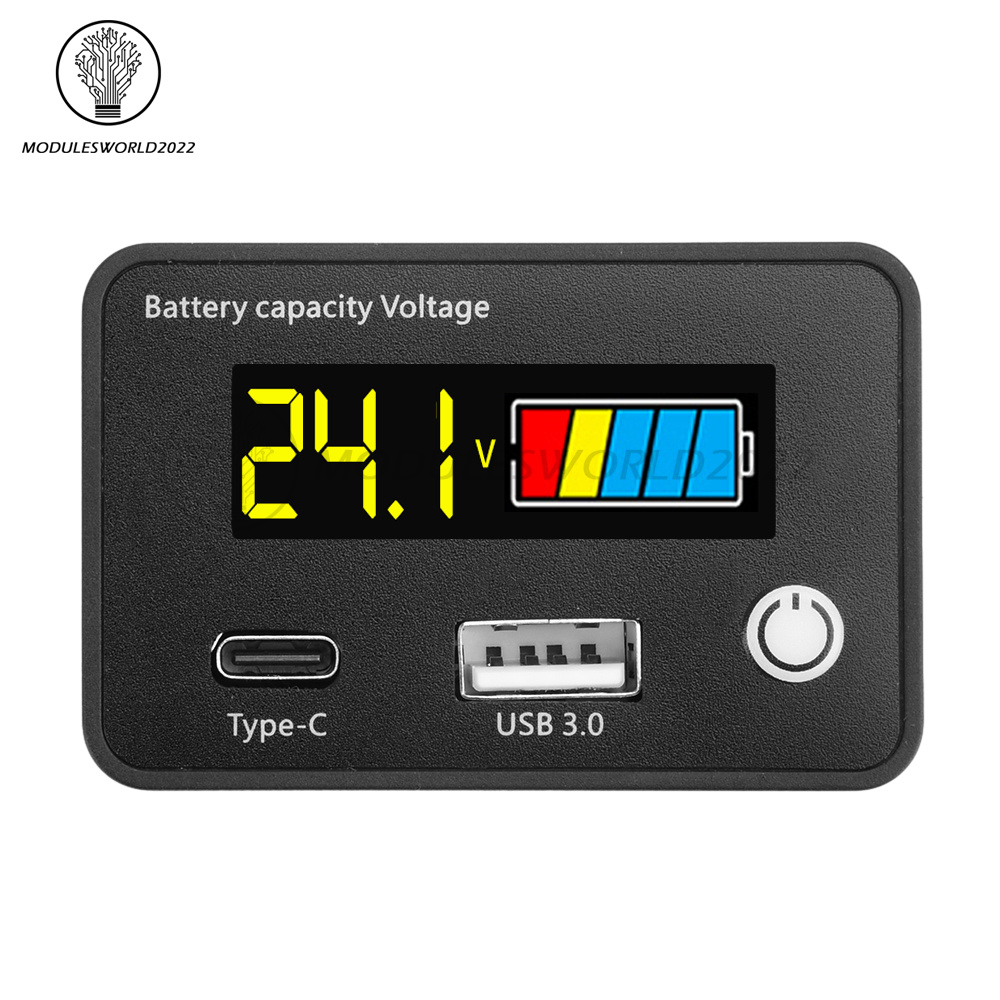

1. Measurement of ternary lithium battery L: L03 series to L07 series (power-off memory)
2. Lead acid battery P measurement: DC12V, DC24V (power-off memory)
3. Measurement of lithium iron battery F: F03 series to F08 series (power-off memory)
4. Custom setting high and low voltage range: DC8-30V

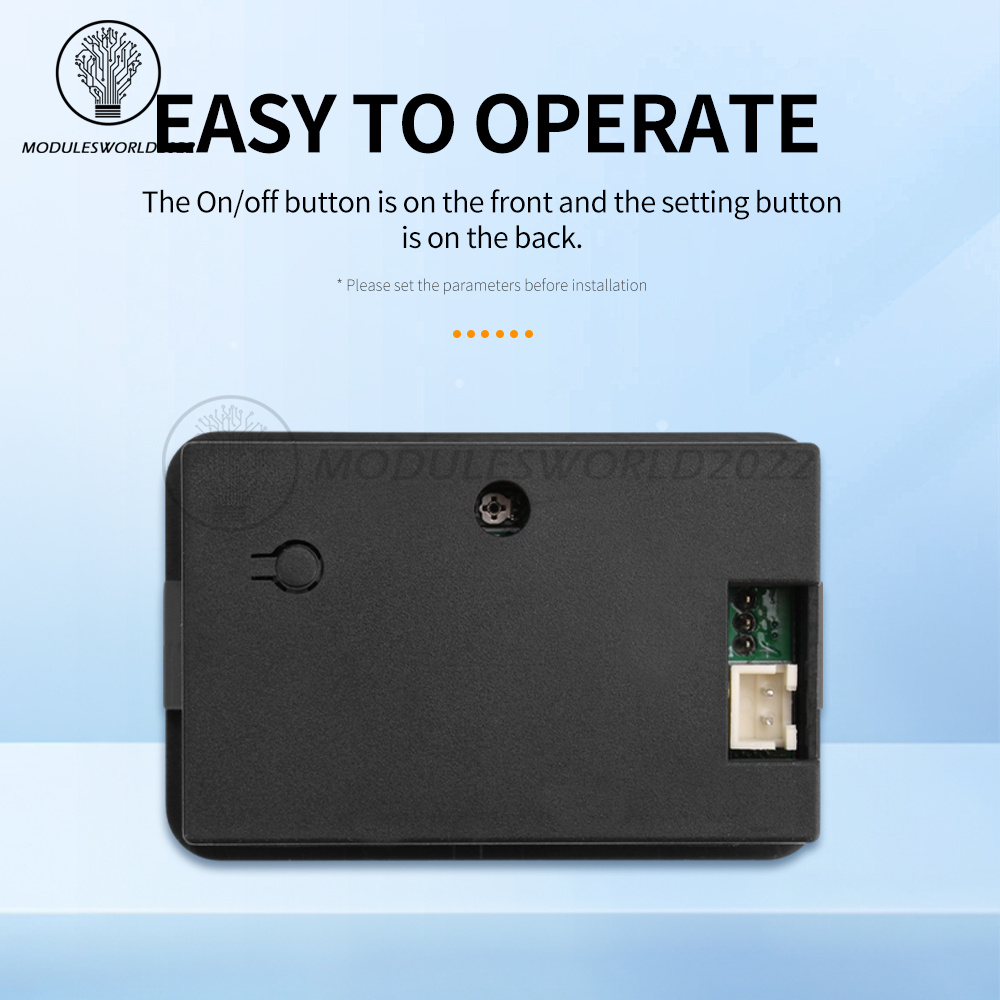

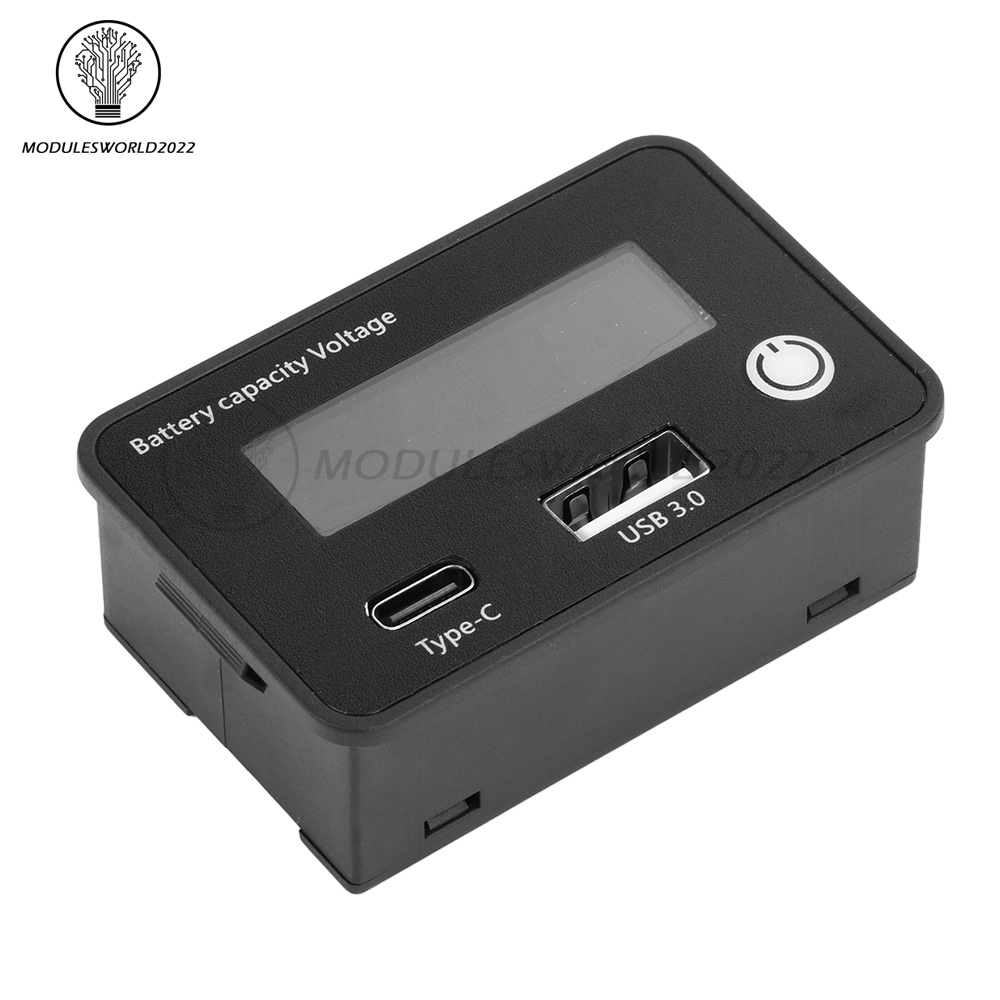

5. The front is the power on/off button, and the back is the settings button. Please set the parameters before installing and using

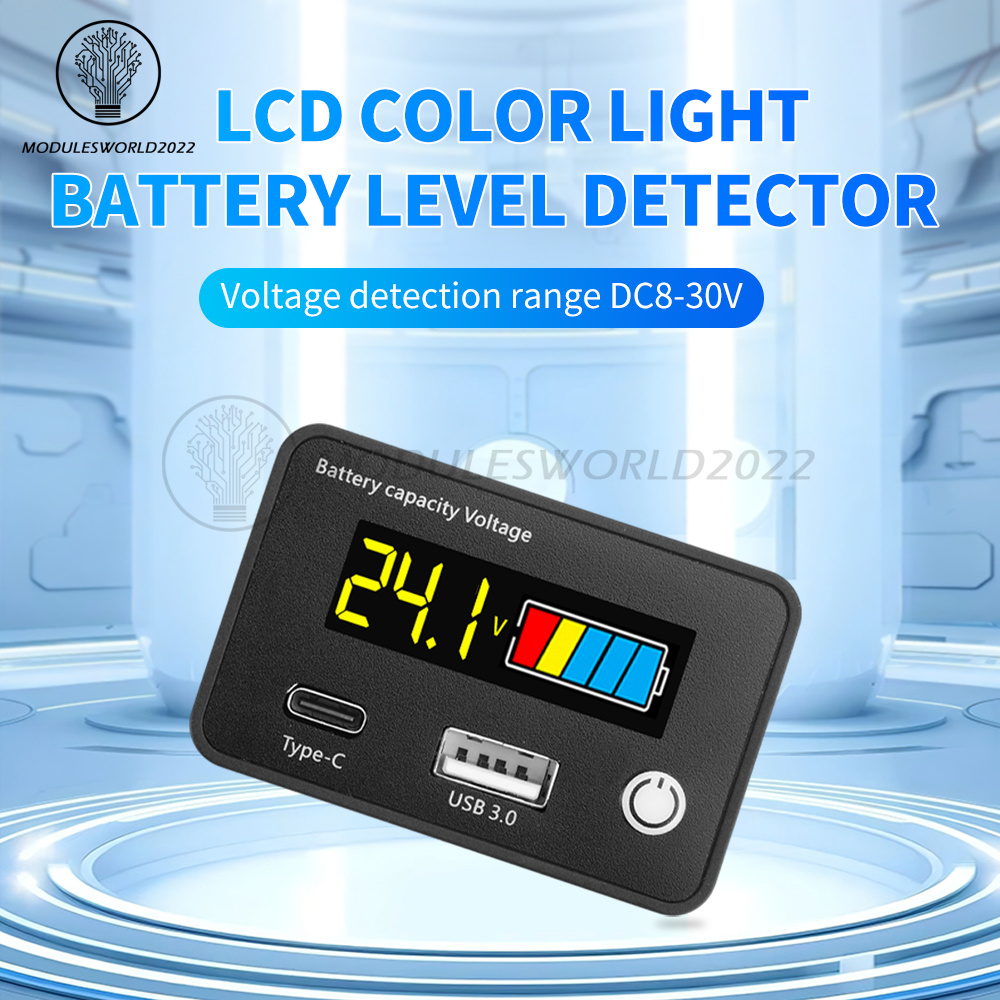

1. Voltage detection range: DC8-30V
2. Working current: ＜ 15mA (without charging function)

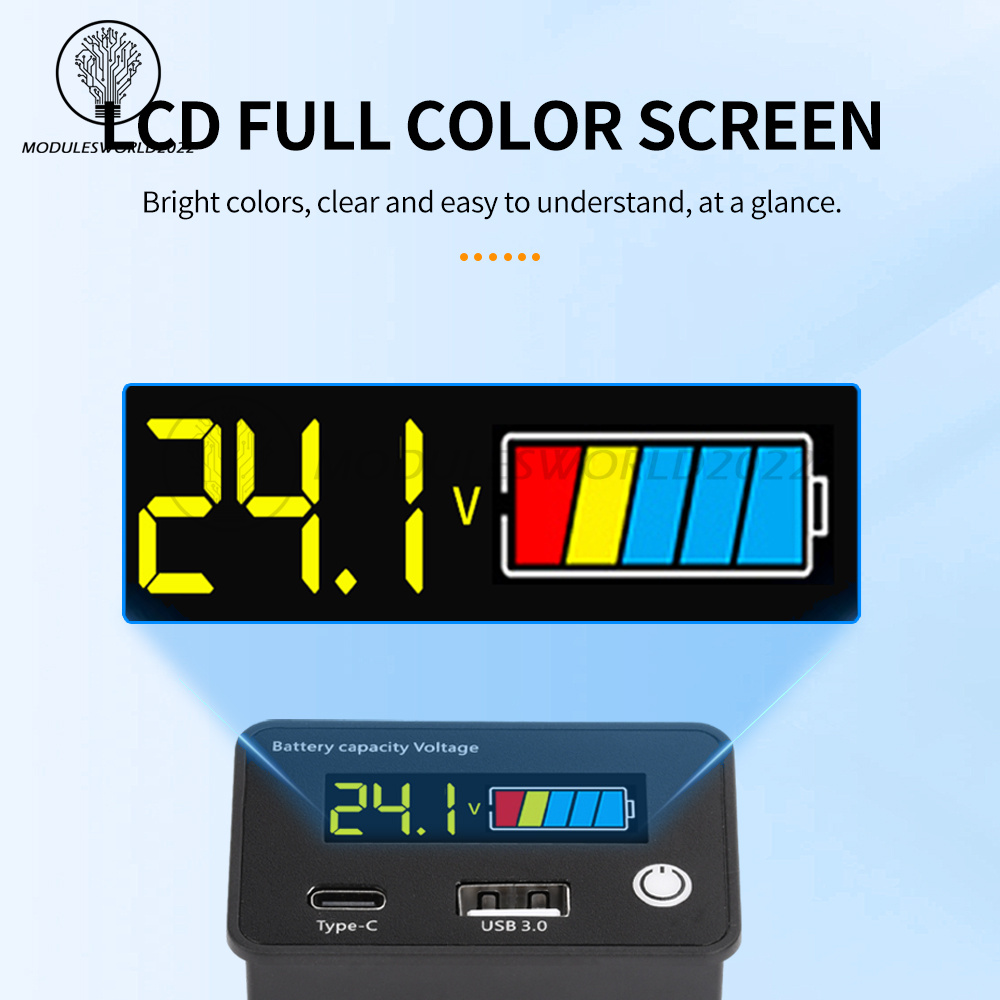

3. Display mode: LCD screen
4. Display screen color: green/blue/white/color screen
5. Model: 6140
6. Temperature display (optional)

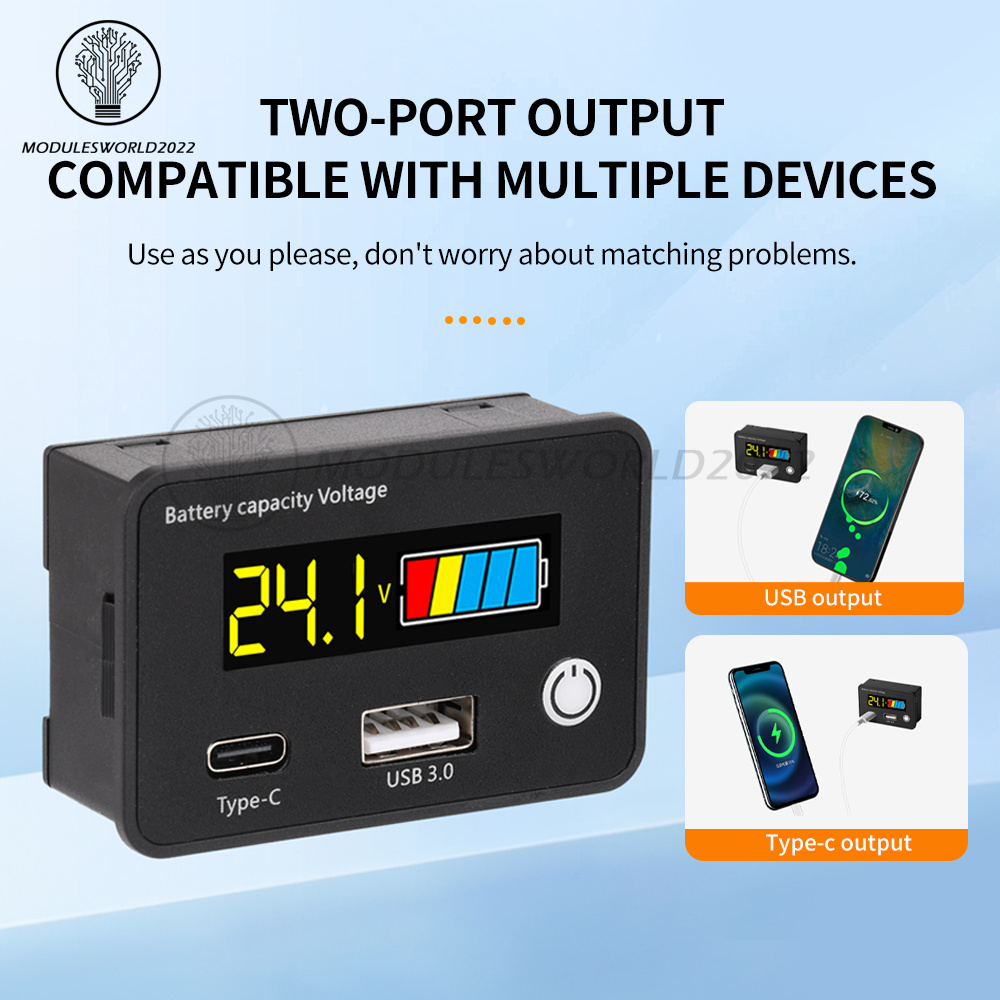

7. USB output: QC2.0, QC3.0, maximum output 18W (5V-3.4A, 9V-2A, 12V-1.5A)
8. Typec output: QC2.0, QC3.0, maximum output 18W (5V-3.1A, 7V-2.4A, 9V-2A, 12V-1.5A)
9. Detection accuracy: ± 1%
10. Refresh rate: 500ms/time

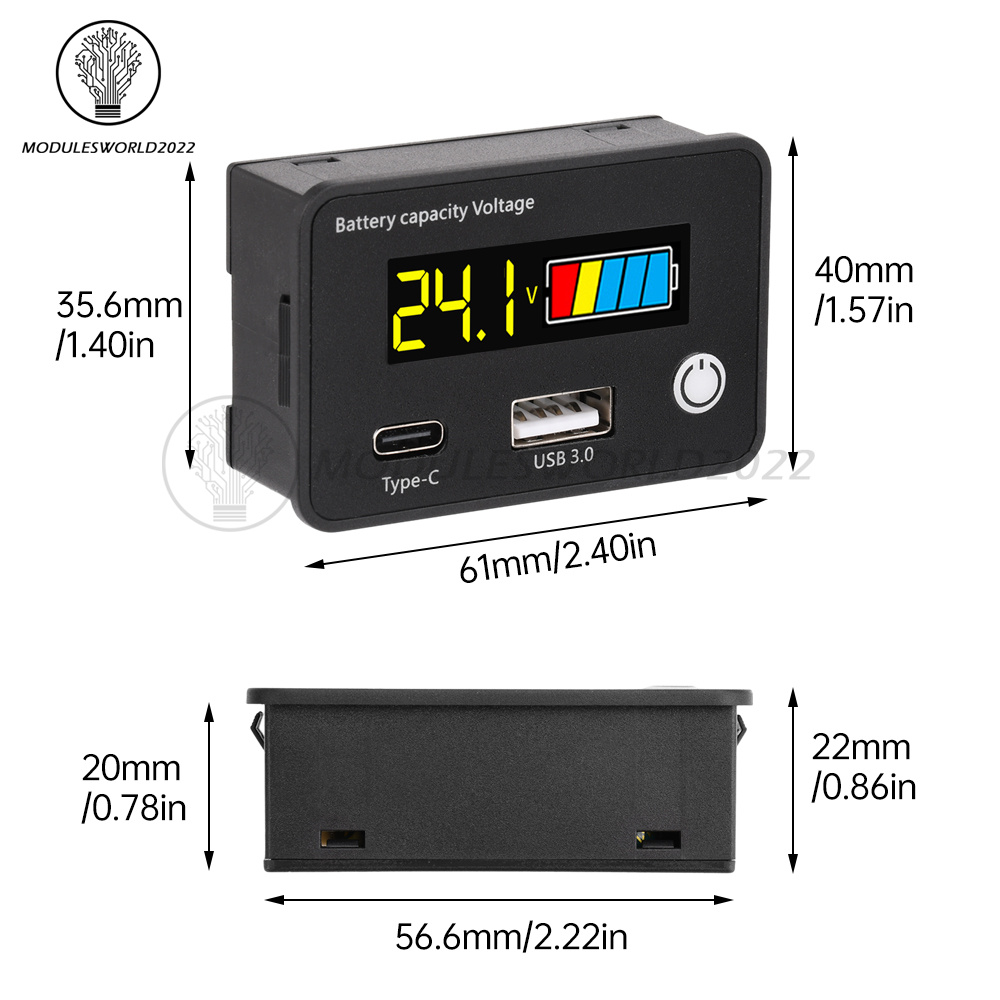

11. Installation size: 58.5mm * 36.5mm
12. Appearance dimensions: 61mm * 40mm * 22mm

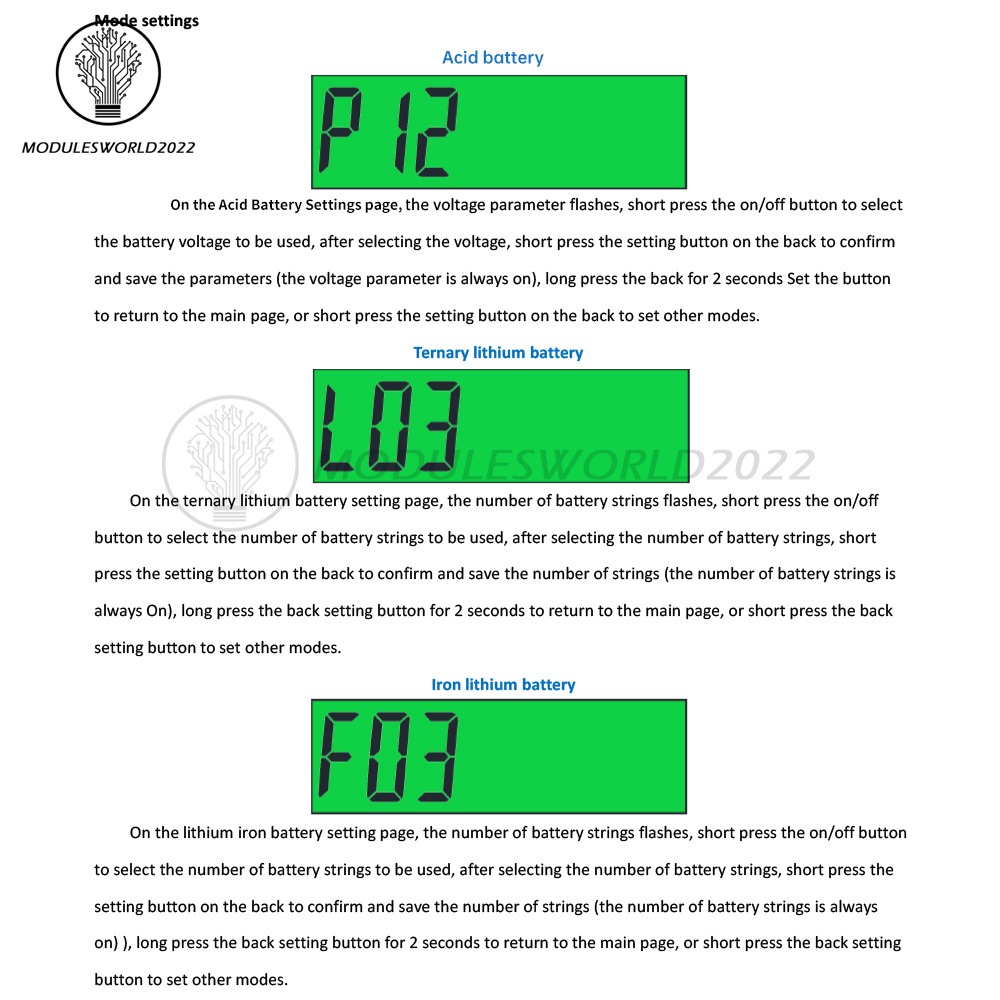

Mode 1- Lead acid P setting;
Mode 2- Ternary Lithium L Setting;
Mode 3- Iron lithium F setting;
Mode 4- Custom high and low voltage settings;
Mode 5- Low voltage alarm setting (alarm when voltage is lower than this parameter);
Mode 6- Backlight Time Setting;
be careful:
There are two types of lithium batteries (ternary lithium L and iron lithium F), let's distinguish them; Firstly, fully charge the battery. The saturation voltage of a ternary lithium battery string is DC4.2V, and the saturation voltage of an iron lithium battery string is DC3.6V; For example, the saturation voltage display is 29.4V (7 strings), which is a ternary lithium battery. Then select the parameters according to the setting mode of the ternary lithium battery.

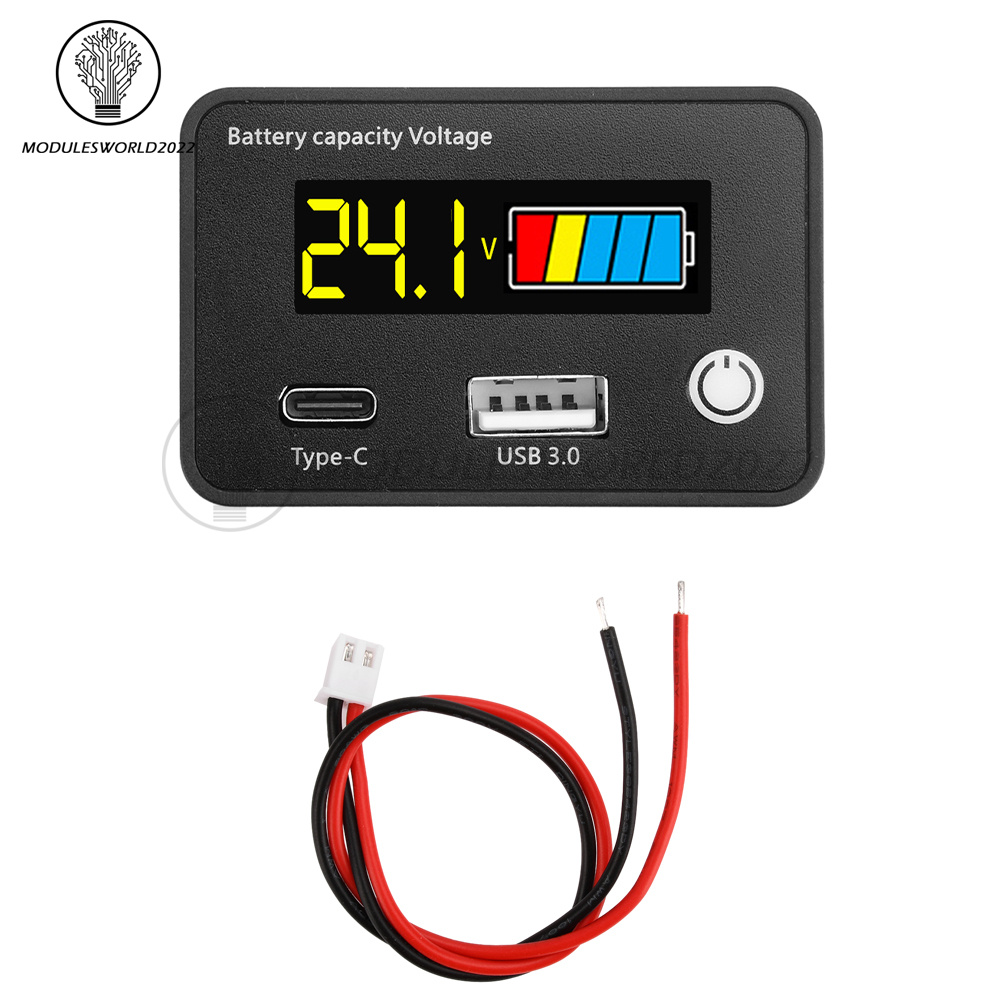

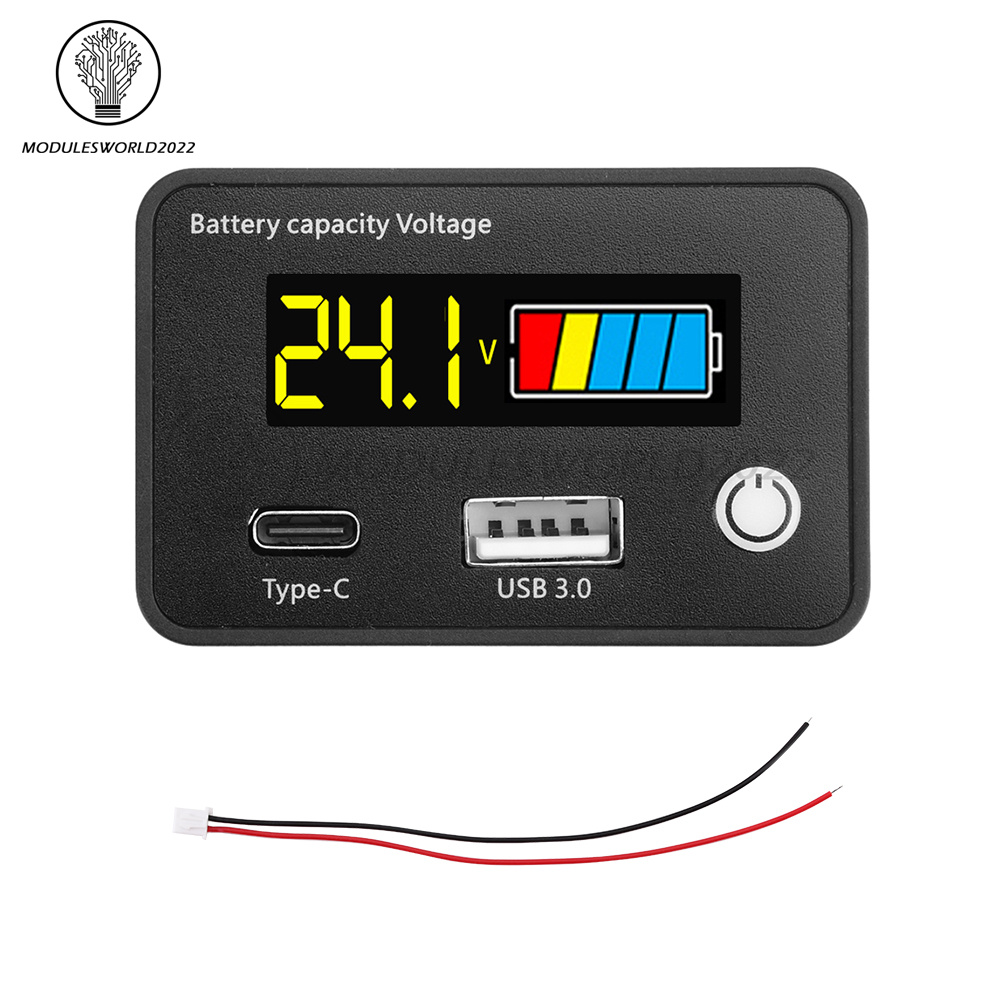

LCD battery level detector * 1+wire * 1
