Product Type: Starter |
Replaces: 0203323-M020SM 18-6434 0203323M020SM 0203740M030SM |
  • Starter Type: PMDD |
  • Volts: 12 |
  • Teeth On Drive: 10 |
  • Rotation: Counterclockwise |
  • Source: Aftermarket
Over 30,000 aftermarket & original parts
Open 24 Hours
8-6 EST SALE SUPPORT
English/Español/Call Us Today
Rare Electrical
Parts for all applications

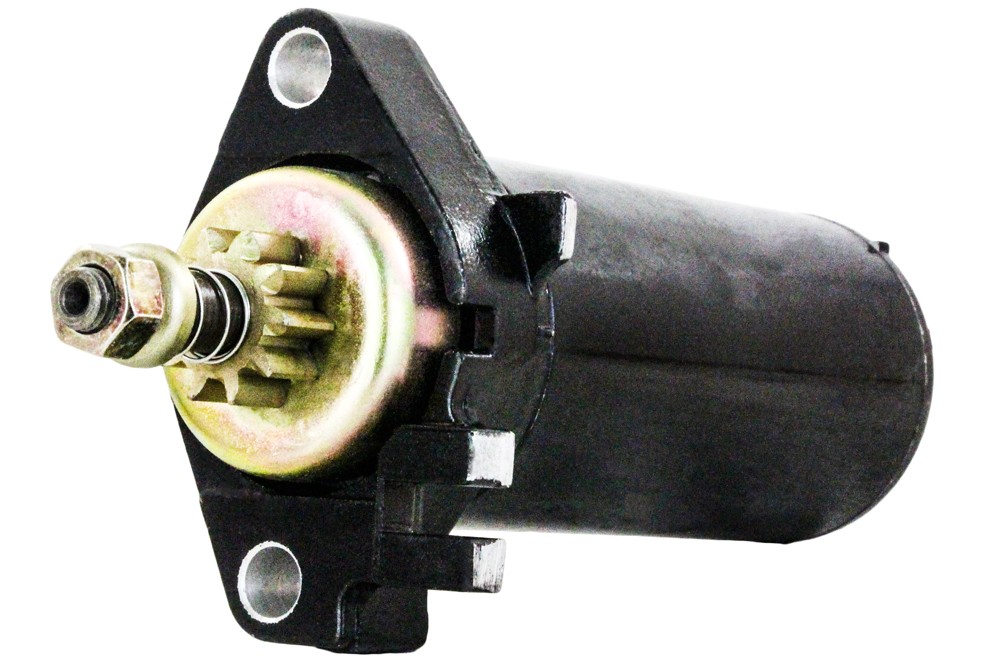

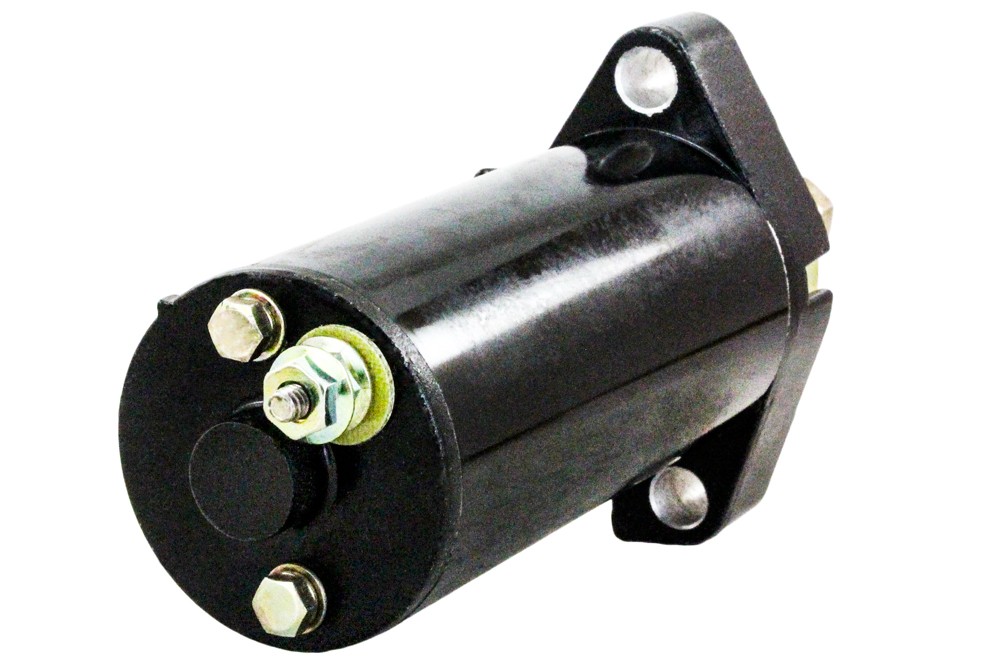

Outboard Starter Evinrude BE8FR 8HP Johnson 9.9HP 15HP 2-Cyl 4-Stroke 386430

Replaces Part Numbers & Specifications

OEM PART NUMBERS:
• OMC/BRP: 386430 / 0386430
• OMC/BRP: 586276 / 0586276
• OMC/BRP: 763454 / 0763454
• Johnson Electric/UTB: 0203323-M020SM / 0203323M020SM
• Johnson Electric/UTB: 0203740-M030SM / 0203740M030SM
• Johnson Electric/UTB: SM02033
• Johnson Electric/UTB: 0203340
• Johnson Electric/UTB: 5659240

SPECIFICATIONS:
• Type: PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V
• Rotation: CCW (Counter-Clockwise)
• Teeth: 10
• Pinion/Gear OD: 22.4mm / 0.882"
• Field Housing Length: 102mm / 4.01"
• Weight: 2.91 lbs / 1.32 kg
• SAE J1171 Marine Ignition Protection Certified
• Condition: New

EVINRUDE & JOHNSON OUTBOARD APPLICATIONS:
• Evinrude 9.9HP 2-Cyl 2-Stroke 13.2ci: E10, E10E, E10EL, E10REL, E10SEL (1974-1993)
• Evinrude 15HP 2-Cyl 2-Stroke 13.2ci: E15, E15E, E15EC, E15EE, E15EL, E15R, E15REL (1974-1993)
• Evinrude 9.9/15HP 2-Cyl 2-Stroke 15.6ci: E10F (1994-1997)
• Evinrude 8HP 4-Stroke: BE8FR, E8FR (1996-1998)
• Evinrude 9.9HP 4-Stroke: BE10FA, BE10FC, BE10FW, E10FO (1996-1998)
• Johnson 9.9HP 2-Cyl 2-Stroke 13.2ci: 10, 10E, 10EL, 10RE, 10REL, 10SE, 10SEL (1974-1993)
• Johnson 15HP 2-Cyl 2-Stroke 13.2ci: 15, 15E, 15EL, 15RE, 15REL (1974-1993)
• Johnson 8HP/9.9HP 4-Stroke (1997-1998)

AFTERMARKET CROSS REFERENCE:
• Arco Marine: 5369
• Sierra: 18-6434

Product Notice

As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.



EVINRUDE OUTBOARD — 2-STROKE 13.2CI / 216cc (1974-1993):
• E10 9.9HP 2-Cyl 2-Stroke 13.2ci (1974-1979)
• E10E 9.9HP 2-Cyl 2-Stroke 13.2ci (1985-1993)
• E10EL 9.9HP 2-Cyl 2-Stroke 13.2ci (1980-1993)
• E10REL 9.9HP 2-Cyl 2-Stroke 13.2ci (1990-1993)
• E10SEL 9.9HP 2-Cyl 2-Stroke 13.2ci (1980-1993)
• E15 15HP 2-Cyl 2-Stroke 13.2ci (1974-1979)
• E15E 15HP 2-Cyl 2-Stroke 13.2ci (1980-1993)
• E15EC 15HP 2-Cyl 2-Stroke 13.2ci (1980-1989)
• E15EE 15HP 2-Cyl 2-Stroke 13.2ci (1990-1993)
• E15EL 15HP 2-Cyl 2-Stroke 13.2ci (1980-1989)
• E15R 15HP 2-Cyl 2-Stroke 13.2ci (1990-1993)
• E15REL 15HP 2-Cyl 2-Stroke 13.2ci (1990-1993)

EVINRUDE OUTBOARD — 2-STROKE 15.6CI / 256cc (1994-1997):
• E10F 9.9HP/15HP 2-Cyl 2-Stroke 15.6ci (1994-1997)

EVINRUDE OUTBOARD — 4-STROKE (1996-1998):
• BE8FR 8HP 2-Cyl 4-Stroke (1996-1998)
• E8FR 8HP 2-Cyl 4-Stroke (1996-1998)
• BE10FA 9.9HP 2-Cyl 4-Stroke (1996-1997)
• BE10FC 9.9HP 2-Cyl 4-Stroke (1996-1997)
• BE10FW 9.9HP 2-Cyl 4-Stroke (1996-1997)
• E10FO 9.9HP 2-Cyl 4-Stroke (1998)

JOHNSON OUTBOARD — 2-STROKE 13.2CI / 216cc (1974-1993):
• 10E 9.9HP 2-Cyl 2-Stroke 13.2ci (1985-1992)
• 10EL 9.9HP 2-Cyl 2-Stroke 13.2ci (1980-1993)
• 10RE 9.9HP 2-Cyl 2-Stroke 13.2ci (1990-1992)
• 10REL 9.9HP 2-Cyl 2-Stroke 13.2ci (1990-1993)
• 10SE 9.9HP 2-Cyl 2-Stroke 13.2ci (1980-1992)
• 10SEL 9.9HP 2-Cyl 2-Stroke 13.2ci (1980-1993)
• 10 9.9HP 2-Cyl 2-Stroke (1974-1979)
• 15E 15HP 2-Cyl 2-Stroke 13.2ci (1980-1992)
• 15EL 15HP 2-Cyl 2-Stroke 13.2ci (1980-1993)
• 15RE 15HP 2-Cyl 2-Stroke 13.2ci (1990-1992)
• 15REL 15HP 2-Cyl 2-Stroke 13.2ci (1990-1993)
• 15 15HP 2-Cyl 2-Stroke (1974-1979)

JOHNSON OUTBOARD — 4-STROKE (1997-1998):
• 8HP 2-Cyl 4-Stroke (1997-1998)
• 9.9HP 2-Cyl 4-Stroke (1997-1998)
